We offer the best product range of Tie Mold CNC Milling Machine, Tire Mold CNC Milling Machine and Tire Mold CNC Engraving Machine.

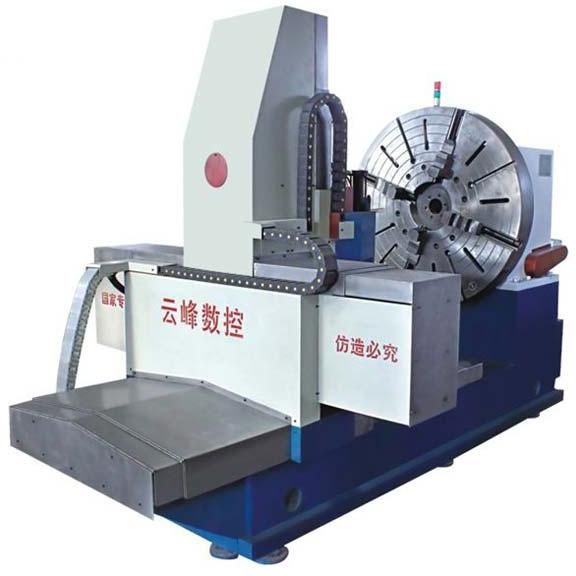

Tie Mold CNC Milling Machine

Tie Mold CNC Milling Machine is specially used for pattern ring processing of all steel tie molds. The feeding guide surface of our Tie Mold CNC Milling Machine is equipped with self-lubricating roller linear guide rail. Four-axis linkage system of our Tie Mold CNC Milling Machine is known for its superior performance, high precision and reliability. It shortens the processing time of EDM processing and improves the production efficiency significantly.

Attributes :

High-precision, high rigidity, impact-resistant and self-lubricating linear guide rail
Outstanding load-bearing capacity and high speed
Rotary axis, automatic clearance elimination, and automatic locking device

Technical Specifications

Model	YFX-1600
Operating system	Taiwan Pou Yuen system (optionai)
X-axis stroke	600mm
A- axis	0~360°
A- axis rotary axis	Worm gear high precision indexing plate (with automatic clearance elimination device)
Each servo axis motor	Huada and Yaskawa (optional)
Spindle power	3.7KW
Spindle speed	50-8,000 revolution/min (Taiwan Kenturn,optional)
Screw	Taiwan HIWIN ball screw
Linear guide rail	Taiwan HIWIN linear guide rail
Chuck diameter	1250mm
Machining diameter range	650~1600mmï spindle BT30 750~1600mmï spindle BT40
Maximum load	3000kg
Weight of machine tool	10000kg
Boundary dimensinon of machine tool	3700×2250×2300mm
Positioning accuracy	0.02mm/300mm
Repeated positioning accuracy	0.009mm/300mm
Maximum machining speed	6000mm/min
Fast feeding speed	10000mm/min

View Complete Details

Ask Latest Price & Details

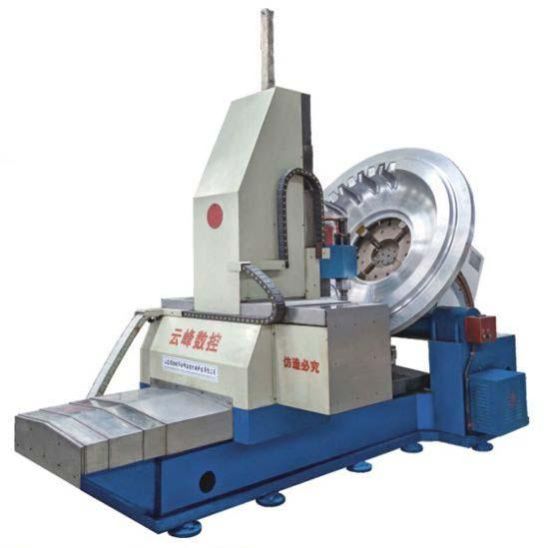

Tire Mold CNC Milling Machine

Tire Mold CNC Milling Machine is one of the special tire mold processing machines. The main mechanism of our Tire Mold CNC Milling Machine has been granted a national patent. The machine is provided with four servo axis (three straight axes and one rotary axis) and one working disc. Our Tire Mold CNC Milling Machine does not require EDM processing, which reduces the cost and improves production efficiency. It has become the first choice for tire mold processing.

Technical Specifications

Model	YFX-2500F
Operating system	Taiwan Pou Yuen system (optionai)
X-axis stroke	600mm	The stroke is subject to variation as per customer requirements
Y- axis stroke	1200mm
Z- axis stroke	900mm
A- axis	0~360°
A- axis rotary axis	Worm gear high precision indexing plate (with automatic clearance elimination device)
Each servo axis motor	Huada and Yaskawa (optional)
Spindle speed	50-8,000 revolution/min (Taiwan Kenturn,optional)
Spindle power	7.5W
Screw	Taiwan HIWIN ball screw
Linear guide rail	Taiwan HIWIN linear guide rail
Chuck diameter	1,250mm(steel chuck)
Machining diameter	500~2500mm
Maximum load	5000kg
Weight of machine tool	12000kg
Boundary dimensinon of machine tool	4200×2300×2700mm
Positioning accuracy	0.02mm/300mm
Repeated positioning accuracy	0.009mm/300mm
Rotary scope of working disc	0~90°
Maximum machining speed	6000mm/min
Fast feeding speed	10000mm/min
