Our Products
We are manufacturer of Hybrid Copper And Fiber Optic Cable in China, if you want to buy Fiber Copper Composite Hybrid Cable,Optical Fiber Hybrid Cable,Underground Fiber Optic Cable please contact us.
Application :
Additional Information:
Packaging Details : Packaging Material Carton , Wooden , Plastic
Customized Packaging Facility Yes

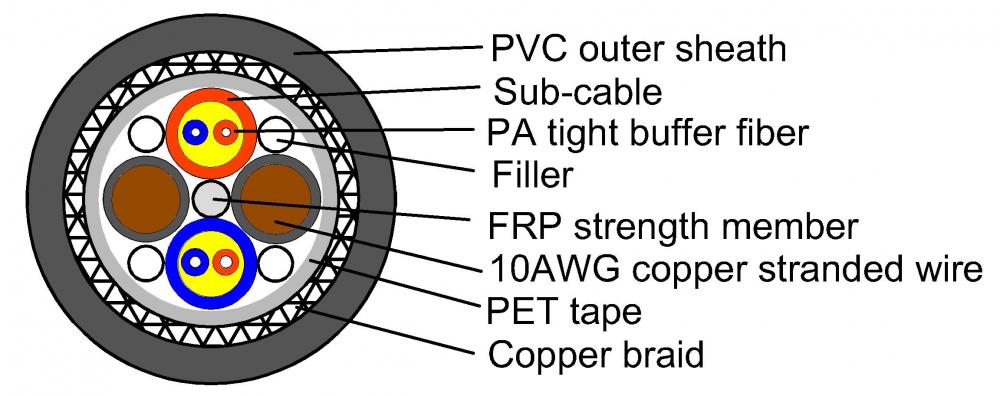

Technical Parameters
| Items | Description | |
|---|---|---|
| Number of fiber | 4 G.657A | |
| Fiber optic Sub-cable, 2fiber each | Sub-cable jacket | PVC (Blue and Orange) |
| PA tight buffer fiber | 0.87±0.05mm/clear PA ,blue and orange colored fiber | |
| Sub-cable diameter | 3.65±0.1mm | |
| 10AWG copper stranded wire sub-cable | Jacket | THHW-PVC (red and black) |
| Max. resistance 20 | 3.41Ω/km | |
| Diameter | 4.32±0.1mm | |
| Copper braid | >90% | |
| Outer jacket | PVC | |
| Color of Jacket | Black ,UV resistant | |
| Out sheath thickness | 1.8±0.2mm | |
| FRP strength member diameter | 1.8mm | |
| Cable diameter | 12.8±0.2mm | |
| Approx. weight cable Kg/Km | 250 | |
Mechanical And Environmental Data
| Temperature range | Storage/Shipping temperature range Operating temperature range |
- | -40~ +70 |
| Min. Bending Radius | Operation | mm | 80mm |
| Installation | mm | 100mm | |
| Max. Tension (N) | Short-term | N | 1600 |
| Long-term | N | 500 | |
| Max. Crushing Resistance (N/100mm²) | Short-term | N/100mm | 1800 |
| Long-term | N/100mm | 500 |
Optical Preformances
| Optical Transmission Performance | Single mode 1310/1550nm |
Multimode 850/1300nm |
|||
| 9/125μm (OS2) |
62.5/125μm (OM1) |
50/125 μm (OM2) |
50/125 μm (OM3) |
50/125 μm (OM4) |
|
| Max. Attenuation(dB/km) | 0.4/0.3 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 |
| Typ. Attenuation(dB/km) | 0.34/0.21 | 2.7/0.6 | 2.5/0.7 | 2.3/0.6 | 2.3/0.6 |
| Bandwidth (MHz/km) | N/A | 200/600 | 500/500 | 1500/500 | 3500/500 |
| 850nm laser bandwidth(MHz/km) | N/A | N/A | N/A | 2000 | 4700 |
| Numerical aperture | 0.13±0.01 | 0.275±0.015 | 0.200±0.015 | 0.200±0.015 | 0.200±0.015 |
Graph Image
Features :
Application : 100GBASE-LR4
Additional Information:
Packaging Details : Packaging Material Carton , Wooden , Plastic
Customized Packaging Facility Yes
Recommended Operating Conditions
| Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
|---|---|---|---|---|---|---|
| Operating Case Temperature | TC | -5 | - | 70 | °C | - |
| Power Supply Voltage | VCC | 3.2 | 3.3 | 3.4 | V | - |
| Power Supply Current | ICC | - | - | 2.81 | A | - |
| Maximum Power Dissipation | PD | - | - | 9 | W | - |
| Aggregate Bit Rate | BRAVE | - | 103.125 | - | Gb/s | - |
| Lane Bit Rate | BRLANE | - | 25.78 | - | Gb/s | |
| Transmission Distance | TD | - | - | 10 | km | Over SMF |
