Shijiazhuang YUantong Artcut Numberical Control Equipment Co,Ltd.

Shijiazhuang, Heibei, China

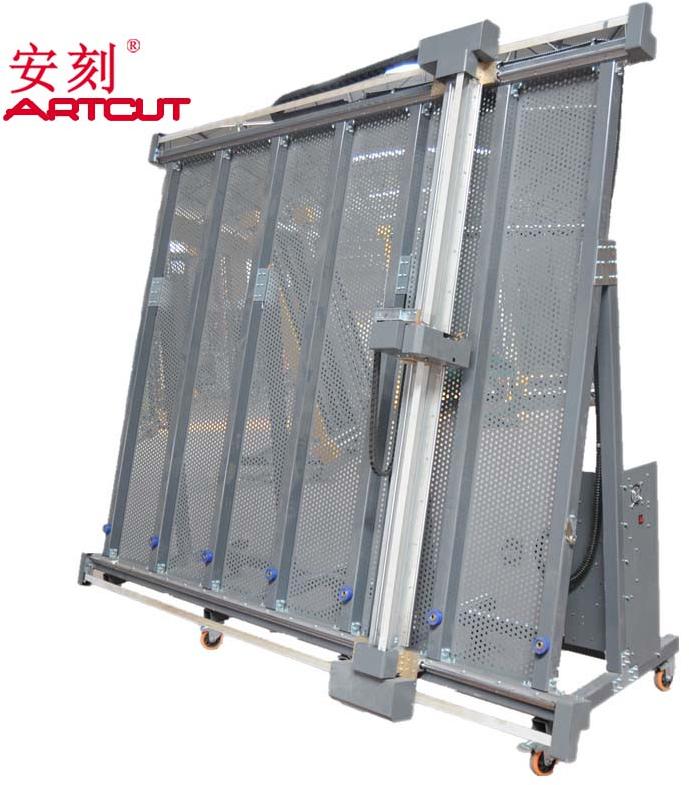

We offer vertical glass cutting protect film plotter. Model ak2000dmax.cutting wldth(mm) 1830*2440weight(kg) 290engraving tools knifedrawing command hp-gl g-code(*.plt *.eps *.dxf)cutting speed(mmin) 0-12mechanical precision(mm) 0.025repeat accuracy(mm) 0.1powersupply ac200v-ac240v50hz-60hzoerating environment normal room temperature support model verticaldimension(mm) 3250*2250*1150 application fileds:it is mainy uesd in the pattern engraving of the processing of art glass, such as sand blasting and fine carving, jade sand, ice engraving , emulsifying, coloured drawing or pattern color. (large and mediumsize glass processing customers) product advantages 1.adopt korean high-quality circular rail & quadrate rail, american linear stepping motor. Movement resolution:0.025mm, repeatability precision:0.01. 2.intensityadopt 5mm square steel, all parts are alloy, machine life can reach 10 years. No welded, no deformation by internal stress. 3.y-axis designedy-axis used the newest cantilever type & siding track structure, it use single belt to drive, high power motor, the speed is more faster, the running of the machine is more stably, improve the precision and speed greatly. 4.speedhongkong vectorsoft latest axis motion control board based on dsp. Engraving speed:18mmin, three times the ordinary machine. 5.control humanism design of positioning device, tilting block, easy and safety for load & unload the glass. the payment term30% down payment shall be paid by tt in advance, the balance paid by tt before shipment the packing international standard wooden case packing the goods deliveryduring20 days after receive your advance deposit after-sale servicethe machine warranty for one year.

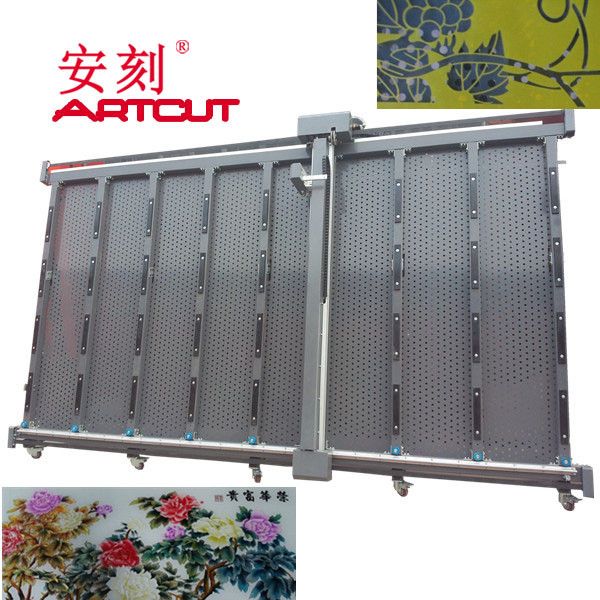

We offer vertical glass cutting protect film plotter ak3000d. Technical parameters model ak3000dmax.cutting wldth(mm) 1830*3300weight(kg) 340engraving tools knifedrawing command hp-gl g-code(*.plt *.eps *.dxf)cutting speed(mmin) 0-12mechanical precision(mm) 0.025repeat accuracy(mm) 0.1powersupply ac200v-ac240v50hz-60hzoerating environment normal room temperature support mode verticaldimension(mm) 3900*2250*1150 specificationvertical glass cutting plotter used to design on vinyl sticker, the machine work instead of traditional cutting plotter and hand plotting. Firstly stick the vinyl on glass, lean the glass against vertical glass cutting plotter, plot prepared graphic, tear off the spare sticker, then use defferent method, get different glass, such as sand blast glass, painting glass, acid etch glass, etc. The finished glass can be used as glass sliding door, glass partition, back ground wall and so on. advantages1.international standard steel frame 5 mm, the screw is fasten , no welding, no deformation. 2.y-axis used newest cantilever type & siding track structure3.single belt and high power moter to drive, the speed more fast and the running more stably. 4.the exclusive soft drop-knife system. 5.the main accessories of the famous brand in domestic and overseas. The payment term30% down payment shall be paid by tt in advance, the balance paid by tt before shipment the goods deliveryduring 20 working days after receive your advance deposit the warranty limite time one year during this time we can be free of providing the equipment parts, phone service, help on the line vedio , remote control help etc.

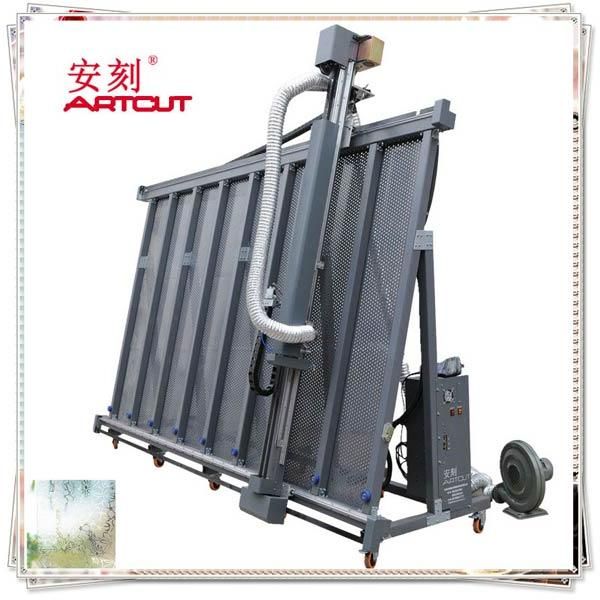

We offer laser glass cutting plotter. The model: ak2000dthe cutting size :1830mm*2440mmdimension :3250mm*2250mm*1150weight:290kgmax process speed:018 mmin maxhanical precision :0.025mmrepeat accuracy:0.1mmthe suppor model: vertical the advantage :1. Inclined block make the load and unload more safe and speedy. 2. The machine have the special designed drop-knife make the drawing more perfect. and so on. 3. The machine main uesd to cut the protect film to draw the picture on the glass. 4.after that, we can do the difference processing to make ethe different art-glass. 5.the art-glass can be used on bathroom glass, windows glass, restarunt decorative, the home decorative wall etc. 6.the 60w laser tube, can cut 2 or 3 films on the glass; and can cut on uneven glass without the if you are interested in, pls contact me. And I will send the picture to you to know about.

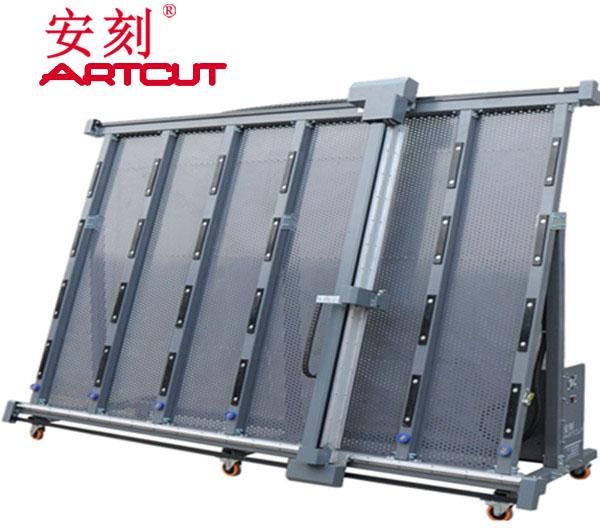

We offer vertical glass cutting protect film plotter. Technical parameters model ak1000dmax.cutting wldth(mm) 1220*2440weight(kg) 260engraving tools knifedrawing command hp-gl g-code(*.plt *.eps *.dxf)cutting speed(mmin) 0-12mechanical precision(mm) 0.025repeat accuracy(mm) 0.1powersupply ac90v-ac240v50hz-60hzoerating environment normal room temperature support mode verticaldimension(mm) 3100*1800*1150 product advantages1.---high precisionadopt korean high-quality circular rail & quadrate rail, american linear stepping motor. Movement resolution:0.025mm, repeatability precision:0.01. 2.---intensityadopt 5mm square steel, all parts are alloy, machine life can reach 10 years. No welded, no deformation by internal stress. 3.---y-axis designedy-axis used the newest cantilever type & siding track structure, it use single belt to drive, high power motor, the speed is more faster, the running of the machine is more stably, improve the precision and speed greatly. 4.---speedhongkong vectorsoft latest axis motion control board based on dsp. Engraving speed:18mmin, three times the ordinary machine. 5.---control humanism design of positioning device, tilting block, easy and safety for load & unload the glass. the payment term30% down payment shall be paid by tt in advance, the balance paid by tt before shipment the goods deliveryduring 20 working days after receive your advance deposit the packingwooden packingvolume gross weight : 0.89cum 350kg after-sale service---one year warranty---english software ---english instruction ---large number of vector graphic ---remote assistance
