Weihai Zhongqiao Machinery Co. Ltd

WEIHAI, China

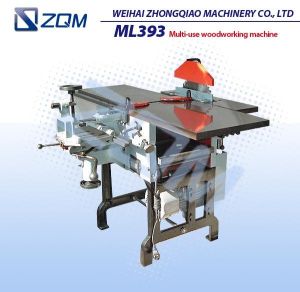

Model  ML393 Max. planing width(mm) 300 Max. planing thickness(mm) 3 Planing thickness(mm) 6-120 Max. sawing thickness(mm) 85 Max. drilling diameter (mm) 13 Max. tenoning length(mm) 100 Max. mortising depth(mm) 90 Motor power (kw) 1.5 Net/ gross weight (kw) 210/220 Packing dimension(cm) 123 x 88.5 x 81.1

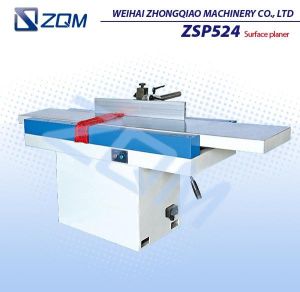

Model  ZSP523 ZSP524 Max. planning width(mm) 300 400 Total table length(mm) 2000 2500 Max. cutting depth(mm) 5 5 Planing arbor rotation speed (rpm) 5000 5000 Planing arbor diameter (without blades) (mm) 102 102 Knives amount 4 4 Motor power (KW) 2.2 3 Net weight (kw) 370 550 Overall dimension(cm) 200 x 74 x 105 250 x 85 x 105

Model  ZY214 x 8/4B-15 ZY214 x 8/6B-15 Nominal pressure (KN) 4000 600 Platen size (mm) 2700 x 1370 x 42 2700 x 1370 x 42 Finished panel size (ft) 4 x 8 4 x 8 Daylight distance (mm) 70 70 Daylight number 15 15 Cylinder diameter (mm) 360mm x 2 400mm x 2 Working stroke (mm) 1050 1050 Working pressure (MPa) 25 25 Total motor (KW) 26 26 Net weight (kg) 34000 35000 Overall dimension(cm) 500 x 144.6 x 539.5 500 x 144.6 x 539.5

Parameter model Zeb505w banding Belt Thickness(mm) 0.3~5 Motor(kw/h) 0.18/380 banding Height(mm) 15-50 Feeding Speed(m/min) 1-15 min. Banding Radius(mm) 20 Air Pressure(mpa) 0.5 banding Belt Materials / Overall Dimensions(mm) 1000× 725× 1020 heater(kw/v) 205× 6/22 Net. Weight(kg) 170

PARAMETER Model ZJG1313 ZJG1326 Max. working width (mm) 1450 2650 Gap between knife and anvil roll (mm) 40 40 Max. linear shearing velocity (m/min) 236 236 Feeding speed (m/min) 150 150 Feed motor (kw) 3.7 3.7 Cutting motor (kw) 11 11 Total motor (KW) 14.7 14.7 Net weight (kg) 3200 3500 Overall dimension(cm) 595 x 266 x 168 595 x 386 x 168
