FH Union Hongkong Woodworking Machine

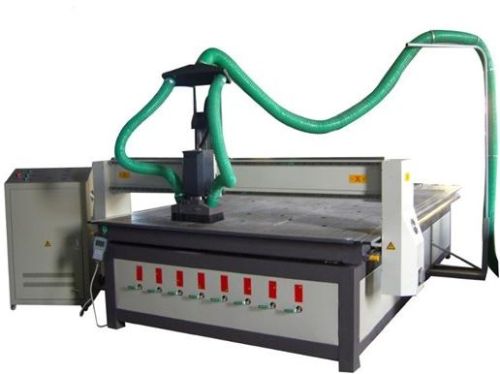

We are offering woodworking machine.

feature :

square-shaped orbit for three axies,

ball screw for z-axises, gear-wheel for x yaxises

control: dsp system with usb interface

spindle: 4.5kw chinese water cooled spindle

vacuum : eight seperated vacuum area, oil free vacuum pump made in china.

software : ucancam and type 3 software

good compatibility: cad / cam designing software, such as type 3 / artcam / castmate etc.

stepper motors

10 blades (ï�6, ï�12.7), 2 collets.



application:

mainly used for production of closet doors, solid wood processing, furniture, etc. Also can be used for cutting and production of mdf.



description parameter



xã��y working area 2000ã�4000mm



z working area 200mm



table size 2180ã�4500mm



max. Speed 32000mm/min



max. Working speed 20000mm/min



max. Feeding height 200mm



command g code*.u00*.mmg*.plt



surroundings for software windows98/2000/xp



work voltage 3ph ac380v/50hz



spindle power 4.5kw chinese water cooled



spindle rotating speed 24000 rpm



drive motor stepper
