Valves & Valve Fittings

We offer a complete product range of API 6D BS5351 Cast Steel Split Body Side Entry Reduced Bore Peek Seat Floating Ball Valve, API Carbon Steel Bolted Bonnet Flanged Flexible Wedge Gate Valve, API600/BS1873 Cast Steel Bolted Bonnet Flanged End Globe Valve and Safety Valves

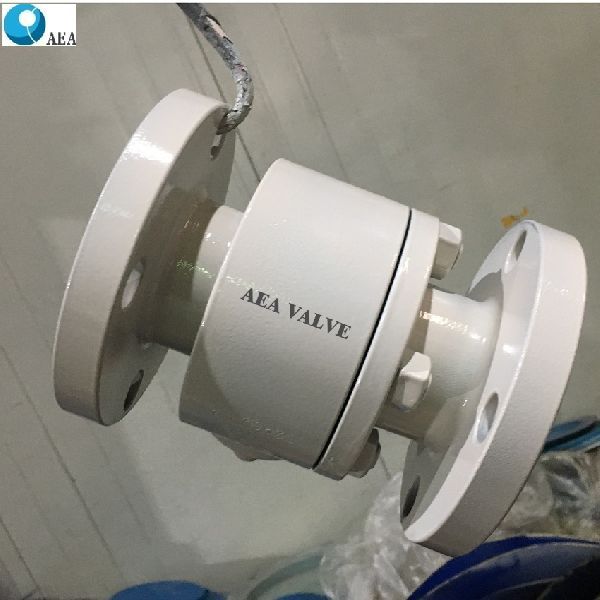

API 6D BS5351 Cast Steel Split Body Side Entry Reduced Bore Peek Seat Floating Ball Valve

Min. Order (MOQ) 1 Set(s)
Material Carbon Steel Or Stainless Steel
Power Manual, Gear, Electric, Cylinder, Pneumatic, Hydraulic, Lever
Pressure ANSI 150-2500 LBS
Structure 2 PC/3 PC, Side Entry, Floating Ball Valve
Media For Chemical , Pharmaceutical , General Industry , Oil & Gas , On/Off Shore , Petrochemical Industri
Port Size DN20-DN150
Unit Price 5-500 dollars/set

AEA Forged steel floating ball valves are designed in accordance with ISO17292 featuring 2 pc split body or 3 pc split body, ideal for medium or high pressure services and wide temperature range (-196 500 Degree) . It can substitute the small size trunnion mounted ball valves to save cost. Product Range-Valve size: NPS 12 8 (DN15-DN200)-Pressure:ANSI Class 1502500(PN16-PN420) -Temperature: -196 500 DegreeBody Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex SteelTrim: Carbon Steel, Stainless Steel, Duplex SteelEnd Connection :RF, RTJ, BW, SW, NPTTechnical Specifications -Design: ASME 16.34BS 5351API 6D-Face to Face: ASME B16.10-End Flange: ASME B16.5-BW End: ASME B16.25-Test: API 598API 6D BS 6755-Special: NACE MR-01-75 Design Features-Full port or reduce port- Fire Safe Design-Blowout-proof stem- Anti-Static Device-Low emission control-Optional locking device-ISO 5211 top flange

Additional Information:

Payment Terms : L/C, T/T, Western Union

Packaging Details : Standard Exporting Plywood Case

Delivery Time : 30 Days

View Complete Details

Ask Latest Price & Details

API Carbon Steel Bolted Bonnet Flanged Flexible Wedge Gate Valve

Min. Order (MOQ) 1 Set(s)
Brand Name O.E.M or AEA Brand
Material WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, CF3, CF3M
Structure OS & Y, Bolted bonnet, Single Wedge
Media Oil, Gas, Water
Port Size NPS 1/2-56 INCHES
Power Manual, Electric Actuator, Pneumatic Actuator
Pressure Class 150~2500
Temperature Of Media -29-540 Degree
Origin China

AEA gate valve that opens by lifting a round or rectangular gatewedge out of the path of the fluid. The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar. The gate faces can form a wedge shape or they can be parallel. Typical gate valves should never be used for regulating flow, unless they are specifically designed for that purpose. On opening the gate valve, the flow path is enlarged in a highly nonlinear manner with respect to percent of opening. Size: NPS 12-56 inchesPressure Rating: Class 150-2500LBSMaterial:WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, CF3, CF3MTemperature :-29-540 DegreeDesign & Manufacturing Standard API 600, BS 1414, ASME B16.34 Face to Face :ASME B16.10, BSEN 558End Connection:ASME B16.5, ASME B16.47, BSEN 1092Test and Inspection:ISO 5208, API 600, BS 6755Structure Type:OS & Y, Bolted bonnet, Single Wedge

Additional Information:

Payment Terms : L/C, T/T, Western Union,

Packaging Details : Packing with plywood box, specially according to customer's requirement

Delivery Time : 30 Days

View Complete Details

Ask Latest Price & Details

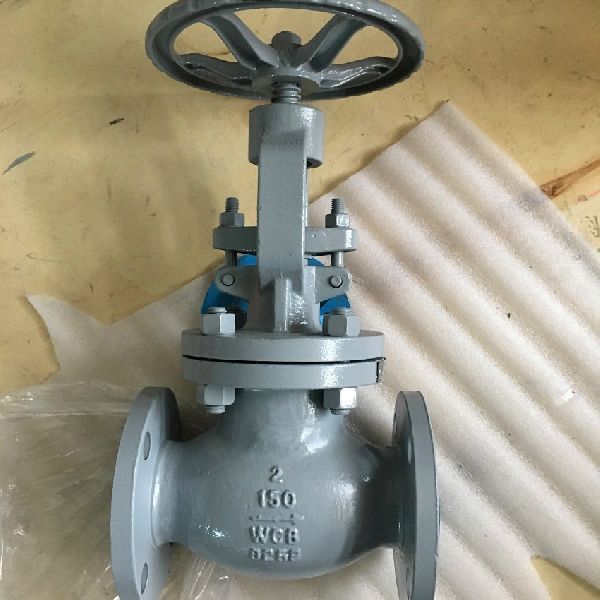

API600/BS1873 Cast Steel Bolted Bonnet Flanged End Globe Valve

Min. Order (MOQ) 1 Set(s)
Brand Name Customized or AEA
Material WCB, LCB, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M
Media Oil, Gas, Water
Application Industrial Usage, Water Industrial Usage, Household Usage
Power Manual, Electric Actuator, Pneumatic Actuator
Pressure Class 150-2500LBS
Port Size NPS 2-36 inches
Temperature of Media -25- 500 Degree
Origin China
connection RF, RTJ, BW

AEA Globe valves are used for throttling and frequent operation. Globe valve's structure is more simple than gate valve's, and it is more convenient in manufacturing and maintenance. The stem axis and the seat sealing surface is vertical, and it is a very reliable valve to cut off and control. Sealing surface is not easy to wear and scratch, and it has a good sealing surface and long service life. When opening and closing, disc's route is small, so the height of globe valve is smaller than gate valve, but the length of structure is longer than gate valve's. Size NPS 2-36 inchesPressure Rating Class 1501500Design & Manufacturing Standard:BS 1873, ASME B16.34Face to Face:ASME B16.10Flanged Dimension:ASME B16.5, ASME B16.47, BSEN 1092End Connection:BSEN 558, ASME B16.5, BSEN 1092Test and Inspection:ISO 5208, BS 6755Structure Type:Straight type, Angle type, Throttle typeOperation Method:Manual, Electric Actuator, Pneumatic Actuator

Additional Information:

Payment Terms : L/C, T/T, Western Union,

Packaging Details : Packing with plywood box, specially according to customer's requirement

Delivery Time : 30 Days

View Complete Details

Ask Latest Price & Details
