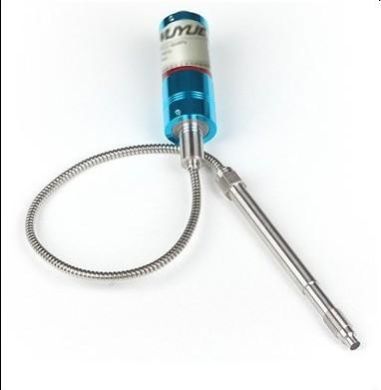

Wuyue's pt2619b series high accuracy pressure transmitters apply to measurements which requires accurate datas.this product adopted special materials and allayed elasticity diaphragm to lower the combined error. Products are applied to measure and control the pressure as well as temperature of those high temperature fluid medium of extruders for such as fiber, polyester, rubber, plastics. Feature: high accuracy, sealed with stainless steel, easy installment, good stability. Calibration on both zero and span, amplified signal can be directly input in plc.high performance of anti-interference. parameter:pressure ranges:0-5 to 0-200mpaaccuracy: < 0.5% fssignal output:05v; 010v; 4-20maworking voltage:24vdc (1236)vdcelectrical connector:6pin common connectorprocess connection: flange, other type on requesttemperature resistance of diaphragm:300coverload pressure:1.5*fsce approved

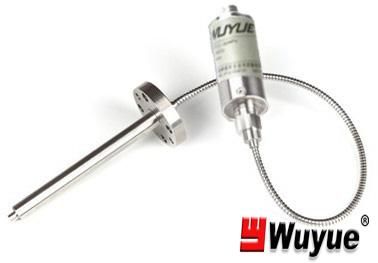

We are offering Melt Pressure Transmitter.Wuyue's PT2617B series high accuracy pressure transmitters apply to measurements which requires accurate datas.this product adopted special materials and allayed elasticity diaphragm to lower the combined error. The performance indicators reach world class level. Perfect substitutes of like product from BARMAG, DYNISCO, GEFRAN, RKCFeature: High accuracy, Sealed with stainless steel, Easy installment, Good stability. Calibration on both zero and span, Amplified signal can be directly input in PLC.High performance of anti-interference. PARAMETER:Pressure ranges:0-5 to 0-200MPaAccuracy: < 0.5% FSSignal output:05V; 010V; 4-20mAWorking voltage:24VDC (1236)VDCElectrical Connector: common 5pin connectorProcess connection: flange, other type on requestTemperature resistance of diaphragm:400COverload pressure:1.5*FSCE Approved.

Wuyue's pt2618b series high accuracy pressure transmitters apply to measurements which requires accurate datas.this product adopted special materials and allayed elasticity diaphragm to lower the combined error. The performance indicators reach world class level. Ideal substitute of expensive other world class like product. Feature: high accuracy, sealed with stainless steel, rigid rod, good stability. Calibration on both zero and span, amplified signal can be directly input in plc.high performance of anti-interference. parameter:pressure ranges:0-5 to 0-200mpaaccuracy: < 0.5% fssignal output:05v; 010v; 4-20maworking voltage:24vdc (1236)vdcelectrical connector: common 6pin connectorprocess connection: flange, other type on requesttemperature resistance of diaphragm:400coverload pressure:1.5*fsce approved.

We offer wuyue's pt4624 series high temperature melt pressure transmitters are amplified output melt pressure transmitters with flexible stem . All models interface directly with distributed control systems, plcs, computers and similar high level control devices.the pt4624 series transmitter is a +- 0.5% sensor ideal for general melt pressure measurements requiring simple installation, repeatability and reliability. features:reliable pressure measurement , anticorrosion and wear resistance coating extends its service life by more than 5 timesparameter:pressure ranges: any scale from 0-200mpaaccuracy:< 0.5% fssignal output: 4 to 20 ma, 0 to 5 vdc, 1 to 6 vdc, 0 to10 vdc, 1 to 11 vdc working voltage:14 to 36vdccalibration:80%fso+1%maximum temperature resistance of diaphragm:400celectrical connector: special 6pin or 7pin connectorstandard threading: 12-20unf, m14x1.5, m22*1.5, m18*1.5 ;other versions on requestce approved.
