Capacitor

We offer the best product range of CC81 Series Ceramic Capacitor, YZPST-DGMJ2-4300 Converter Capacitor, YZPST-DGMJ2.4-1566 Electric Locomotive Capacitor, YZPST-DKMJ0.8-3000 DC Link Capacitor and YZPST-DKMJ1.2-5000 DC Link Capacitor.

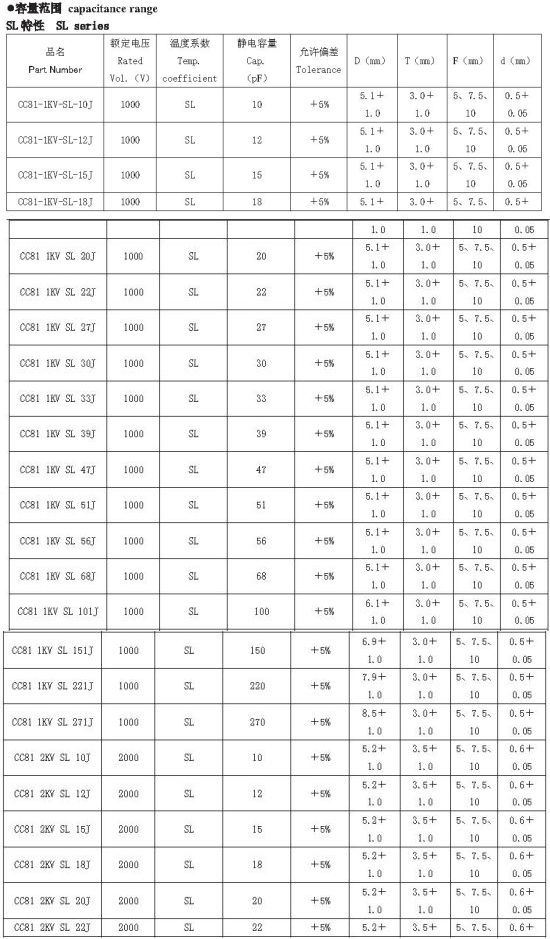

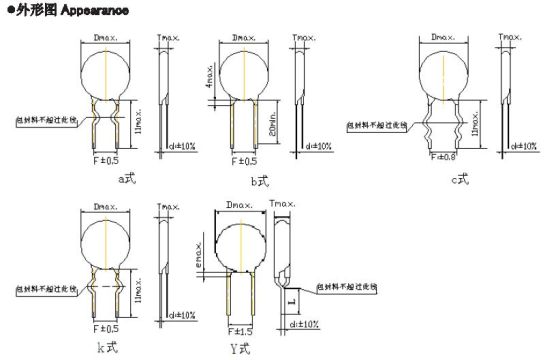

CC81 Series Ceramic Capacitor

Condition New
Country of Origin 400VAC 250VAC
Usage Industrial, Commercial
Operating Temperature Range -25°C to +85°C
Capacitance Tolerance +80-20%

Application

Ideal for use as the ballast in back lighting inverters for liquid crystal display.
Ideal for use on high frequency pulse circuits such as a horizontal resonance circuit for CTV and snubber circuits for switching power supplies.

Graph

Download Detail File : Click Here

Technical Data

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

YZPST-DGMJ2-4300 Converter Capacitor

Application For power factor improvements, Industrial
Power 1500V 9600kW
Voltage 220V
Warranty 1 Year
Rated Voltage 750V
Power Source Electric

Features :

Used in DC-Link curcuit
Large overload capacity
Flexible installation
Good self-healing property
Stainless steel case for less loss

Application : Used in VVVF for Metro with 750V power supply

Graph

Download Detail File : Click Here

Technical Data

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

YZPST-DGMJ2.4-1566 Electric Locomotive Capacitor

Specialities Durable
Usage Industrial
Country of Origin 220 V
Power 7200kW
Condition New
Total Carbohydrate 1 Year

Features :

Used in DC-Link circuit
Large overload capacity
Flexible installation
Good self-healing property
Stainless steel case for less loss

Application : Used in VVVF for 7200kW electric locomotive

Graph

Download Detail File : Click Here

Technical Specification

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

YZPST-DKMJ0.8-3000 DC Link Capacitor

Operating Temperature -40℃to +70℃/85℃
Condition New
Usage Wind Power Solar Power
Country of Origin 700-2600VDC
Capacitance range 0.47μF~12000μF
Capacitor Case Aluminum, Plastic

Features :

Used in DC-Link circuit
Aluminum shell, filled with polyurethane
Flexible installation
High reliability, small destructive
Good self-healing property

Application : Used in Motor controller for electric car

Graph

Download Detail File : Click Here

Technical Data

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

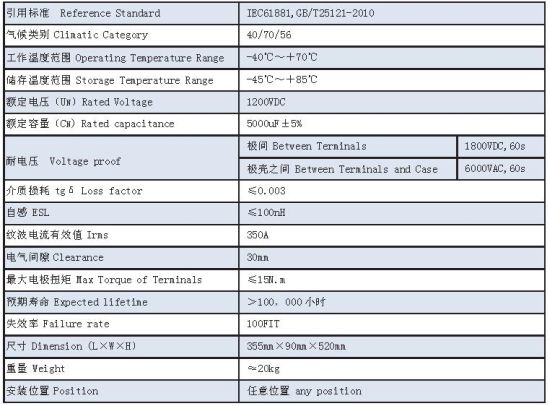

YZPST-DKMJ1.2-5000 DC Link Capacitor

Operating Temperature -40℃to +70℃/85℃
Usage Wind Power Solar Power
Country of Origin 700-2600VDC
Specialities Durable
Capacitor Case Aluminum, Plastic
Capacitance tolerance ± 5%
Insulation Resistance ≥3000S（MΩ•µF）

Features :

Used in DC-Link circuit
No steel case, filled with polyurethane
Good insulation performance
High reliability, small destructive
Good self-healing property

Application : Used in VVVF for low floor vehicle

Graph

Download Detail File : Click Here

Technical Data

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

YZPST-DKMJ1.65-2400 DC Link Capacitor

Operating Temperature -40℃to +70℃/85℃
Material Metalized polypropylene
Country of Origin 400-2600VDC
Capacitance 50-1200uf
Capacitance tolerance ± 5%
Temperature Range 40°C TO +85°C

Features :

Used in DC-Link circuit
Plastic shell, filled with polyurethane
Small volume, light weight
High reliability, small destructive
Good self-healing property

Application : Used in VVVF for Metro with permanent magnet motor

Graph

Download Detail File : Click Here

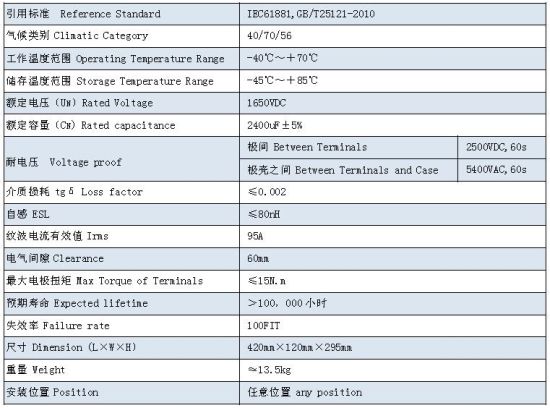

Technical Data

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

YZPST-DKMJ1.65-4800 DC Link Capacitor

Operating Temperature -40℃to +70℃/85℃
Condition New
Specialities Durable
Capacitance tolerance ± 5%
Insulation Resistance ≥3000S（MΩ•µF）
Capacitance 50-1200uf
Temperature Range 40°C TO +85°C

Features :

Used in DC-Link circuit
No steel case, filled with polyurethane
Good insulation performance
High reliability, small destructive
Good self-healing property

Application : Used in VVVF for Metro with permanent magnet motor

Graph

Download Detail File : Click Here

Technical Data

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

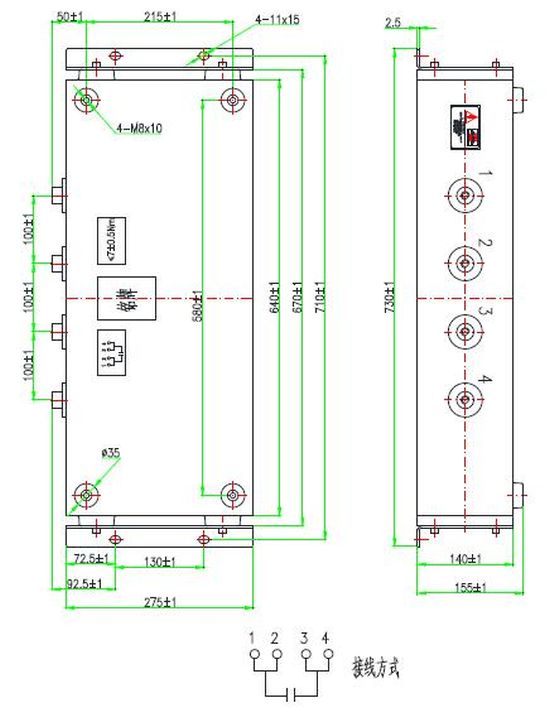

YZPST-DKMJ1.85-4500 DC Link Capacitor

Total Carbohydrate 1 Year
Condition New
Specialities Durable
Capacitance tolerance ± 5%
Insulation Resistance ≥3000S（MΩ•µF）
Capacitance 50-1200uf
Temperature Range 40°C TO +85°C

Features :

Used in DC-Link circuit
No steel case, filled with polyurethane
Good insulation performance
High reliability, small destructive
Good self-healing property

Application : Used in VVVF for Metro with 1500VDC power supply

Graph

Download Detail File : Click Here

Technical Data

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

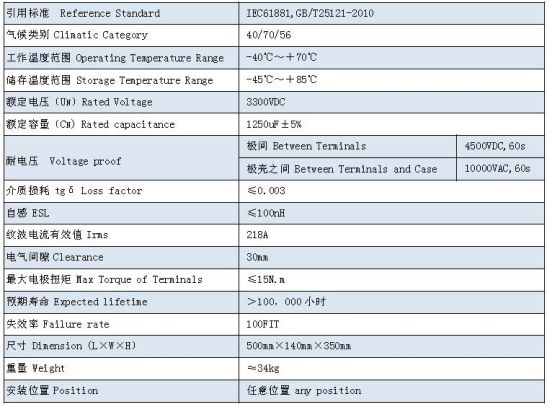

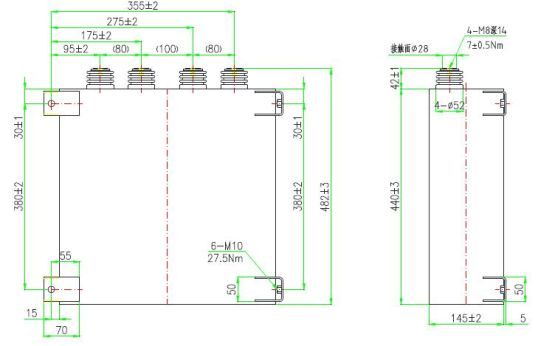

YZPST-DKMJ3.3-1250 DC Link Capacitor

Operating Temperature -40℃to +70℃/85℃
Condition New
Usage Wind Power Solar Power
Country of Origin 400-2600VDC
Capacitor Case Aluminum
Capacitance tolerance ± 5%
Insulation Resistance ≥3000S（MΩ•µF）

Features :

Used in DC-Link circuit
No steel case, filled with polyurethane
Good insulation performance
High reliability, small destructive
Good self-healing property

Application : Used in VVVF for 380km/h EMC

Graph

Download Detail File : Click Here

Technical Data

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

Features :

Used in DC-Link circuit
No steel case, filled with polyurethane
Good insulation performance
High reliability, small destructive
Good self-healing property

Application : Used in VVVF for 380kmh EMC

Graph

Download Detail File : Click Here

Technical Data

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

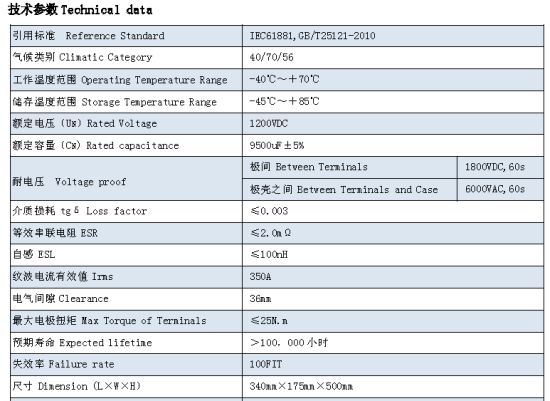

YZPST-DGMJ1.2-9500 DC Link Capacitor

Operating Temperature -40℃to +70℃/85℃
Condition New
Total Carbohydrate 1 Year
Usage Used in VVVF for Metro with 750V power supply
Country of Origin 400-2600VDC
Specialities Durable
Capacitance range 0.47μF~12000μF

Features :

Used in DC-Link curcuit
Large overload capacity
Flexible installation
Good self-healing property
Stainless steel case for less loss

Graph

Download Detail File : Click Here

Technical Data

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

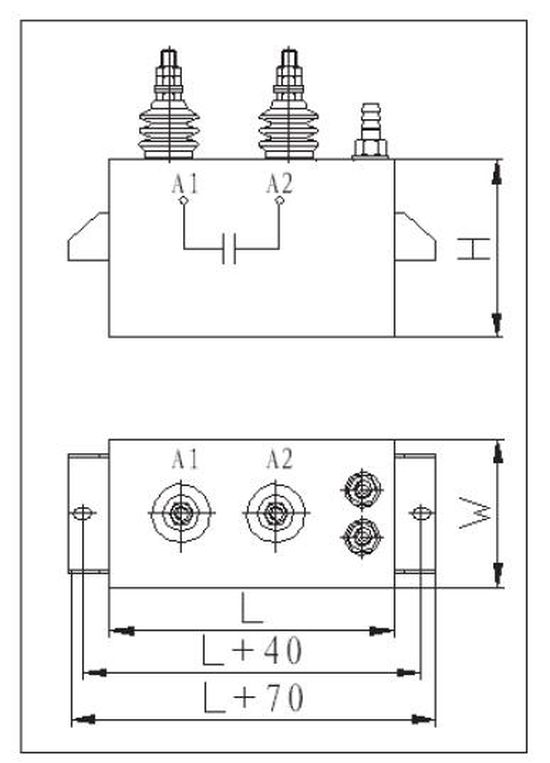

RFM3.0-500-15S Water Cooled Capacitor

Country of Origin 4.0KV
Power 3-9 kw
Frequency <50KHz
Usage Medium Frequency Induction Furnace
Specialities Durable
Capacity 10000 kVAr

Power capacitors application solution for induct furnace / switch on and off / welding machine power supply RFM series, super audio water-cooled electric capacitance

Function and Application :To be applied for A/c harmonic voltage - 4.0KV, Frequency <50KHz induct heat power supply, To provide reactive power capacitive current The technology unique point :

The whole film oil-immersed structure NO PCB
Single water/grouping scheme can be customized
The outlet temperature of the cooling water to pure water, < 40 ?
Conditions of use/technical parameters/product standards
Temperature range - 25 ? + 50 ?
The outlet temperature of the cooling water to pure water, < 40 ?
Rated voltage UN - 1 4.0 KV
Rated frequency FN - < 50 KHZ
QN the rated capacity:500 2000 kar
The maximum current:=1000A
Product standards - IEC60110-1(1998)
GB/T3984.1-2004 (also can be made according to customer standard)

Graph

Download Detail File : Click Here

Technical Specification 01

Type	Rated voltage - U UN·KV	Nominal capacity - QN·Kar	Rated frequency FN·KHz	Rated capacitance - CN·uF	Rated current IN·A	L mm	W mm	H mm	Group
RFM3.0-500-15S	3	500	15	0.59	167	303	122	165	NO
RFM4.0-1050-35S	4	1050	35	0.3	263	303	122	165	NO
RFM33.0-500-30S	3	500	30	0.3	167	240	125	150	NO
RFM3.0-560-25S	3	560	25	0.4	187	303	122	165	NO

Technical Specification 02

Type	Rated voltage U UN·KV	Nominal capacity QN·Kar	Rated frequency FN·KHz	Rated capacitance CN·uF	Rated current IN·A	L mm	W mm	H mm	Group
RFM3.0-680-20S	3	680	20	0.6	227	303	122	165	NO
RFM4.0-694-23S	4	694	23	0.3	174	240	125	150	NO
RFM4.0-700-30S	4	700	30	0.23	175	303	122	165	NO
RFM4.0-750-25S	4	750	25	0.3	189	303	122	165	NO
RFM4.0-804-20S	4	804	20	0.4	201	285	125	170	NO
