Our Product / Services
We offer the best product range of Drop Wires.

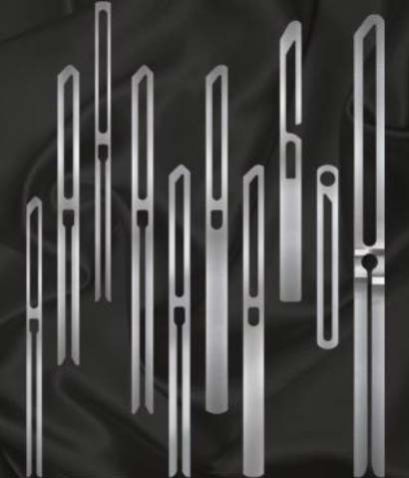

Based in Hulste, Belgium, we are a prestigious manufacturer, exporter, and wholesale supplier of Drop Wires. These wires are important in detecting yarn rupture in the weaving process. The wires we offer are made from premium quality steel coated with zinc and nickel to ensure they are long-lasting. The wires undergo stringent checks to ensure the edges are smooth. The wires are suited for all automatic drawing in machines. We undertake bulk orders.
Specifications :
| Drop wire weight | Length mm |
Width mm |
Thickness mm |
weight gm |
| MC/EC | 125 | 11 | 0.2 | 1.7 |
| 0.3 | 2.5 | |||
| 0.4 | 3.3 | |||
| MO/EO | 145 | 11 | 0.2 | 1.7 |
| 0.3 | 2.5 | |||
| 0.4 | 3.3 | |||
| MC/EC | 145 | 11 | 0.2 | 1.9 |
| 0.3 | 2.9 | |||
| 0.4 | 3.8 | |||
| 0.5 | 4.8 | |||
| MO/EO | 165 | 11 | 0.2 | 1.9 |
| 0.3 | 2.9 | |||
| 0.4 | 3.8 | |||
| 0.5 | 4.8 | |||
| MC/EC | 165 | 11 | 0.2 | 2.2 |
| 0.3 | 3.3 | |||
| 0.4 | 4.4 | |||
| 0.5 | 5.5 | |||
| MO/EO | 180 | 11 | 0.2 | 2.2 |
| 0.3 | 3 | |||
| 0.4 | 4.4 | |||
| 0.5 | 5.5 |
Weight Indication Of The Drop Wires:
| Weight of the drop wire gm |
Tex | Material in the Warp | Silk | |
| Metric Count Nm |
English Count NeB |
Filament Td |
||
| 0 - 1 | 0 - 9 | 0 - 110 | 0 - 65 | 0 - 80 |
| 1 - 1 , 5 | 9 - 14 | 110 - 70 | 65 - 42 | 80 - 125 |
| 1 , 5 - 2 | 14 - 20 | 70 - 50 | 42 - 30 | 128 - 180 |
| 2 - 2 , 5 | 20 - 25 | 50 - 40 | 30 - 24 | 180 - 225 |
| 2 , 5 - 3 | 25 - 32 | 40 - 30 | 24 - 18 | 225 - 290 |
| 3 - 4 | 32 - 58 | 30 - 17 | 18 - 10 | 290 - 520 |
| 4 - 6 | 58 - 96 | 17 - 10 | 10 - 8 | 520 - 860 |
