Weaving Machine

We offer a complete product range of Single Rapier Jacquard Weaving Machine and Lloyd Loom Paper Weaving Machine

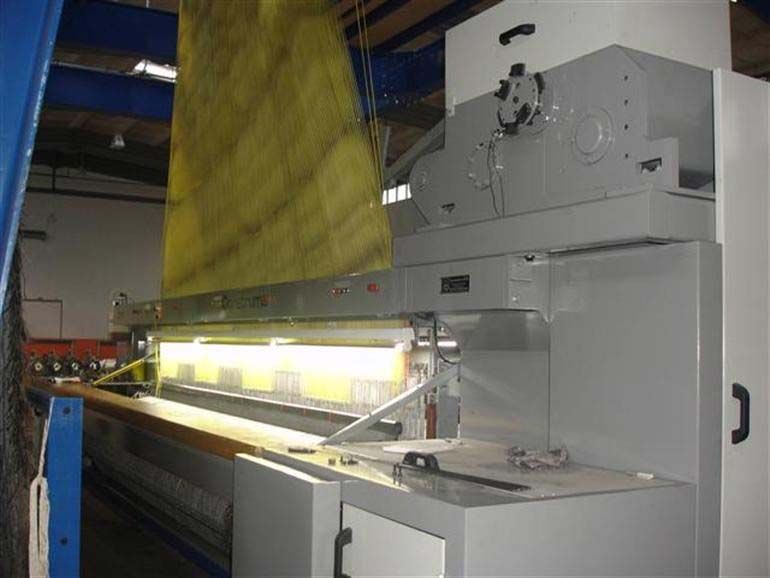

Single Rapier Jacquard Weaving Machine

We are counted among the most distinguished manufacturer, exporter, and wholesale supplier of the Single Rapier Jacquard Weaving Machine based in Hulste, Belgium. The machine has a colour selector for 4 different wefts and an electronic jacquard for up to 12 colours. The low maintenance machine has a motorized pick up regulator for fast pick changing. The reeds come in different densities and different types of excenters can also be provided. This machine weaves flat design carpets and are available up to 5.2 m weaving width.

Details :

All designs can be made, also loops and a visible thick weft can be woven.
Rapiers are specially made for very thick and very rugged wefts.
All reed densities are possible.
The weaving machine has 2 or 3 heavy shafts or can have dobby system.
Different types of excenters are possible.
The weaving machine is strongly build and requires less maintenance.
Flexible rapiers are guided on the slay by means of rapierhooks.

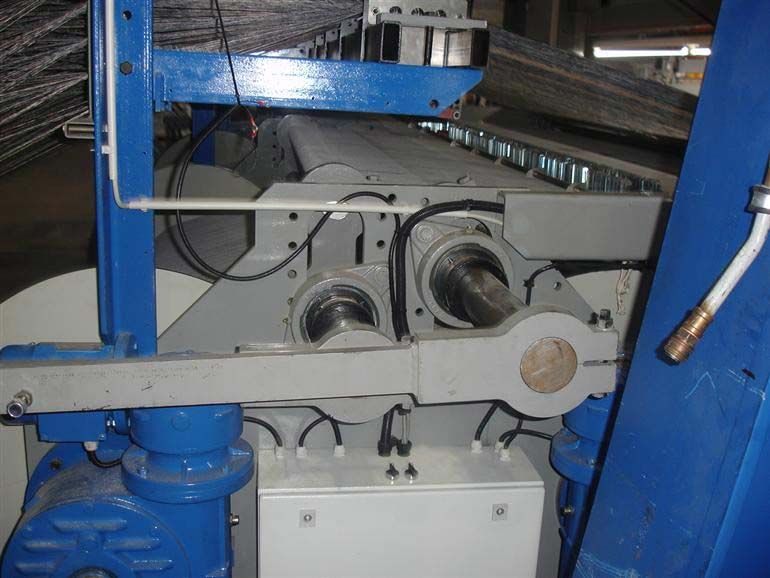

The rapiers are driven by conjugated excenters whichs results in a high loomspeed.
Colour selector for 4 different wefts is available.
Pick-up regulator is by motor for easy pick changing.
Variable pickdensity according to the different weft thickness is possible.
Special Construma weft accumulators for thick yarn are provided with this weaving machine.

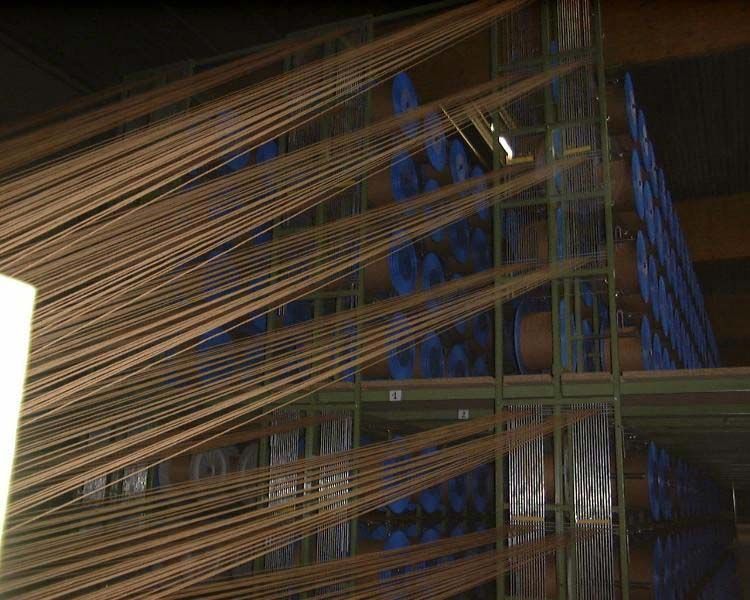

Weaving warp yarn can be from beams or from creel or both.
Available up to 5.2 m weaving width.
Electronic jacquard up to 12 colours.

View Complete Details

Ask Latest Price & Details

Lloyd Loom Paper Weaving Machine

The Lloyd Loom Paper Weaving Machine that we offer has made us a popular manufacturer, exporter, wholesale supplier and service provider based in Hulste, Belgium. The machine has a Construma weft accumulator with steel yarn straightener, a yarn accumulator and bobbin creel. It can be fitted with a jacquard for designing paper weaves. The durable machine is low on maintenance. Yarns can be woven on beams, creels or both. We offer attractive rates for bulk orders.

Details :

Can be equipped with jacquard for design paper weaving.
Has 2 groundshafts.
The weaving machine is strongly build and requires less maintenance.
Rapiers are driven by conjugated excenters with different timing profiles. This results in a high loomspeed and low yarn breakage.
Weaving yarn can be on beams, creel or both.
A flexible rapier is guided on the slay by means of rapierguides.
The pick up regulator is by motor.
Custom yarn accumulator
Available up to 5.6 m weaving width.

View Complete Details

Ask Latest Price & Details
