Construma NV

Hulste, Belgium

The Double Rapier Face to Face Weaving Machine that we offer have made us a premier manufacturer, exporter, and wholesale supplier in Hulste, Belgium. The low maintenance machine made to weave pile carpets can weave single, double or three shot. The yarns used are wool, viscose, silk, polyester, acrylic, etc. The rapiers are made of carbon and can be combined with flatweaves.

Details :

• The weaving machine can weave single , double or three shot.
• 4 rapiers are made of carbon and the rapierheads all have widia parts for perfect working. Combinations with flatweaves are also possible.
• All groundwefts and reed densities are possible.
• Construma weft accumulators are delivered with this weaving machine.
• Pick up regulator is by motor for easy pick changing.
• The machine has 6 heavy groundshafts. Equipped with lancets for a stable pileheight.
• Strongly build and requires less maintenance.
• Available up to 5.2 m weaving width.
• Double or single beamstand with electric let off system.
• Weaving yarn can be on beams, creel or both.
• Electronic jacquard up to 12 colours.
• With or without Dobby system.

We have emerged as a recognized manufacturer, exporter, and wholesale supplier of Single Rapier Flatweave Weaving Machine based in Hulste, Belgium. The durable and robust machine is low on maintenance. The machine is suited for weaving flatweave carpets using different types of yarn. Please contact us for competitive prices on bulk orders. We ensure good packaging and timely delivery.

Details :

• All reed densities are possible on this machine.
• Rapiers are specially made for very thick and very rugged raw wefts.
• The weaving machine can have till 8 heavy shafts or 16 small shafts.
• All type of excenters for any type of weaving can be made.
• The weaving machine is strongly build and requires less maintenance.
• Flexible rapiers are guided on the slay by means of rapierguides.
• The rapiers are driven by conjugated excenters with different timing profiles. This results in a high loomspeed and low yarn breakage.
• Colour selector for 4 different wefts is available. More colours on request.
• A long colour repetition can be put in the display for special effects.
• The pick up regulator is by motor for easy pick changing.
• Variable pickdensity according to the weft thickness.
• Special Construma weft accumulators for thick yarn are provided with this weavingloom.
• Weaving yarn can be on beams, creel or both.
• Available up to 5.6 m weaving width.

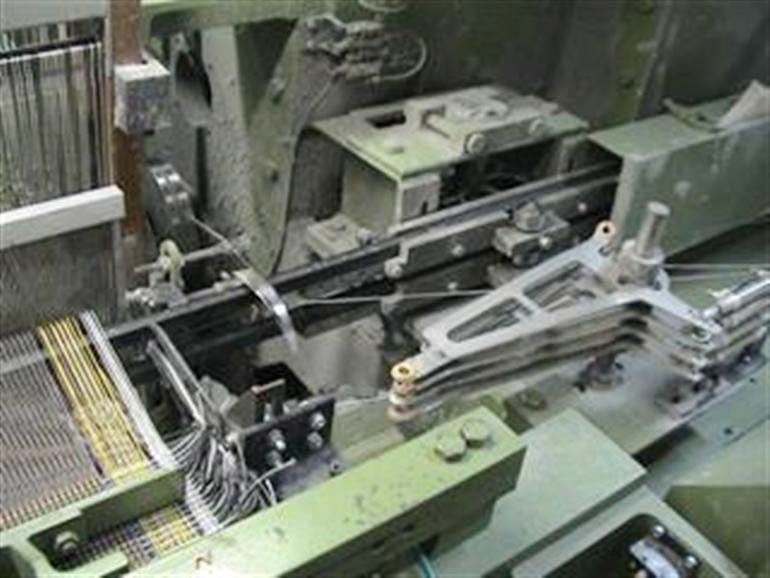

Based in Hulste, Belgium, the Double Rapier Single Face Flatweave Weaving Machine we offer has made us a top manufacturer, exporter, and wholesale supplier. The machine is strong and long-lasting. They have a weaving width of 5.2 m. The pick up regulator is motorized for easy pick changing. The rapiers are made of carbon. Please contact us for attractive prices on bulk orders.

Details :

• The weaving machine is made for weaving double side flatweave.
• 4 rapiers are made of rigid carbon and the rapierheads all have widia parts for perfect working.
• All reed densities are possible on this weaving machine.
• The weaving machine has 3 or 4 heavy shafts.
• Strongly build and requires less maintenance.
• Available till 5.2 m weaving width.
• The pick up regulator is by motor for easy pick changing.
• Construma weft accumulators.
• Beamstand or yarn accumulator with electric lett off motion.
• Weaving yarn can be on beams, creel or both
