Dynemech Insulation Plates Dp2 are made from the compound of Nitrile Rubber, Cork, Synthetic Fibre which

at varying compositions gives different natural frequencies for providing vibration damping solution to

almost every machine tool. Also the Insulation Plates are resistant to fuels, lubricating oils, water etc.

The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grounting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.

Note- GST and Freight Charges are not included.

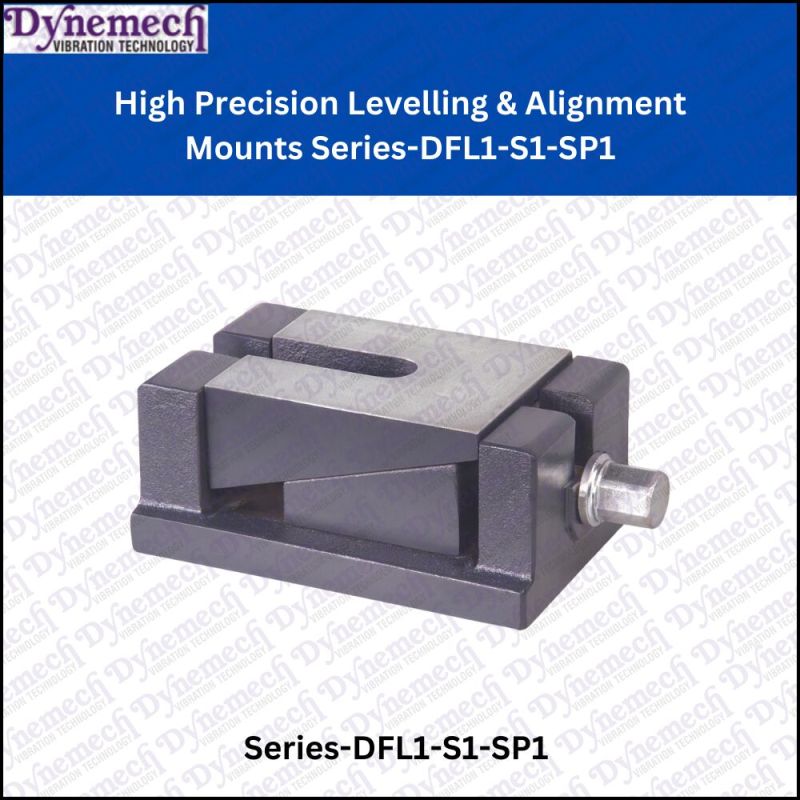

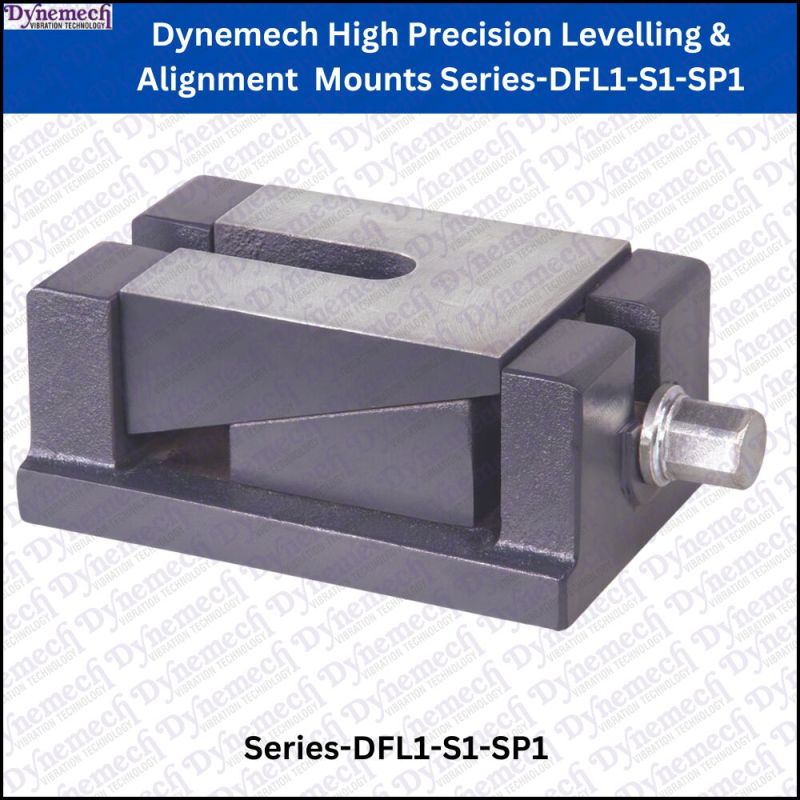

Dynemech High Precision Levelling & Alignment Mounts Series DFL The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.

Length:207(mm)

Width:142(mm)

Height:86(mm)

 Load Capacity: 8000 Kg

Natural Frequency (Hz):N/A

Coeff. of Friction: N/A

Working Temp Range : N/A

4 Nos Weight ( Kg.): 53 kg

Material: Cast Iron

Colour: Green/Dark Grey

 4 Nos Box Size:13"X8"X7

 4 Nos of Boxes: 2

Production Capacity: 100-150 set per month

 Surface Finishing: Painted

     Max. Torque value(N.m): 454

Adjustment Range(mm): 13

Delivery Time: 4-5 Days

Note- GST and Freight Charges are not included.

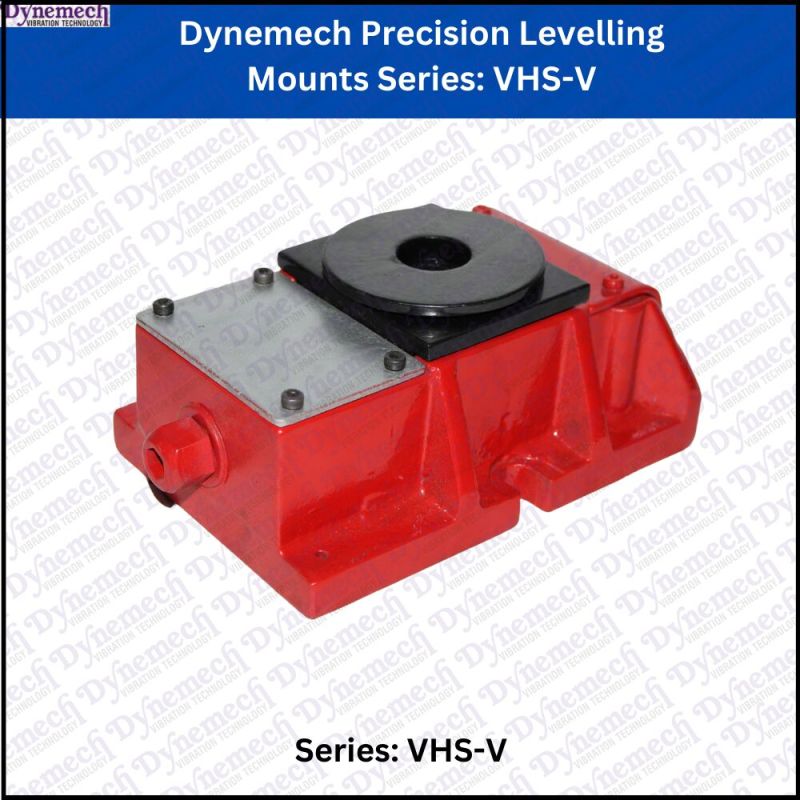

Dynemech Precision Levelling Mounts Series -VHS-V Festofix are useful in leveling and aligning machinery to very strict tolerances and make it possible to vary adjustments at any time, even under maximum loads requiring only a small hand wrench to adjust. These mounts provide the most rigid machine-to-foundation connection. The 3-piece wedge design provides true vertical lift and eliminates lateral movement as machines are raised or lowered.

Length:170(mm) To 350(mm)

Width:108(mm) To 230(mm)                                                                                         Height:60(mm) To 138(mm)                                                                                                     Recommended Load Capacity: 1000 Kg/pc To 12000 Kg/pc

Max. Load(Kg/pc):9000 Kg/pc To 70000 Kg/pc

L1(mm):91 To 180

D(mm):75 To145 (mm)

h(mm):5 To 10

f(mm): 17 To 37

G(M12 To M36

a(mm):12 To 35

SW1: 19 To 40

SW2:10 To 21

e1:12.7 To 28

e2:26 To 46

4 Nos Weight ( Kg.): 190 kg

Material: Cost Iron & sheet Metal

Colour: Red/Dark Grey

 4 Nos Boxes: 4

   4 Nos Box Size: 13"x8"x7                                                                                                             Delivery Time: 10-12 days

Note- GST and Freight Charges are not included.

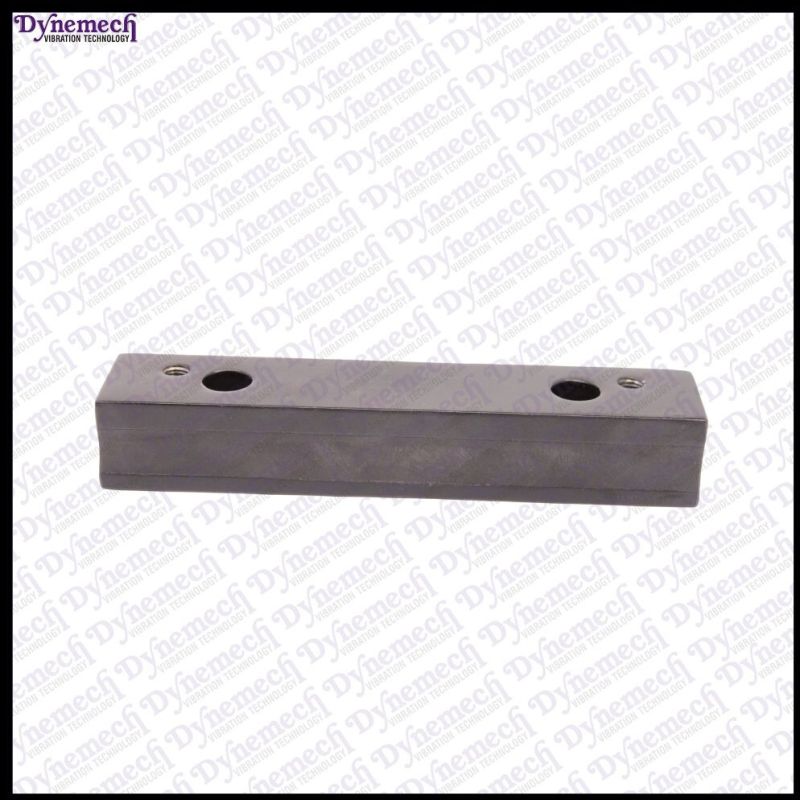

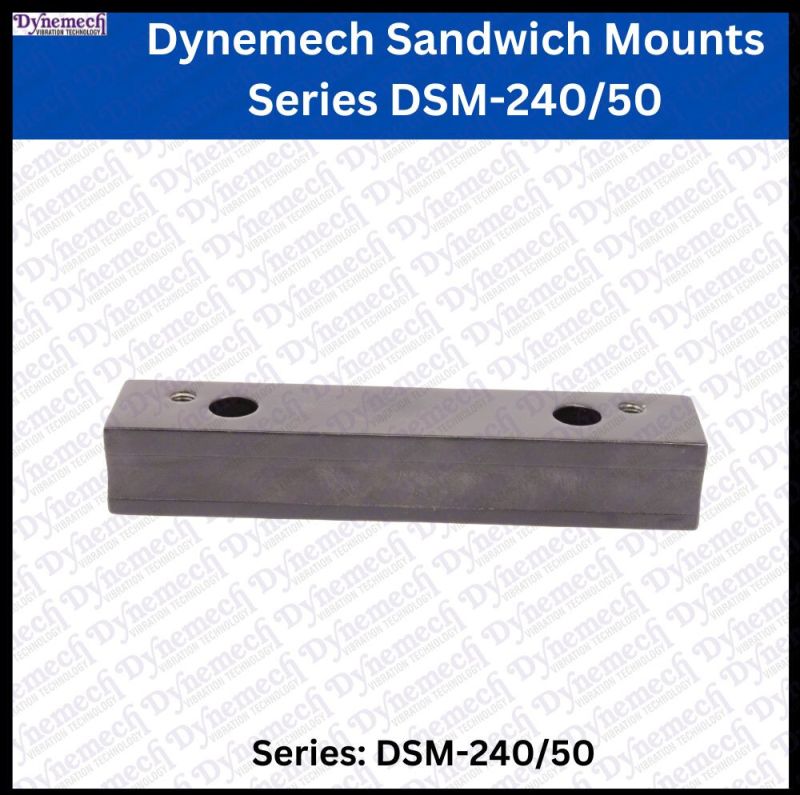

Dynemech Sandwich Mounts Series DSM-240/50 are available in various standard and customized sizes. These mounts provides support to motors, pumps and equipment installed on a machine body. These mounts provides high vibration isolation efficiency. Model: DSM-240/50. Dynemech Systems offers Anti Vibration Pad for reducing the vibration and sound in all industrial vibrating machinery. We are specializing in the area of anti vibration pads. Dynemech Systems is the best source for finding anti vibration pads. We provide one stop solution for all your vibration control needs.

Note- GST and Freight Charges are not included.

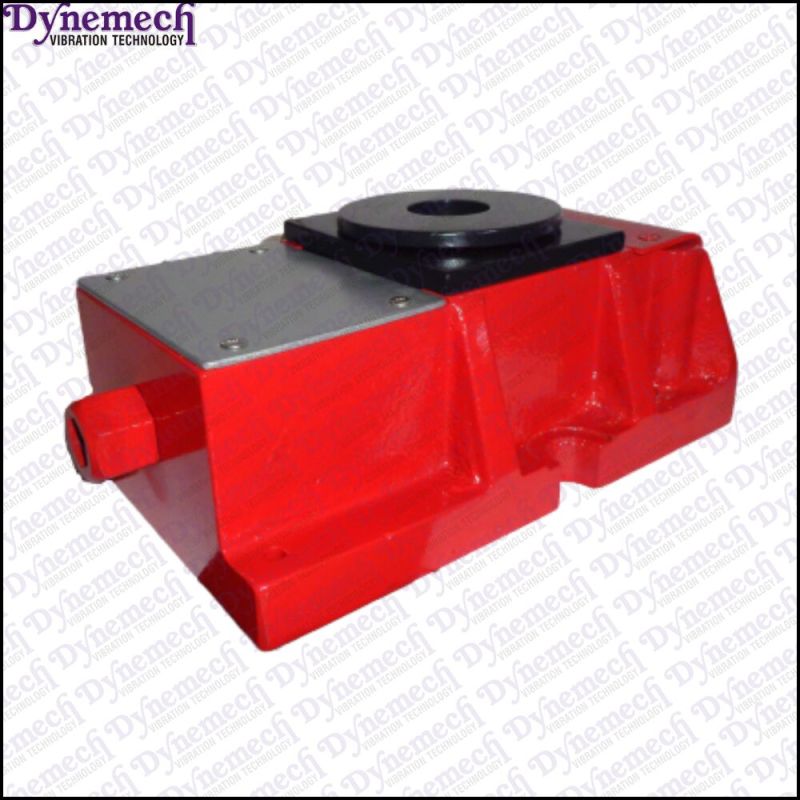

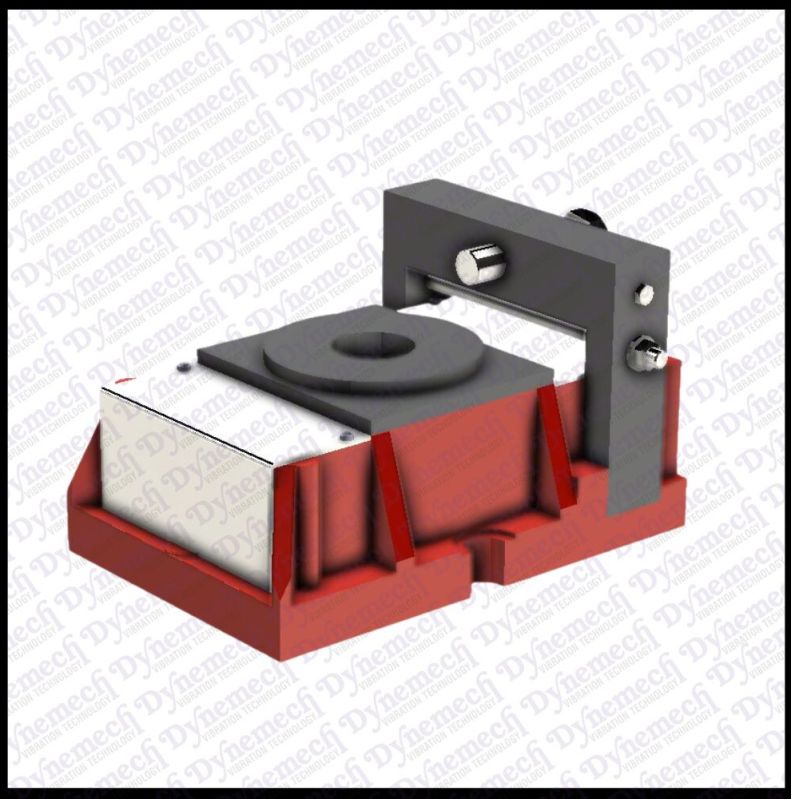

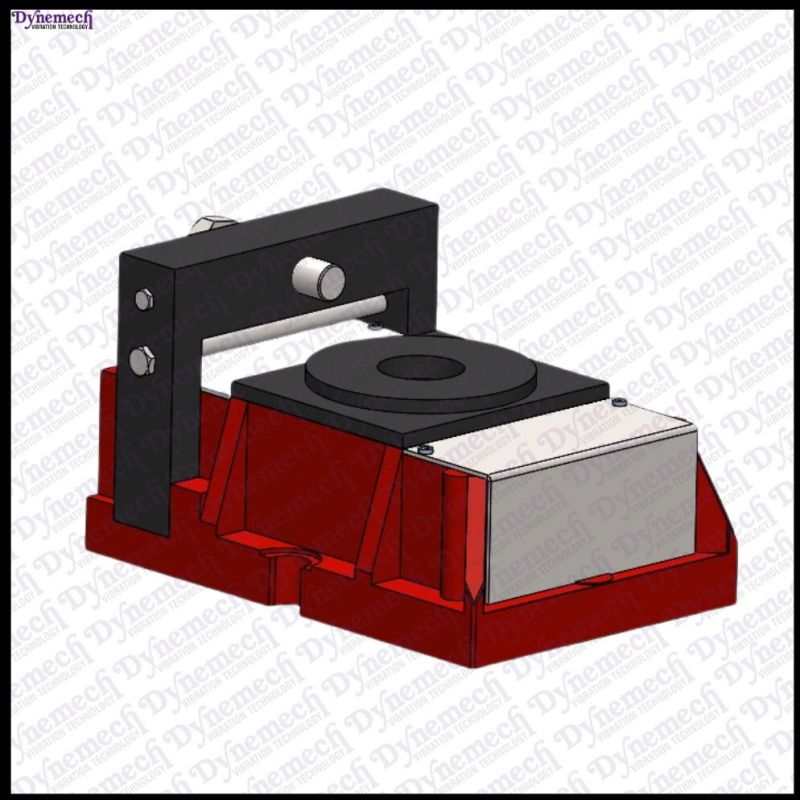

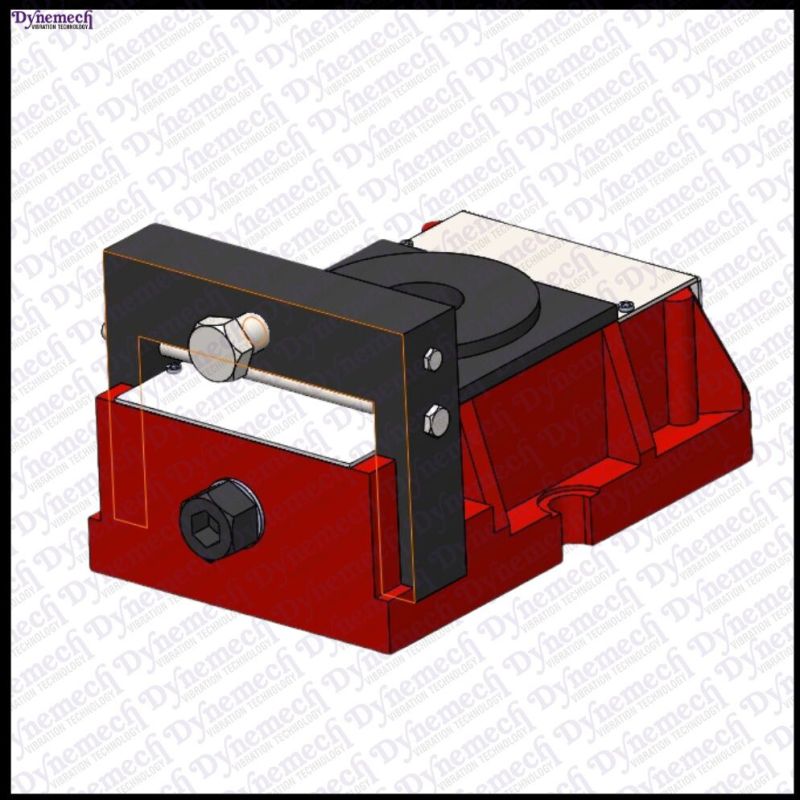

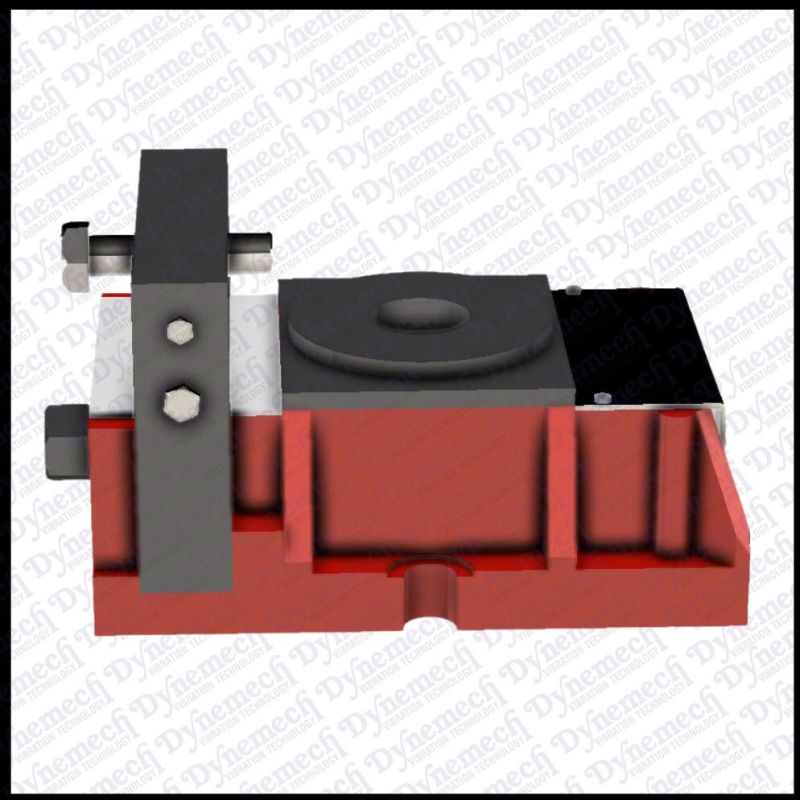

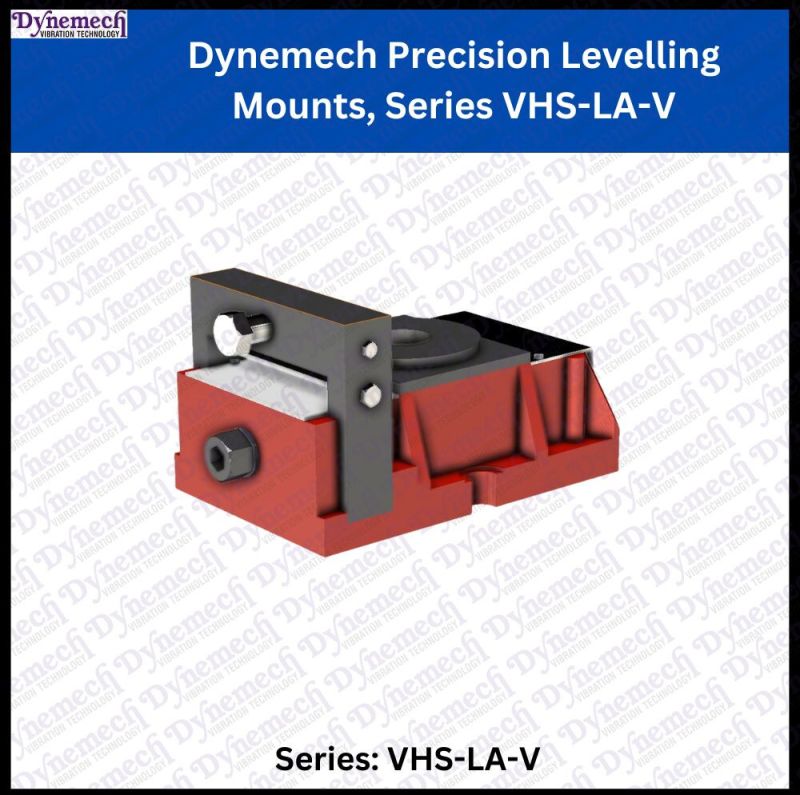

Dynemech Precision Levelling Mounts Series VHS-LA-V series mounts provides precision levelling to the machine. The levelling is possible even after grouting the outer body of this mount. A slight horizontal alignment of long bedded machines is possible using this mount.

Length:170(mm) To 350(mm)

Width:108(mm) To 230(mm)

Height:60(mm) To 138(mm)

Load Capacity: 1000 Kg/pc To 12000 Kg/pc

4 Nos Weight ( Kg.): 216 kg

Material: Cast Iron & Sheet Metal

Colour: Red/Dark Grey

4 Nos Box Size: 13"x8"x7

 4 Nos of Boxes: 4

Delivery Time: 15 To 20 Days

Production Capacity: 50 To 60 set per month

Surface Finishing: Painted

4 Nos Box Size: 13"x8"x7

4 Nos of Boxes: 1

L1(mm): 91 To 180

 B(mm): 108 To 230

D(mm): 75 To 145

h(mm): 5 To 10

  f(mm): 17 To 37

 G: M12 To M36

a(mm): 12 To 35

 SW1: 19 To 32

 SW2: 10 To 18

e1: 12.7 To 28.0

e2: 26 To 46

Total height with lateral adjuster H1(mm): 100 To 185

 Lateral Adjuster Bolt Size(SW3): M16 To M20

Note- GST and Freight Charges are not included.

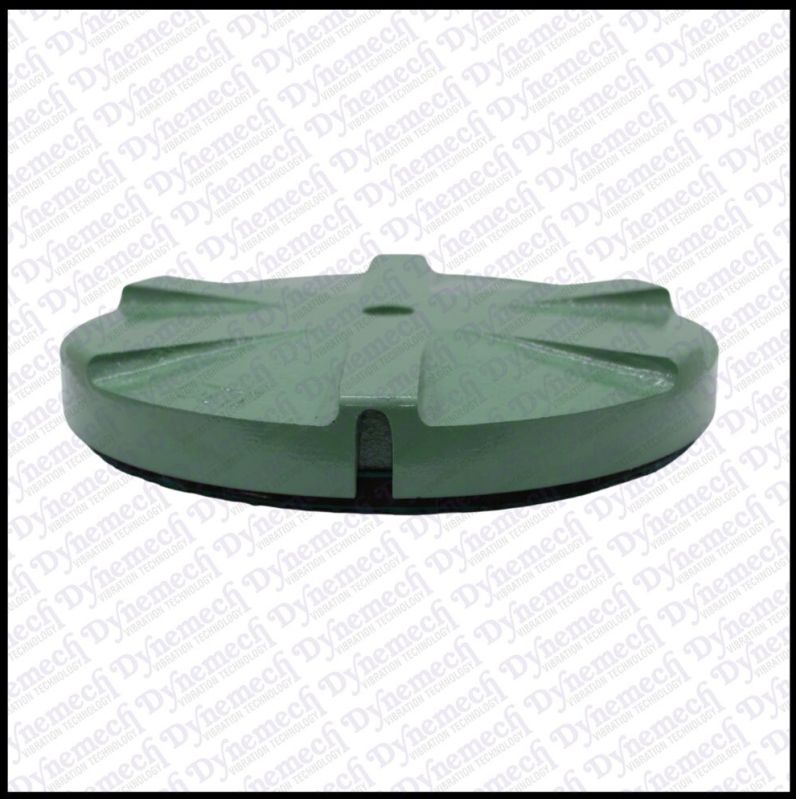

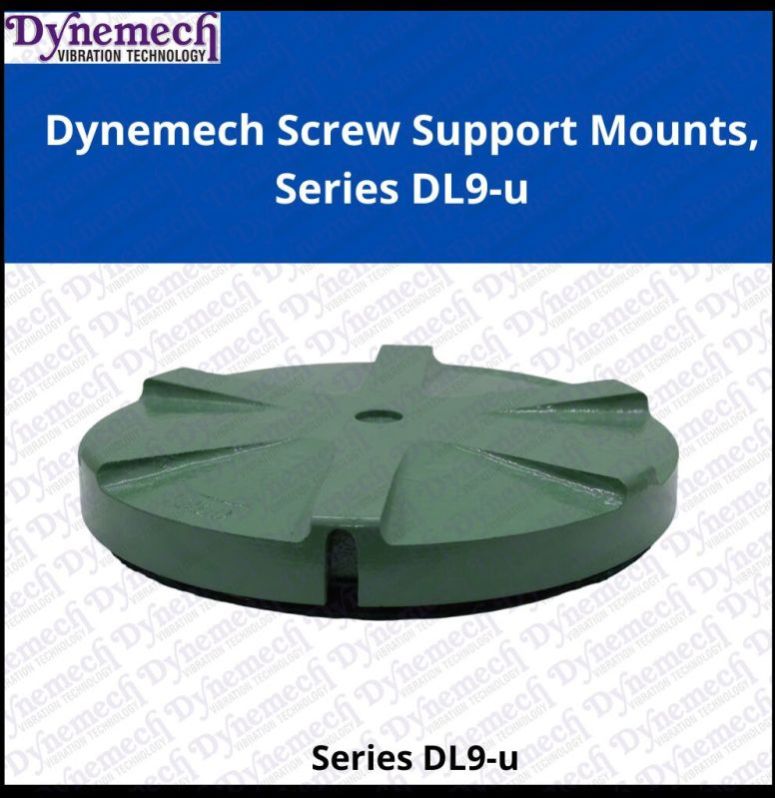

Dynemech DL Series AV mounts used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. Dynemech DLS Series AV Mounts, developed in stainless steel finds application in pharmaceutical food and beverages processing and packaing units, medical equipment manufacturing and chemical processing industries.Provide vibration isolation with complete hygienic seal and corrsion resistance.

Dynemech DL series is used for light to medium weight machines suited to levelling screw support or having tapped hole in the base.achine levelling.

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

Note- GST and Freight Charges are not included.

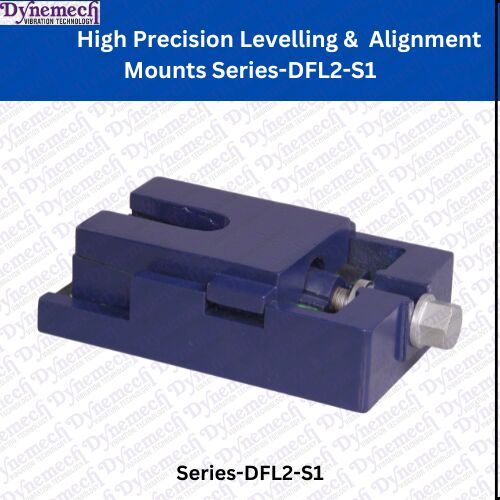

Dynemech High Precision Levelling & Alignment Mounts Series DFL The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.

Length:255(mm)

Width:155(mm)

Height:73(mm)

Load Capacity: 4000 Kg

Natural Frequency (Hz):N/A

Coeff. of Friction:N/A

Working Temp Range : N/A

4 Nos Weight ( Kg.): 60 kg

Material: Cast Iron

Max. Torque value(N.m): 216

Adjustment Range(mm): 5

Production Capacity: 100-150 set per month

Surface Finishing: Painted

Colour: Green/Dark Grey

4 Nos Box Size: 13"X8"x7

4 Nos of Boxes: 2

Time: 4-5 Days

Note- GST and Freight Charges are not included.
