Dynemech Systems Private Limited

HSIIDC, Sonipat, Haryana

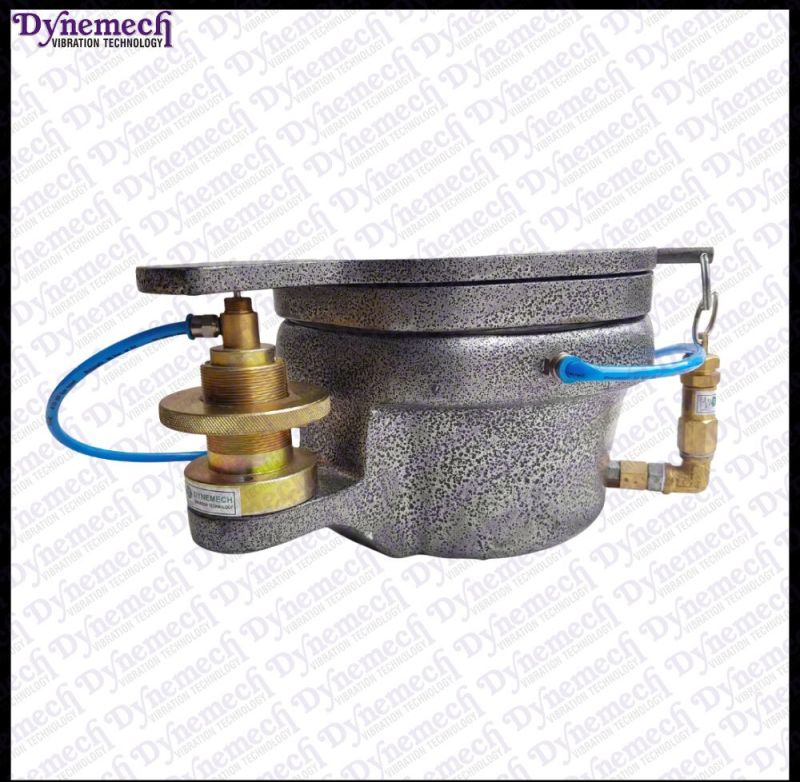

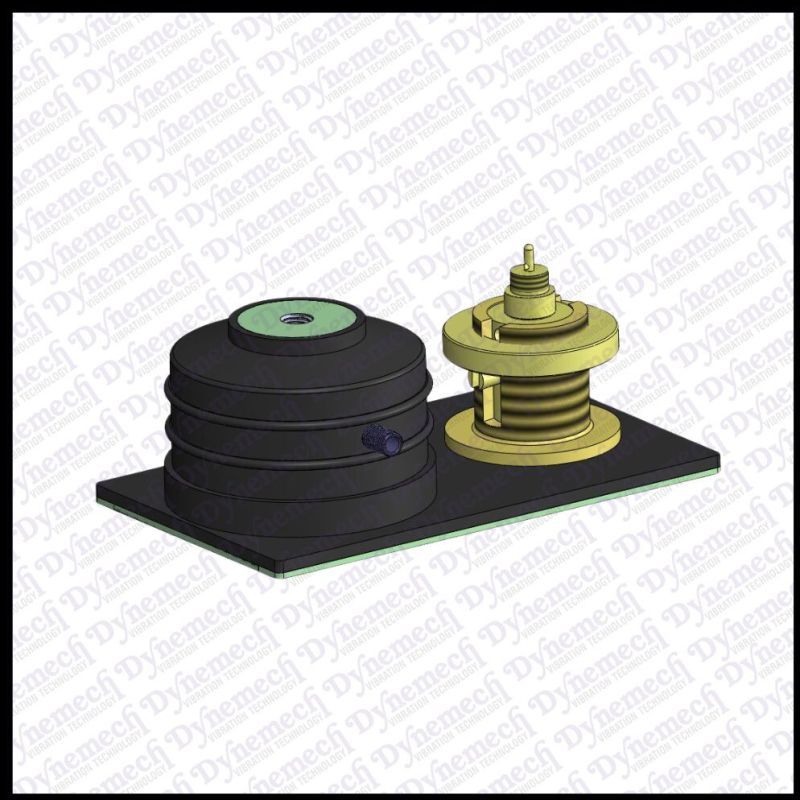

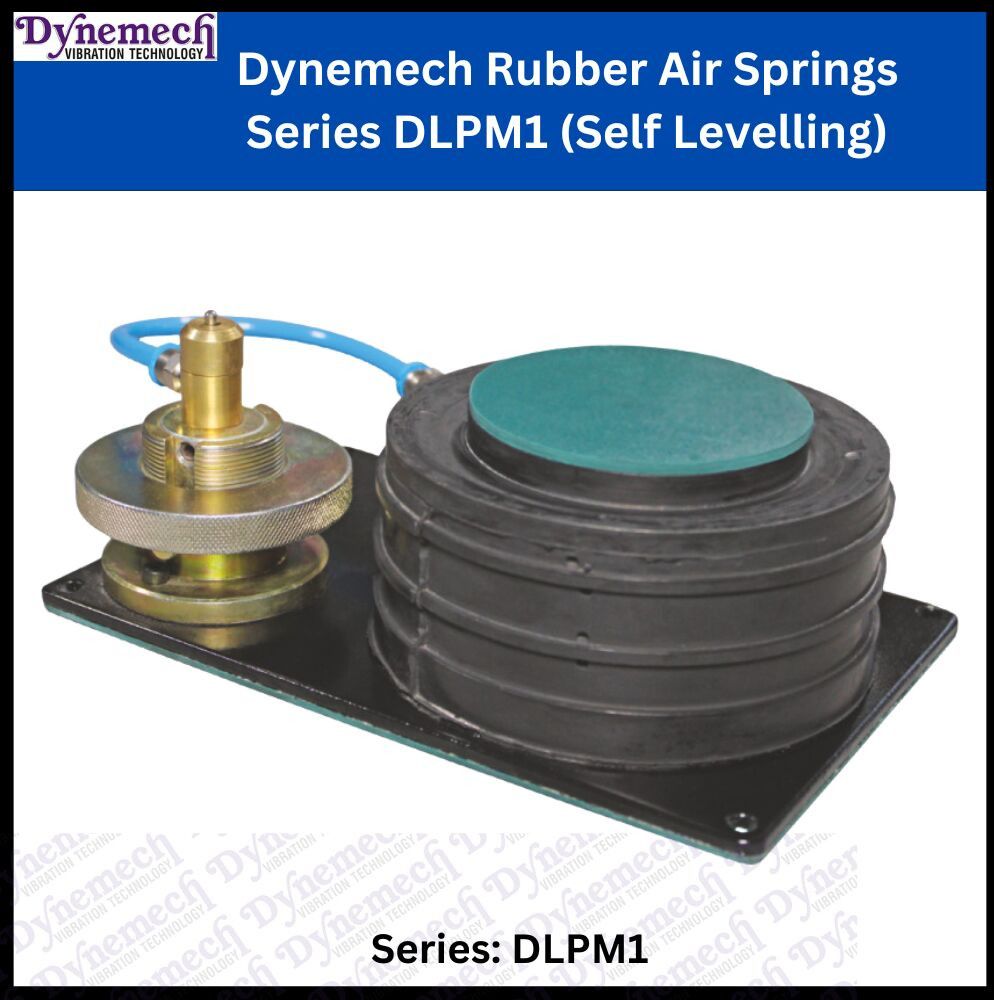

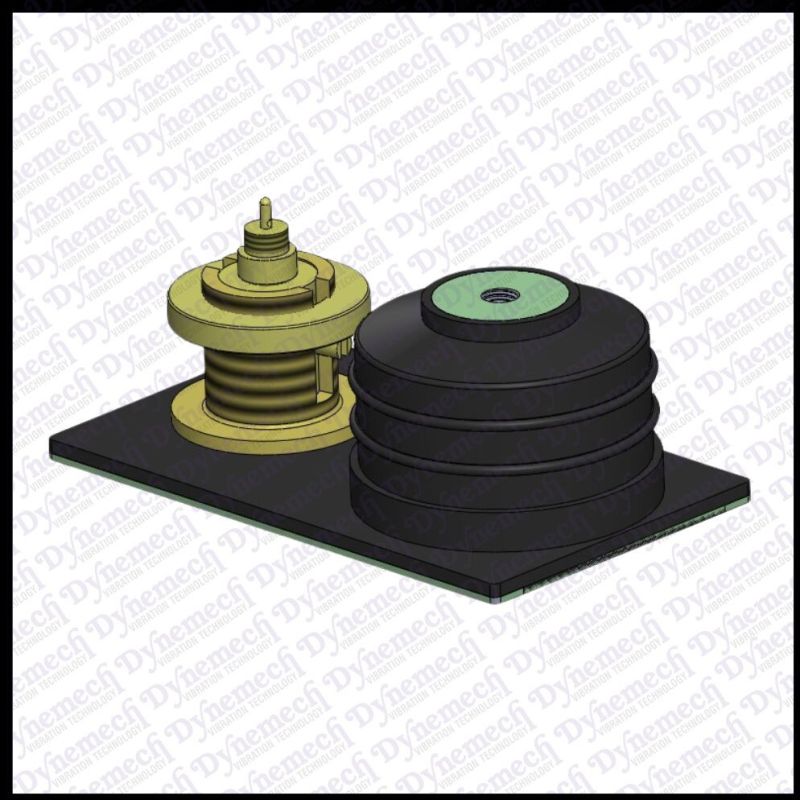

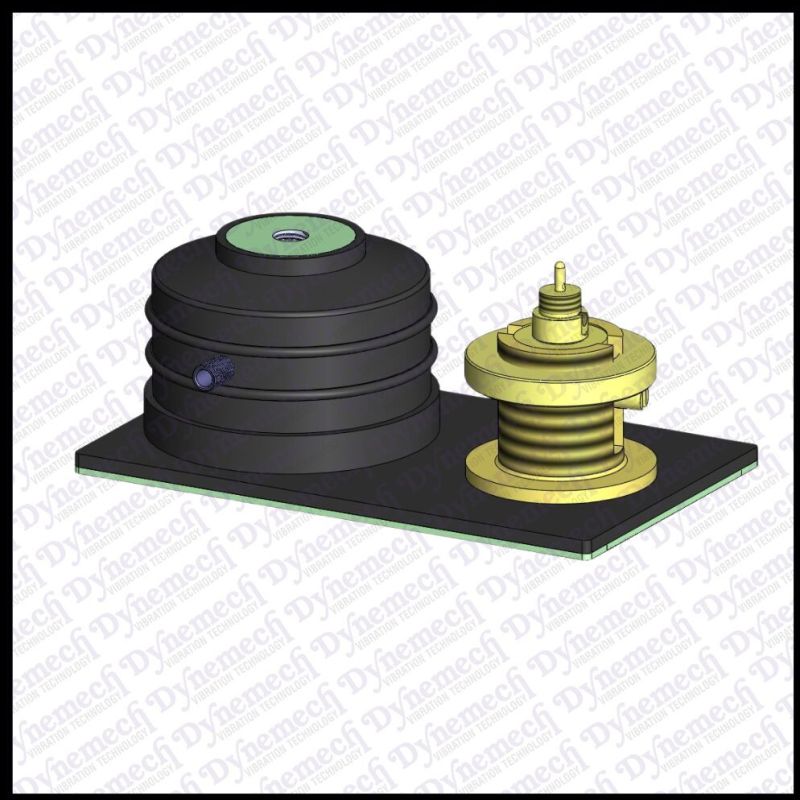

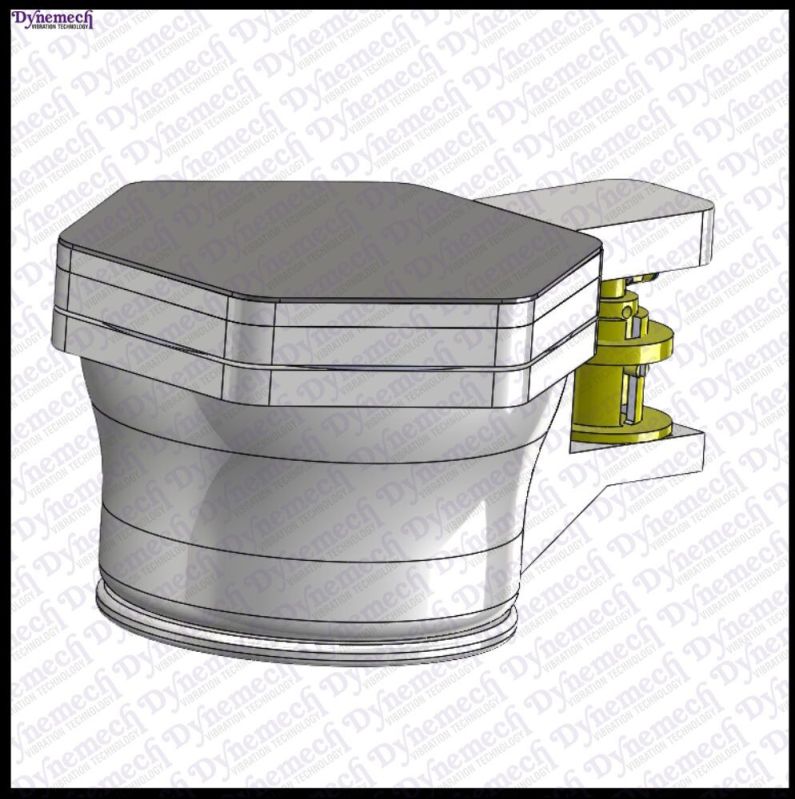

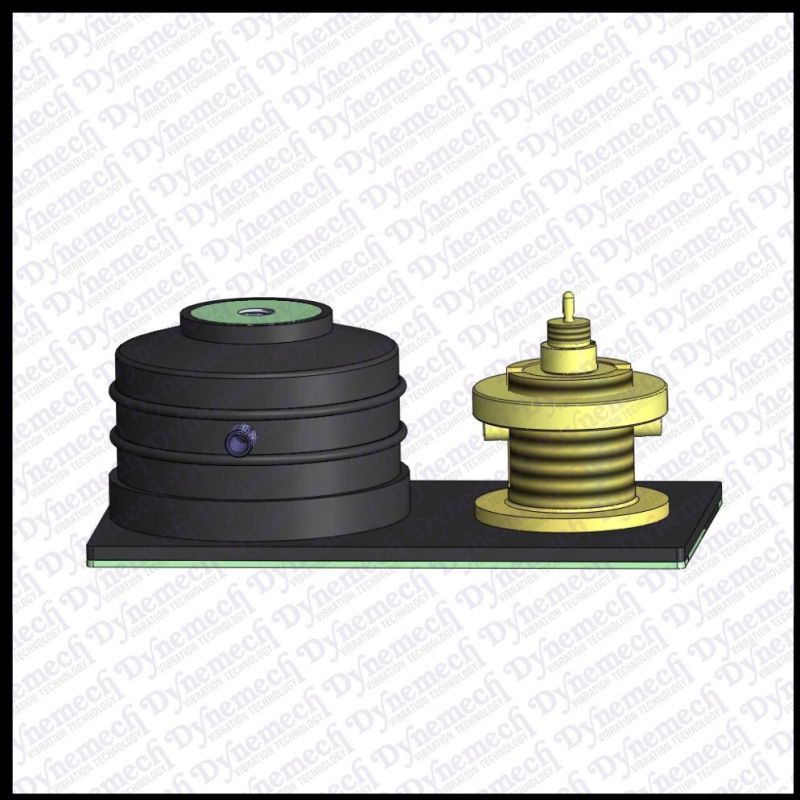

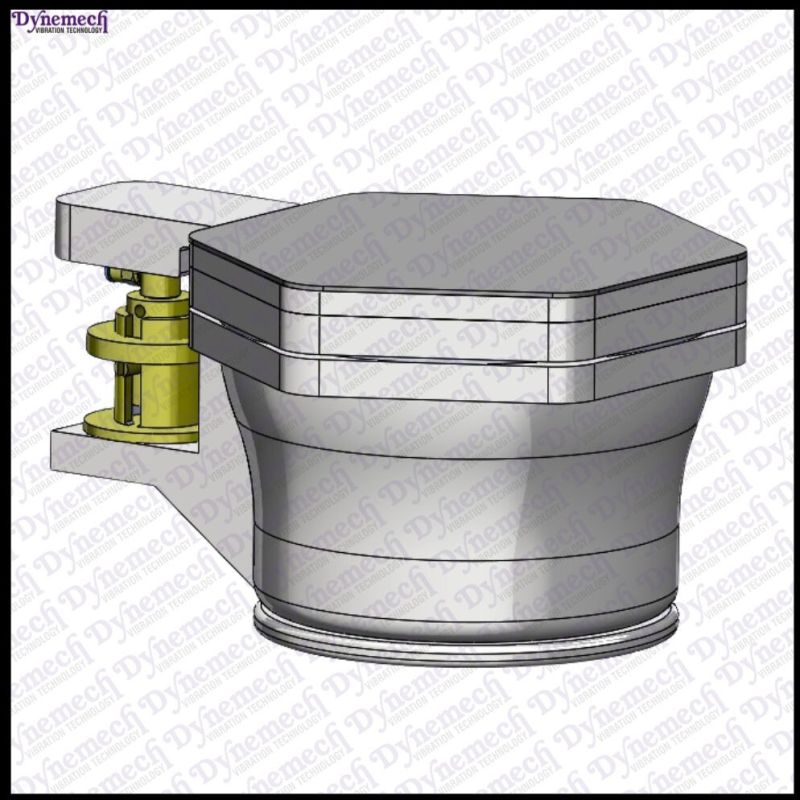

Dynemech DMAS-BL1 system consists of three master pneumatic isolators for 3-point precision levelling. Each pneumatic damping isolator consists of a self-levelling plunger mechanism. Which is the load sensing, and heigh-controlling element. The system is supplied with pressure regulator, distributor, Clean dry air is required to be supplied to the system. The DMAS-BL1 is lightweight aluminium body. The inner chamber is split into two parts i.e. load volume and damping volume. damping up to 20% can be adjusted using external valve manually. A thin reinforced elastomeric diaphragm supports the load. A safety valve protects diaphragm from over inflation. The final precise levelling of the system can be done using levelling nut provided on the plunger mechanism.

Note- GST and Freight Charges are not included.

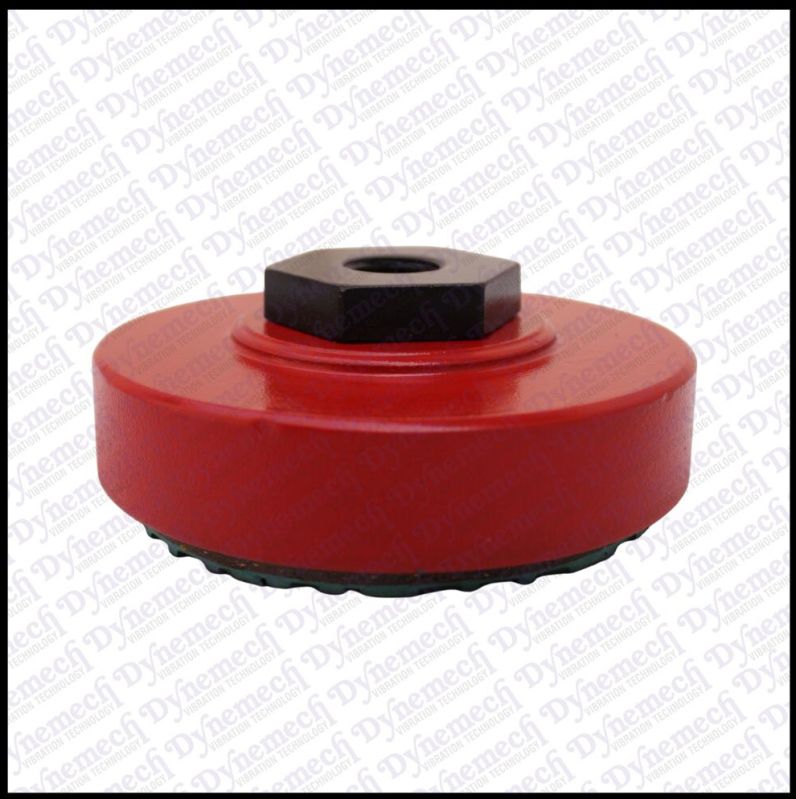

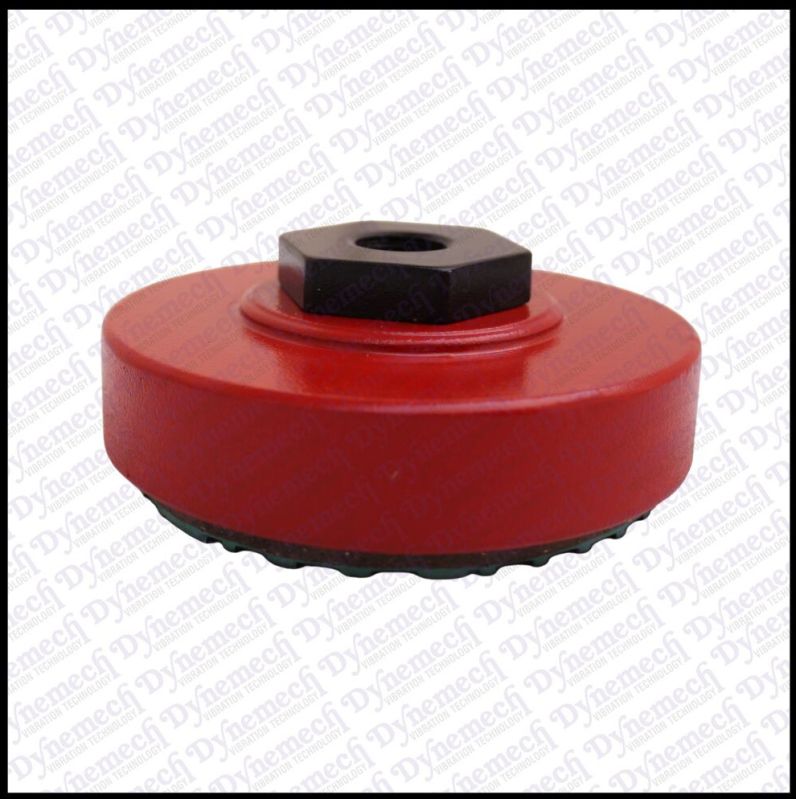

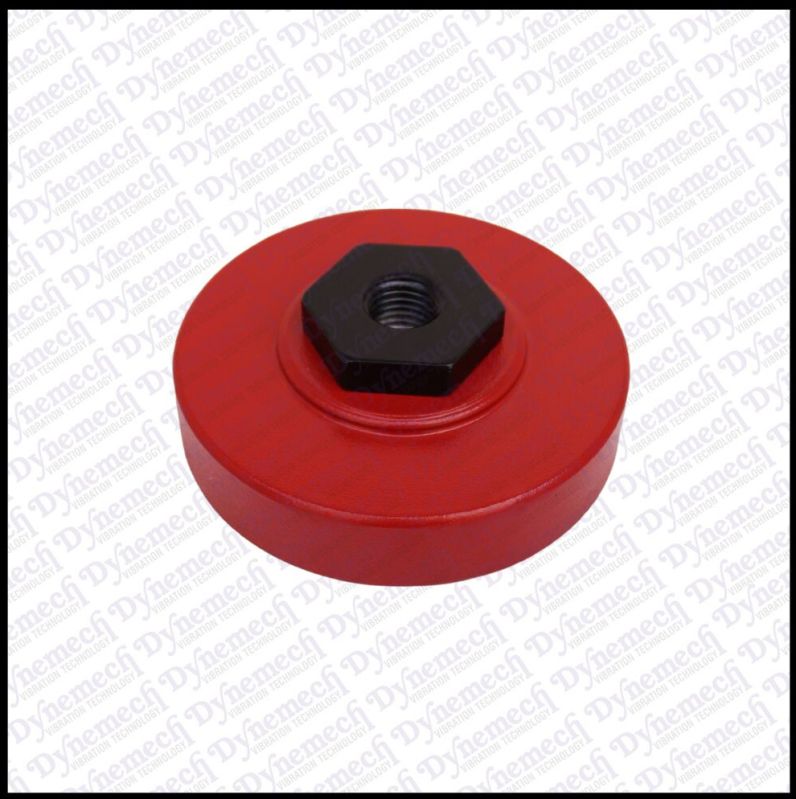

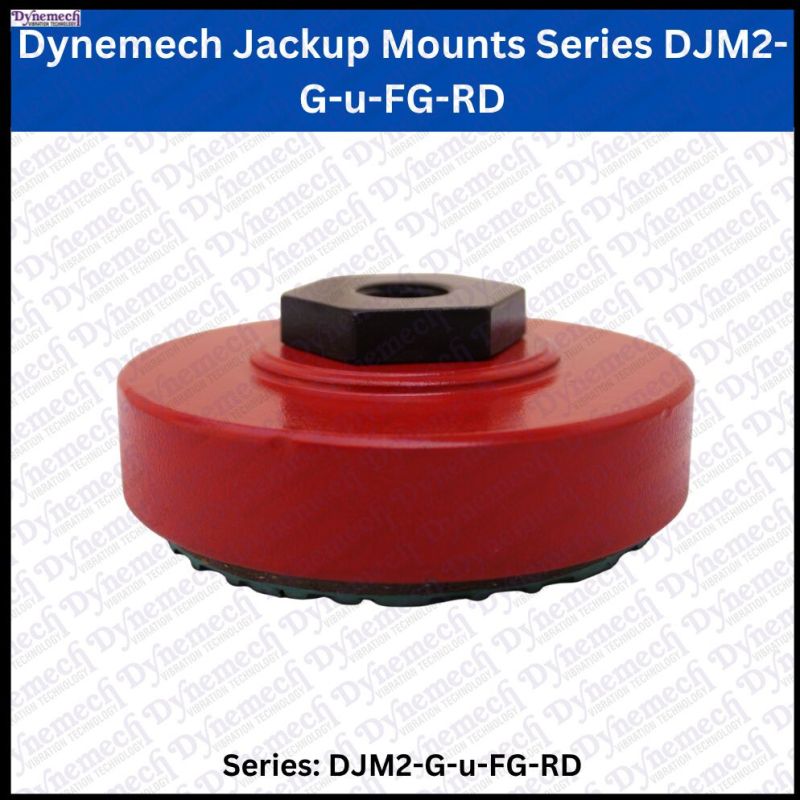

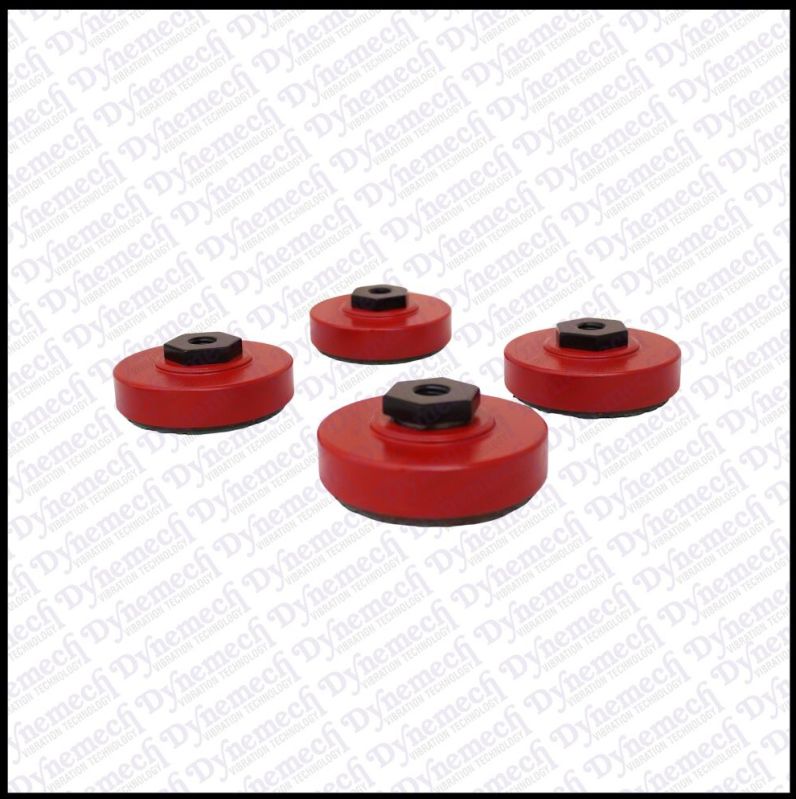

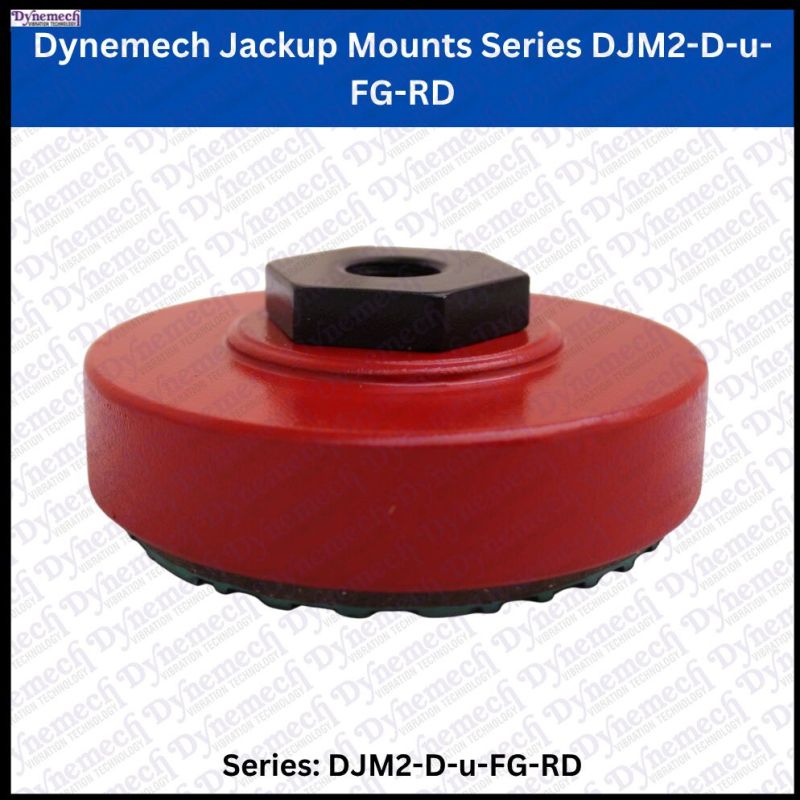

Dynemech Jackup mounts DJM provides isolation solutions for various machines and mounting conditions. The Dynemech Jackup mounts also provides for high machine leveling capabilities. These Jackup mounts provide high load capacity and best level stability. The bottom design provides for non-skid properties for the Jackup mount. The Jackup mount also provide very good passive vibration isolation.

Model: DJM2-D-u-FG-RD Load Capacity: 850Kg/pc To 2500Kg/pc Dia D(mm):- 90mm To 160mm Height H(mm): 49mm Thread Length: M20x2.5mm HEX SW(mm): 46(mm) Levelling Adjustment(mm):18 mm Weight ( Kg.): 15 kg Working Temp Range: -16 to 90

Material : Cast Iron, Rubber Box Type: Corrugated Box Size: 14 "X9 "X7.0 "

Colour: Red

Note- GST and Freight Charges are not included.

 The DLK Series of Vibration damping and leveling mounts provide fast and easy installation of machines. These Anti-vibration mounts provide enhanced component finish/part tolerance and extend tool and machinery life. The machine mounts provide improved health protection and better structural safety. DLK series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration insulating Base pad is made of composite material at varying composition giving different natural frequencies to provide vibration damping solutions to all types of industrial machines. screw support mounts series DLK-4 are suitable for heavy machine installations. they provide additional damping in shear and radial directions.

Note- GST and Freight Charges are not included.

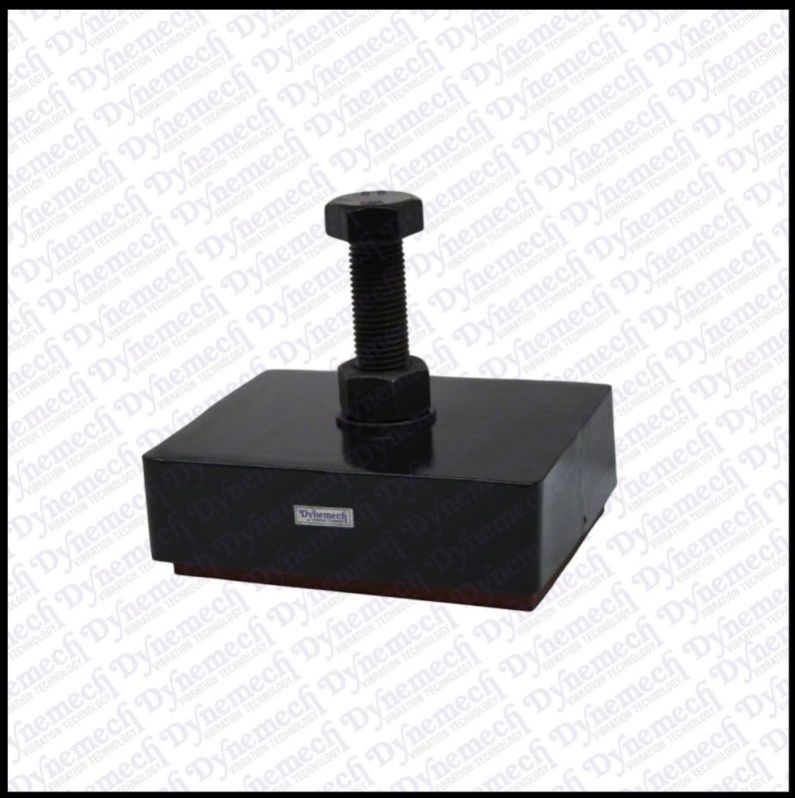

DLKR mounts provides a large rectangular surface to support machines along with the levelling adjustment. The longer side is installed parallel to the line of operation of the horizontal force generated by the machine thus ensuring better grip and higher shock isolation. DLKR mounts are suitable for machines which generate high vertical and horizontal forces and have a plain hole in the base. APPLICATIONS-Plastic Injection Moulding Machines, Pressure Die casting Machines, Lathe Machines etc.

Note- GST and Freight Charges are not included.

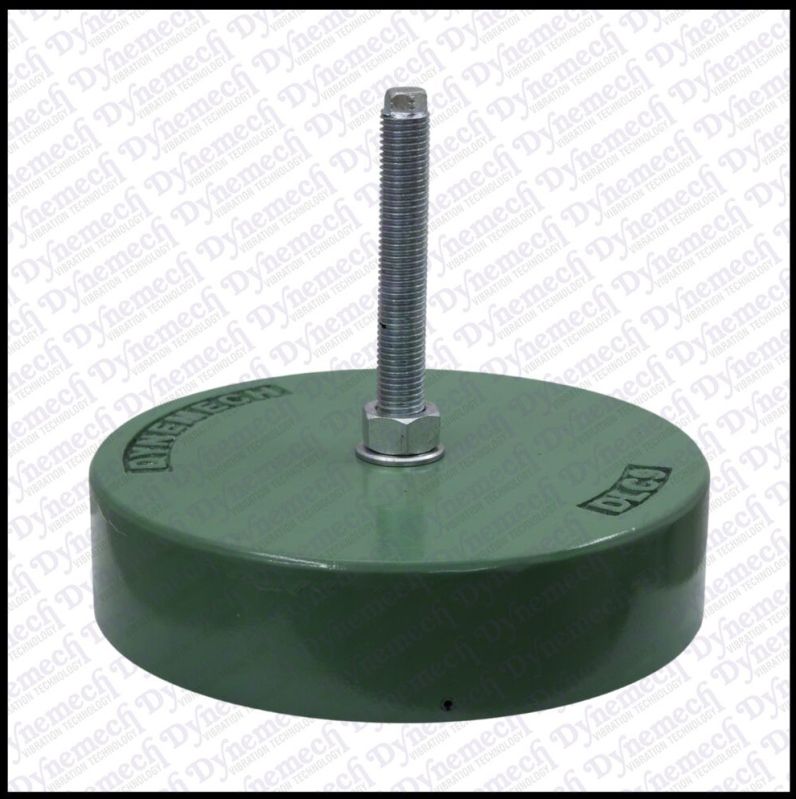

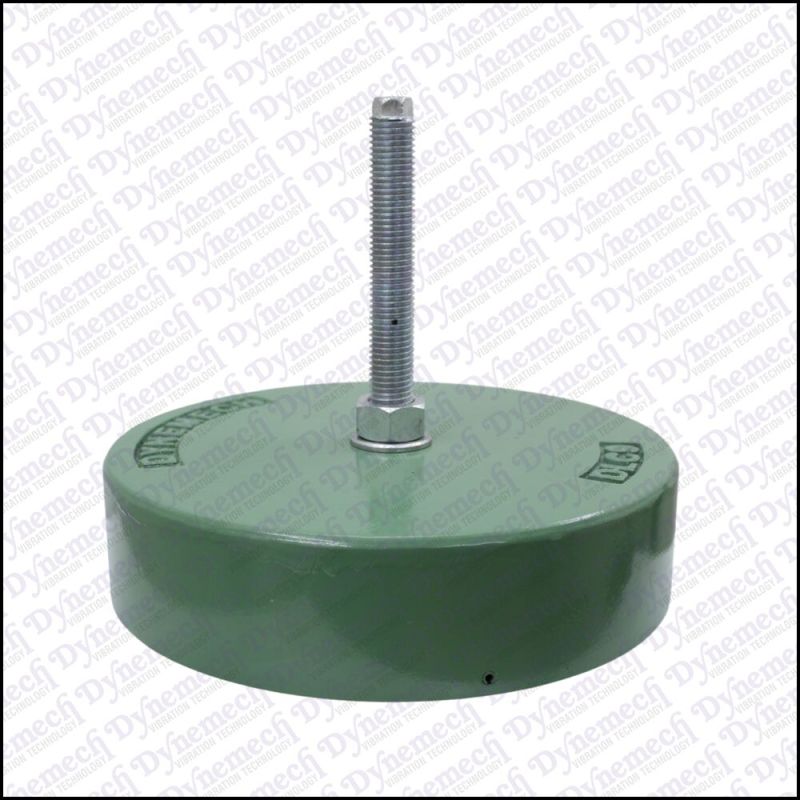

Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc. Application -Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc. Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.

Note- GST and Freight Charges are not included.

Dynemech DL Series AV mounts used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. Dynemech DLS Series AV Mounts, developed in stainless steel finds application in pharmaceutical food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries. Provide vibration isolation with complete hygienic seal and corrosion resistance. Heavy & Long bedded Machine, Long Machining Center, Heavy Grinding Machine etc. Heavy & Long bedded Machine, Long Machining Center, Heavy Grinding Machine etc.

Note- GST and Freight Charges are not included.

Dynemech Jackup mounts DJM-2 provides isolation solutions for various machines and mounting conditions. The Dynemech Jackup mounts also provides for high machine leveling capabilities. These Jackup mounts provide high load capacity and best level stability. The bottom design provides for non-skid properties for the Jackup mount. The Jackup mount also provide very good passive vibration isolation. Dia D(mm):- 90mm To 160mm                                       Height H(mm):-49mm To 49mm                                    G(mm): M20x2.5                                                          Thread Length:38mm                                                        To M20x2.5mm                                                         Thread Length:38mm                                                   HEX SW(mm): 46(mm) To 62(mm)                              Load Capacity:850Kg/pc To 2500Kg/pc                    Levelling Adjustment(mm):18 mm To 18 mm                      Natural Frequency Range Hz: 18(Hz) To 18(Hz)                Coeff. of Friction: 0.9 To 0.9                                           Weight ( Kg.):1.5 Kgs To 5 Kgs                                  Working Temp Range: -16 to 90

Material :  Cast Iron, Rubber

Colour: Red Price-2270

Note- GST and Freight Charges are not included.

 Dynemech Machine base mounts series SL5-P1 is Machine Base mounts used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. These are suitable for placing in the pocket of the machine base.

Length – 80(mm) To 200(mm),   Width – 64(mm) To 200(mm),   Height- 30(mm) To 39(mm)

Load Capacity (Kg/pc.) 350 Kgs/pc To 1600 Kgs/pc

Natural Frequency (Hz):18 Hz To 7 Hz

Coeff. of Friction: 0.9 To 0.8

Working Temp Range °C: -16 to 90

Weight ( Kg.):0.5 Kg To 2.5 Kgs

Material: Cast Iron, Rubber

Colour: Green

Note- GST and Freight Charges are not included.

Dynemech wedge mounts are designed for industrial machine tools that require precision leveling. This 3-piece wedge mount has an adjustable bolt which moves the center wedge between top and bottom stationery wedges to provide lift, to the top wedge. Anti-Skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech insulation plates. Applications- Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

Note- GST and Freight Charges are not included.

Dynemech Wedge Mounts Series DB is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor. These mounts provide 2 holes on the top plate of the wedge. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine. Applications- Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine.

Note- GST and Freight Charges are not included.

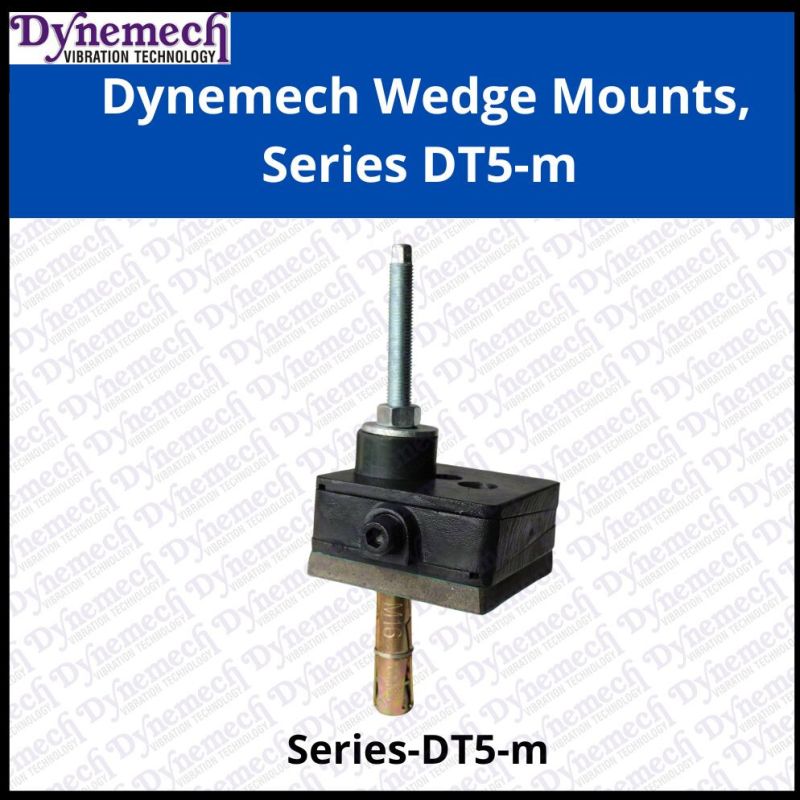

Dynemech Wedge Mounts, Series DT are designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground. Range of Applications:Drilling and milling machines, machining centres, special machines, long lathes, long planers, power presses etc.Dynemech Wedge Mounts, Series DT are designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground. Range of Applications:Drilling and milling machines, machining centres, special machines, long lathes, long planers, power presses etc.• Drilling and milling machines, machining centres, special machines, long lathes, long planers, power presses etc.Dynemech Wedge Mounts, Series DT are designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground. Range of Applications:Drilling and milling machines, machining centres, special machines, long lathes, long planers, power presses etc.

Note- GST and Freight Charges are not included.

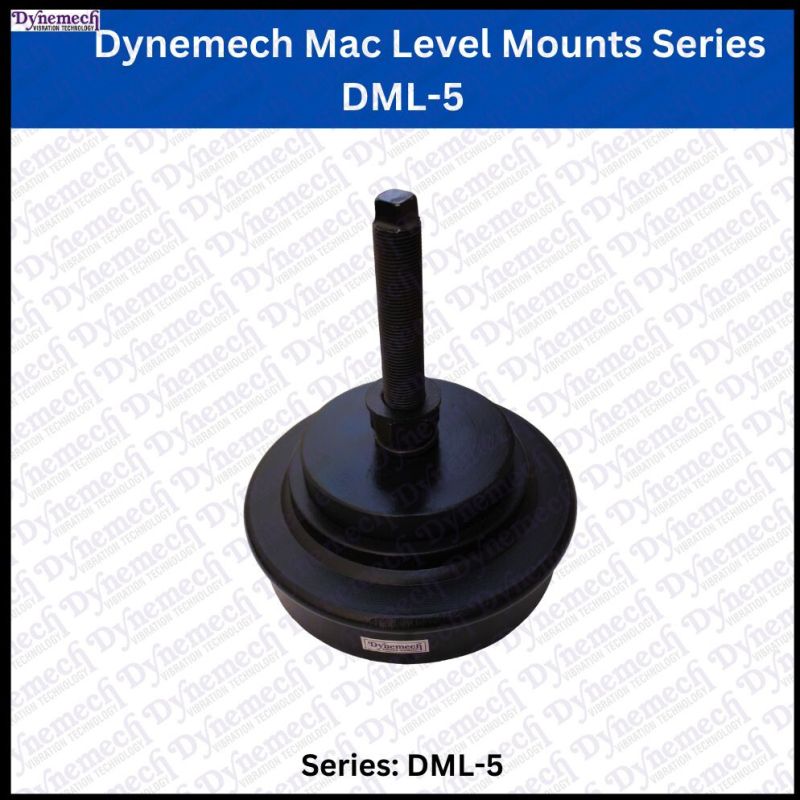

Dynemech Mac Level Series DML is suitable for high speed rotating machines having small or no axial forces.

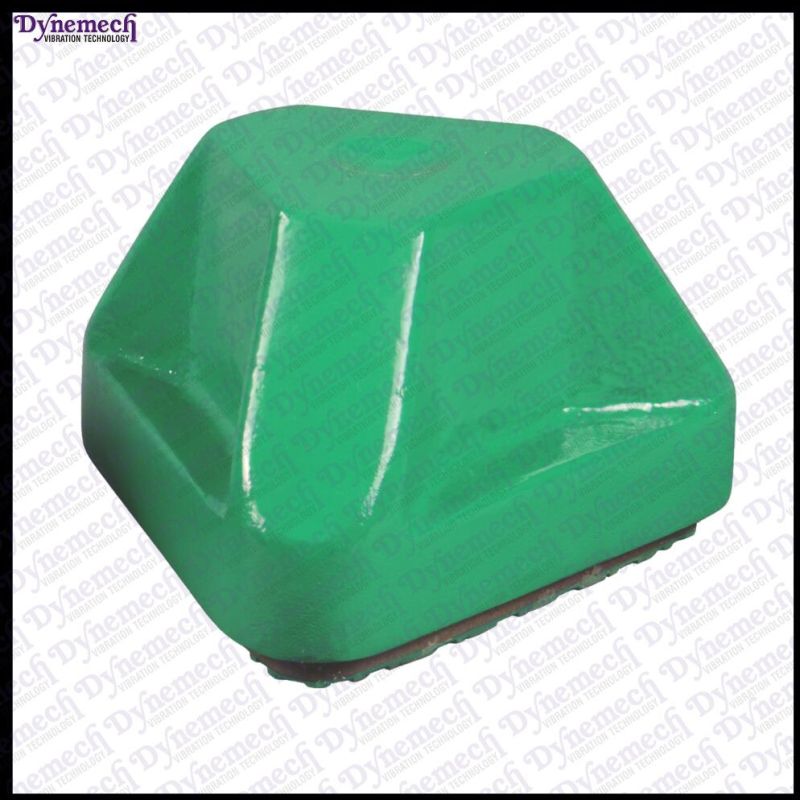

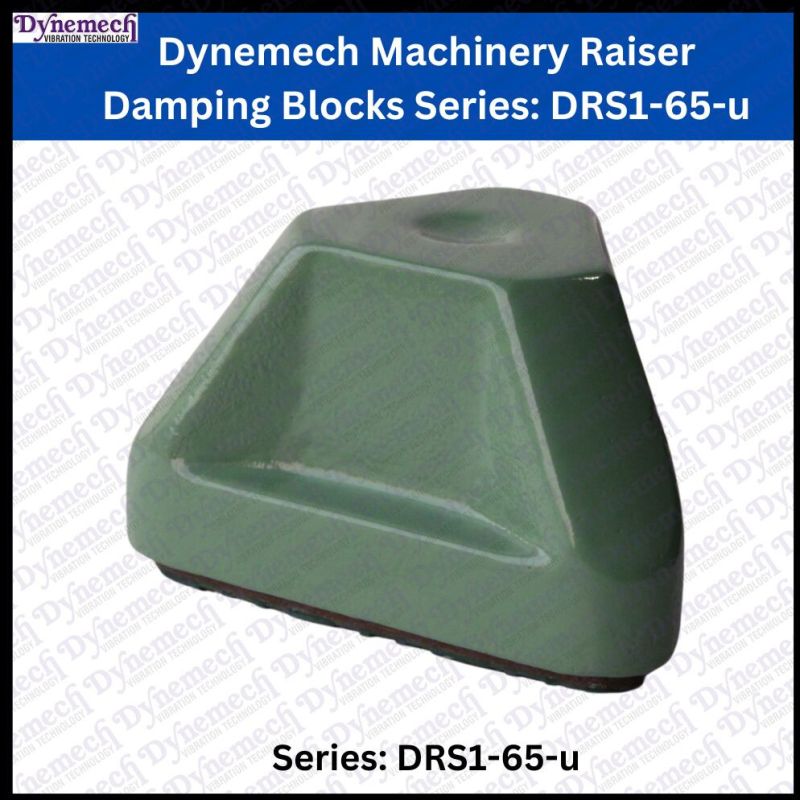

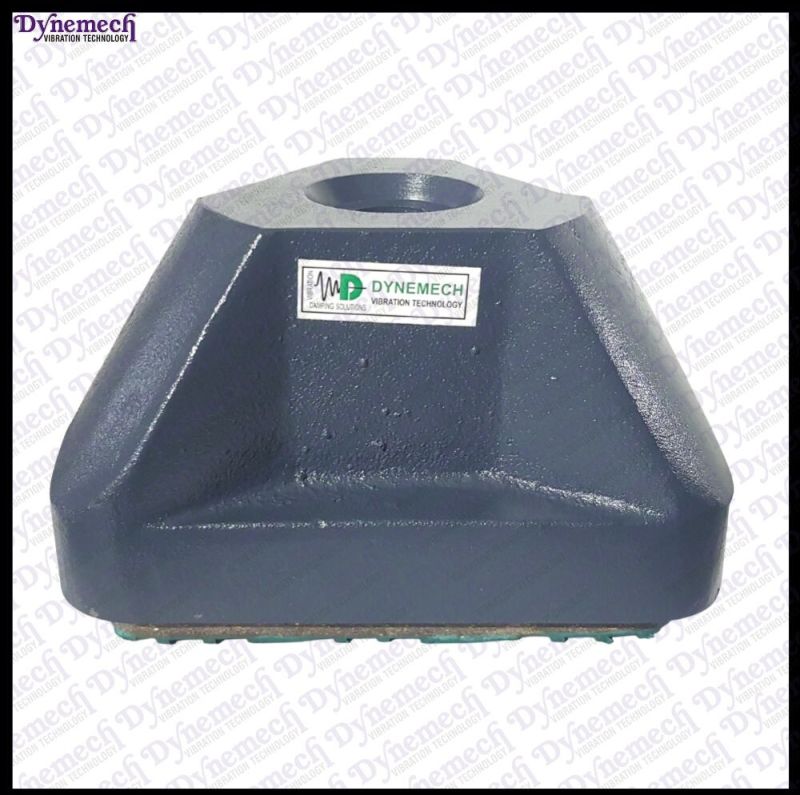

DRS series mounts are available in different heights as per the required ground clearance. The options of threading and dimple are available for levelling the machine. The vibration reduction is done using vibration isolation sheet of tuned natural frequency under the base of this mount.

Model: DRS1-65-u

Load Capacity(Kg/pc): (1160 to 7200)Kg/pc

Height H(mm): (50 to 65)mm

A(mm): (150 to 150)mm

Dimple: 28 to 32

Natural Frequency: 30 to 45

Co-effcient of Friction: 0.7 to 0.6

Thickness: (50 to 65)mm

Hardness: (90 to 92)mm

Material: Cast Iron

Colour: Green

Surface Finishing: Painted Temperature: (-20 to +70°C)

Weight: 20 Kgs Delivery Time: 1-2 Days No. of Boxes: 1

Box Dimension: 13"X8"X7" Production Capacity: 50 Pcs/Per Day

Note- GST and Freight Charges are not included.

DRS series mounts are available in different heights as per the required ground clearance. The options of threading and dimple are available for levelling the machine. The vibration reduction is done using vibration isolation sheet of tuned natural frequency under the base of this mount.

Model: DRS1-65-u

Load Capacity(Kg/pc): (1160 to 7200)Kg/pc

Height H(mm): (50 to 65)mm

A(mm): (150 to 150)mm

Dimple: 28 to 32

Natural Frequency: 30 to 45

Co-effcient of Friction: 0.7 to 0.6

Thickness: (50 to 65)mm

Hardness: (90 to 92)mm

Material: Cast Iron

Colour: Green

Surface Finishing: Painted Temperature: (-20 to +70°C)

Weight: 20 Kgs Delivery Time: 1-2 Days No. of Boxes: 1

Box Dimension: 13"X8"X7" Production Capacity: 50 Pcs/Per Day

Note- GST and Freight Charges are not included.

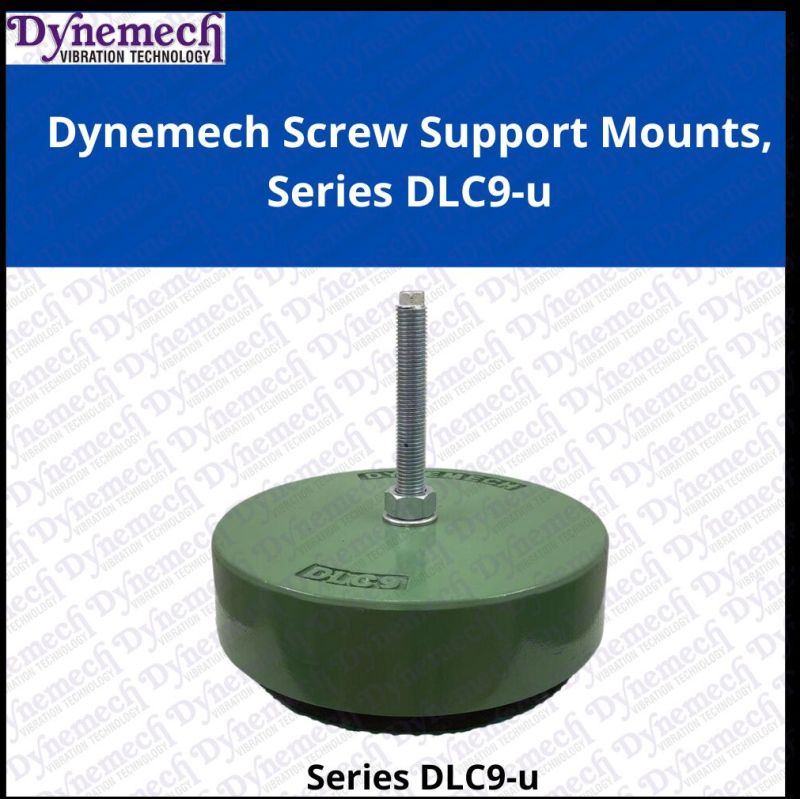

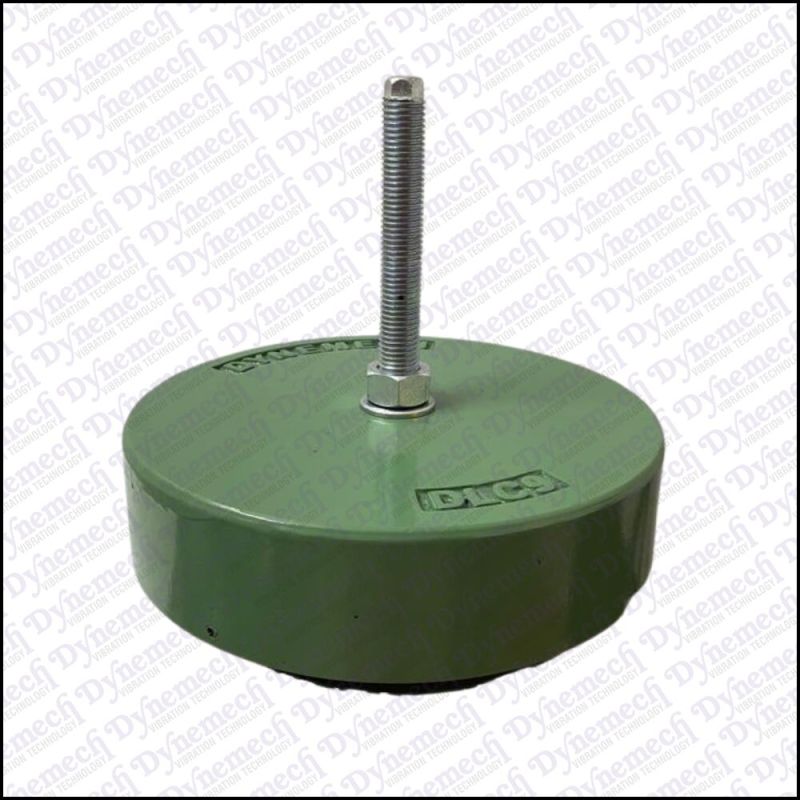

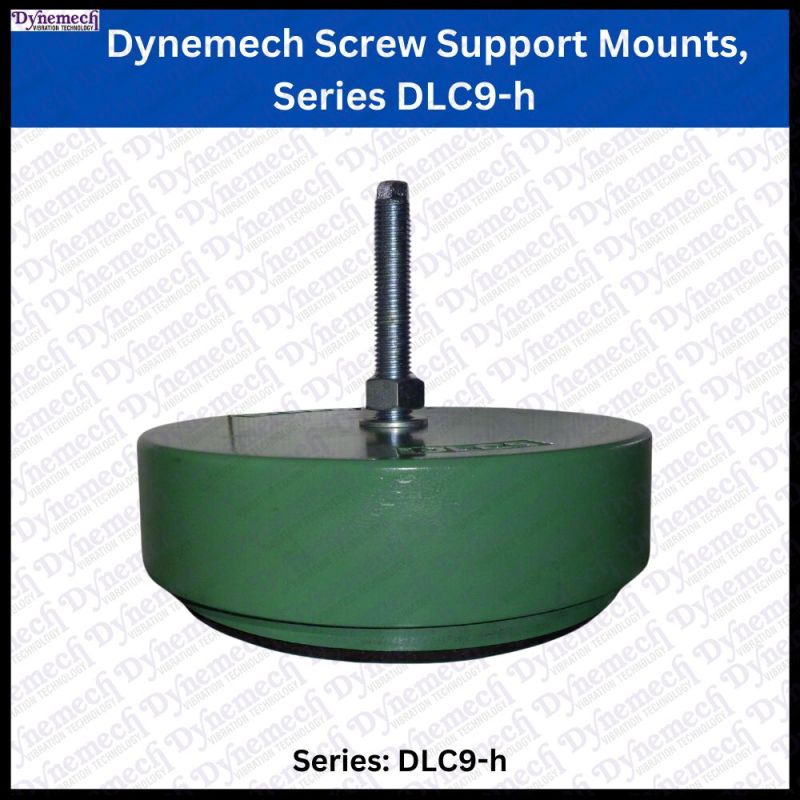

Dynemech offers a variety of SCREW SUPPORT MOUNTS Series DLC to improve the design and performance of the machine tools to meet customer demand. Insulation plates having different load carrying capacities and different natural frequencies are assembled with screw support mounts to suit almost every industrial application.

 Note- GST and Freight Charges are not included.

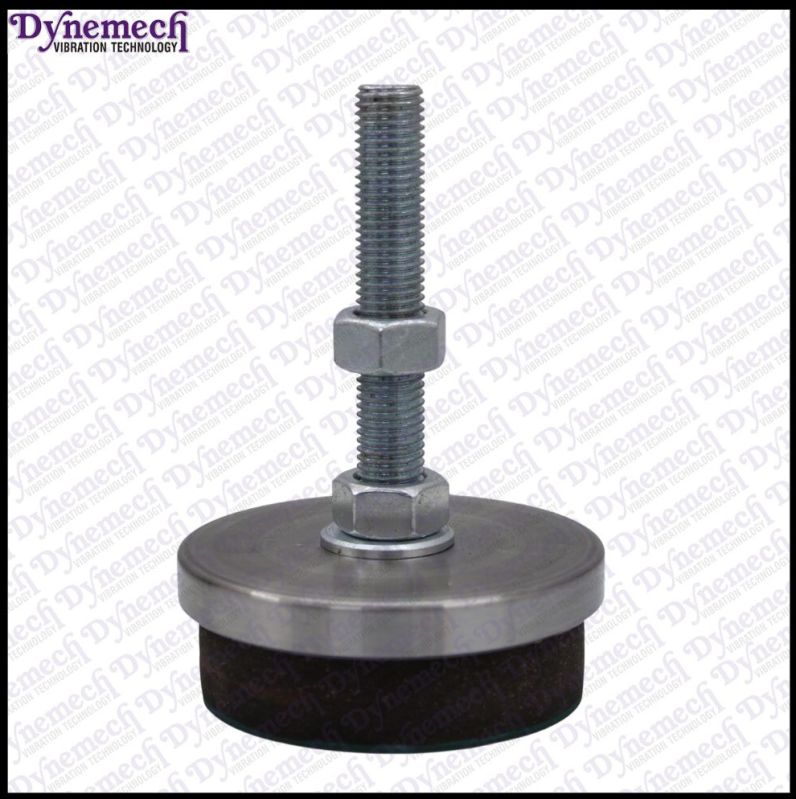

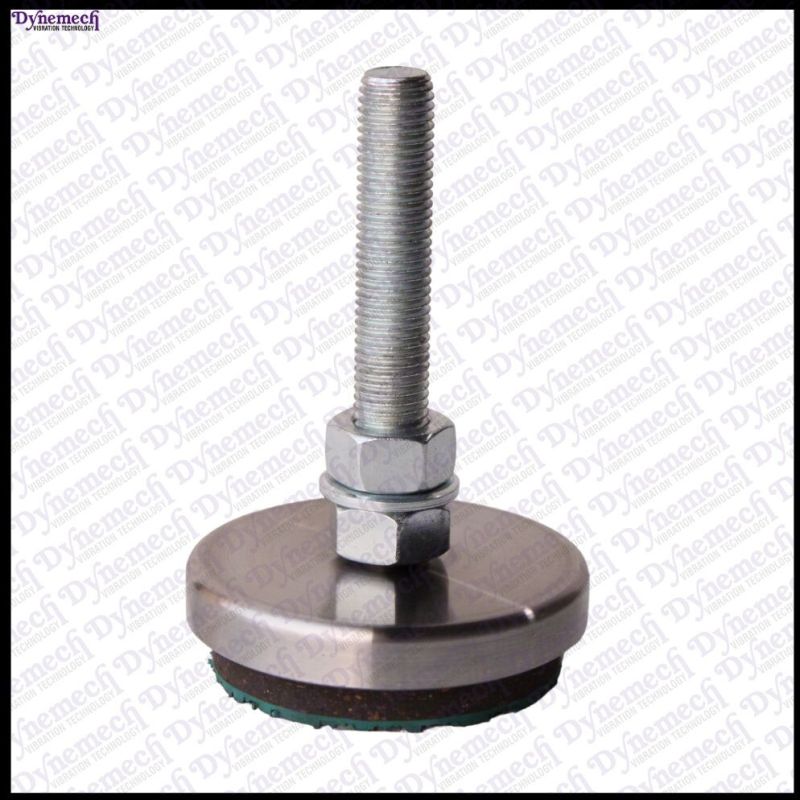

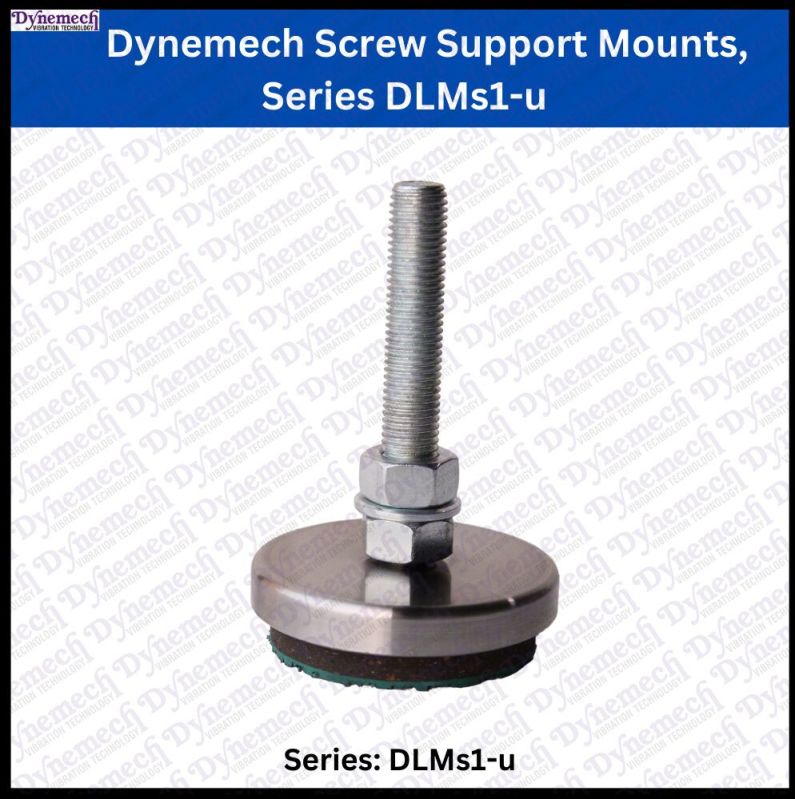

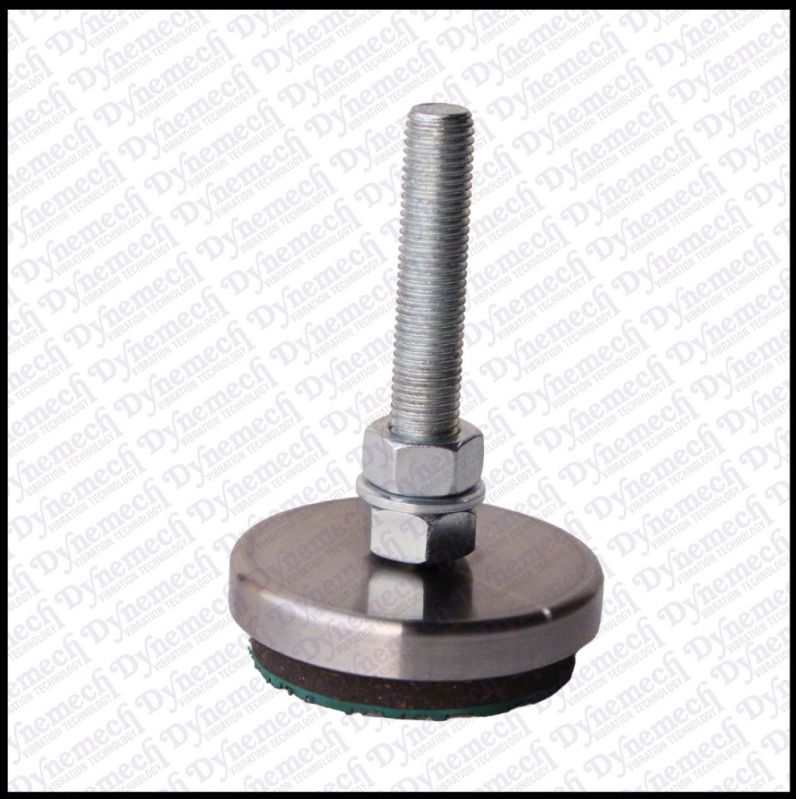

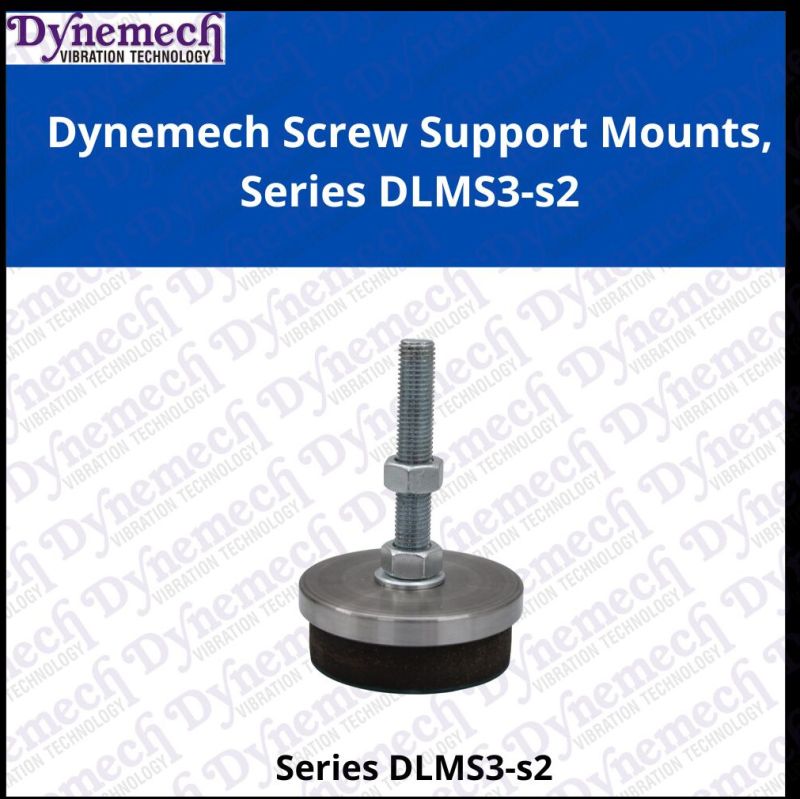

Dynemech DLMS Series Antivibration Mounts, developed in steel and stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer low frequency attenuation, stable machine levelling and vibration reduction. The flexible levelling screw accommodates uneven/sloped surface up to 5 degree. DLMS Series find application where corrosion resistant materials for hygienic, climatic and environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries.

Size :Dia-112(mm), Height-38(mm)

Load Capacity (Kg.):550 Kg/pc

Bolt Size:M16x2.0X150mm

Natural Frequency (Hz):8

Coeff. of Friction:0.8

Working Temp Range °C:-16 to 90

Weight ( Kg.):14 Kg.

Material:Rubber+Cust Iron+Mild steel

Colour:Green & Dark Grey

Note- GST and Freight Charges are not included.

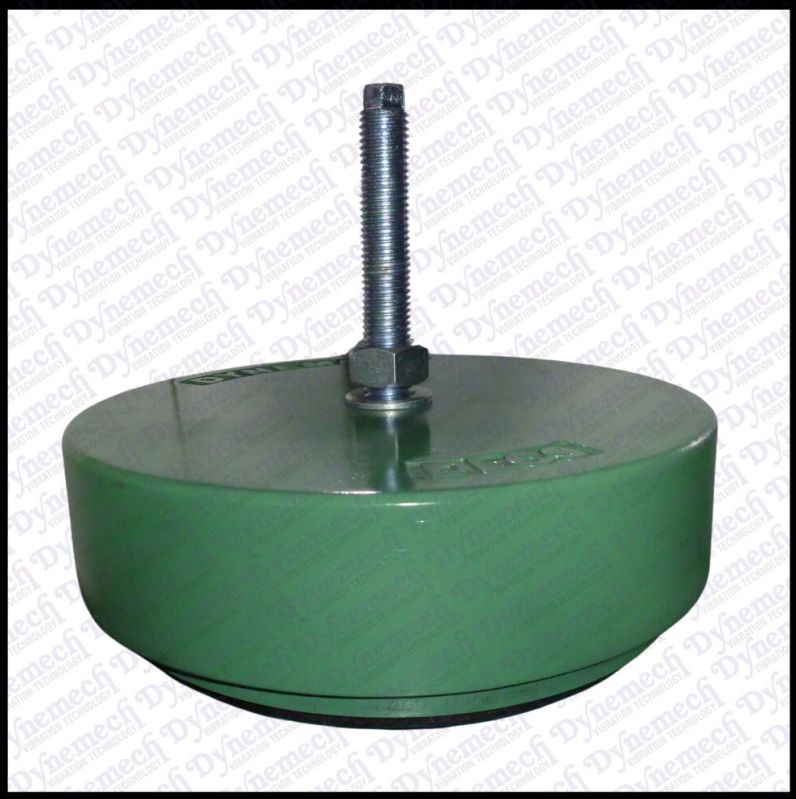

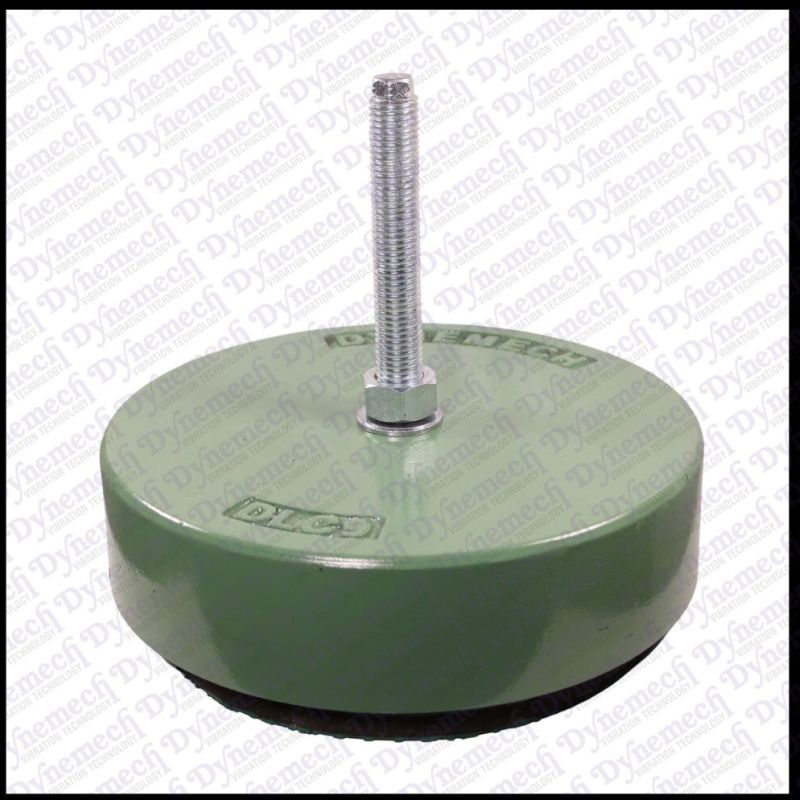

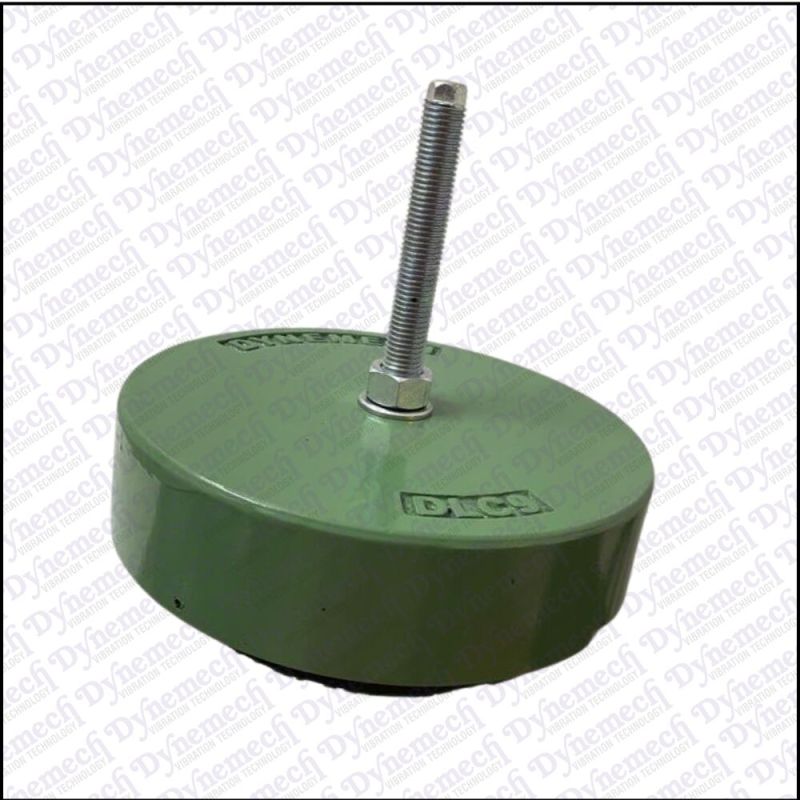

Dynemech offers a variety of SCREW SUPPORT MOUNTS Series DLC to improve the design and performance of the machine tools to meet customer demand. Insulation plates having different load carrying capacities and different natural frequencies are assembled with screw support mounts to suit almost every industrial application.

Size :Dia-302(mm), Height-84(mm)

Load Capacity (Kg.):4200 Kg/pc

Bolt Size:M24x3.0X200mm

Natural Frequency (Hz):18

Coeff. of Friction:0.8

Adj.(mm):18

Working Temp Range °C:-16 to 90

Weight ( Kg.):30

Material:Rubber+Cust Iron+Mild steel

Colour:Green & Dark Grey

Box Dimension: 14"x14"7"

04 Nos Weight is :130 Kgs

Number Of Boxes:4

Note- GST and Freight Charges are not included.

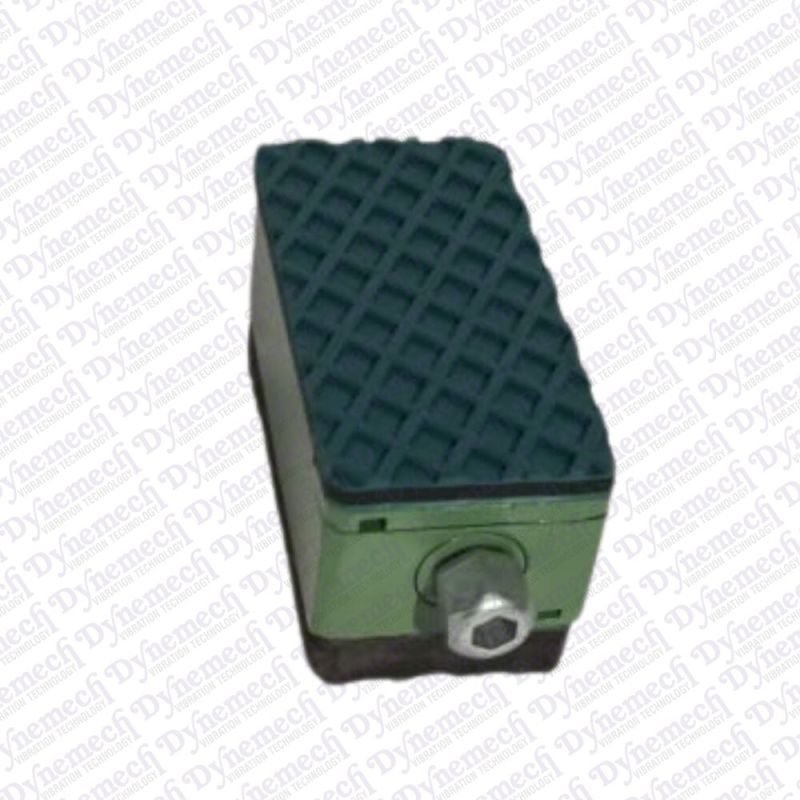

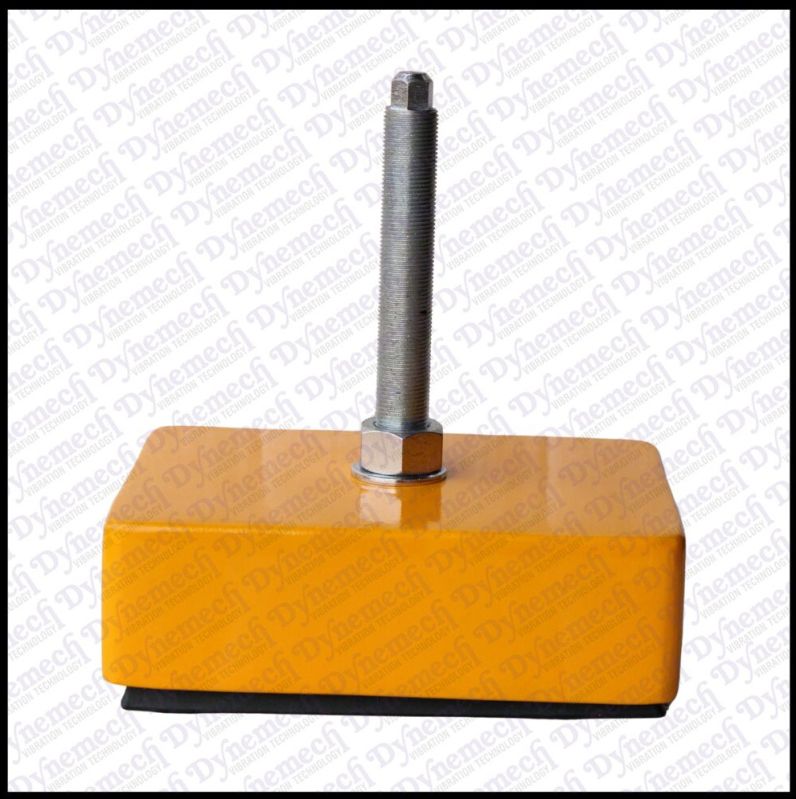

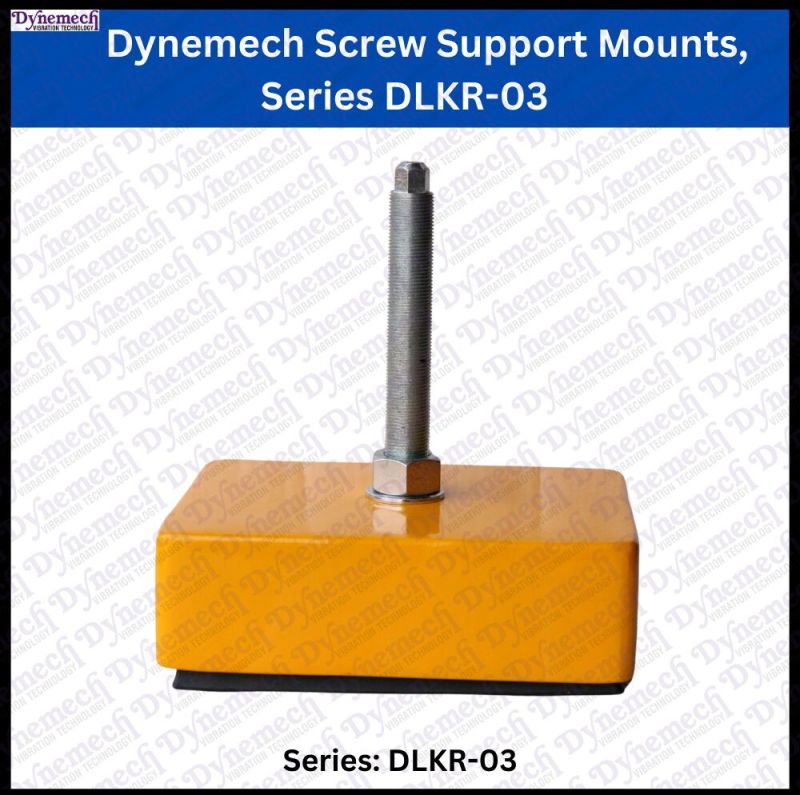

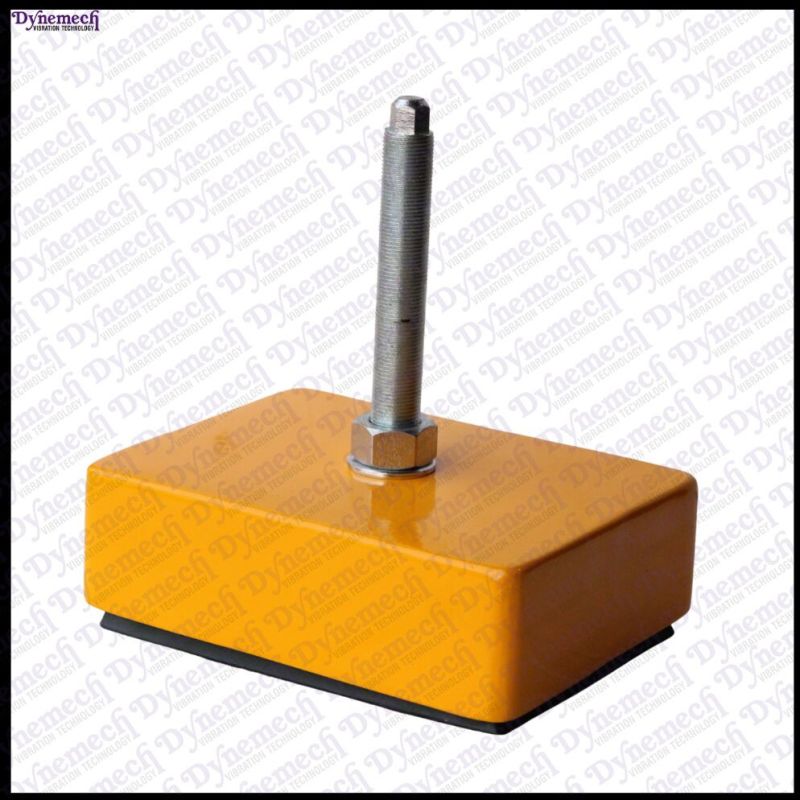

SCREW SUPPORT MOUNTS , Series DLKR

Series DLKR

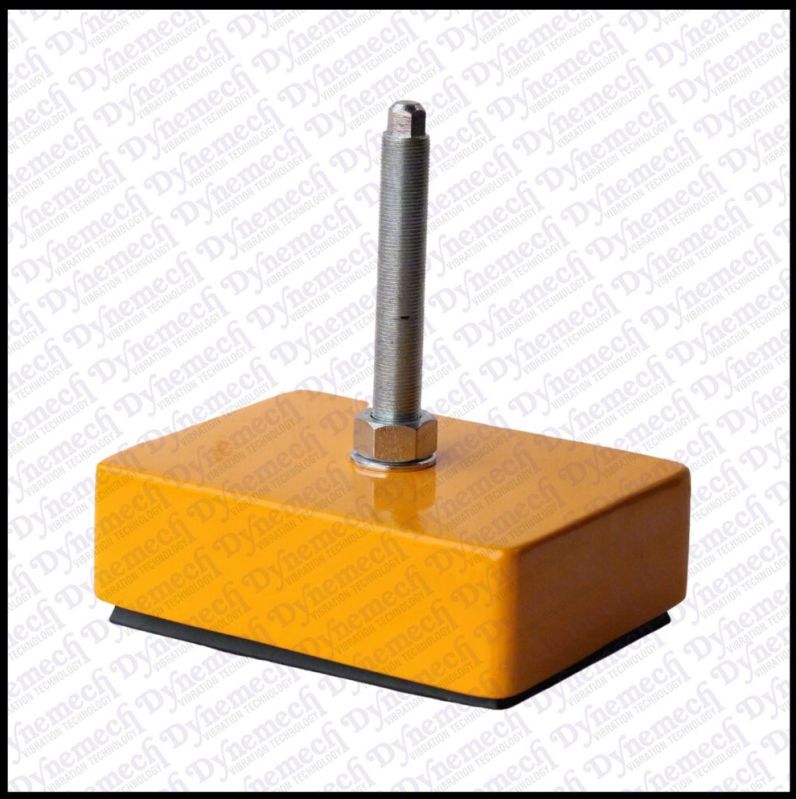

Dynemech Machine Base Mounts Series DLKR are simple but  effective rectangular vibration dampers for machines with respective holes in the base.

With their sturdy construction, Series DLKR  supports both low frequency attenuation and stable precise machine levelling .

The DLKR Series of vibration damping and leveling mounts provide fast and easy installation of machines along with large rectangular area support.

Series DLKR  machine mounts provide enhanced component finish/part tolerance and extend tool and machinery life of all industrial and workshop equipment and machinery.

DLKR series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate.

 Leveling is done by tightening the bolt which lifts the cover plate with the machine foot.

The vibration dampening base pad is made of composite elastomeric material at varying composition contributing different natural frequencies to provide vibration damping solutions to all types of industrial machines.

These vibration isolation base pads  are resistant to water, almost all the coolants, chemicals, fuels, lubricating oils used in the modern machine shop.

Series DLKR  vibration insulating machine pads will not deform plastically, if the weight of the machine does not exceed maximum load value defined.

•

Note- GST and Freight Charges are not included.

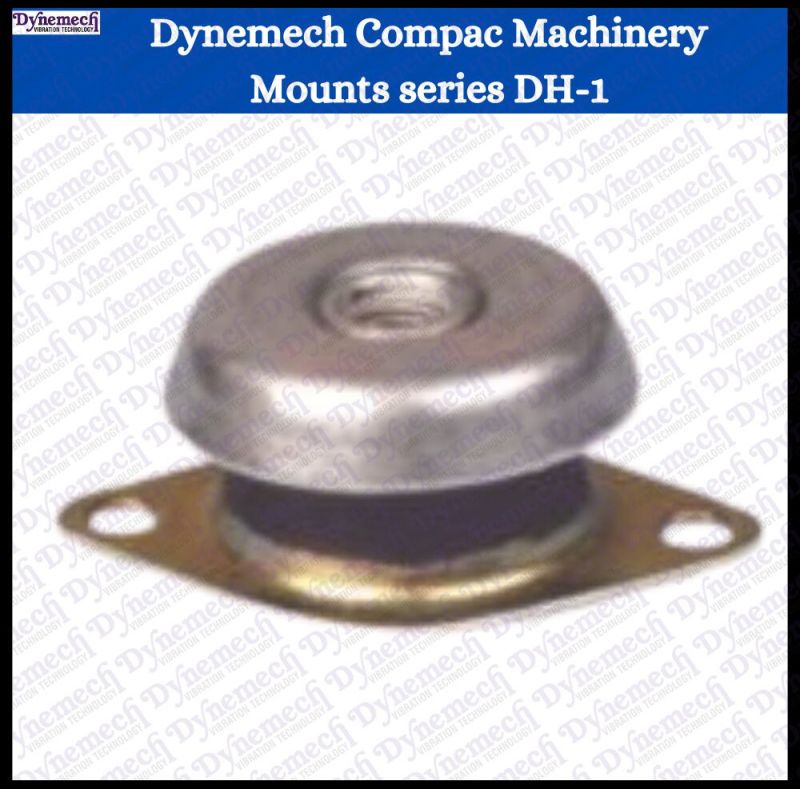

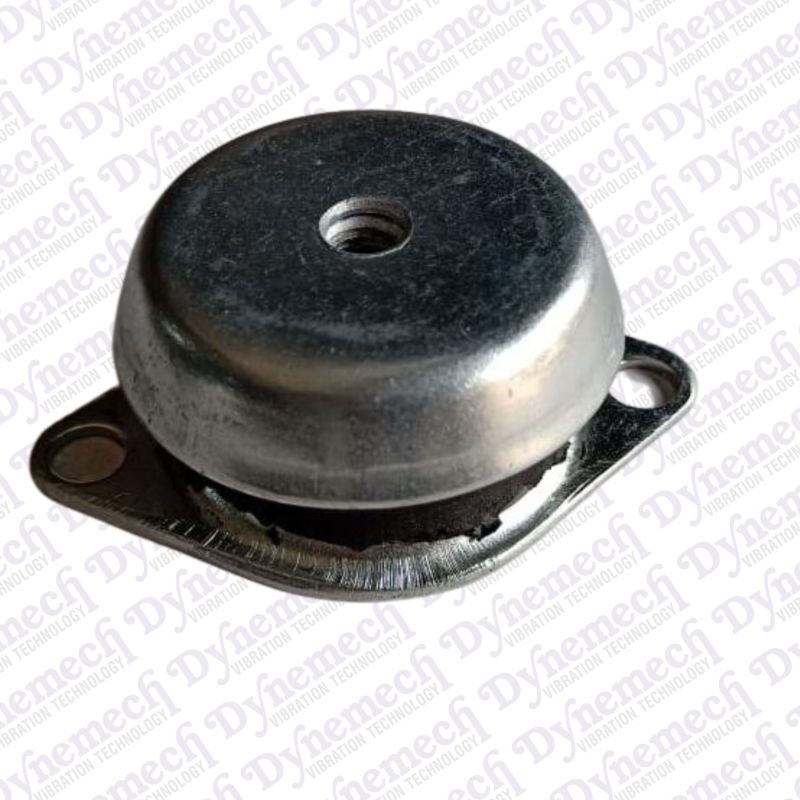

DYNEMECH Compac Machinery Mounts Series DH1 uses rubber in compression and shear. They provide tight tolerances on stiffness rate for accurate vibration calculations. Load range is from 40 to 130kgs per piece. The strong base metal withstands high shock loads without deformation. Fitted as standard with a shock-proof device (up to 4.5kg) with resilient stop, It is ideal for mobile or martine use. Domed shape cover to protect against oil contamination. Light weight and compact.

Note- GST and Freight Charges are not included.

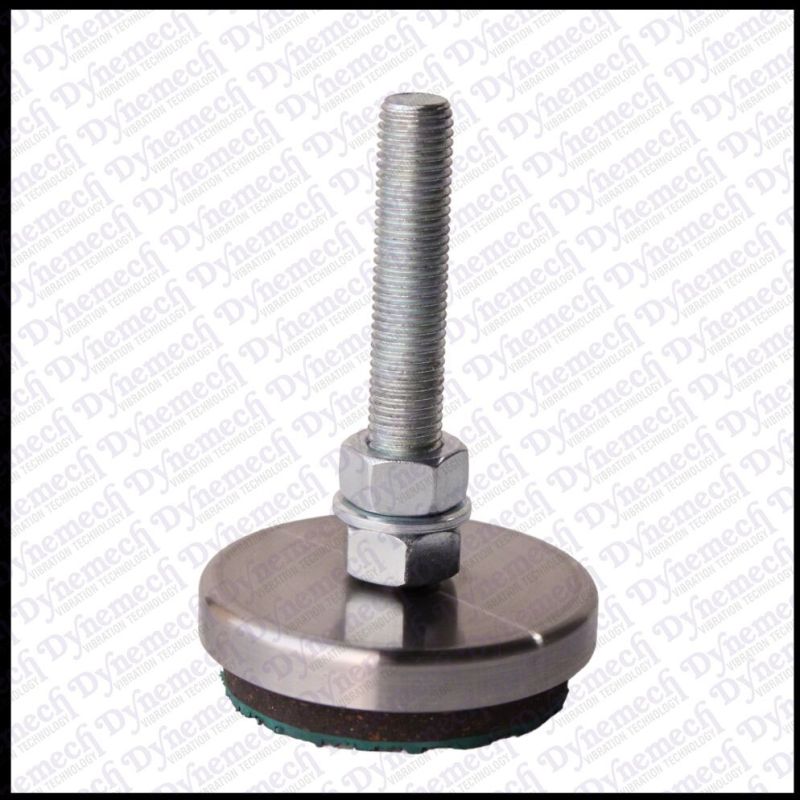

Dynemech DLMS Series Antivibration Mounts, developed in steel and stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer low frequency attenuation, stable machine levelling and vibration reduction. The flexible levelling screw accommodates uneven/sloped surface up to 5 degree. DLMS Series find application where corrosion resistant materials for hygienic, climatic and environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries.

Size :Dia-59(mm), Height-21(mm)

Load Capacity (Kg.):150 Kg/pc

Bolt Size:M16x2.0x100mm                Natural Frequency (Hz):18

Coeff. of Friction:0.9

Working Temp Range °C:-16 to 90

Weight ( Kg.):14 Kg.

Material:Rubber+Cust Iron+Mild steel

Colour:Green & Dark Grey

Note- GST and Freight Charges are not included.

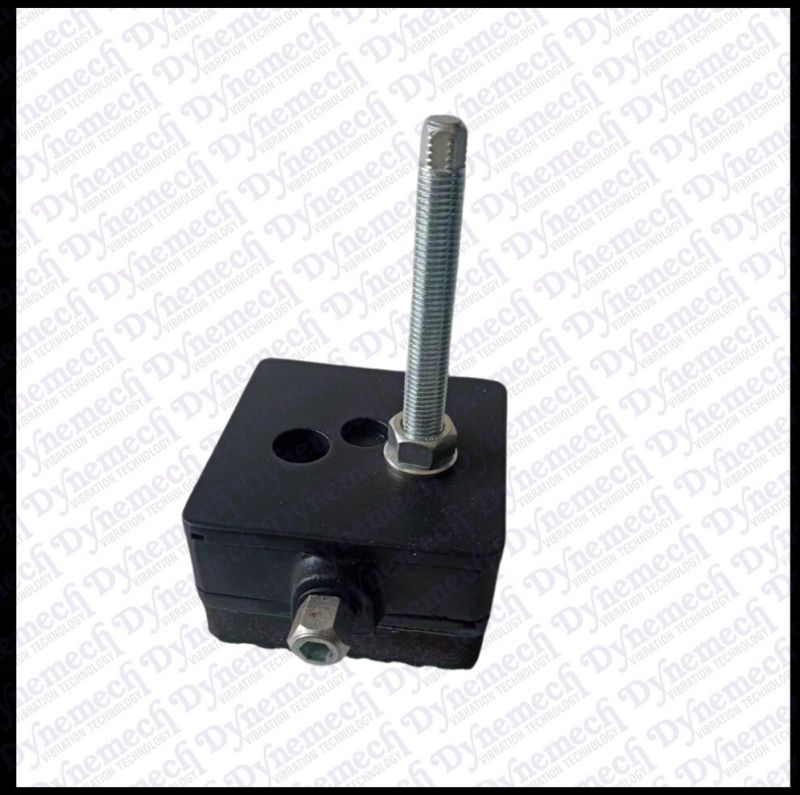

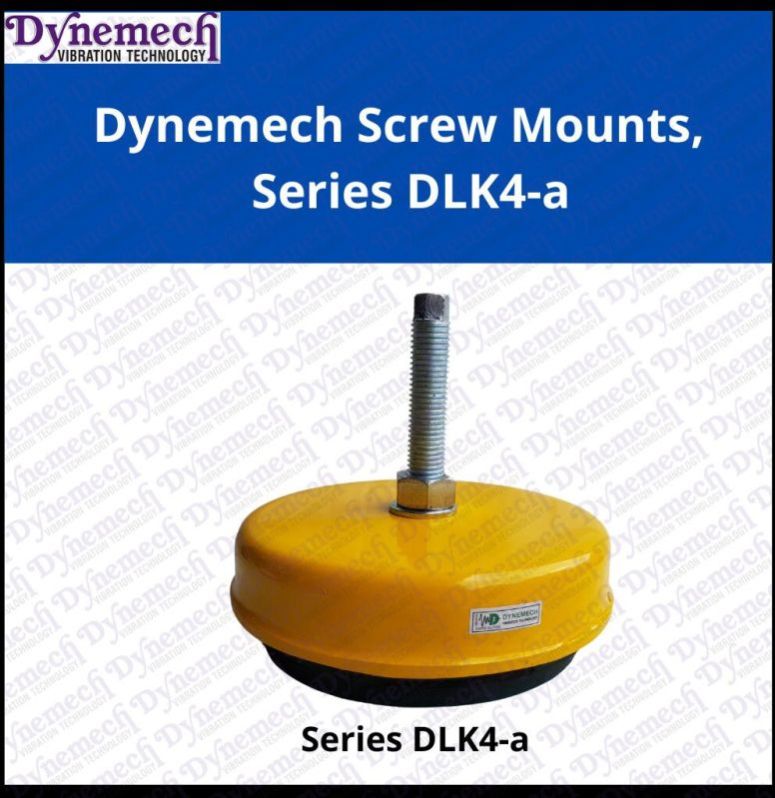

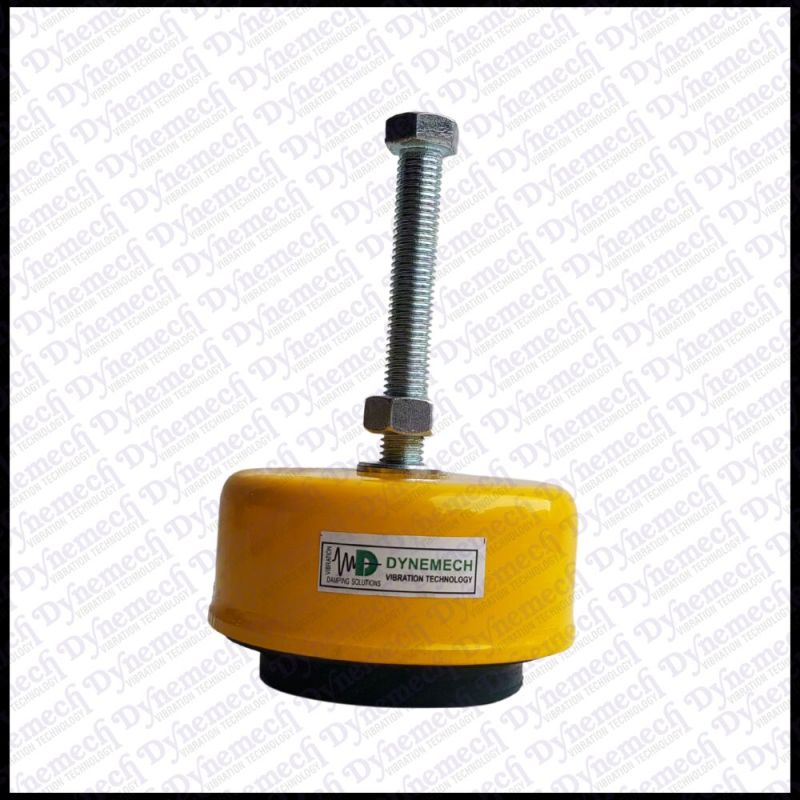

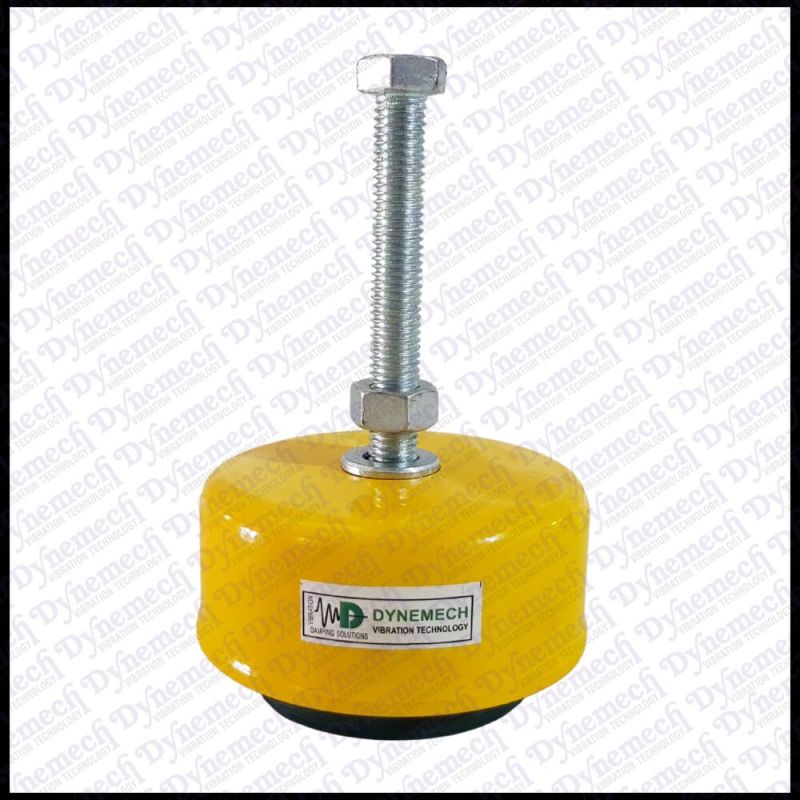

Dynemech Screw Support Mounts Series DLK are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.

The DLK Series of Vibration damping and leveling mounts provide fast and easy installation of machines. These Anti-vibration mounts provide enhanced component finish/part tolerance and extend tool and machinery life. The machine mounts provide improved health protection and better structural safety. DLK series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration insulating Base pad is made of composite material at varying composition giving different natural frequencies to provide vibration damping solutions to all types of industrial machines. These vibration isolation plates are resistant to water, almost all the coolants, chemicals, fuels, lubricating oils used in the modern machine shop. These vibration insulating machine pads will not deform plastically, if the weight of machine does not exceed maximum load value of the insulation plates.

Note- GST and Freight Charges are not included.

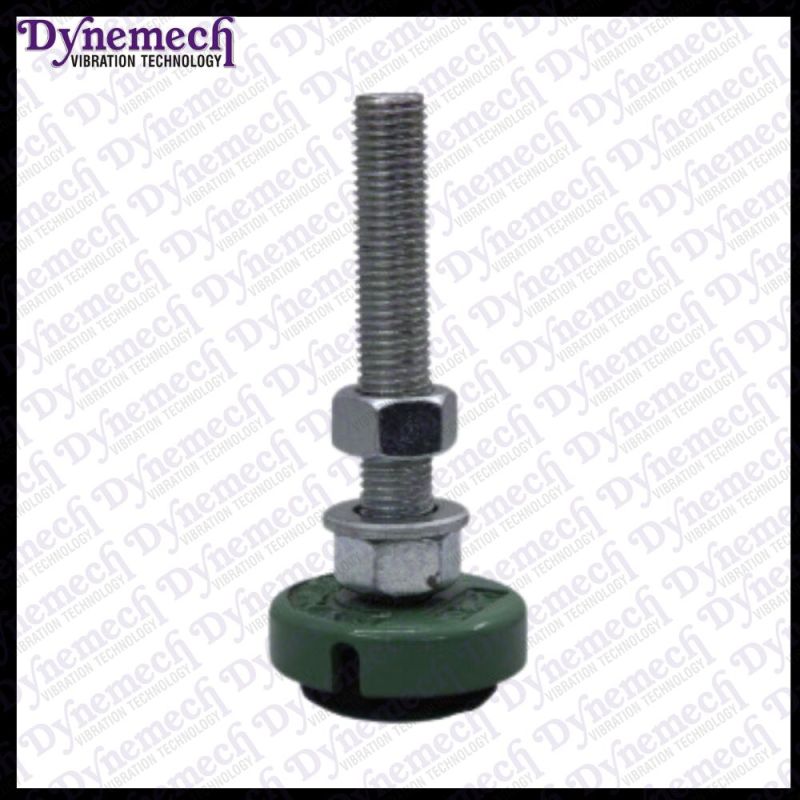

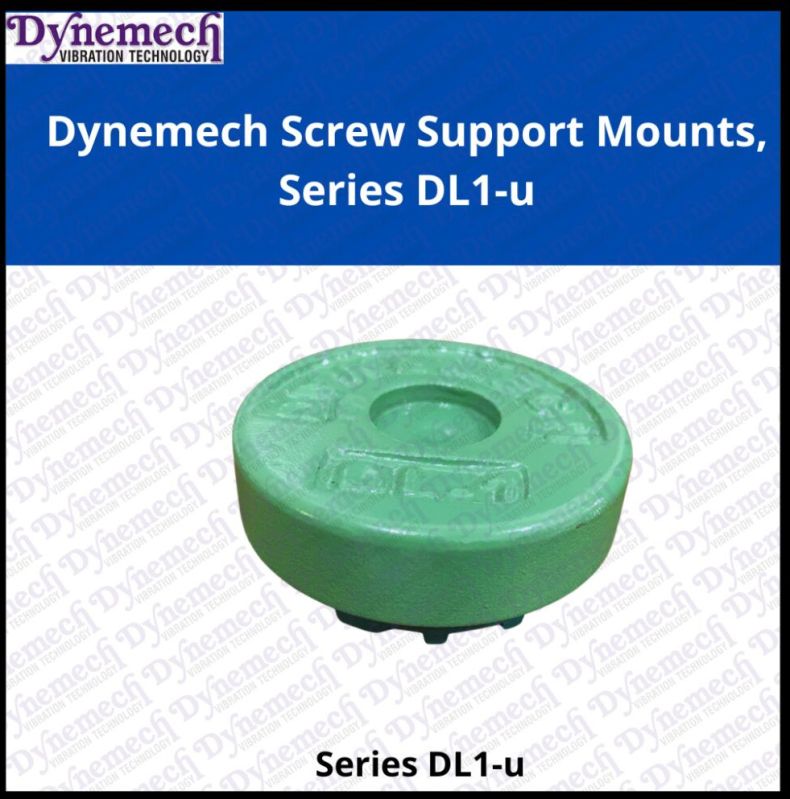

Dynemech DL Series AV mounts used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. Dynemech DLS Series AV Mounts, developed in stainless steel finds application in pharmaceutical food and beverages processing and packaing units, medical equipment manufacturing and chemical processing industries.Provide vibration isolation with complete hygienic seal and corrsion resistance.

Size :Dia-55(mm), Height-21(mm)

Load Capacity (Kg.):150 Kg/pc

 Natural Frequency (Hz):18

Coeff. of Friction:0.9

Working Temp Range °C:-16 to 90

Weight ( Kg.):0.3

Material:Rubber+Cust Iron+Mild steel

Colour:Green & Dark Grey

Note- GST and Freight Charges are not included.

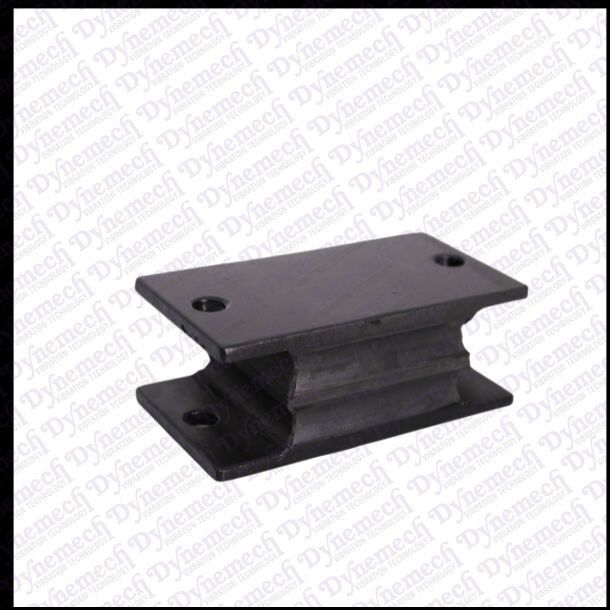

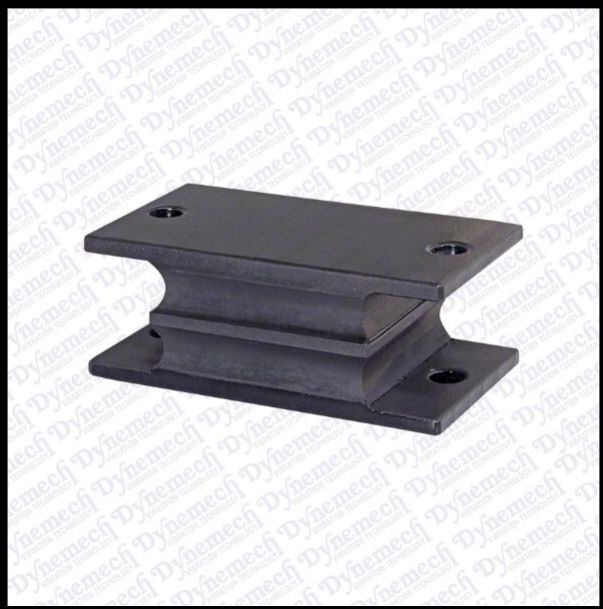

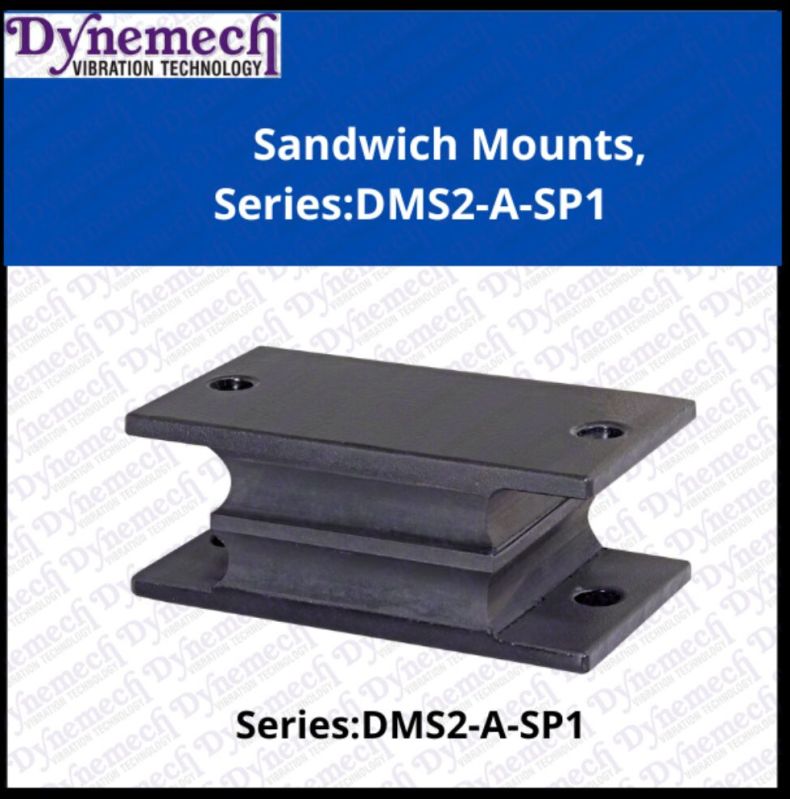

Dynemech Sandwich Mounts Series DMS comprise one or more layers of elastomer bonded to flat steel plates. They are designed to withstand very high compressive loads. These mounts have large supporting surface area and are slim. These mounts can also be stacked to achieve lower natural frequencies.

Size:110x60x43mm                                                 Load Capacity:140 Kg/pc                                      D(mm):65                                                          CC(mm):89                                                   d(mm):12                                                     Natural Frequency:6.5

Weight Of 04 Nos ( Kg.):4 Kgs                     Box Dimension:13"X8"X7"                                   Number Of Box-01

Material: Rubber+Cast Iron

Colour: Black                                                                                        Price INR:170

Note- GST and Freight Charges are not included.

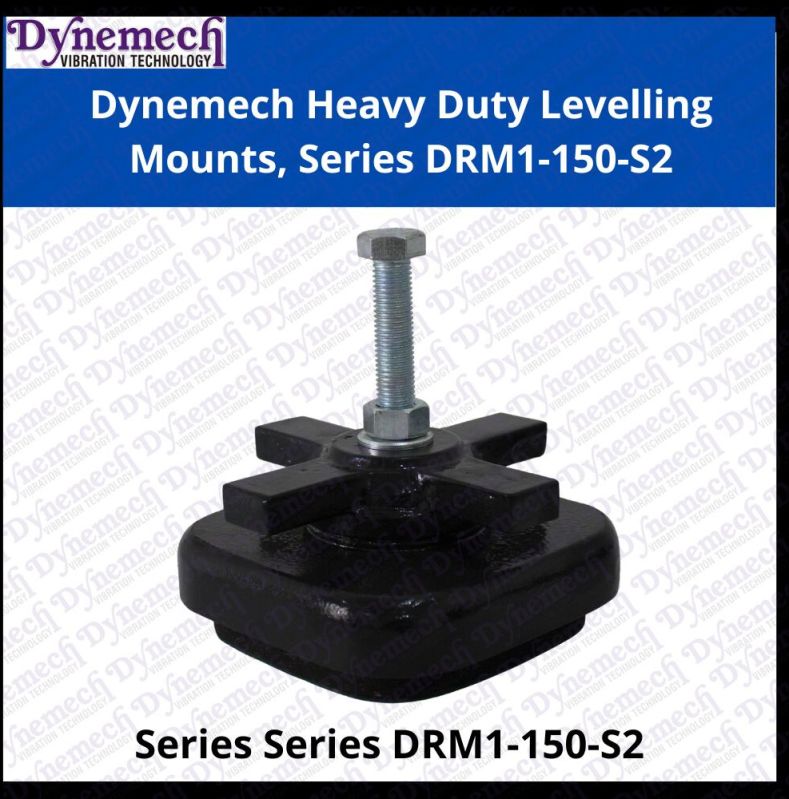

Dynemech Level Grip Mounts Series DRM1-150-S2 Mounts levelling is done using a large lever screw. This screw transmits static and dynamic load of the machine on a larger area and thus provides greater stability to the machine. The levelling leaver requires lesser torque for lifting the machine while levelling.

Length:150(mm) To 232(mm)                      Width:150(mm) To 232(mm)                         Height:77(mm) To 77(mm)                                       Bolt Size:M16x2.0x100mm To M20x2.5x100mm

Levelling Adjustment: 20(mm) To 20 (mm)

Load Capacity: 1000 Kg/pc To 3300 Kg/pc

Natural Frequency (Hz):-8Hz To 8Hz

Coeff. of Friction: 0.8 To 0.8

Working Temp Range :16 to 90

Weight ( Kg.): 5 Kgs To 10 KgS

Material: Cast Iron, Rubber

Colour: Green And Black                                                 Price-2600

Note- GST and Freight Charges are not included.

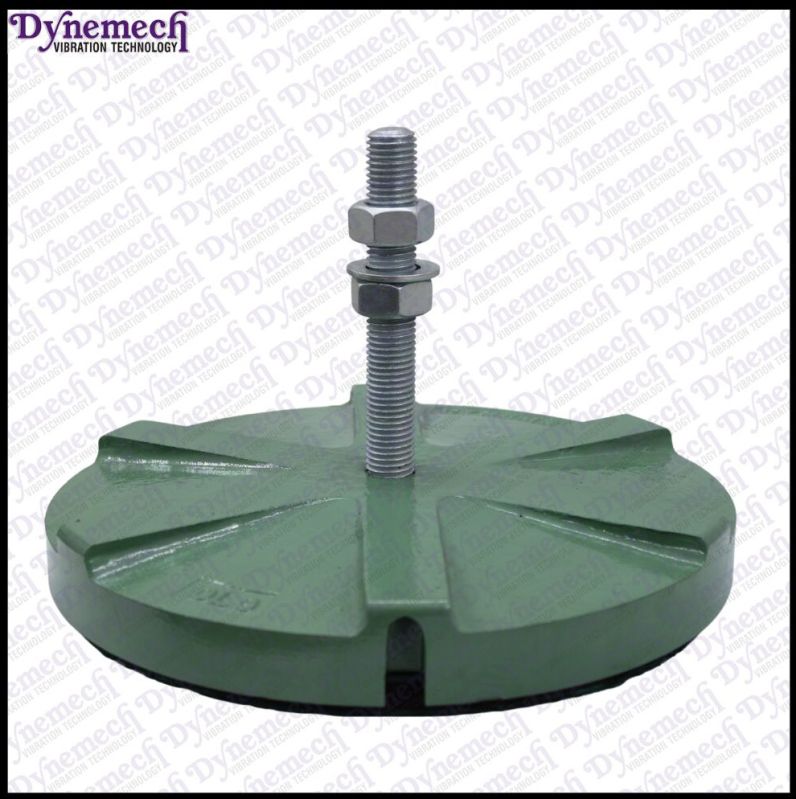

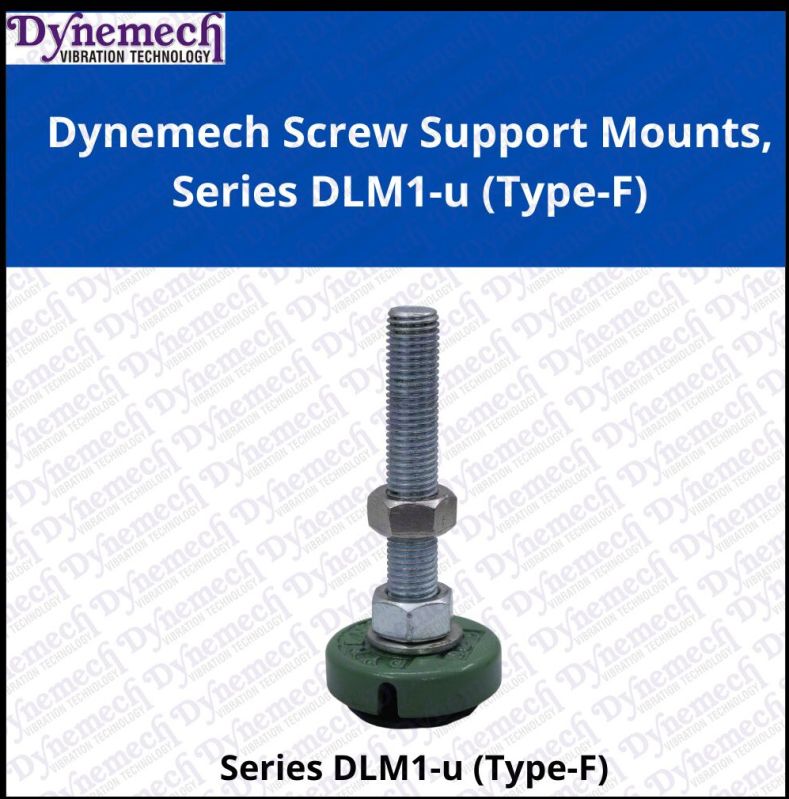

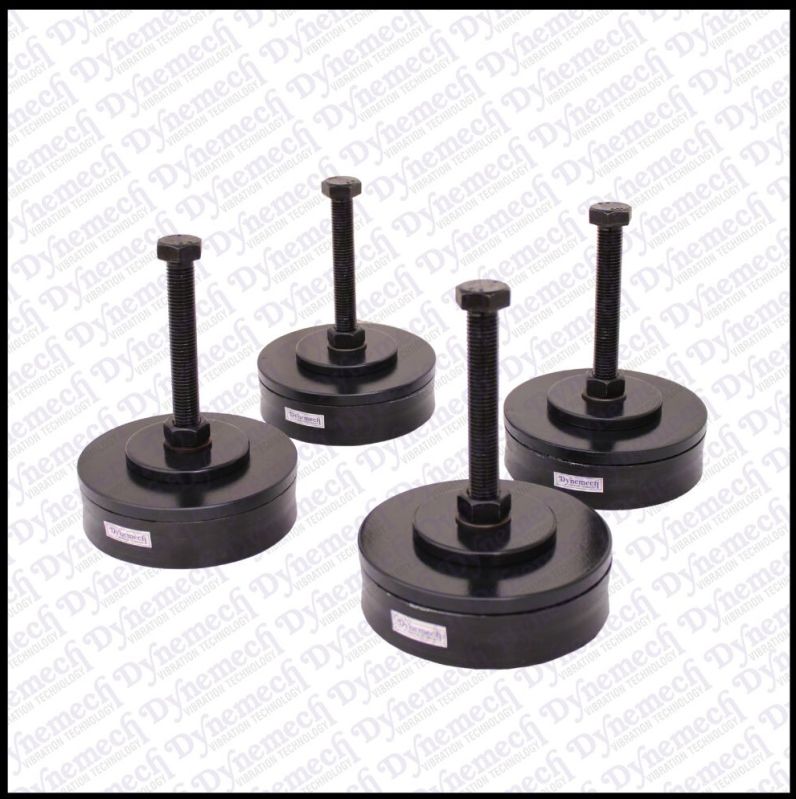

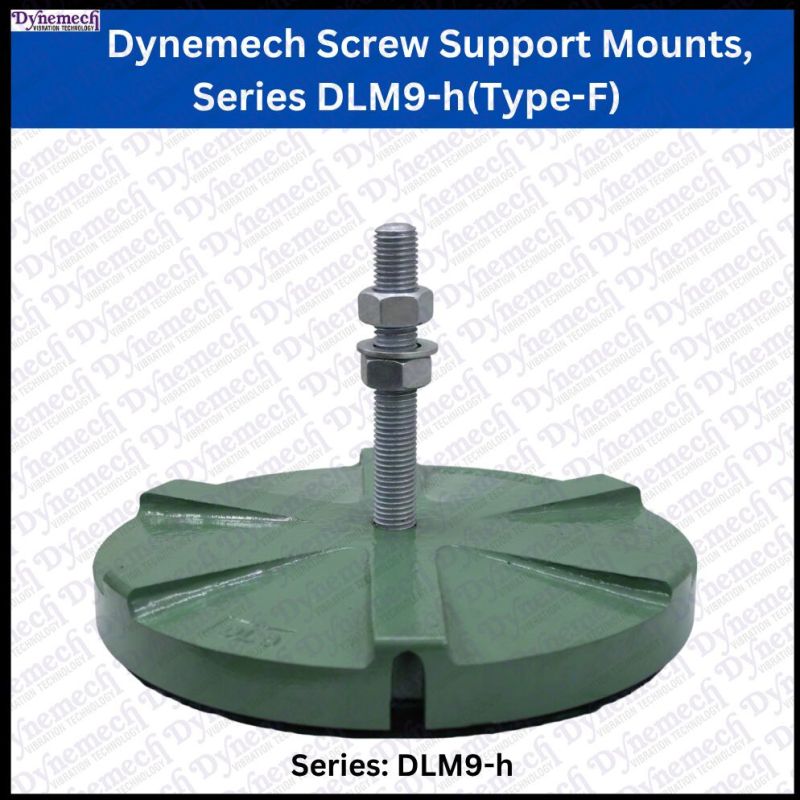

Dynemech DLM/DLMS Series Antivibration Mounts, developed in steel and stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer low frequency attenuation, stable machine levelling and vibration reduction. The flexible levelling screw accommodates uneven/sloped surface up to 5 degree. DLMS Series find application where corrosion resistant materials for hygienic, climatic and environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

Note- GST and Freight Charges are not included.

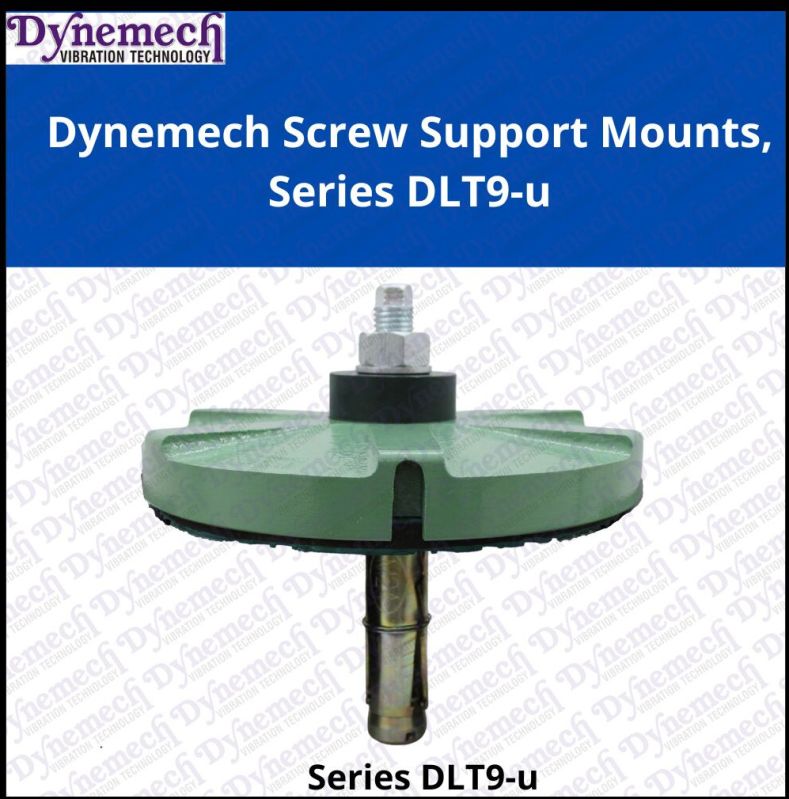

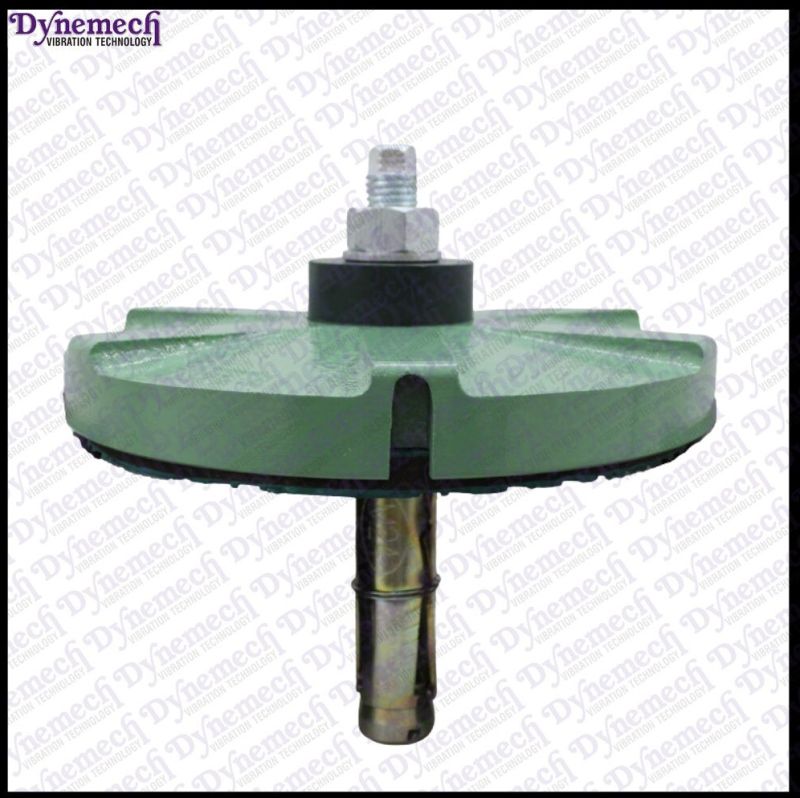

Dynemech DLT Series Antivibration mountings are used in the machines which must be anchored to the floor along with levelling and vibration reduction. Bolts with thru holes are provided in the machine foot and anchor bolt passes from the machine foot, mount and anchored in the floor nut. An insulating disc is provided between the nut and the machine foot to prevent vibration from transmitting in the floor via the bolt. The dimple and the thru hole in the mount are provide as per the bolt specifications of the machine.

Size :Dia:276 mm, Height:43mm,

Load Capacity (Kg.):4200 Kg/pc

Bolt Size:M24x300mm(Anchored Set)

Natural Frequency (Hz):18

Coeff. of Friction:0.9

Working Temp Range °C:-16 to 90 Through

hole:22mm

Material:Rubber+Cust Iron+Mild steel

Colour:Green & Dark Grey

Note- GST and Freight Charges are not included.

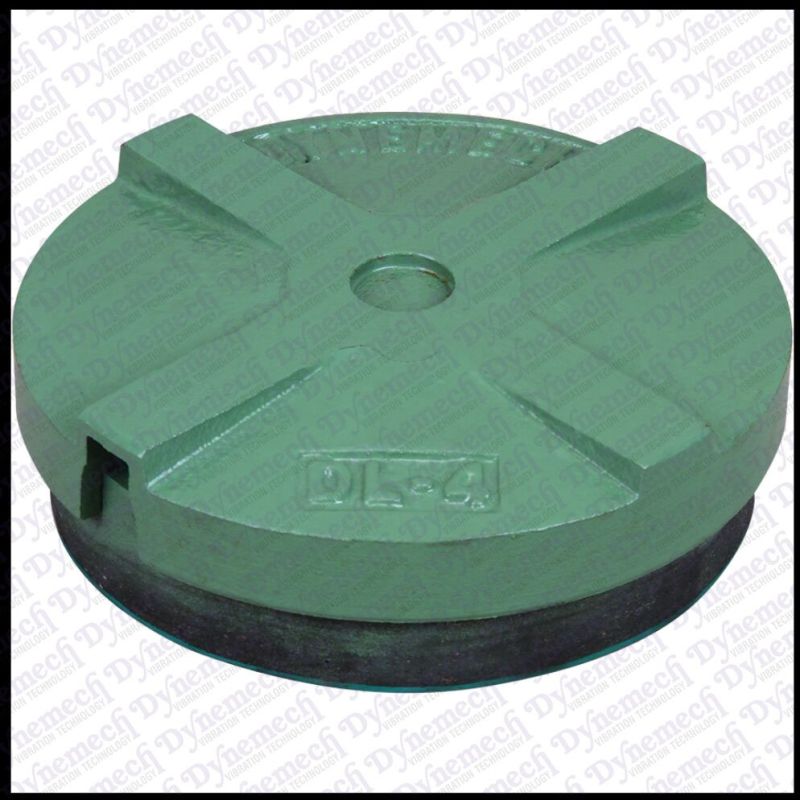

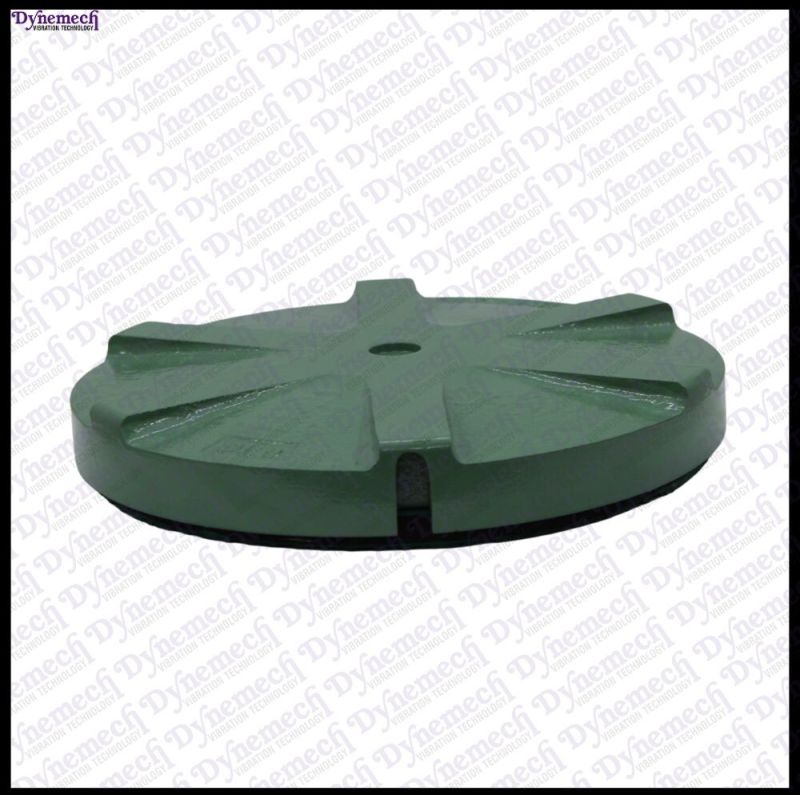

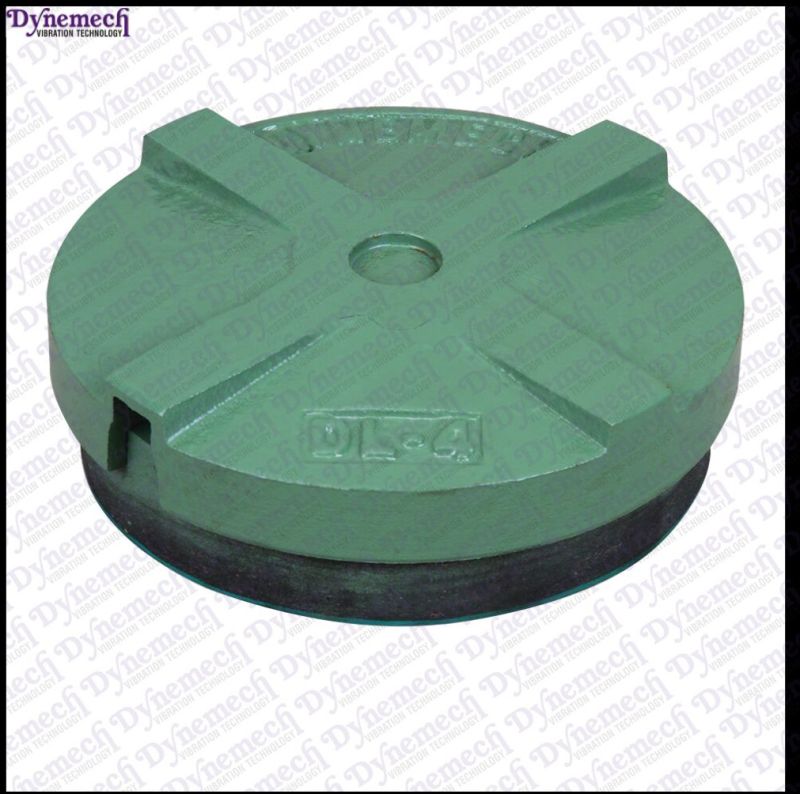

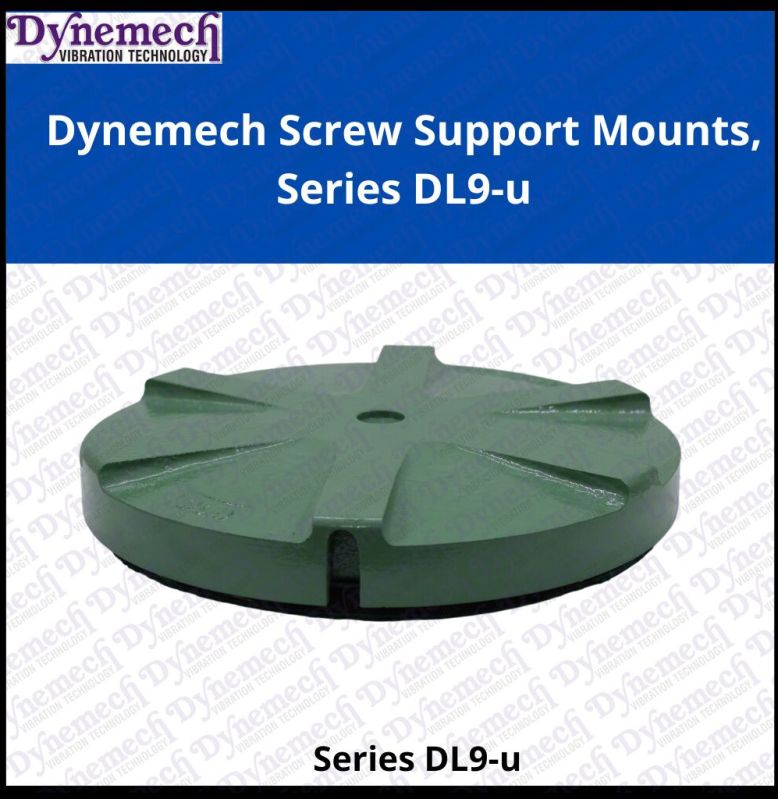

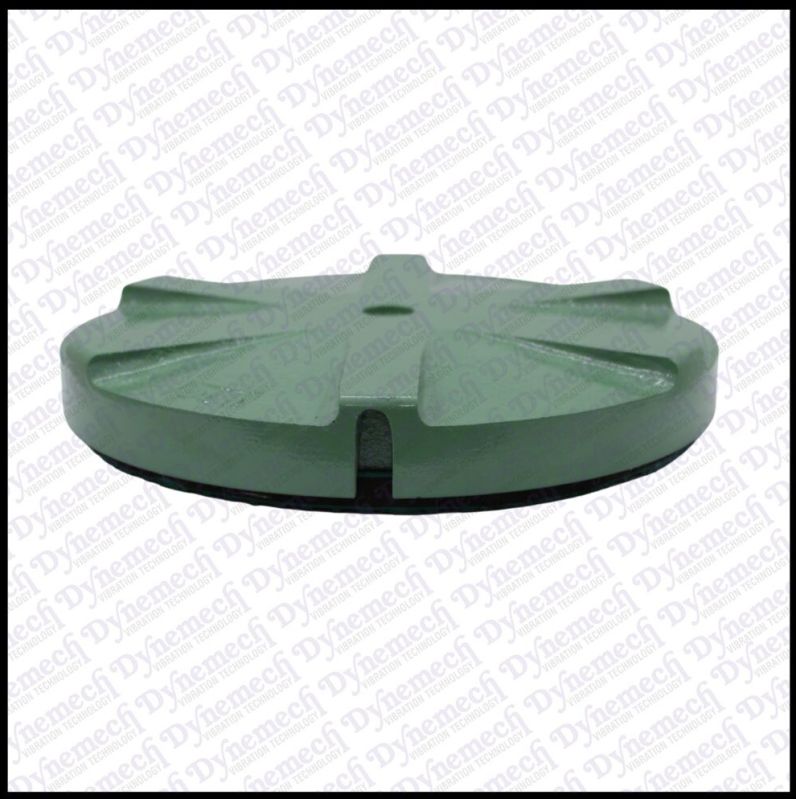

Dynemech DL Series AV mounts used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. Dynemech DLS Series AV Mounts, developed in stainless steel finds application in pharmaceutical food and beverages processing and packaing units, medical equipment manufacturing and chemical processing industries.Provide vibration isolation with complete hygienic seal and corrsion resistance.

Size :Dia-276(mm), Height-43(mm)

Load Capacity (Kg.):4200 Kg/pc

 Natural Frequency (Hz):18

Coeff. of Friction:0.9

Working Temp Range °C:-16 to 90

Weight ( Kg.):14

Material:Rubber+Cust Iron+Mild steel

Colour:Green & Dark Grey

Note- GST and Freight Charges are not included.

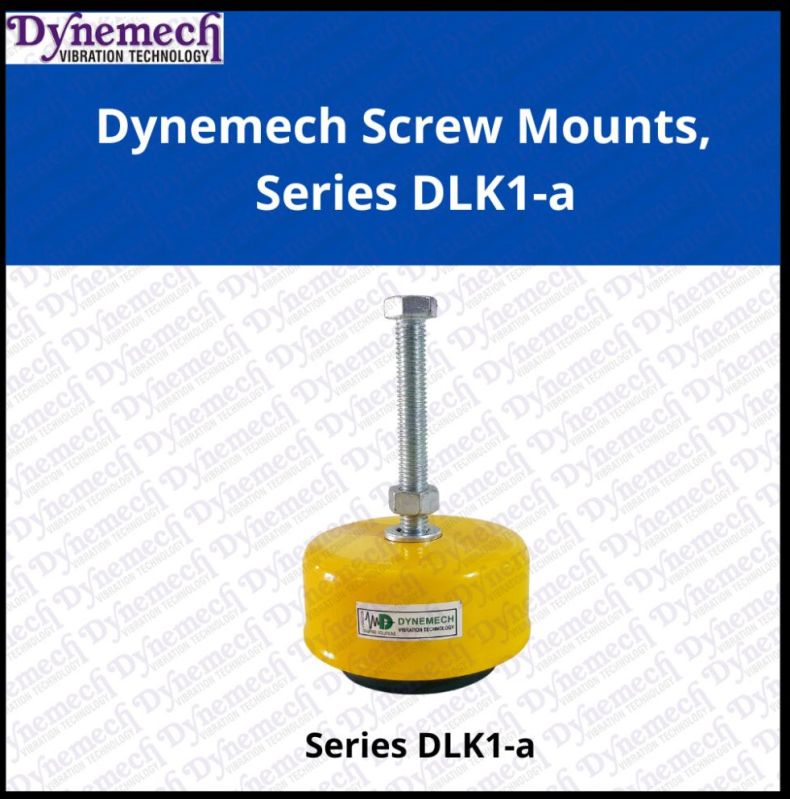

Dynemech Screw Support Mounts Series DLK are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.

The DLK Series of Vibration damping and leveling mounts provide fast and easy installation of machines. These Anti-vibration mounts provide enhanced component finish/part tolerance and extend tool and machinery life. The machine mounts provide improved health protection and better structural safety. DLK series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration insulating Base pad is made of composite material at varying composition giving different natural frequencies to provide vibration damping solutions to all types of industrial machines. These vibration isolation plates are resistant to water, almost all the coolants, chemicals, fuels, lubricating oils used in the modern machine shop. These vibration insulating machine pads will not deform plastically, if the weight of machine does not exceed maximum load value of the insulation plates.

Note- GST and Freight Charges are not included.

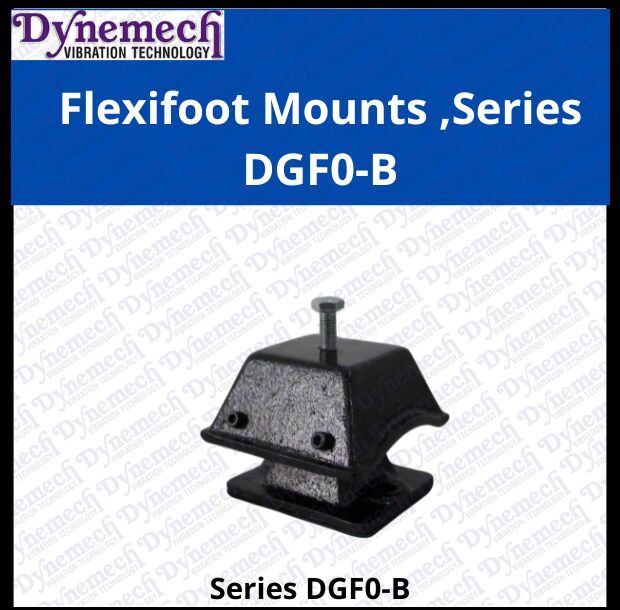

Dynemech Flexi Foot Mounts, Series DGF is well suited for machines requiring vibration damping in both compression and shear. An anti skid plate is provided in the base of the mount to prevent machine walking. Dynemech Flexi Foot Mounts, Series DGF is well suited for machines requiring vibration damping in both compression and shear. An anti skid plate is provided in the base of the mount to prevent machine walking. These mounts can also be anchored to the floor through the holes provided in the base for machines producing high unbalance forces. Applications: Generators, Blowers, Pumps, ID & FD Fans, Cooling Towers, etc.

Note- GST and Freight Charges are not included.

Dynemech Mac Level Series DML is suitable for high speed rotating machines having small or no axial forces.

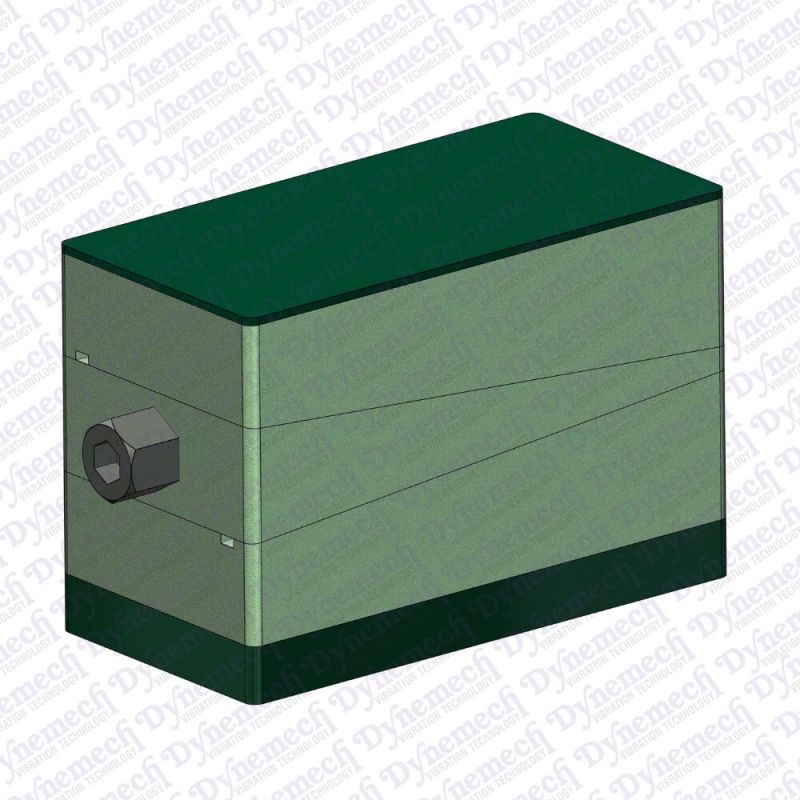

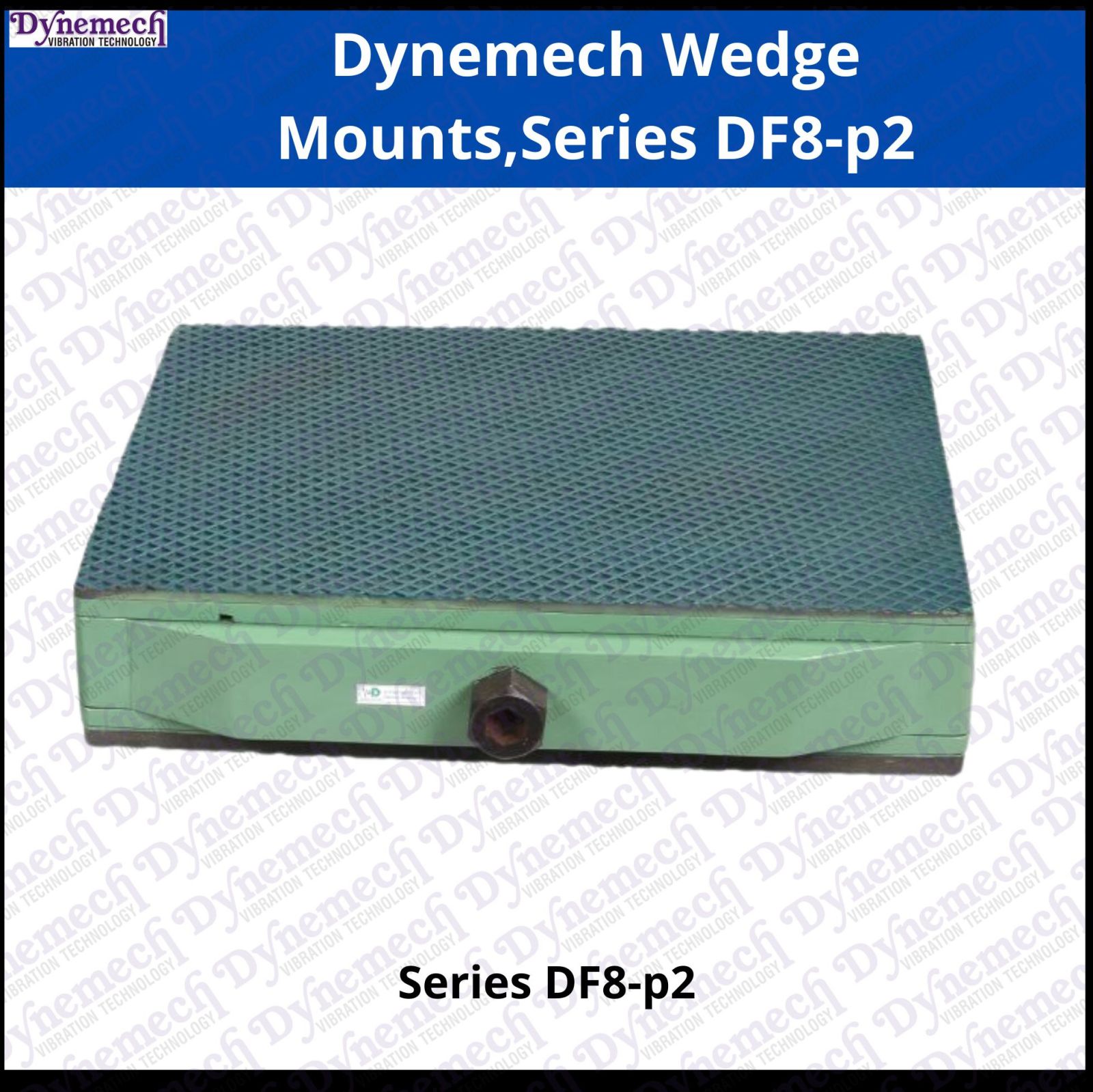

Dynemech wedge mounts are designed for industrial machine tools that require precision leveling. This 3-piece wedge mount has an adjustable bolt which moves the center wedge between top and bottom stationery wedges to provide lift, to the top wedge. Anti-Skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech insulation plates.

Application:Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

Size: 400x500x102mm

Bolt Size: N/A

Load Capacity: 7500Kg/pc

Weight:120 Kgs

Material:Rubber & Cust Iron

Colour:Green

Usage: Industrial

Function:Large supporting surface ensures solidity and rigidity.

Feature:Designed for industrial machine tools that require precision leveling.

Temperature:From -16 to 90

Note- GST and Freight Charges are not included.

Dynemech wedge mounts are designed for industrial machine tools that require precision leveling. This 3-piece wedge mount has an adjustable bolt which moves the center wedge between top and bottom stationery wedges to provide lift, to the top wedge. Anti-Skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech insulation plates. Dynemech Wedge Mounts, Series DFP, Wedge Mounts- Free Standing-DF-HEIGHT -100/150MM Dynemech Wedge Mounts, Series DFP, Wedge Mounts- Free Standing-DF-HEIGHT -100/150MM Lathe Machines, Machining Centres, Milling Machines, Precision Grinding Machines, Drilling Machines, Turning Centres, Transfer Lines etc.

Note- GST and Freight Charges are not included.

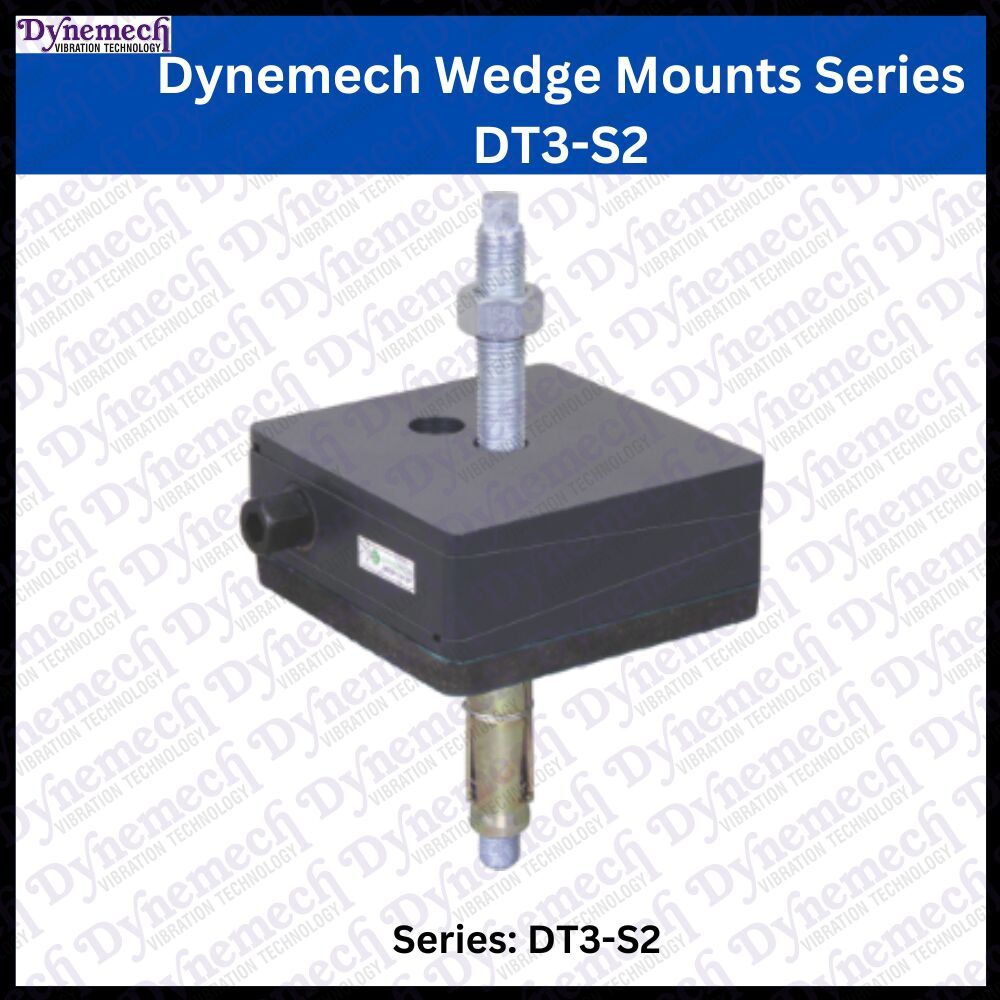

Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator. Dynemech Wedge Mounts, Series DT are designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground. Range of Applications: Drilling and milling machines, machining centres, special machines, long lathes, long planers, power presses etc. Application: Power Presses, Stamping Machines, Shearing Machines, Punching Machines. Dynemech Systems offers Anti Vibration Pad for reducing the vibration and sound in all industrial vibrating machinery. We are specializing in the area of anti vibration pads. Dynemech Systems is the best source for finding anti vibration pads. We provide one stop solution for all your vibration control needs.

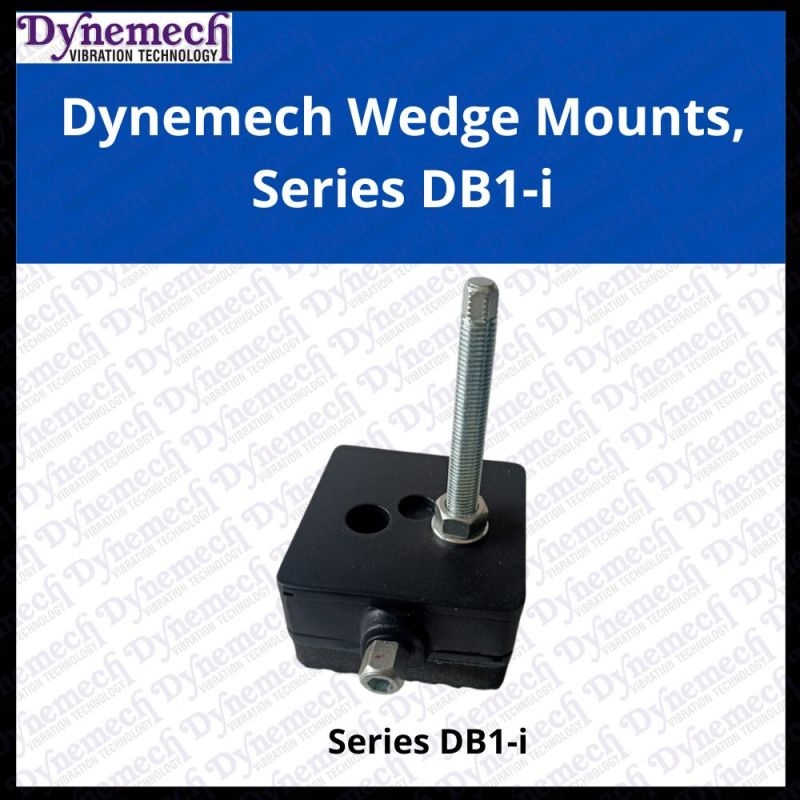

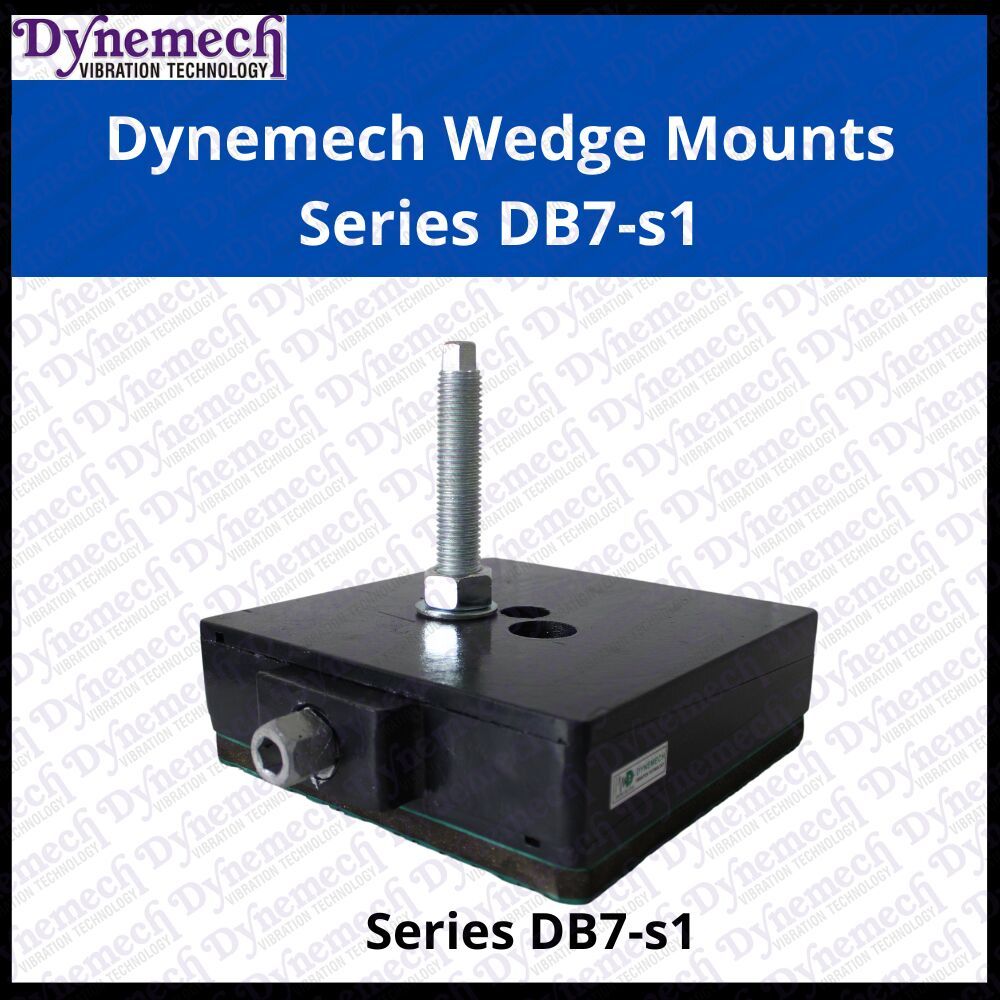

Dynemech Wedge Mounts Series DB is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor. These mounts provide 2 holes on the top plate of the wedge. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine.

Model Load Capacity Kg/pc Length (L) mm Width (B) mm Height (H) at mean position (mm)

DB0-s1 500 100 100 58

DB1-s1 600 115 115 64

DB2-s1 1000 150 150 70

DB3-s1 1800 200 200 70

DB4-s1 2200 200 250 90

DB5-s1 3500 250 320 95

DB6-s1 5200 300 400 95

DB7-s1 9500 400 500 100

Note- GST and Freight Charges are not included.
