Our Products
Vibration Dampers
1 Products availableInsulation Mat
1 Products availableInsulation Sheet
1 Products availableWe offer a complete product range of Mild Steel Anti Vibrating Table And Platforms for Surftest SV3200 H4, P-81-03-B, Mild Steel Anti Vibrating Table, For Laboratory for Formtracer, P-83-02-A, Dynemech Anti Vibration Precision Metrology Table ,for Surfcom 480A-14 P 64, Precision Measuring Metrology Instrument Anti Vibration Tables for SV 2100 M4/S4/H4, P-81-01-A and Mild Steel Anti Vibrating Table for SV 3200 W4,P-82-04-A

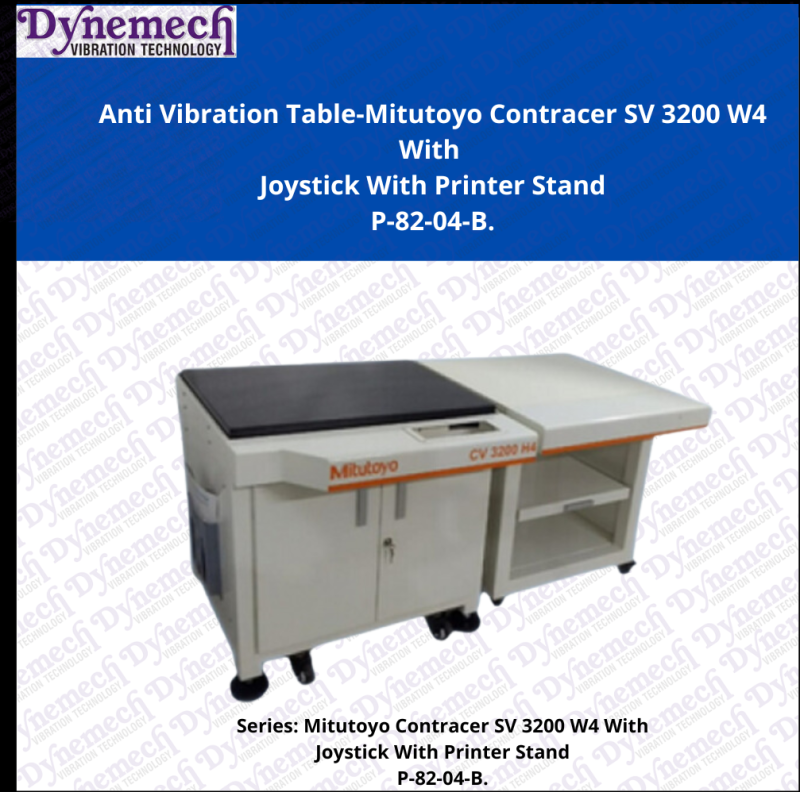

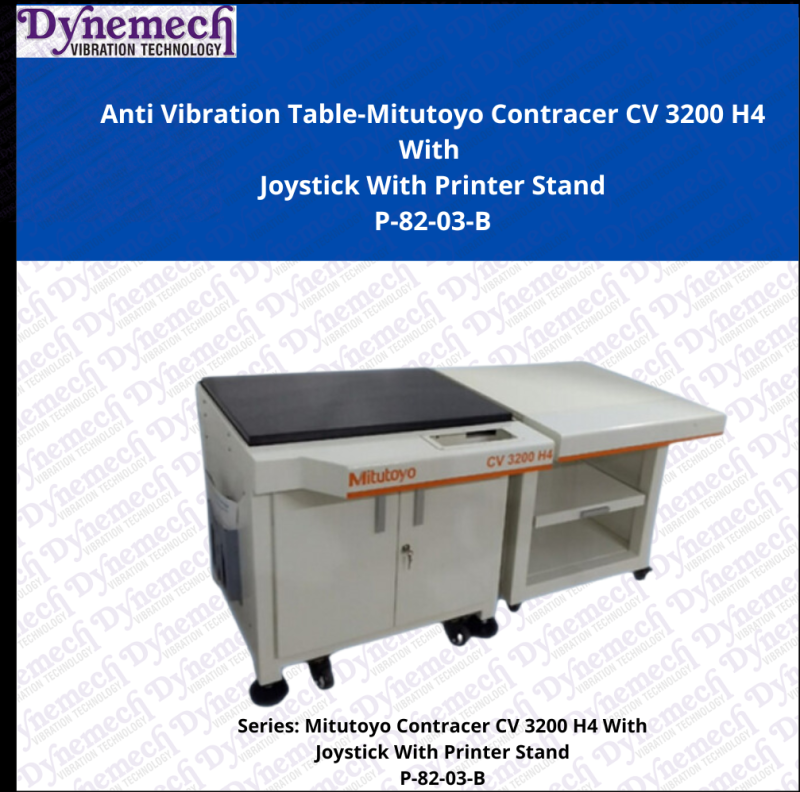

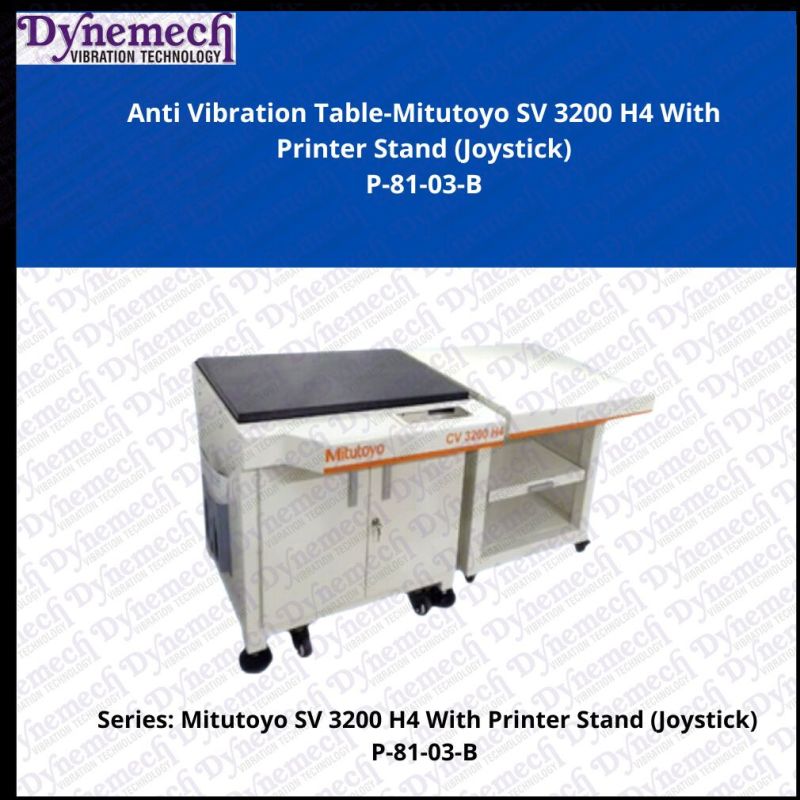

1. Granite base of size L 750 X B 600 X T 30 mm
2. 60 mm Tubular Structure
3. Wrap Around Construction with left angular profile
4. 65 X 65 mm AV pads at 8 places
5. 4 Nos DLP3 (AV disc with adjustable screws) at Ground Level
6. 4 Nos 3 Wheel
7. Front keyboard panel with laser cut joystick pocket, top rim and Z-plates at bottom with support plate to fix joystick
8. Power Strip in Rear; controller, CPU and UPS inside structure
9. Drawing Pouch LH Side, cable manager at rear side
10. Front double door with handles and lock
11. Additional printer stand to accommodate CPU console, monitor, keyboard and mouse; pull out tray for printer. LH and RH sides closed; top Marine ply with Matt finish, 3 wheels with brake.
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 770 X B 770 X H 730 (over granite base) mm
16. Printer stand dimensions: L 600 X B 770 X H 730 mm
17. Weight: kg
18. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks
1. Granite base of size L 1200 X B 600 X T 50 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 9 places
6. 4 Nos DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 Nos 3 Wheel
8. Front keyboard panel for keyboard and mouse with laser cut joystick pocket, top rim and Z-plates at bottom with support plate to fix joystick
9. Power Strip in Rear & Drawing Pouch L.H Side
10. Cable manager at rear side; controller, CPU and UPS inside structure
11. Front RH single door with handle lock , LH side top drawer and bottom pull-out tray for printer
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 1220 X B 810 X H 730 (over granite base) mm
16. Weight: kg
17. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks
1. Granite base of size L 1100 X B 550 X T 50 mm
2. 60 mm Tubular Structure with cross member to suit 1000 X 450 X 80 mm Granite Base
3. Wrap Around Construction
4. Front pivot jointed heavy duty links with extended horizontal connecting profile and vertical 45 X 45 connecting profile. At top end another horizontal 90 X 45 profile connection with needle thrust bearing supported swiveling assembly with tray to suit display unit with clamping lever at bottom (newly introduced!).
5. 65 X 65 mm AV pads at 9 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Drawing Pouch L.H Side and front double door with handles and lock
9. Leveling Ball, Spanner 24/27
10. Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
11. Instrument sticker
12. Overall dimensions: L 1120 X B 570 X H 730 (over granite base) mm
13. Weight: kg
14. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
1. Granite base of size L 750 X B 600 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. Front pivot jointed heavy duty links with extended horizontal connecting profile and vertical 45 X 45 connecting profile. At top end another horizontal 90 X 45 profile connection with needle thrust bearing supported swiveling assembly with tray to suit display unit with clamping lever at bottom (newly introduced!) for placing data processor.
5. 65 X 65 mm AV pads at 8 places
6. 4 Nos DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 Nos 3 Wheel
8. Power Strip in Rear; controller, CPU and UPS inside structure
9. Drawing Pouch LH Side, cable manager at rear side
10. Front double door with handles and lock
11. Leveling Ball, Spanner 24/27
12. Powder Coat, structure, side sheets and doors RAL 9002
13. Instrument sticker
14. Overall dimensions: L 770 X B 620 X H 730 (over granite base) mm
16. Weight: kg
17. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks
1. Granite base of size L 1100 X B 550 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 9 places
6. 4 Nos DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 Nos 3 Wheel
8. Front keyboard panel for keyboard and mouse, lasercut joystick pocket with top rim and Z-plates at bottom to lock joystick.
9. Power Strip in Rear; controller, CPU and UPS inside structure
10. Drawing Pouch LH Side, cable manager at rear side
11. Front double door with handles and lock
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 1120 X B 770 X H 730 (over granite base) mm
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks
1. Granite base of size L 600 X B 500 X T 30 mm
2. 60 mm Tubular Structure
3. Wrap Around Construction
4. 65 X 65 mm AV pads at 8 places
5. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
6. 4 No’s – 3” Wheel
7. Front keyboard for placing keyboard and mouse
8. All three sides closed, bottom sheet to place controller, CPU and UPS
9. Front double door with handles and lock
10. Cable manager in rear side; exhaust fan
11. Power strip in rear; Leveling Ball, Spanner 24/27
12. Powder Coat, structure and joystick panel RAL 9002
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 620 X B 710 X H 730 (over granite base) mm
16. Weight: kg
17. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
1. Granite base of size L 1100 X B 550 X T 30 mm2. 60 mm Tubular Structure with cross member3. Wrap Around Construction with left angular profile4. Swiveling bracket for monitor5. 65 X 65 mm AV pads at 9 places6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level7. 4 No’s – 3” Wheel8. Front keyboard panel for keyboard and mouse, lasercut joystick pocket with top rim and Z-plates at bottom to lock joystick.9. Power Strip in Rear; controller, CPU and UPS inside structure10. Drawing Pouch LH Side, cable manager at rear side11. Front double door with handles and lock12. Leveling Ball, Spanner 24/2713. Powder Coat, structure, side sheets and doors RAL 900214. Instrument sticker15. Overall dimensions: L 1120 X B 770 X H 730 (over granite base) mm16. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
Granite base of size L 1000 X B 600 X T 50 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 9 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front keyboard panel for keyboard and mouse with laser cut joystick pocket, top rim and Z-plates at bottom with support plate to fix joystick
9. Power Strip in Rear & Drawing Pouch L.H Side
10. Cable manager at rear side; controller, CPU and UPS inside structure
11. Front RH single door with handle lock , LH side top drawer and bottom pull-out tray for printer
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 1020 X B 810 X H 730 (over granite base) mm
16. Weight: kg
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
| Granite base of size:L-900 B-600T-50 mm |
| 60x60 mm HR tubular structure with cross member |
| 4 nos DLP3 at ground level, 4 nos - 3 wheel |
| 9 nos AV pad between structure and granite base |
| Front double door |
| Wrap around construction |
| Front keyboard panel provided for placing |
| keyboard & mouse over the surface |
| with laser cut joystick pocket with top rim and |
| Monitor Bracket on L.H Rear with swivelling and tilting fecility |
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks
| Granite base of size: L-1100 B-550 T-50 mm |
| 60x60 mm HR tubular structure with cross member |
| 4 nos DLP3 at ground level, 4 nos - 3 wheel |
| 9 nos AV pad between structure and granite base |
| Front keyboard panel provided for placing |
| keyboard & mouse over the surface |
| with laser cut joystick pocket with top rim and |
| Monitor Bracket on L.H Rear with swivelling and tilting fecility |
| Structure- RAL 9002, |
| Side sheet, door & Key board panel- Graphite Grey |
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks
| Granite base of size: L-1100 B-550 T-50 mm |
| 60x60 mm HR tubular structure with cross member |
| 4 nos DLP3 at ground level, 4 nos - 3 wheel |
| 9 nos AV pad between structure and granite base |
| Front keyboard panel provided for placing |
| keyboard & mouse over the surface |
| with laser cut joystick pocket with top rim and |
| Monitor Bracket on L.H Rear with swivelling and tilting fecility |
| Structure- RAL 9002, |
| Side sheet, door & Key board panel- Graphite Grey |
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks
1. Granite base of size L 750 X B 600 X T 50 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 9 places
6. 4 Nos DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 Nos 3 Wheel
8. Front keyboard panel for keyboard and mouse
9. Power Strip in Rear; Controller, CPU and UPS inside structure
10. Drawing Pouch L.H Side
11. Cable manager at rear side
12. Front double door with handles and lock
13. Leveling Ball, Spanner 24/27
14. Powder Coat, structure RAL 9002, side sheets and doors graphite gray
15. Instrument sticker
16. Overall dimensions: L 770 X B 820 X H 730 (over granite base) mm
17. Weight: kg
18. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks
| Table surface area : L-760 B-610 H- 767 mm |
| Granite base of size: L-750 B-600 T-30 mm |
| 60x60 mm HR tubular structure |
| 4 nos DLP3 at ground level, 4 nos - 3 wheel |
| 8 nos AV pad between structure and granite base |
| Cable manager in rear side, power strip in |
| rear & drawing pouch L.H side |
| Front double door |
| Wrap around construction |
| Front keyboard panel provided for placing |
| keyboard & mouse over the surface |
| Monitor Bracket can be fixed either |
| rear L.H, front L.H and front R.H side of structure |
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks

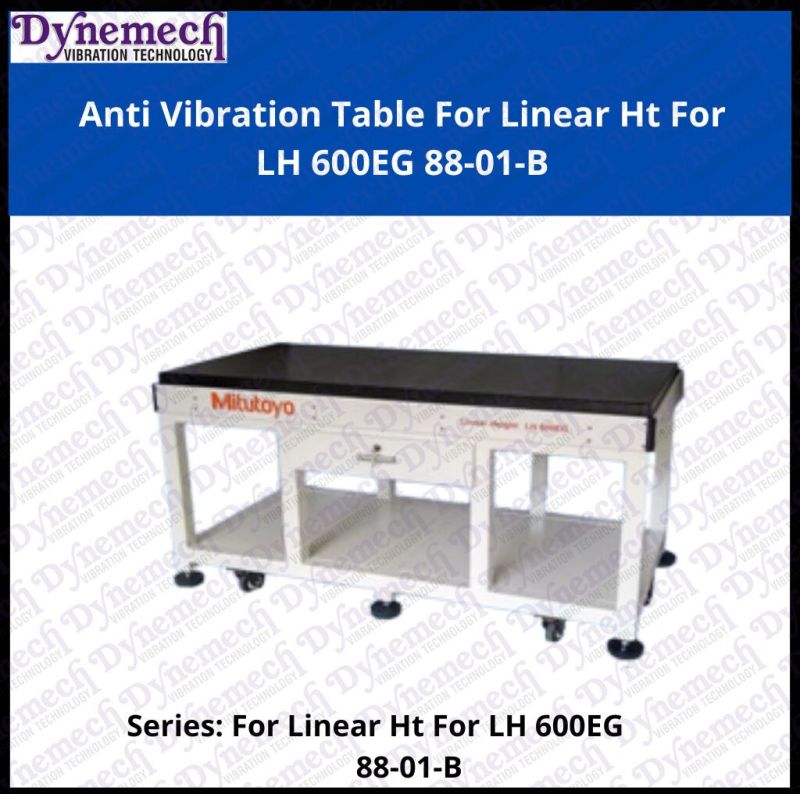

Granite base of size: L 1600 X B 800 X T 100 mm
60 mm Tubular Structure
Wrap Around Construction
4 Nos DLP3 (AV disc with adjustable screws) at Ground Level
4 Nos 3 Wheel
Bottom Covered with sheet
Front Single drawer
The Granite Countertop Platform and Vibration System, model P-88-01-B, features a durable granite base measuring 1600mm in length, 800mm in breadth, and 100mm in thickness. The structure is built using a 60mm tubular frame with a wrap-around construction for added stability. It includes four DLP3 anti-vibration discs with adjustable screws at ground level, along with four 3-inch wheels for easy mobility. The bottom of the platform is covered with a protective sheet, and it includes a single front drawer for convenient storage.
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks
1. Granite size L 900 x B 600 x T 50 mm over steel structure
2. 60 x 60 mm square tubular heavy duty steel structure with cross member
3. Wrap around construction
4. Front hinge door
5. 4 Nos. 4’’ wheels
6. 4 Nos. DLP4 AV discs at floor level
7. 9 Nos. 65 x 65 mm AV Pads between Granite and structure
8. Drawing pouch, leveling ball, spanner 24/27
9. Power Strip in Rear
10. Front swing arm in pivoted joint assembly with horizontal and vertical supported profile to hold monitor, keyboard and mouse. Can be mounted on LH or RH side (newly introduced!)
11. Drawing Pouch LH Side
12. Powder Coat, structure, side sheets, doors and wrap around RAL 9002
13. Instrument sticker
14. Overall dimensions: L 920 X B 620 X H 600 (over granite base) mm
16. Weight: kg
17. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
1. Granite size L 900 x B 600 x T 50 mm over steel structure
2. 60 x 60 mm Square Tubular Heavy Duty Steel Structure with cross member
3. Wrap around construction
4. Front hinge door
5. 4 Nos. 4’’ wheels
6. 4 Nos. DLP4 AV discs at floor level
7. 9 Nos. 65 x 65 mm AV Pads between Granite and structure
8. Drawing pouch, leveling ball, spanner 24/27
9. Power Strip in Rear
10. Drawing Pouch LH Side
11.Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
12. Instrument sticker
13. Overall dimensions: L 920 X B 620 X H 730 (over granite base) mm
14. Weight: kg
15. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
1. Granite base of size : L 800 X B 950 X T 100 mm2. Wrap Around Construction3. 72 × 72 mm HR tubular structure4. 4 No’s DLP4 (AV disc with adjustable screws) at Ground Level5. 13 no’s AV pad between structure and granite base6. 6 no’s – 4” wheel7. Cable manager in R.H. Side and rear side, power strip in rear side8. Drawing pouch; controller, CPU and UPS inside structure9. Front double door with handles and lock10. Powder coat color as per customer specification11. Front swing arm in pivoted joint assembly with horizontal and vertical supported profile to hold monitor, keyboard and mouse. Can be mounted on LH or RH side (newly introduced!)12. Overall dimensions: L 830 X B 980 X H 750 mm13. Weight:14. Execution in wooden box
[Note: We will provide the dimensions]
Note- GST and Freight Charges are not included.
Additional Information:
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
1. 60 X 60 mm Tubular Structure to Suit 630 X 400 X 80 mm Granite Base
2. Wrap Around Construction
3. Special swiveling mount for display unit with 45 X 45 X 525 mm Al. Profile
4. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
5. 4 No’s – 3” Wheel
6. Power Strip in Rear & Drawing Pouch L.H Side
7. Front Double Door with handles and lock
8. Leveling Ball, Spanner 24/27
9. Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
10. Overall dimensions: L 650 X B 420 X H (over granite base) mm
11. Weight: kg
12. Execution in wooden box
width="392" cellspacing="0" cellpadding="0">
Note- GST and Freight Charges are not included.
Additional Information:
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
1. Granite base of size L 1100 X B 550 X T 50 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. 65 X 65 mm AV pads at 9 places
5. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
6. 4 No’s – 3” Wheel
7. Front keyboard panel for keyboard and mouse with laser cut joystick pocket, top rim and Z-plates at bottom with support plate to fix joystick
8. Power Strip in Rear; controller and UPS inside structure
9. Drawing Pouch LH Side, cable manager at rear side
10. Front double door with handles and lock
11. Additional printer stand to accommodate CPU console, monitor, keyboard and mouse; pull out tray for printer. LH and RH sides closed; top Marine ply with Matt finish, 3” wheels with brake.
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 1120 X B 770 X H 730 (over granite base) mm
16. Printer stand dimensions: L 600 X B 770 X H 730 mm
17. Weight: kg
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
1. Granite base of size L 750 X B 600 X T 30 mm
2. 60 mm Tubular Structure
3. Wrap Around Construction with left angular profile
4. 65 X 65 mm AV pads at 8 places
5. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
6. 4 No’s – 3” Wheel
7. Front keyboard panel with laser cut joystick pocket, top rim and Z-plates at bottom with support plate to fix joystick
8. Power Strip in Rear; controller, CPU and UPS inside structure
9. Drawing Pouch LH Side, cable manager at rear side
10. Front double door with handles and lock
11. Additional printer stand to accommodate CPU console, monitor, keyboard and mouse; pull out tray for printer. LH and RH sides closed; top Marine ply with Matt finish, 3” wheels with brake.
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 770 X B 770 X H 730 (over granite base) mm
16. Printer stand dimensions: L 600 X B 770 X H 730 mm
17. Weight: kg
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
1. Granite base of size L 900 X B 600 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 8 places
6. 4 Nos DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 Nos 3 Wheel
8. Front keyboard panel for keyboard and mouse, lasercut joystick pocket with top rim and Z-plates at bottom to lock joystick.
9. Power Strip in Rear; controller, CPU and UPS inside structure
10. Drawing Pouch LH Side, cable manager at rear side
11. Front double door with handles and lock
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 920 X B 770 X H 730 (over granite base) mm
16. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks
1. 60 mm Tubular Structure
2. Top Surface area L 400 X B 750 mm
3. Top sheet metal 8 mm thick welded to tubular structure covered with L plates with 80 mm dia laser cut hole.
4. 4 Nos Caster Wheels
5. Drawing Pouch LH Side, cable manager at rear side
6. Front single door with handle and lock
7. Leveling Ball
8. Powder Coat, structure, side sheets and door RAL 9002
9. Instrument sticker
10. Overall dimensions: L 400 X B 750 X H 700 mm
11. Weight: kg
12. Execution in wooden box
The AVT Mitutoyo Stand for Hardness Tester HR 530 (P-85-02-A) is built with a robust 60mm tubular structure, providing stability and durability. The top surface area measures 400mm (L) x 750mm (B), featuring a top sheet metal 8mm thick welded to the structure and covered with L-plates. An 80mm diameter laser-cut hole is included for easy setup.
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks
1. Granite size L 600 x B 900 x T 50 mm over steel structure
2. 60 x 60 mm Square Tubular Structure with cross member
3. Wrap around construction
4. 4 Nos. 4 wheels
5. 4 Nos. DLP4 AV discs at floor level
6. 9 Nos. 65 x 65 mm AV Pads between Granite and structure
7. Front double door with handles and lock
8. Drawing pouch, leveling ball, spanner 24/27
9. Power Strip in Rear
10. Drawing Pouch LH Side
11. Powder Coat, structure RAL 9002, side sheets and doors graphite gray
12. Instrument sticker
13. Overall dimensions: L 620 X B 920 X H 730 (over granite base) mm
14. Weight: kg
15. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks
1. Granite base of size L 900 X B 650 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction
4. Front pivot jointed heavy duty links with extended horizontal connecting profile and vertical 45 X 45 connecting profile, monitor bracket at top, keyboard and mouse tray at 1000 mm height (newly introduced!).
5. 65 X 65 mm AV pads at 9 places
6. 4 Nos DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 Nos 3 Wheel
8. Front joystick panel laser cut with top rim and Z-plates at bottom to lock joystick.
9. All four sides open, bottom sheet to place controller, CPU and UPS
10. Power strip in rear; Leveling Ball, Spanner 24/27
11. Powder Coat, structure and joystick panel RAL 9002
12. Instrument sticker
13. Overall dimensions: L 920 X B 670 X H 730 (over granite base) mm
14. Weight: kg
15. Execution in wooden box
The AVT for Mitutoyo QV Active 404 (P-87-03-A) is engineered with a precision granite base measuring 900mm (L) x 650mm (B) x 30mm (T). It features a 60mm tubular steel structure with a cross member and wrap-around construction for enhanced rigidity. Newly introduced is a front pivot-jointed heavy-duty link system, complete with extended horizontal and vertical (45x45) connecting profiles. A monitor bracket is mounted at the top, and a keyboard/mouse tray is positioned at approximately 1000mm height for ergonomic operation.
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks
Granite base of size L 1100 X B 600 X T 60 mm
with keyboard panel
open space for controller, drawer and space for printer
AVANT SERIES AVT P-91-01-A is a sturdy and versatile workstation designed for industrial and lab use. It features a precision granite base measuring 1100 mm (L) x 600 mm (B) x 60 mm (T), a built-in keyboard panel, and ample space to accommodate a controller, storage drawer, and printer. The layout ensures easy access and organization, making it ideal for setups requiring durability, functionality, and efficient space utilization.
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden boxes Boxes As Per Customer Requirement And to sent via blue Dart
Delivery Time : 3-4 Weeks
1. 60 X 60 mm Tubular Structure to Suit Granite size 450 X 750 X 30 mm2. Wrap Around Construction with front extended cover for aesthetics3. 4 No’s – 2” Caster wheels4. Power Strip in Rear & Drawing Pouch on L.H Side5. Front single door with handles and lock6. Leveling Ball, Spanner 24/277. Powder Coat, structure, side sheets and doors RAL 90028. Overall dimensions: L 570 X B 770 X H 600 (over granite base) mm9. Weight: kg10. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
AVT- Mitutoyo Hardness tester HM 210A P-85-01-A
1. 60 X 60 mm Tubular Structure to Suit Granite size 450 X 750 X 30 mm
2. Wrap Around Construction with front extended cover for aesthetics
3. 4 No’s – 2” Caster wheels
4. Power Strip in Rear & Drawing Pouch on L.H Side
5. Front single door with handles and lock
6. Leveling Ball, Spanner 24/27
7. Powder Coat, structure, side sheets and doors RAL 9002
8. Overall dimensions: L 570 X B 770 X H 600 (over granite base) mm
9. Weight: kg
10. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
1. Granite size L 600 x B 900 x T 50 mm over steel structure
2. 60 x 60 mm Square Tubular Structure with cross member
3. Wrap around construction
4. 4 Nos. 4’’ wheels
5. 4 Nos. DLP4 AV discs at floor level
6. 9 Nos. 65 x 65 mm AV Pads between Granite and structure
7. Front double door with handles and lock
8. Drawing pouch, leveling ball, spanner 24/27
9. Power Strip in Rear
10. Drawing Pouch LH Side
11. Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
12. Instrument sticker
13. Overall dimensions: L 620 X B 920 X H 730 (over granite base) mm
14. Weight: kg
15. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
1. Passive Air Cushion AVT with Electronic alarm2. Aurdino-Uno controller based with limit switches for upper and lower position3. With alarm buzzer and LED indicator for high/low4. Granite base of size L 900 X B 600 X T 50 mm Thickness
Passive Air Cushion AVT with Electronic alarm
Aurdino-Uno controller based with limit switches for upper and lower position
With alarm buzzer and LED indicator for high/low
Granite base of size L 900 X B 600 X T 50 mm Thickness
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
1. Granite base of size L 750 X B 600 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 8 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front keyboard panel for keyboard and mouse
9. Power Strip in Rear; controller, CPU and UPS inside structure
10. Drawing Pouch LH Side, cable manager at rear side
11. Front double door with handles and lock
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
14. Instrument sticker
15. Overall dimensions: L 770 X B 620 X H 730 (over granite base) mm
16. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
1. Granite base of size L 750 X B 600 X T 30 mm
2. 60 mm Tubular Structure
3. Wrap Around Construction
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 9 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front keyboard panel for keyboard and mouse
9. Power Strip in Rear; CPU and UPS inside structure
10. Drawing Pouch L.H Side, Cable manager at rear side
11. Front double door with handles and lock
12. External enclosure for control unit fixed on RH side
13. Leveling Ball, Spanner 24/27
14. Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
15. Instrument sticker
16. Overall dimensions: L 870 X B 820 X H 730 (over granite base) mm
17. Weight: kg
18. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
1. Granite base of size L 900 X B 600 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 8 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front keyboard panel for keyboard and mouse, lasercut joystick pocket with top rim and Z-plates at bottom to lock joystick.
9. Power Strip in Rear; controller, CPU and UPS inside structure
10. Drawing Pouch LH Side, cable manager at rear side
11. Front double door with handles and lock
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 920 X B 770 X H 730 (over granite base) mm
16. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
1. Granite base of size L 1100 X B 550 X T 30 mm
2. 60 mm Tubular Structure
3. Wrap Around Construction with left angular profile
4. Front pivot jointed heavy duty links with extended horizontal connecting profile and vertical 45 X 45 connecting profile. At top end another horizontal 90 X 45 profile connection with needle thrust bearing supported swiveling assembly with tray to suit display unit with clamping lever at bottom (newly introduced!) for placing data processor.
5. 65 X 65 mm AV pads at 8 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Power Strip in Rear; controller, CPU and UPS inside structure
9. Drawing Pouch LH Side, cable manager at rear side
10. Front double door with handles and lock
11. Leveling Ball, Spanner 24/27
12. Powder Coat, structure, side sheets and doors RAL 9002
13. Instrument sticker
14. Overall dimensions: L 1120 X B 570 X H 730 (over granite base) mm
16. Weight: kg
17. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
1. Granite base of size L 900 X B 600 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 8 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front keyboard panel for keyboard and mouse, lasercut joystick pocket with top rim and Z-plates at bottom to lock joystick.
9. Power Strip in Rear; controller, CPU and UPS inside structure
10. Drawing Pouch LH Side, cable manager at rear side
11. Front double door with handles and lock
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
16. Overall dimensions: L 770 X B 770 X H 730 (over granite base) mm
17. Weight: kg
18. Execution in wooden box
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement
Dynemech Anti Vibration Platform VIP-E The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets where in vibration transmission by 65-70%. The vibration isolation efficiency of these tables can be further increased by placing more than 2 layers of our Dp insulation Sheets. Five layers of DP exhibits a natural frequency of 7-8 Hz. Which damps most of the incoming frequencies above 15 Hz.
Size:600x600x170mm
Load Capacity:150 Kg/pc
Top Plate Thickness T (mm):10
Weight Of 04 Nos ( Kg.):250 Kgs
Box Dimension:23"X23"X5"
Number Of Box-04
Material: Rubber+Cast Iron
Colour: Black & Grey
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement.
Delivery Time : 4-5 Days
Dynemech Anti Vibration Tables - Series DIT-E are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/Grade-1 accuracy for very precise measuring accuracies. The passive vibrations from nearby motors and other heavy machinery is reduced by 65-70%.
Note- GST and Freight Charges are not included.
Additional Information:
Payment Terms : Western Union
Packaging Details : Wooden and Corrugated Boxes As Per Customer Requirement.
Delivery Time : 4-5 Days
Yogesh Bansal (Dynemech Systems Private Limited)
Plot No. 44, Rai Industrial Area, HSIIDC, Sonipat, Haryana - 131029
https://www.dynemechsystems.in
Share us via
View Contact Number
