Eltec Cables & Instruments - Thermocouple Cables

Application

• Manufacturing of Temperature Sensors
• Furnaces & Ovens
• Plastic Processing Equipments
• Heat Treatment
• Thermocouple Circuits
• Various Processing Industries

Features

• Continuous use up to 500 °C
• Single exposure up to 650 °C
• Good Thermal Durability & Strength
• Flame Retardant
• Superior Abrasion Resistance
• Better flexibility

Application

\n
• Utilities Industrial Plants
\n
• Construction of New plants
\n
• Petrochemicals Oil Refineries
\n
• Testing Rig Set Up
\n
• Thermocouple Circuits
\n

Features

\n
• Temp. Range: 105 °C Rated 300 V
\n
• Flame Retardant
\n
• Moisture, Chemical Solvent Resistant
\n
• Excellent Die Electric Strength
\n
• 100% shield contact for noise reduction
\n

Application

• Utililties Industrial Plants
• Construction of New plants
• Petrochemicals Oil Refineries
• Testing Rig Set Up
• Thermocouple Circuits

Features

• Flame Retardant
• Moisture, Chemical Solvent Resistant
• Excellent Die Electric Strength
• 100% shield contact for noise reduction

Specification

• Conductor - Solid or stranded thermocouple grade wires from 12 AWG to 24 AWG (2.44mm to 0.51mm) as per ASTM E 230 – ANSI MC 96.1
• Core Insulation - Flame Retardant PVC with nominal thickness of 0.40mm
• No. of Pair - 1 or more optional
• Communication Wire - 22 AWG – 7 strands Tinned Copper wire Orange color PVC Insulated (4 Pair larger)
• Pair Laying - Shielded Pairs with communication wire are layed suitably and binded with polyester tape
• Cable Shield - 0.05 mm Aluminum mylar /polyester tape, 25% overlap
• Drain Wire - 22 AWG - 7 strands of Annealed Tinned Copper Wire.
• Outer Sheath - Flame Retardant PVC
• Color Coding - Confirms to ANSI MC 96.1 (International Color Code Available).

Application

• Plastic General Machinery
• Heating and Air Conditioning
• Plastic Processing Equipments
• Laboratories
• Thermocouple Circuits
• General Industry

Features

• Good moisture, chemical solvent resistance
• Good Thermal Durability Strength
• Flame Retardant
• Superior Abrasion Resistance
• Better flexibility

Application

• Utilities Industrial Plants
• Construction of New plants
• Petrochemicals Oil Refineries
• Testing Rig Set Up
• Thermocouple Circuits

Features

• Temp. Range: 105 °C Rated 300 V
• Flame Retardant
• Moisture, Chemical Solvent Resistant
• Excellent Die Electric Strength
• 100% shield contact for noise reduction

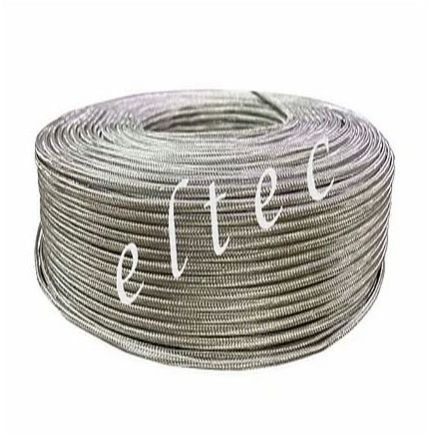

Introducing Eltec Fibre Glass Insulated J Type Thermocouple Wire, a high-quality thermocouple wire designed for precise temperature measurement. Featuring Thermocouple Original conductor type, Fiber Glass material, 12 AWG to 24 AWG size in solid & multi-strand, Eltec brand name, +ve Iron conductor material, J-Type thermocouple type, Shielded shielding type, temperature range of 0 to 450°C, fine SS metal braid outer shield, and Fiber Glass insulation.

Applications

• Medical Equipments

• Food Equipments

• Pharmaceuticals

• Laboratories

• Thermocouple Circuits

• General Industry

Features

• Continuous use up to 180 °C

• Single Exposure up to 260 °C
• Excellent Flexibility

• Excellent softness

• Resistant to moisture
• Resistant to oil, solvent & chemicals

Applications

• Metal Production

• Furnaces & Ovens

• Braided Thermocouple Replacement

• Heat Treatment

• Brick And Tile kiln

• Steel & Aluminum

• Features
• Continuous use up to 800 °C

• Single exposure up to 1100 °C

• Good Thermal Durability & Strength

• Flame Retardant

• Superior Abrasion Resistance

• Better flexibility

Application

• Manufacturing of Temperature Sensors
• Aerospace Cryogenics
• FDA Approved Products
• Chemicals Pharmaceuticals
• Petrochemical Plants
• Food Processing Plants

Features

• Continuous use up to 200 °C
• Smooth External surface finish
• Flame Retardant
• Excellent resistant to chemicals
• Excellent electrical properties

Application

\\\\n

\\\\n\n
• Utilities Industrial Plants
\n\\\\n\n
• Construction of New plants
\n\\\\n\n
• Petrochemicals Oil Refineries
\n\\\\n\n
• Testing Rig Set Up
\n\\\\n\n
• Thermocouple Circuits
\n\\\\n

\\\\n

\\\\n

Features

\\\\n

\\\\n\n
• Temp. Range: 105 °C Rated 300 V
\n\\\\n\n
• Flame Retardant
\n\\\\n\n
• Moisture, Chemical Solvent Resistant
\n\\\\n\n
• Excellent Die Electric Strength
\n\\\\n\n
• 100% shield contact for noise reduction
\n\\\\n

Application

• Manufacturing of Temperature Sensors
• Aerospace Cryogenics
• FDA Approved Products
• Chemicals Pharmaceuticals
• Petrochemical Plants
• Food Processing Plants
• Packaging

Features

• Continuous use up to 206°C
• Smooth External surface finish
• Flame Retardant
• Excellent resistant to chemicals
• Excellent electrical properties
