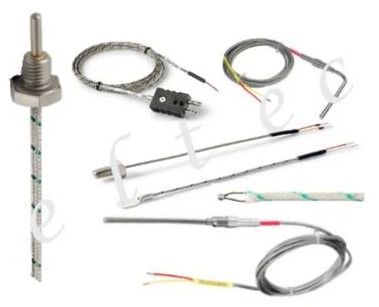

We offer a complete product range of Pencil Type Thermocouple, Flexible And Bayonet Thermocouple, K Type Bayonet Thermocouple, Flameproof Thermocouple Head and Multi Core Rubber Cable

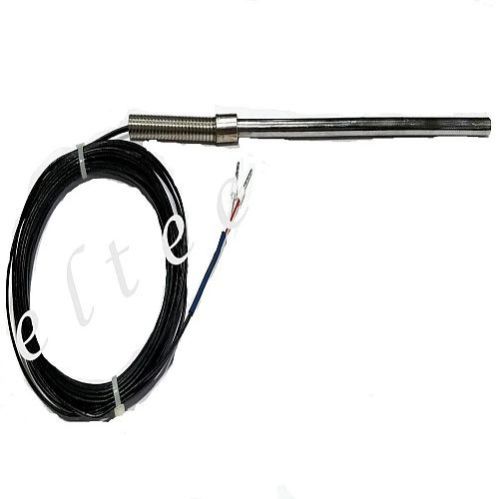

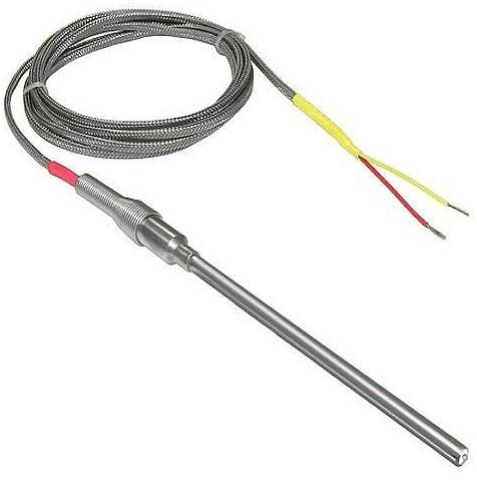

Introducing the Pencil Type Thermocouple, a reliable industrial temperature sensor made of high-quality SS material. This thermocouple probe features an ungrounded junction type, simplex configuration, and offers accurate temperature readings with an error margin of +- 1.5 DegreeC or +- 0.40%. Available in J, K, or T sensor types for versatile industrial applications.
Application
Features

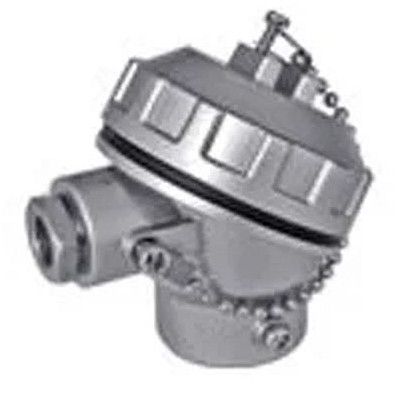

Thermocouple Head Is Used For Cold End Termination Of Thermocouple In A Safe Enclosure.
\n

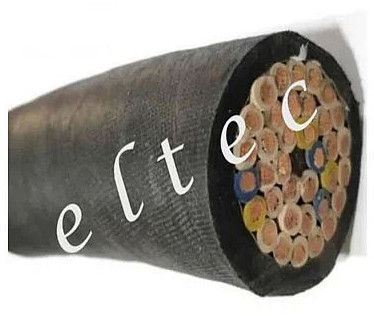

Rubber Cable Industrial Applications
| Flexible Trailing Cables | Reeling unreeling, trailing, festooning, mobile machines, cranes, coal handling and conveyors |
|---|---|
| Mining Cables | open cast, coal or other mines and mining machines |
| Thermal Power Plants | For coal handling plants, flexible power and control application |
| Cables For Steel Plants | Flexible and high temp withstanding cables for furnace, melting shops, material handling |
| Wind Energy | Flexible cables for power and control for wind mill generator connection |
| Fire Survival Cables | Fire survival for 3 hrs or 20 min |
| Ship Wiring | As per iec specs and naval specs dgs or defstan, nes |
| Offshore And Onshore | For platforms and rigs as per iec and bs or nek specs |
| Shore Supply And Generator Cables | For charging of ship batteries and supply from mobile generators |
| Motor Coil Leads | Elastomeric and silicon as per is, bs, or oem specifications |
| High Temp Cables | Silicon insulated, glass fiber braided or unbraided |
| Pump Cables | For water , submersible and sewerage pumps |
| Cables For Railways | Coach wiring, metro railway |
| Panel Wiring | For superior flexibility, high power high temp zone, polluted or moist atmospheres |
| Battery Cables | For high current and long life |
| Low Temperature Installations | Suitable for subzero temperature installations and operations |
| Misc. Applications | Outdoor high mast lighting, site power supply, white goods, oil or chemical resistant |
Introducing Eltec's Thermowell Protection Tube, designed to safeguard thermocouples and temperature gauges. Available in Straight, Flanged, or Tapered types, crafted from SS 310, SS 316, INCONEL 600, or HRS 445 materials. Thread size customizable to customer specifications, with a sleek SS finish for durability and aesthetics.
Technical Specification
| Type | Threaded Thermo well Flanged Thermo well Socket Weld Thermo well Built Up Design (Fabricated from Pipe) |
|---|---|
| Shank Design | Straight / Tapered / Stepped |
| Sheath ID | 5 to 10 mm or other as per requirements |
| Sheath OD | 12 mm to 35 mm or even more on request |
| Sheath Length | As per client’ s requirement |
| Sheath Material | Brass / Carbon Steel / SS 304 / SS 316 / SS 310 / HRS 446 / INCONEL 600 / INCONEL 601 / Monel / Hast Alloy B / Hast Alloy C |
| Process Connection | Threaded / Flanged / Welded |
