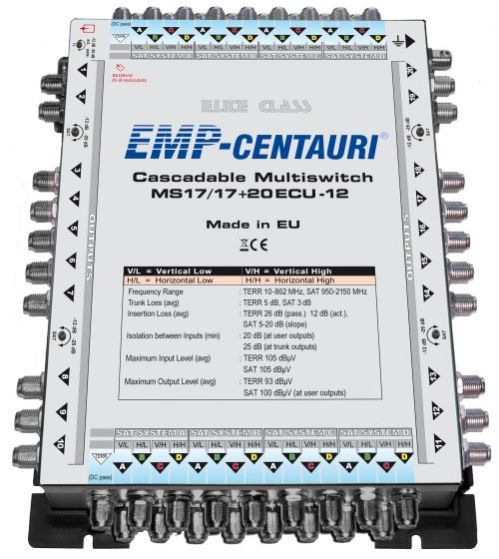

MS17-17+20ECU-12 Satellite Multiswitch

Total Carbohydrate 3 Years
SSOP-28 Special Offer
Power Output: 12 Wats
HD3200 600W
Power 1800W*2
Package Carton Case
Peak Power 7200W

17in/17out+20 compact cascadable multiswitch for distribution terrestrial and satellite signals from 4 satellite positions (16 polarities) to 20 users. The multiswitch is DC supplied from connected satellite receivers, 2.1 socket for external power is connected to all satellite trunk lines. DC power is present at the TERR line, avoid short circuit! Using a rotary trimmer it is possible to switch terrestrial band fromactive to passive mode. The loss at user outputs in satellite band is adjustable by another rotary trimmer in the range 5-20dB. The attenuation at the outputs can be set by means of the trimmer together for each five outputs.

Details

Parameter	Condition	Value
Frequency range	Sat. trunks	950-2150 MHz
	Terr. trunk	20-862 MHz
	User outputs	20-2150 MHz
Control		13/18 V + 0/22 kHz + DiSEqC
Insertion loss - user outputs	Sat.	5-20 dB avg
Insertion loss - user outputs	Terr. active / passive	12/26 dB avg
Insertion loss - trunk outputs	Sat.	3 dB avg
Insertion loss - trunk outputs	Terr.	5 dB avg
Sat. inputs isolation	At user outputs	20 dB min
Sat. inputs isolation	At trunk outputs	25 dB min
Maximum input level*	Sat./Terr.	105 / 105 dBµV
Maximum user output level*	Sat./Terr.	100 / 93 dBµV
Current consumption	Per user output	100 mA at 18V DC
Dimensions (w,d,h)	-	18.6 x 24.5 x 5.1 cm
Temperature range	-	-25 ~ +60 °C
Weight	-	1.050 kg
