We offer a complete product range of ES41-15 EoC Switch & Splitter

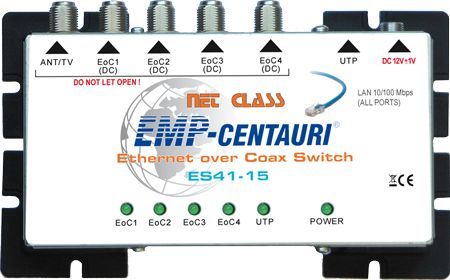

ES41-15 EoC Switch & Splitter

Frequency 50-60Hz
Input Voltage 100-240V
Output Voltage 24V
Watts 24W
IP Rate IP20

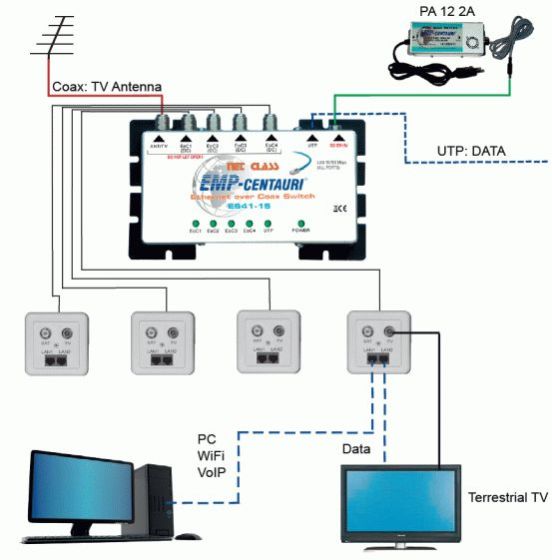

UTP/coaxial ethernet switch, 100 Mbit/s. Provides 1 standard Fast ethernet RJ-45 socket plus 4 coaxial ports (F-sockets) for connection of up to 4 wall sockets. Signals from antenna input are routed to wall sockets along with bi-directional data link. Can supply active antenna with user-selectable 5/12 V. Requires external power supply PA12 (not included in the package). Must be used only with EMP-Centauri NET CLASS wall socket.

Details

Parameter	Condition	Value
Frequency range	TV	470-862 MHz
Data	RJ45 (1x)	10BASE-T (10 Mbit/s), 100BASE-TX (100 Mbit/s)
Data	F-socket (4x)	10BASE-T (10 Mbit/s), 100BASE-TX (100 Mbit/s)
Insertion loss	TV	13 dB avg
Maximum input level	TV	90 dBµV
Maximum output level	TV	77 dBµV
Current consumption	max.	500 mA (12 V)
Dimensions (w,d,h)	--	14.8 x 8.9 x 5.4 cm
Temperature range	--	-25 ~ +60 °C
