Test Kits

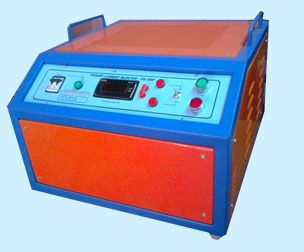

We offer the best product range of 1 Phase Relay Testing Kit Model, 3 Phase Relay Test Kit MODEL-ESPRTK3, Relay Test Kit, Dual Type Relay Test Kit and Primary Current Injection Test Kit.

1 Phase Relay Testing Kit Model

1 Phase Relay Testing Kit Model
  • Availability 30 Kgs. Approx.
  • DIMENSION W 450 X D 300 X H 175mm

We also offer 100 Amps Single Phase Relay Test Kit. It generate AC and DC Voltage, variable current sources 10mA to 100 Amps AC. Two separate dimmer for voltage & current mode. Relay Test Kit is made up on M S Powder coated cabinet & fix it in travel bag for easy to carry any where.

FEATURES
Timer range sec 9.999, 99.99, 999.9, 9999 sec
Timer range reset make brake facility.
Timer sensing external No/NC contact.
Single pole time interval meter close & trip timing.
External current meter calibration facility.
Register Burden 25 , 100 , 1K , 2.5K /50 watts.
Potential free No/NC Contact 6 Amp.
Continuity tester indicator with buzzer.
Make and brake switch provided.
ON/OFF push button with indicator.
AC/DC voltage selector switch.
PROTECTION
Glass fuse provided for over voltage & short circuit protection.
ASSESSORIES
Input Supply Cord.
Voltage probe.
Current probe.
Sensing probe.
Operating manual.

1

Operating Voltage

230 V AC 50 Hz

2



OUTPUT

D1 SET CURRENT
D1 SET VOLTAGE

D2 SET VOLTAGE

0 to 10V/100A , 0 to 100V / 10A, 0 to 10V / 5A
0 to 250V AC
0 to 300V DC
110V AC FIXED

0 to 250V AC
0 to 300V DC
110V DC FIXED
230V AC FIXED







View Complete Details
Ask Latest Price & Details
3 Phase Relay Test Kit MODEL-ESPRTK3

3 Phase Relay Test Kit MODEL-ESPRTK3

It generate AC 3 Phase Voltage, DC Voltage, AC/DC Fixed Voltage, Outputvariable 3 Phase current source 10 mA to 50 Amps x 3. Three separate dimmer for voltage & current mode. Relay test kit is made up on MS powder coated cabinet & fix it in travel bag for easy to carry on anywhere.

FEATURES
Time range Sec : 9.999, 99.99, 999.9, 9999 sec.
Timer sensing external No/NC contact.
Timer range reset & make / brake facility.
External current meter calibration facility for all three phases
Multi range current meters.
Output Current : 0 to 5A without CT and 50Amps with CT.
Output current terminal indicating respective phase colour code.
Variable AC Voltage 0-250V / 2A, DC Voltage0-300V / 2A
Fixed voltage 110V AC & DC / 2A
Potential free contact No /NC 6 Amps
External register burden 25 , 100 , 1 K , 2.5K , 50 watts
ON / OFF push button with indicator.
Auto / Manual switch.
PROTECTION
Glass fuse provided for overload and short circuit protection for individual Phases.
ASSESSORIES
Input Supply Cord.
Testing probe for voltage & current .
Sensing probe.
Testing probe with bag.
Operating manual.
DIMENSION
550 X 350 X 200 MM
WEIGHT
40 Kg Approx.

TECHNICAL  SPECIFICATION:

1

Operating Voltage

415V  3 Phase 50 Hz four wires

2

Output Voltage

a) 0-415VAC Phase To Phase With respective Neutral 0-230VAC
b) 0-230 VAC
c) 0-300 VDC
d) 110 V AC fixed
e) 110 V DC  fixed

3

Output Load Voltage & Current

R Phase – 0-100V / 0-5Amps ± 5%
0-20 V/0-25 Amps ± 5%
0-10V /0- 50 Amps ± 5%
Y-Phase – 0-100V / 0-5 Amps ± 5%
0-20 V/0-25 Amps ± 5%
0-10V / 0-50 Amps ± 5%
B-Phase – 0-100V / 0-5 Amps ± 5%
0-20 V/0-25 Amps ± 5%
0-10V / 0-50 Amps ± 5%












View Complete Details
Ask Latest Price & Details
Relay Test Kit

Relay Test Kit
  • Country of Origin 230 V AC 50Hz
We also offer clients relay test kits with external current meter facility with a current range from 1mA to 100 mA. These test kits can work on AC and DC voltage and are easy to handle. The specifications of our test kits are as follows:In put voltage 230 V AC 50Hz, Out put voltage 10 V100 A, 100 V1A, 0 to 250 VAC, 0 to 300 VDC set current dimer 2, Fixed 110 VDC current range 1 mA to 100 A fine accuracy, Easy carry on anywhere test kit fixed in travel bag, Timer range reset facility.
View Complete Details
Ask Latest Price & Details
Dual Type Relay Test Kit

Dual Type Relay Test Kit
  • Availability 35 Kgs. Approx.
  • DIMENSION W 450 X D 300 X H 175mm

We also offer 50 Amps Dual type relay test. It generate AC and DC Voltage, variable current sources 10mA to 50 Amps AC x 2. Two separate dimmer for voltage & current mode. Relay Test Kit is made up on M S Powder coated cabinet & fix it in travel bag for easy to carry anywhere.

FEATURES
Timer range sec 9.999, 99.99, 999.9, 9999 sec
Timer range reset make brake facility.
Timer sensing external No/NC contact.
External current meter calibration facility.
Potential free No/NC Contact @ 6 Amp.
Make and brake switch provided.
ON/OFF push button with indicator
AC/DC voltage selector switch.
Auto Manual selector switch.
PROTECTION
Glass fuse provided for over voltage & short circuit protection.
ASSEORIES
Input Supply Cord.
Voltage probe.
Current probe.
Sensing probe.
Operating manual.

TECHNICAL SPECIFICATION :
1. Operating Voltage 230 V AC 50 Hz
2. OUTPUT
D1 SET CURRENT
D1 SET VOLTAGE 		0 to 10V/50A , 0 to 100V / 5A, 0 to 10V / 1A
0 to 250V AC
0 to 300V DC
110V AC FIXED
  D2 SET CURRENT
D2 SET VOLTAGE 		0 to 10V/50A , 0 to 100V / 5A, 0 to 10V / 1A
0 to 250V AC
0 to 300V DC
110V DC FIXED
    10 KV /  15  to  25 MA









View Complete Details
Ask Latest Price & Details
