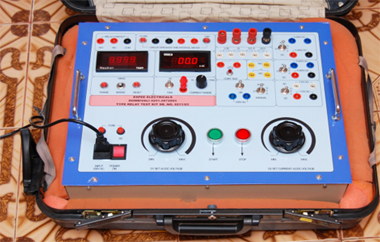

    1 Phase Relay Testing Kit Model

    1 Phase Relay Testing Kit Model

    Get Latest Price
    • Availability30 Kgs. Approx.
    • DIMENSIONW 450 X D 300 X H 175mm
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    We also offer  100 Amps Single Phase Relay Test Kit. It generate AC and DC Voltage, variable current sources  10mA to 100 Amps AC. Two separate dimmer for voltage & current mode. Relay Test Kit is....
    View More Details
    Send Enquiry

    Company Information

    Espee Electricalsverified-icon
    location Dombivli, Thane, Maharashtra
    View Number
    • calendar Member Since 15 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    We also offer  100 Amps Single Phase Relay Test Kit. It generate AC and DC Voltage, variable current sources  10mA to 100 Amps AC. Two separate dimmer for voltage & current mode. Relay Test Kit is made up on M S Powder coated cabinet & fix it in travel bag for easy to carry any where.

    FEATURES
    »
    Timer range sec 9.999, 99.99, 999.9, 9999 sec
    »
    Timer range reset make brake facility.
    »
    Timer sensing external No/NC contact.
    »
    Single pole time interval meter close & trip timing.
    »
    External current meter  calibration  facility.
    »
    Register Burden 25 Ω, 100 Ω, 1K Ω , 2.5K Ω/50 watts.
    »
    Potential free No/NC Contact 6 Amp.
    »
    Continuity tester indicator with buzzer.
    »
    Make and brake switch provided.
    »
    ON/OFF push button with indicator.
    »
    AC/DC voltage  selector switch.

    PROTECTION
    »
    Glass fuse provided for over voltage  & short circuit protection.

    ASSESSORIES
    »
    Input Supply Cord.
    »
    Voltage probe.
    »
    Current probe.
    »
    Sensing probe.
    »
    Operating manual.








    1

    Operating Voltage

    230 V AC 50 Hz

    2



    OUTPUT

    D1 SET CURRENT
    D1 SET VOLTAGE

    D2 SET VOLTAGE

    0 to 10V/100A , 0 to 100V / 10A, 0 to 10V / 5A
    0 to 250V AC
    0 to 300V DC
    110V AC FIXED

    0 to 250V AC
    0 to 300V DC
    110V DC FIXED
    230V AC FIXED
