Estovir Technologies

The MAP 860 Manual Cut & Bend Machine for Taped Axial Components is engineered to deliver precision, efficiency, and reliability for electronics manufacturing environments. Designed by Estovir Technologies, the MAP 860 offers superior handling of taped axial components, optimizing production workflows while ensuring consistent component preparation.

Key Features:

1.Precision Cutting & Bending:

High-accuracy blade system ensuring uniform cutting lengths.

Adjustable bending angles for tailored component shaping.

2.Ergonomic Design:

User-friendly manual operation reducing operator fatigue.

Compact footprint suitable for diverse workstation setups.

3.Versatile Compatibility:

Supports a wide range of taped axial upto lead 0.8 mm softwire.

Adjustable guides for quick adaptation to varying tape widths.

4.Robust Construction:

Industrial-grade materials for enhanced durability and longevity.

Low-maintenance design with easy access to critical components.

5.Enhanced Throughput:

Streamlined manual operation for higher processing speeds.

Consistent output quality, minimizing rework and waste.

Estovir Technologies PCB Assembly Jig PAJ-450 Precision, Efficiency & Stability

The Estovir Technologies PAJ-450 is a high-performance PCB assembly jig designed for electronics manufacturing, prototyping, and R&D labs. Built with SS304 high-quality steel, it ensures durability, stability, and precision while streamlining the assembly process. Its modular design allows for quick customization, making it an essential tool for circuit board fitting, testing, and repairs.

Key Features:

• Modular & Reconfigurable Easily adaptable to various PCB sizes and assembly needs
• Spring-Loaded System Allows easy PCB insertion and removal without adjusting the sleeve position
• Stable & Secure Holding Prevents movement during assembly, ensuring high accuracy
• Adjustable Splints Enables the creation of two separate working areas for improved productivity
• Optimized Component Placement Minimizes misalignment and enhances precision
• Supplied with Accessories Includes ESD-safe foam rubber, two sliding rail splints, a removable middle bridge, and a protective cover
• Premium Build Quality Constructed from SS304 steel for long-lasting durability and reliability

Specifications:

• Model: PAJ-450
• Material: SS304, BS, MS
• Max PCB Size: 300 x 450 mm
• Dimensions: 510 x 375 x 290 mm
• Country of Origin: Made in India

Perfect for electronics manufacturing, R&D labs, prototyping, repair, and small-scale production units, the PAJ-450 PCB Assembly Jig enhances efficiency, accuracy, and workflow optimization.

Upgrade your PCB assembly process today!

Our ESD PCB Storage Trolley is designed for electronics manufacturing, assembly lines, and R&D laboratories to ensure safe, efficient, and anti-static handling of printed circuit boards (PCBs). Built using high-quality stainless steel (SS) pipes and conductive PCB panels, these trolleys provide exceptional durability, corrosion resistance, and sleek aesthetics.

KEY FEATURES

Portable & Expandable Quick assembly and dismantling for flexible workspaces.

Robust & Durable Build Corrosion-resistant stainless steel ensures long-term reliability.

High Storage Capacity Holds up to 300 PCBs in multiple slots.

Anti-Static Protection Conductive castors and chains minimize ESD risks.

Heat Resistant Withstands temperatures up to 150C.

Smooth Mobility 100mm conductive rubber wheels for effortless movement.

Ergonomic & Sleek Design Efficient, space-saving, and professional aesthetics.

Boost Efficiency with Precision Manual De-Taping by Estovir Technologies
When speed, control, and accuracy are essential, Estovir Technologies offers the perfect solution. The Manual De-Taping Machine for Taped Radials MAP 860 R is built for performance. Tailored for radial and axial components, it delivers unmatched throughput of up to 18, 000 pcs/hr, giving operators precision without compromising on speed or safety. Whether you're running a high-volume production unit or a specialized training lab, this machine is your go-to for reliable manual de-taping.

Crafted for Control, Built for India
From electronics manufacturers to aerospace and medical device assembly, Estovir India has engineered the MAP 860 R with an intuitive manual design that promotes clean cuts and component integrity. With a lightweight, compact build and compatibility with lead diameters from 0.4 mm to 0.8 mm, it handles delicate tasks with ease.

Key Features:

• Designed for taped radial components
  Cuts taped components efficiently and cleanly.

• Lead diameter compatibility: 0.4 mm 0.8 mm
  Suitable for delicate soft wire leads.

• High-speed manual cutting
  Achieves up to 18, 000 pieces per hour.

• Compact and space-saving
  Measures only 160 x 160 x 155 mm for easy placement.

• Lightweight and portable
  Weighs just 3 kgideal for mobile or fixed setups.

• Manual operation with full control
  Enables operators to control every cut precisely.

• Durable industrial finish
  White anodised surface for longevity and resilience.

• Versatile usage
  Applicable in PCB assembly, training centers, and EMS units.

• PCB assembly units

• Contract manufacturing (EMS/ECM)

• Aerospace and medical electronics

• Automotive component processing

• Electronics R&D and vocational training labs

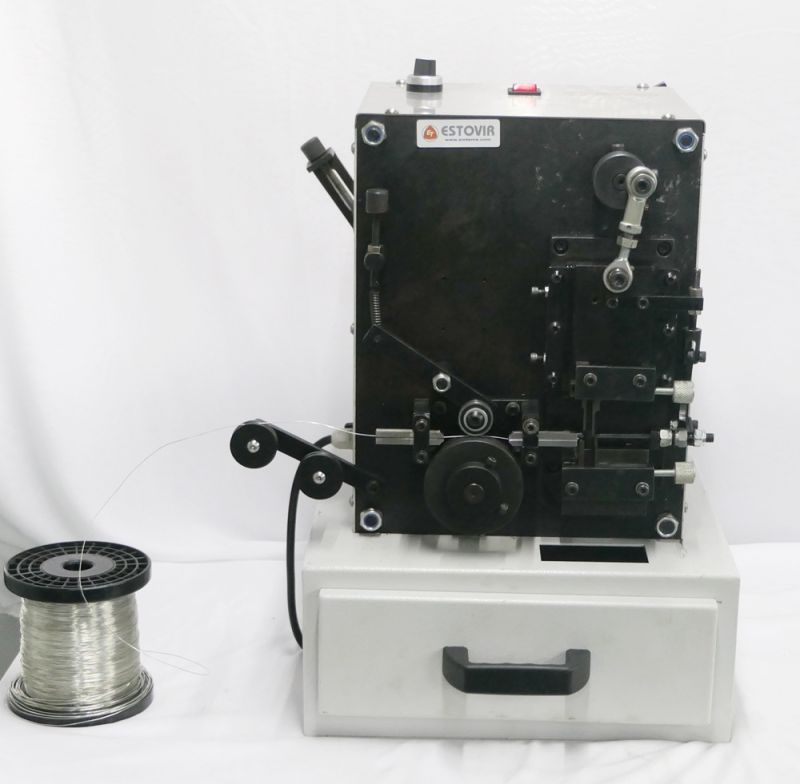

Automatic De-Taping Machine for Taped Radials UAP 850 R

High-Speed, Precise & Reliable De-Taping Solution

TheAutomatic De-Taping Machine for Taped Radials UAP 850 RbyEstovir Technologiesis an advanced motorized solution designed forfast and accurate cutting of taped radial components. As the upgraded version of the MAP 860 R, this de-taping machine delivers superiorspeed, consistency, and efficiencyfor high-volume electronics and PCB manufacturing.

Technical Specification:

• Model:UAP 850 R
• Output Capacity:Up to 10, 000 pcs/hr
• Lead Diameter: 0.4 mm 0.8 mm (soft wire)
• Power Source:220V AC, 50 Hz
• Operation Type:Motorized / Automatic
• Dimensions:370 mm 160 mm 205 mm
• Weight:8 kg

Component Forming Specification

• A (Lead Body Length): 3.5 40 mm
• B (Lead Length): 3.6 15 mm
• W (Lead Wire Diameter): 0.4 0.8 mm

Key Features of UAP 850 R Automatic De-Taping Machine

• Motorized Automatic Operation Minimizes manual intervention for reliable, consistent output.
• High-Speed Performance Processes up to10, 000 components per hour, ideal for large-scale manufacturing.
• Precision Cutting Mechanism Handles soft wire leads up to0.8 mmwith clean and uniform cuts.
• Compact & Space-Saving Design Dimensions: 370 160 205 mm, perfect for small workspaces.
• Energy Efficient Runs on less than100 W power consumption.
• Low Maintenance & Long Life Built with industrial-grade durability for extended use.

Applications of the Automatic De-Taping Machine

TheAutomatic De-Taping Machine for Taped Radials UAP 850 Ris versatile and widely used across industries where precision and high-speed output are critical:

• Electronics manufacturing De-taping resistors, capacitors, and other radial components.
• Automotive electronics Ensures accurate preparation of large-volume components.
• Consumer electronics assembly Handles small, delicate taped parts with precision.
• PCB manufacturing Streamlines taped component processing.
• Appliance & device production Ideal for bulk taped radial leads.

Why Choose Estovir Technologies' UAP 850 R?

• Engineered for Speed & Accuracy Consistent results with every cycle.
• Adaptable & Space-Saving Compact size with adjustable speed control.
• Reliable & Energy-Efficient Consumes minimal power while delivering maximum output.
• Built for Durability Industrial-grade construction with minimal maintenance requirements.

If your production demandsspeed, precision, and reliability, theAutomatic De-Taping Machine for Taped Radials UAP 850 Ris the perfect solution. With its compact size, high output capacity, and low energy usage, this machine significantly improves productivity while maintaining long-term dependability.

Upgrade your assembly line with theUAP 850 Rfrom Estovir Technologies whereprecision meets productivity.

Automatic PCB Lead Cutting Machine LC A66

TheLC A66 Automatic PCB Lead Cutting MachinebyEstovir Technologiesis engineered forpost-solder lead trimmingin high-volume PCB assembly lines. Using aconveyor chain mechanism, the machine automatically clamps and transports PCBs towards ahigh-speed tungsten carbide blade (LC TC 250)for accurate and uniform lead cutting. Built with awrap prevention device, it ensuresdamage-free processing, making it the perfect choice for electronics, consumer goods, and automotive PCB manufacturing. With aspindle speed of 4500 RPMand adjustable conveyor control, the LC A66 delivers unmatched speed, safety, and precision.

Specifications

• Model: LC A66
• Operation Type: Automatic (conveyor-based feed)
• Cutting Blade: LC TC 250 Tungsten Carbide (250 mm OD, 70 mm ID, Thickness 3.5 mm)
• PCB Thickness: 0.8 2.5 mm
• Max PCB Size: 500 300 mm
• Cutting Height: 0.6 mm minimum
• Spindle Speed: 4500 RPM
• Main Motor Power: HP
• Conveyor Speed: 03 m/min (adjustable)
• Power Supply: 220V AC, 50 Hz
• Dimensions:740 X 565 X 755 mm
• Machine Weight: 115 Kg

Key Features of Automatic PCB Lead Cutting Machine LC A66

• Automatic PCB Transportation
  • Conveyor chain clamps securely hold and transport PCBs into the cutting blade.
  • Reduces manual handling and boosts efficiency in production lines.
• High-Speed Tungsten Carbide Blade (LC TC 250)
  • Equipped with a250 mm outer diameter, 70 mm ID, 3.5 mm thickness blade.
  • Blades are re-sharpenable, ensuring long-term cost savings and consistent performance.
• Wrap Prevention System
  • Special device prevents bending or damage to PCBs during cutting.
  • Guarantees clean finishing, even on thin and delicate boards.
• Flexible & Adjustable Operation
  • Conveyor speed adjustable between03 m/minfor different workloads.
  • Cutting height as low as6 mm, suitable for multiple PCB thicknesses (0.82.5 mm).
• Durable Industrial Build
  • Weighing115 kg, it is designed for continuous factory-floor operation.
  • Rugged body ensures stability and vibration-free cutting.

Why Choose LC A66?

• Boosts production speed with fully automated PCB handling.
• Guarantees precise, uniform lead cutting for a professional finish.
• Prevents PCB damage with integrated wrap-prevention system.
• Compact, space-saving design ideal for industrial production lines.
• Uses reliableLC TC 250 tungsten carbide blades, ensuring durability.
• Trusted by global electronics manufacturers for quality and efficiency.

Applications of Automatic PCB Lead Cutting Machine LC A66

• PCB assembly lines for consumer electronics and LED products.
• Automotive electronic module production.
• High-volume industrial PCB manufacturing.
• Contract electronic assembly services.

Maintenance & Blade Information

• Blade Maintenance TheLC TC 250tungsten carbide blade can bere-sharpenedusing theLC G250 blade sharpening machine, ensuring consistent long-term performance.
• Low Maintenance Design Built with minimal moving parts and a rugged frame, the LC A66 requires very little upkeep.
• Operator Safety Manual push-handle feeding ensures safe PCB handling during operation.

Automatic PCB Lead Cutting Machine LC A66

TheLC A66 Automatic PCB Lead Cutting MachinebyEstovir Technologiesis engineered forpost-solder lead trimmingin high-volume PCB assembly lines. Using aconveyor chain mechanism, the machine automatically clamps and transports PCBs towards ahigh-speed tungsten carbide blade (LC TC 250)for accurate and uniform lead cutting. Built with awrap prevention device, it ensuresdamage-free processing, making it the perfect choice for electronics, consumer goods, and automotive PCB manufacturing. With aspindle speed of 4500 RPMand adjustable conveyor control, the LC A66 delivers unmatched speed, safety, and precision.

Specifications

• Model: LC A66
• Operation Type: Automatic (conveyor-based feed)
• Cutting Blade: LC TC 250 Tungsten Carbide (250 mm OD, 70 mm ID, Thickness 3.5 mm)
• PCB Thickness: 0.8 2.5 mm
• Max PCB Size: 500 300 mm
• Cutting Height: 0.6 mm minimum
• Spindle Speed: 4500 RPM
• Main Motor Power: HP
• Conveyor Speed: 03 m/min (adjustable)
• Power Supply: 220V AC, 50 Hz
• Dimensions:680 X 600 X 650 mm
• Machine Weight: 115 Kg

Key Features of Automatic PCB Lead Cutting Machine LC A66

• Automatic PCB Transportation
  • Conveyor chain clamps securely hold and transport PCBs into the cutting blade.
  • Reduces manual handling and boosts efficiency in production lines.
• High-Speed Tungsten Carbide Blade (LC TC 250)
  • Equipped with a250 mm outer diameter, 70 mm ID, 3.5 mm thickness blade.
  • Blades are re-sharpenable, ensuring long-term cost savings and consistent performance.
• Wrap Prevention System
  • Special device prevents bending or damage to PCBs during cutting.
  • Guarantees clean finishing, even on thin and delicate boards.
• Flexible & Adjustable Operation
  • Conveyor speed adjustable between03 m/minfor different workloads.
  • Cutting height as low as6 mm, suitable for multiple PCB thicknesses (0.82.5 mm).
• Durable Industrial Build
  • Weighing115 kg, it is designed for continuous factory-floor operation.
  • Rugged body ensures stability and vibration-free cutting.

Why Choose LC A66?

• Boosts production speed with fully automated PCB handling.
• Guarantees precise, uniform lead cutting for a professional finish.
• Prevents PCB damage with integrated wrap-prevention system.
• Compact, space-saving design ideal for industrial production lines.
• Uses reliableLC TC 250 tungsten carbide blades, ensuring durability.
• Trusted by global electronics manufacturers for quality and efficiency.

Applications of Automatic PCB Lead Cutting Machine LC A66

• PCB assembly lines for consumer electronics and LED products.
• Automotive electronic module production.
• High-volume industrial PCB manufacturing.
• Contract electronic assembly services.

Maintenance & Blade Information

• Blade Maintenance TheLC TC 250tungsten carbide blade can bere-sharpenedusing theLC G250 blade sharpening machine, ensuring consistent long-term performance.
• Low Maintenance Design Built with minimal moving parts and a rugged frame, the LC A66 requires very little upkeep.
• Operator Safety Manual push-handle feeding ensures safe PCB handling during operation.

Blade Sharpening Machine LC G250 by Estovir

TheBlade Sharpening MachineLC G250byEstovir Technologiesis engineered to deliver unmatched precision in maintaining and restoring the sharpness ofTungsten Carbide bladesLC TC 250used in PCB lead cutting machines (like LC A66 & LC M66). Dull blades can cause uneven trimming, PCB surface damage, and increased downtime.

Technical Specification

Key Features Blade Sharpening Machine LC G250

• Compatible with Tungsten Carbide Blades
  • Specially designed to sharpen tungsten carbide blades used in PCB lead cutting and other industrial cutting machines.
  • Restores the original sharp cutting edge, reducing frequent blade replacement costs and downtime.
• High-Speed Precision Grinding
  • Powered by a4500 RPM spindlefor smooth, uniform, and accurate sharpening.
  • Ensures clean, sharp edges for consistent PCB trimming while preventing overheating and blade damage.
• Heavy-Duty & Vibration-Free Design
  • Built with arigid 120 Kg framefor stability and long service life.
  • Industrial-grade structure supports continuous operation with accuracy and durability.
• Cost-Effective Blade Management
  • Extends blade life to minimize downtime and maximize ROI.
  • Ensures consistent cutting performance while saving money on frequent blade purchases.
• Simple & Operator-Friendly
  • Manual feed design for easy handling and quick setup.
  • Requires minimal training, reduces operator skill dependency, and ensures easy maintenance.
  • Easy maintenance with minimal training.

Applications of Blade Sharpening Machine LC G250

• PCB Assembly Units For maintaining sharp blades in continuous trimming operations.
• Consumer Electronics Manufacturing Ensures smooth cutting in large-scale device assembly.
• LED Board Production Keeps blade edges sharp for delicate LED PCBs.
• Automotive Electronics Maintains blade sharpness for high-density, soldered boards.
• Industrial Electronics Supports precision cutting requirements in large-scale factories.

Why Choose LC G250?

• Maximizes blade life with professional-grade sharpening.
• Maintains cutting precision for high-volume production.
• Robust design built for industrial reliability.
• Cuts down recurring expenses on blade replacement.
• A trusted solution from Estovir Technologies, a leader in PCB assembly machinery.

Maintenance & Blade Care of Blade Sharpening Machine LC G250

• Regular sharpening maintains blade sharpness and prevents PCB damage.
• LC TC 250 blades can be re-sharpened multiple times without compromising quality.
• Proper cleaning and careful handling during installation ensure maximum blade performance.

Automatic Jumper Forming Machine JMP 681 by Estovir TechnologiesTheJMP 681 Automatic Jumper Forming MachinebyEstovir Technologiesis engineered forhigh-speed and precision forming of Tin Wire/ Copper Wire/Soft Wireused in PCB assembly and electronics manufacturing. This fully automatic machine streamlines the cutting, bending, and forming process, ensuringuniform quality, efficiency, and reduced manual laborin production lines. Compact, durable, and easy to integrate, the JMP 681 is the perfect solution for mass production of jumper wires with consistent accuracy.

Key Features of Automatic Jumper Forming Machine JMP 681

• High Output Capacity
  • Produces up to6500 jumper wires per hour, ideal for large-scale production.
  • Ensures faster turnaround and optimized workflow.
• Fully Automatic Operation
  • Eliminates manual cutting and bending.
  • Guaranteesconsistent, repeatable qualityacross all components.
• Compact & Durable Design
  • Dimensions:320 300 450 mm, Weight:37 Kg.
  • Easy to integrate into existing production setups with minimal space requirement.
• Precision Wire Forming
  • Handles tin wires of 0.4 0.7 mmwith accurate bending and shaping.
  • Ensures reliable jumper connections for electronics assemblies.
• Customizable Settings
  • Adjustablejumper length, bend angle, and leg height.
  • Flexible to meet different PCB design requirements.

Applications of Automatic Jumper Forming Machine JMP 681

• PCB & Electronics Assembly Lines Streamlined jumper wire forming for circuit boards.
• Consumer Electronics Manufacturing Reliable for devices requiring precision wiring.
• Automotive Electronics Consistent performance in high-demand automotive circuits.
• Industrial Electronics Supports mass production with uniform accuracy.
• Contract Manufacturing Units High output capacity makes it suitable for outsourcing projects.

Why Choose JMP 681?

• High-volume output for mass production
• Operator-friendly with minimal manual work
• Compact, durable, and easy-to-integrate designCost-efficient solution reducing labor and errorsBacked byEstovir Technologies Trusted in Electronics Manufacturing

PCB Separator 2 Blade EMS 806 V Cut by Estovir Technologies
Overview PCB Separator 2 Blade EMS 806 V Cut

ThePCB Separator 2 Blade EMS 806 V CutbyEstovir Technologiesis an industrial-grade solution engineered forprecision PCB depaneling. Designed specifically forV-groove and SMT boards, it deliversstress-free separationwithout damaging solder joints, delicate components, or PCB substrates.

With itsadjustable dual-blade system, compact footprint, and low-noise operation, this separator ensures consistent performance acrosshigh-volume PCB assembly lines. Built for speed, durability, and operator safety, the EMS 806 V Cut is a trusted choice for manufacturers aiming to increase output while maintaining top-quality standards.

Key Features of PCB Separator 2 Blade EMS 806 V Cut

Each feature of the EMS 806 V Cut is designed withmanufacturers' challengesin mind.

• Dual-Blade Precision Cutting
  • The dual-blade system guarantees clean, burr-free separation of PCBs.
  • Ensures uniform cuts across long production runs.
• Adjustable Blade Depth Control
  • Operators can fine-tune blade height for different PCB thicknesses (up to 3 mm).
  • Prevents overcutting, ensuring safe handling of sensitive SMT components.
• Stress-Free PCB Handling
  • Reduces mechanical strain on boards.
  • Protects solder joints, preventing cracks or micro-fractures during cutting.
• High-Speed, Low-Noise Operation
  • Cutting speed up to15 meters per minute, ideal for large batches.
  • Low operational noise meets industrial safety standards.
• Universal PCB Compatibility
  • HandlesV-cut, scored, and SMT PCBsof various lengths.
  • Suitable for LED PCBs, telecom boards, consumer devices, and automotive electronics.
• Compact, Ergonomic Design
  • Occupies minimal floor space (350 330 410 mm).
  • Easy to install, move, and operate in busy production lines.
• Energy-Efficient and Durable
  • Operates on standard220V AC, 50 Hz
  • Consumes minimal energy while ensuring long-term reliability.

Applications of PCB Separator 2 Blade EMS 806 V Cut

The EMS 806 V Cut is versatile, making it ideal for industries that demandfast, precise PCB depaneling.

• Electronics Manufacturing Clean separation of PCBs for consumer devices, telecom equipment, and industrial electronics.
• LED Lighting Industry Depaneling LED PCBs without stress or component damage.
• Automotive Electronics Ensures robust separation for advanced driver-assist systems, dashboards, and control boards.
• Appliances & Consumer Devices Reliable depaneling for mass production of household and smart devices.
• EMS & PCB Assembly Lines Widely used bycontract manufacturers (EMS companies)for batch processing.

Why Choose the PCB Separator 2 Blade EMS 806 V Cut?

• Engineered for Speed & AccuracyWith a cutting speed of 15 m/min, it boosts productivity while maintaining precision.
• Protects Your InvestmentBy preventing PCB stress and component damage, it reduces scrap rates and saves costs.
• Compact & Operator-FriendlyLightweight and ergonomic, requiring minimal training for operators.
• Reliable & Long-LastingRugged industrial construction designed for continuous production cycles.
• Low MaintenanceSimple design means minimal downtime and lower operating costs.

PCB Separator 6 Blade EMS 1200 V Cut by Estovir Technologies

TheEMS 1200 V Cutis anindustrial-grade PCB depaneling machineequipped with a6-blade precision cutting system. Unlike smaller dual-blade machines, the6 Blade versionis designed forhigh-volume, large-format PCB panels, making it perfect for electronics manufacturers who needspeed, accuracy, and scalability.With acutting speed of up to 20 meters per minute, it can handle even the most demanding production environments. Itsstraight-line cutting mechanismensures clean and consistent results, while itsadjustable blade speedallows customization based on PCB material and thickness (up to 3 mm).Compact yet powerful, the EMS 1200 V Cut providesstress-free separation, ensuring solder joints and delicate SMT components remain intact.

Key Features of EMS 1200 V Cut PCB Separator

Every feature of this machine has been engineered with electronics manufacturing challenges in mind.

• Six-Blade Precision Cutting
  • Equipped with 6 high-quality blades for accurate separation
  • Handles large PCB panels with fast cutting lines simultaneously
  • Reduces cycle time and increases productivity

• Adjustable Cutting Speed
  • Cutting speed up to 20 meters per minute
  • Ensures flexibility for diverse manufacturing requirements

• Straight-Line Cutting Accuracy
  • Provides clean, uniform cuts along V-grooves
  • Eliminates rough edges, burrs, or misaligned breaks
  • Improves product quality and assembly reliability

• Compact & Durable Build
  • Dimensions: 2430 375 280 mm
  • Compact footprint despite handling large PCBs
  • Built with industrial-grade materials for long-term durability

• Energy-Efficient Design
  • Operates on 220V AC, 50 Hz standard power
  • Low energy consumption compared to manual/semi-automatic methods
  • Cost-effective with reduced operational expenses

Applications of PCB Separator 6 Blade EMS 1200 V Cut

The EMS 1200 V Cut is versatile and designed for industries that demandbulk production of high-quality PCBs.

• Electronics Manufacturing Smartphones, telecom equipment, consumer gadgets.
• LED Lighting Industry Separation of long LED strips, panels, and aluminium PCBs.
• Automotive Electronics Dashboards, infotainment systems, safety boards.
• Industrial Electronics Control units, automation boards, industrial sensors.
• Appliances & Consumer Devices TVs, washing machines, refrigerators, smart appliances.

Why Choose the PCB Separator 6 Blade EMS 1200 V Cut?

When compared to manual depaneling or smaller machines, the EMS 1200 V Cut offersclear advantages:

• High Productivity
  • Six blades enable fast cuts in a single pass
  • Handles large PCB panels quickly and efficiently
• Protects Your Investment
  • Prevents PCB damage, reducing scrap rates
  • Saves money on rework and defective boards
• Flexible & Scalable
  • Adjustable speed accommodates different PCB types
  • Suitable for both small and high-volume batches
• User-Friendly & Safe
  • Easy to operate, reducing training time
  • Safety features protect operators in high-speed environments

nlet Conveyor ET 1000 EC PCB Linking Conveyor

OverviewTheInlet Conveyor ET 1000 ECis a precision-engineered PCB linking conveyor designed to streamline transfer inSMT and wave soldering lines. Acting as a reliable bridge between multiple stages, it ensuressmooth, vibration-free, and accurate PCB movement. Built withESD-safe materials, variable speed control, and adjustable width, the ET 1000 EC is ideal forEMS, consumer electronics, automotive, and medical device industries.

Modular Inlet Conveyor for SMT & Wave Soldering High-Precision PCB TransferThis inlet conveyor integrates seamlessly with upstream and downstream equipment such asmanual insertion lines, wave soldering machines, reflow ovens, and inspection stations. It enhances efficiency, reduces downtime, and supportsflexible production line configurations.

Key Features

Adjustable PCB Width

• Handles PCB sizes from50 mm to 350 mm.

• Quick manual adjustment for flexible, multi-model production.

Smooth & Reliable Transfer

• Gear/chain-driven system for stable PCB movement.

• Low-vibration designprevents component shift or solder defects.

Variable Speed Control

• Adjustable speed from56 m/min, adaptable to line requirements.

Robust & ESD-Safe Build

• Aluminium profile with stainless-steel platform.

• Powder-coated frame ensures durability and static protection.

SMEMA/IPC Standard Connectivity

• Plug-and-play interface with SMT/soldering equipment.

• OptionalEthernet & Industry 4.0support.

Smart Additions

• Alignment sensors for precision transfer.

• Buzzer & safety covers for operator safety.

Flexible Configurations

• Length options:500 mm / 1000 mm.

• Height-adjustable legs for smooth line integration.

Energy-Efficient, Low Maintenance

• Consumes only4070 W.

• Modular design simplifies service and reduces downtime.

Applications

TheET 1000 EC Inlet Conveyoris a vital element in modern PCB assembly lines, especially wherespeed, accuracy, and connectivityare critical. Typical uses include:

• Linkingmanual insertion (MI) lineswith wave soldering machines.

• Acting as abuffer stationto maintain smooth production.

• Transitioning PCBs between modules with different elevations.

• Serving as aninspection, pause, or repair station.

• Widely applied inEMS, automotive electronics, consumer devices, and medical PCB production.

Why Choose ET 1000 EC?

Selecting the ET 1000 EC means investing in aglobally trusted, efficient, and durable PCB conveyor system. Benefits include:

• Accurate, stable transfer without PCB misalignment.

• Customizable lengths and widthsto fit any line.

• Industry-standard SMEMA/IPC communicationfor seamless plug-and-play integration.

• RuggedESD-safe constructionfor long-term reliability.

• Optionalsmart featuresaligned withIndustry 4.0.

• Proven performance inhigh-volume electronics manufacturingworldwide.

Automatic Wire Crimp Pull Tester 500N (50Kg)
TheAutomatic Wire Crimp Pull Tester 500N (50Kg)is a high-precision, motor-driven testing instrument designed for evaluating thecrimp strength, tensile force, and pull performanceof wires and terminals. Built with a compact, stable, and ergonomic structure, this advanced tester offersboth manual and automatic operation modes, ensuring flexibility and repeatable results in quality control and laboratory applications.

Engineered for industries such aselectronics, automotive, electrical appliance manufacturing, and wire harness production, the tester ensures that every crimp connection meets international quality standards. Itsstepless speed regulation, high-accuracy load cell. This model, APT 500N, can measure up to500 N (50Kg)of pull force, making it suitable for a wide range of wire gauges, terminal types, and materials. Whether inresearch, inspection, or production verification, the Automatic Wire Crimp Pull Tester ensures reliability, consistency, and efficiency.

Key Features of Automatic Wire Crimp Pull Tester 500N (50Kg)

• High Testing Capacity (500N / 50Kg)Performs accurate pull and tensile tests for medium to heavy wire and terminal assemblies.Ensures reliable results for both destructive and non-destructive testing conditions.
• Dual Operation Modes Manual & AutomaticOffers flexibility between fully automated testing and manual control when needed.Simplifies workflow for production, inspection, and R&D operations.
• Stepless Speed RegulationSmooth, gear-driven speed control adjustable from 0 to 500 mm/min.Enables precise motion suited for various wire sizes and material strengths.
• Compact & Stable StructureSpace-saving vertical design reduces bench area requirements.Heavy-duty base minimizes vibration for enhanced measurement stability.
• Multi-Functional Testing CapabilityPerforms crimp strength, tensile, puncture, and penetration force tests.Can also be adapted for testing glass ampules and connector retention.
• Ergonomic & User-Friendly DesignSimple control panel for intuitive operation by technicians or lab personnel.Minimal maintenance required, ensuring long-term cost efficiency.

Applications of Automatic Wire Crimp Pull Tester 500N (50Kg)

TheAPT 500Nmodel is suitable for a wide range of industrial and laboratory testing applications, including:

• Wire Harness & Terminal Manufacturers:Quality assurance testing for crimped joints.
• Electronics & Automotive Industries:Evaluation of tensile and connection strength in components.
• Cable & Connector Assembly Units:Routine production audits for crimp consistency.
• Research & Development Labs:Performance testing of materials and wire joints under controlled conditions.
• Component Reliability Testing:Used for both destructive and non-destructive test setups.

Why Choose Estovir Technologies APT 500N?

• Proven Accuracy & Reliability Consistent results with advanced load cell calibration.
• Easy to Operate Simple control panel with adjustable speed and test duration.
• Durable Design Built with robust components for long-term performance.
• Comprehensive Service Support Calibration, customization, and maintenance available.
• Value for Money Professional performance at competitive pricing.

Manual Wire Crimp Pull Tester 500N (50Kg)
Overview of Manual Wire Crimp Pull Tester 500N (50Kg)

TheManual Wire Crimp Pull Tester 500N (50Kg)is a precision-engineered, hand-operated testing devicedesigned for accurate measurement ofcrimp strength, tensile force, and pull forcein wires and terminals. Itsrugged design and high-capacity performancemake it ideal forquality control, production validation, and laboratory testingin modern electrical and automotive industries.

With amaximum capacity of 500 N (50 Kg), this tester enables users to verifyterminal retention, wire integrity, and crimp quality, ensuring reliable electrical connections. Built forelectronics, automotive, appliance, and wire harness manufacturing, it deliversrepeatable and traceable resultsthat comply with international testing standards.

Compact, durable, and low-maintenance, theMPT 500Nensures long-term reliability and ease of operationmaking it a trusted tool for professionals and testing engineers.

Key Features

• High-Accuracy Measurement
  • Precisely measurescrimp strength, pull-off, and tensile force up to 500N (50Kg)with excellent repeatability and accuracy for consistent results.
• Manual, Power-Free Operation
  • Simple hand-operated mechanismno electrical or pneumatic systems required, making itcost-effective and maintenance-free.
• Rugged & Portable Design
  • Constructed fromhigh-strength aluminium, it islightweight (4.75 Kg)yet durable forbench-top or field testing
• Quick & Adjustable Fixtures
  • Tool-free, quick-adjust grip system allowssecure wire clampingandeasy testingof multiple wire sizes.
• Universal Compatibility
  • Supports variousterminal grips and wire types, ensuring flexibility for different connectors and cable assemblies.
• Consistent & Reliable Testing
  • Deliversstable readingsfor bothdestructive and non-destructive testing, ensuring precise quality validation.

Applications

• Wire Harness & Cable Assembly Ensures strong terminal crimp connections during production and batch inspection.
• Electronics Manufacturing Validates reliable terminal joints in PCB and connector assemblies.
• Automotive Industry Tests wire integrity and terminal retention in vehicle wiring harnesses and sensors.
• Research & Development Labs Ideal for material testing, terminal retention analysis, and tensile performance evaluation.
• Appliance & Equipment Manufacturing Used for auditing and verifying crimp quality in small-scale assembly operations.

Why Choose Manual Wire Crimp Pull Tester 500N (50Kg)?

• Proven Precision
  • Engineered to deliveraccurate and repeatable resultsfor audits and lab testing.
• Durable & Compact
  • Designed with arobust metal frameensuringlongevityandportability.
• Customizable Fixtures
  • Optional grips and accessories forspecial terminal and wire configurations.
• Comprehensive Support
  • Includescalibration, service, and after-sales supportfrom Estovir Technologies.
• Cost-Effective Quality Control
  • Combinesaffordability with industrial-grade precision, ideal for SMEs and professional testing labs.
