At Falcon, we provide targeted material solutions for the world’s most aggressive chemical environments. Our Alloy 20 Y-Strainers are the industry benchmark for applications involving sulfuric acid, offering immunity to chloride stress corrosion cracking and exceptional resistance to general acid corrosion.

Alloy 20 is a columbium-stabilized austenitic nickel-iron-chromium alloy with additions of copper and molybdenum.

• Sulfuric Acid Specialist: Specifically designed to withstand boiling sulfuric acid ($H_2SO_4$) at concentrations up to 40%, and excellent resistance to higher concentrations at lower temperatures.

• Columbium (Niobium) Stabilization: The addition of columbium prevents intergranular corrosion by minimizing carbide precipitation during welding and high-heat service.

• SCC Immunity: The high nickel content provides superior resistance to chloride-ion Stress Corrosion Cracking (SCC) compared to 300-series stainless steels.

• Pitting Protection: Molybdenum and copper additions protect the strainer body and internal screens in phosphoric and nitric acid environments.

The premium choice for high-pressure chemical dosing, acid distribution, and sampling lines.

• Grain Integrity: Forging ensures a high-density material structure required for Class 300 and 600 systems where leak prevention is critical.

• Reliability: Best for small-bore piping in sulfuric acid pickling lines or precision chemical injection skids.

The industry standard for large-scale flow in chemical processing and fertilizer plants.

• Grade CN7M: This is the precise cast designation utilized by Falcon for our Alloy 20 Y-strainer bodies.

• Economic Protection: Provides a cost-effective solution for larger diameters while maintaining the alloy's signature resistance to aggressive mineral acids.

Falcon ensures every Alloy 20 unit is fully traceable and complies with these global designations:

Falcon’s Alloy 20 strainers are indispensable in:

• Sulfuric Acid Pickling: Protecting pumps and nozzles in steel mill acid cleaning lines.

• Chemical Production: Used in the manufacture of plastics, explosives, synthetic rubber, and fertilizers.

• Petrochemical Refining: Essential for alkylation units where sulfuric acid is a primary catalyst.

• Pharmaceutical Synthesis: Handling aggressive catalysts and acidic reagents in bulk drug production.

• Food & Dye Processing: Managing organic and fatty acids that cause pitting in standard stainless steels.

• Design Code: ASME B16.34 (Valves and Pressure Components).

• Pressure Ratings: ANSI Class 150 through Class 600.

• Testing: 100% shell and seat pressure testing per API 598.

• End Connections: Flanged (RF), Socket Weld (SW), and NPT Threaded.

Falcon Quality Assurance: Every Alloy 20 Y-Strainer includes a full EN 10204 3.1 Material Test Report (MTR). Falcon ensures that all internal mesh or perforated screens are also manufactured from UNS N08020 to eliminate any risk of galvanic corrosion or localized acid attack.

Falcon Engineering Insight: While Alloy 20 is the go-to for sulfuric acid, it also performs exceptionally well in phosphoric acid and nitric acid environments. Its high nickel content (approx. 35%) ensures it remains stable in chloride-rich environments that would cause 316L to crack.

At Falcon, we provide the ultimate solution for "extreme-service" environments. When standard alloys fail due to aggressive chemical attack, our Hastelloy C276 (Alloy C276) Y-Strainers offer the highest level of protection available in the industry.

Hastelloy C276 is a Nickel-Molybdenum-Chromium super-alloy designed for exceptional resistance to a vast range of severe environments.

• Master of Acids: Outstanding resistance to concentrated Hydrochloric, Sulfuric, and Phosphoric acids.

• Chloride Immunity: Virtually immune to pitting and crevice corrosion in high-chloride environments.

• Oxidization Resistance: Excellent performance in oxidizing atmospheres up to 1040°C.

• Structural Integrity: High resistance to stress-corrosion cracking (SCC) even in sour gas applications.

Engineered for high-pressure, hazardous chemical service.

• The Forging Edge: Forging refines the metal's grain structure, eliminating internal defects and ensuring 100% pressure containment.

• High Pressure: Ideal for Class 600, 1500, and 2500 systems.

• Safety: The preferred choice for "lethal service" where material failure is not an option.

The versatile choice for standard industrial chemical flow.

• Optimized Flow: The casting process allows for a smooth internal Y-pattern, reducing turbulence and pressure drop ($Delta P$).

• Uniform Protection: Our CW12MW cast grade matches the corrosion resistance of the forged material, offering a cost-effective solution for larger pipelines.

Falcon ensures all materials comply with global standards for traceability and performance:

Falcon’s C276 strainers are the standard for the most difficult industrial processes:

• Petrochemical: Handling sour gas and high-temperature organic acids.

• Waste Management: Filtration of hazardous chemical effluents.

• Pulp & Paper: Bleaching sections involving chlorine dioxide.

• Pollution Control: Flue gas desulfurization (FGD) systems.

• Pharmaceuticals: Synthesis of highly reactive chemical compounds.

• Design Code: ASME B16.34 (Valves, Flanged, Threaded, and Welding End).

• Pressure Ratings: ANSI/ASME Class 150 through Class 2500.

• Testing: 100% Hydrostatic and Pneumatic testing per API 598.

• End Connections: Flanged (RF/RTJ), Socket Weld (SW), and Threaded (NPT).

Falcon Quality Assurance: Every Hastelloy C276 Y-Strainer is supplied with a full EN 10204 3.1 Material Test Report (MTR), guaranteeing the chemical composition and mechanical properties of your super-alloy component.

Falcon specializes in Hastelloy C276 Y-Strainers, the ultimate solution for extreme environments where standard alloys fail. C276 is a Nickel-Molybdenum-Chromium super-alloy providing unmatched resistance to pitting, stress-corrosion cracking, and oxidizing atmospheres up to 1040°C.

We offer two high-performance manufacturing paths: Forged (ASTM B564 N10276) for high-pressure Class 1500/2500 "lethal service" and Cast (ASTM A494 CW12MW) for optimized flow in Class 150/300/600 systems. These strainers are essential for flue gas desulfurization, sour gas processing, and aggressive acid filtration.

• Design: ASME B16.34

• Testing: API 598 (100% Hydro/Pneumatic)

• Connections: Flanged (RF/RTJ), SW, and NPT

• Certification: EN 10204 3.1 MTR

Falcon’s C276 strainers feature streamlined Y-pattern bodies to minimize pressure drop (Delta P) while ensuring maximum structural integrity.

At Falcon, we provide specialized filtration solutions for the most demanding chemical and offshore environments. Our Inconel 825 Y-Strainers are specifically designed to excel in applications involving sulfuric and phosphoric acids, where standard alloys face rapid degradation.

Inconel 825 is a Nickel-Iron-Chromium alloy with added Molybdenum, Copper, and Titanium. This unique "balanced" chemistry provides:

• Sulfuric Acid Protection: The inclusion of Copper makes 825 exceptionally resistant to sulfuric acid across varying concentrations and temperatures.

• Chloride Immunity: High nickel content ensures total resistance to Chloride-Ion Stress Corrosion Cracking (SCC).

• Oxidizing & Reducing Resistance: Unlike many alloys, 825 performs reliably in both oxidizing acids (Nitric) and reducing acids (Phosphoric).

• Weld Stability: Titanium stabilization prevents "sensitization, " ensuring the strainer remains corrosion-resistant even after high-temperature welding.

Engineered for high-pressure, mission-critical systems.

• Structural Integrity: The forging process provides a refined grain structure, eliminating internal voids and maximizing fatigue resistance.

• High-Pressure Performance: Best for Class 600, 800, and 1500 systems in oil and gas recovery or chemical reactors.

The industry standard for large-scale flow and moderate pressure.

• Optimized Flow Geometry: The cast Y-pattern minimizes internal turbulence, resulting in a lower pressure drop ($Delta P$) during operation.

• Economic Value: Offers the same superior chemical resistance as the forged version, providing a cost-effective solution for larger bore sizes (2" to 24").

Falcon ensures full traceability and compliance with these global standards:

Falcon’s Inconel 825 strainers are essential in:

• Chemical Processing: Equipment for acid production, pickling tanks, and agitators.

• Oil & Gas: Protecting wellhead components and pipelines in "sour" ($H_2S$) gas environments.

• Pollution Control: Scrubber systems designed for sulfur-containing flue gases.

• Nuclear Fuel Reprocessing: Handling radioactive waste and fuel dissolver systems.

• Marine Engineering: Propeller shafts and seawater piping systems.

• Design Code: ASME B16.34 (Standard for Pressure-Containing Components).

• Pressure Ratings: ANSI Class 150 through Class 1500.

• Testing: 100% shell and seat testing per API 598.

• End Connections: Flanged (RF/RTJ), Socket Weld (SW), and NPT Threaded.

Falcon Quality Assurance: Every Inconel 825 Y-Strainer is supplied with a full EN 10204 3.1 Material Test Report (MTR). We ensure that our internal screens (perforated or mesh) are also manufactured from Inconel 825 to prevent any galvanic corrosion within the unit.

Falcon specializes in Inconel 825 Y-Strainers, providing a balanced solution for environments where both oxidizing and reducing acids are present. This Nickel-Iron-Chromium alloy is specifically engineered for superior resistance to Sulfuric and Phosphoric acids, making it a "specialist" for chemical processing and oil recovery.

We offer high-integrity Forged (ASTM B564 N08825) bodies for high-pressure Class 600–1500 systems and Cast (ASTM A494 CU5MCuC) units for optimized flow in Class 150/300. With high nickel content, these strainers are immune to chloride-ion stress corrosion cracking and pitting.

To maintain the technical integrity of the Falcon brand, here is the original, comprehensive content for Super Duplex SS2507 Y-Strainers, created specifically for your website.

At Falcon, we deliver engineering excellence for the most corrosive offshore and industrial applications. Our Super Duplex SS2507 Y-Strainers are designed for high-pressure systems where traditional stainless steels fail due to pitting, erosion, or stress corrosion cracking.

SS2507 is a high-alloy Duplex stainless steel with 25% Chromium, 4% Molybdenum, and 7% Nickel. This "Super" chemistry provides:

• Extreme Pitting Resistance: With a PREN (Pitting Resistance Equivalent Number) above 40, it is exceptionally resistant to chloride-ion pitting in warm seawater.

• Dual-Phase Strength: The 50/50 austenite-ferrite microstructure provides double the yield strength of 316L stainless steel, allowing for more robust and high-pressure-rated strainer designs.

• Erosion-Corrosion Resistance: Superior hardness makes it the ideal choice for high-velocity flow containing sand or abrasive particulates.

• Immunity to SCC: Highly resistant to chloride stress corrosion cracking (SCC), even in high-temperature brine environments.

The premium choice for high-pressure offshore instrumentation and manifold systems.

• Refined Grain Structure: Forging ensures a dense, uniform structure required for Class 1500 and 2500 pressure ratings.

• Precision Integrity: Ideal for compact Y-strainer designs used in chemical injection and subsea hydraulic lines.

The industrial standard for large-scale desalination and seawater cooling systems.

• Grade 5A (CE3MN): The primary cast grade utilized by Falcon for large-diameter Y-strainer bodies.

• Flow Optimization: Our cast Y-patterns are precision-engineered to handle high-velocity seawater with minimal pressure drop ($Delta P$).

Falcon ensures every Super Duplex unit is fully traceable and complies with these global designations:

Falcon’s Super Duplex strainers are indispensable in:

• Desalination Plants: Handling high-pressure brine and intake systems.

• Offshore Oil & Gas: Subsea equipment, firewater systems, and cooling water lines on platforms.

• Reverse Osmosis (RO): Critical high-pressure filtration stages in water treatment.

• Chemical Tankers: Handling aggressive chemical cargoes and seawater ballast.

• Mining: Protecting pumps in acidic and abrasive slurry pipelines.

• Design Code: ASME B16.34 (Valves and Pressure Components).

• Pressure Ratings: ANSI Class 150 through Class 2500.

• Testing: 100% shell and seat pressure testing per API 598.

• End Connections: Flanged (RF/RTJ), Hub-ends, and Buttweld (BW).

Falcon Quality Assurance: Every Super Duplex SS2507 Y-Strainer includes a full EN 10204 3.1 Material Test Report (MTR). We ensure that our internal screens—whether perforated or mesh—are also manufactured from S32750 to prevent any galvanic imbalance within the unit.

Falcon specializes in Super Duplex SS2507 Y-Strainers, the ultimate high-strength solution for chloride-rich marine environments. Offering twice the yield strength of standard stainless steels, these strainers are engineered for extreme durability. With a PREN > 40, SS2507 provides exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking in warm seawater and high-pressure brine.

At Falcon, we bridge the gap between extreme engineering and fluid control. Our specialization in Titanium Grade 2 Y-Strainers ensures that your systems remain protected even in the most corrosive and high-stress environments on the planet.

While standard stainless steel fails in the face of chlorides and seawater, our Grade 2 Titanium thrives. It offers an unsurpassed strength-to-weight ratio and "self-healing" oxide film properties.

• Exceptional Corrosion Resistance: Immune to corrosion by wet chlorine, sea water, and brine solutions.

• High Strength, Low Weight: Roughly 45% lighter than steel but just as strong, reducing structural load.

• Thermal Stability: Maintains integrity across a wide range of temperature fluctuations.

We manufacture our strainers to meet rigorous international standards, ensuring seamless integration into your existing pipelines.

Our Y-strainers aren't just about the material; they’re about the Falcon Engineering behind them:

• Streamlined Flow: Compact Y-pattern design minimizes pressure drop ($Delta P$) across the screen.

• Ease of Maintenance: Features a bolted cover with a blow-off plug for quick cleaning without removing the unit from the line.

• Precision Gaskets: Equipped with compatible high-grade seals to prevent galvanic corrosion at the joints.

Falcon’s Titanium Y-strainers are the preferred choice for:

• Desalination Plants: Handling high-salinity intake.

• Chemical Processing: Protecting pumps from aggressive acids and chlorides.

• Marine & Offshore: Built to withstand the harshest maritime conditions.

• Power Generation: Reliable performance in cooling water systems.

Falcon Quality Assurance: Every Titanium Y-Strainer undergoes 100% hydrostatic and pneumatic testing. We provide full Material Traceability Reports (MTRs) to ensure you are getting genuine, high-purity Grade 2 Titanium.

When the application demands uncompromising structural integrity, Falcon’s Forged Titanium Grade 2 Y-Strainers stand as the ultimate solution. While casting is suitable for general use, our forging process reconfigures the metal's internal structure, making these strainers the "gold standard" for high-pressure and high-safety environments.

At Falcon, our forging process involves heating a solid Titanium Grade 2 billet and shaping it using localized compressive forces. This creates a directional grain flow that follows the geometry of the strainer body.

• Mechanical Integrity: Forging eliminates internal voids, gas pockets, and cooling cracks often found in cast products.

• High Pressure Resilience: Forged bodies are naturally denser, allowing them to handle significantly higher pressure ratings (ANSI/ASME Class 1500 and 2500) with a thinner wall profile than cast alternatives.

• Precision Machining: The uniform grain structure allows for tighter tolerances in the screen seat and gasket surfaces, ensuring a bubble-tight seal.

In critical industries, downtime isn't just expensive—it’s unacceptable. If a sudden failure or urgent project expansion requires Forged Titanium Gr 2 Strainers.

At Falcon, we engineer filtration solutions for the most punishing industrial environments on Earth. Our Inconel 625 Y-Strainers represent the pinnacle of nickel-alloy technology, providing a rare combination of high fatigue strength, exceptional fabricability, and superior corrosion resistance from cryogenic temperatures up to 982°C (1800°F).

Inconel 625 is a Nickel-Chromium-Molybdenum alloy with a specific addition of Niobium. This chemistry provides:

• Ultimate Pitting Resistance: An exceptionally high Pitting Resistance Equivalent Number (PREN) makes it nearly immune to chloride-ion pitting and crevice corrosion.

• Extreme Temperature Range: Performs reliably in heat exchangers and exhaust systems where other alloys lose structural integrity or become brittle.

• Superior Fatigue Strength: High resistance to mechanical and thermal-gradient fatigue, making it ideal for systems with fluctuating temperatures.

• Oxidation Resistance: Excellent protection against scaling and oxidation even in the most severe high-heat environments.

The gold standard for high-pressure aerospace, naval, and offshore applications.

• Material Density: The forging process ensures a flawless internal structure, critical for Class 900, 1500, and 2500 systems.

• Cryogenic Toughness: Exceptional impact strength and ductility, even in sub-zero environments.

Optimized for high-volume flow in aggressive chemical environments.

• Grade CW6MC: This specific cast designation is what Falcon utilizes for larger-diameter Y-strainers.

• Precision Geometry: Allows for engineered Y-patterns that maintain high flow rates while protecting downstream equipment from particulates.

Falcon ensures every unit is fully traceable and complies with these global designations:

Falcon’s Inconel 625 strainers are utilized where system failure is not an option:

• Marine & Naval: Specialized seawater piping, submarine components, and high-heat exhaust systems for naval vessels.

• Aerospace & Defense: High-performance fuel and hydraulic line filtration.

• Chemical Processing: Handling highly contaminated oxidizing mineral acids, chlorides, and mixed acids.

• Nuclear Industry: Reactor core and control rod components.

• Oil & Gas Flare Stacks: Protecting sensors and nozzles in high-temperature offshore flare systems.

• Design Code: ASME B16.34 (Valves and Pressure Components).

• Pressure Ratings: ANSI Class 150 through Class 2500.

• Testing: 100% shell and seat pressure testing per API 598.

• End Connections: Flanged (RF/RTJ), Socket Weld (SW), and Buttweld (BW).

Falcon Quality Assurance: Every Inconel 625 Y-Strainer includes a full EN 10204 3.1 Material Test Report (MTR). We ensure that our internal screens—whether perforated or mesh—are manufactured from the same 625 alloy to maintain total chemical and thermal compatibility.

Falcon specializes in Inconel 625 Y-Strainers, the premier choice for high-strength applications from cryogenic temperatures to 982°C. This Nickel-Chromium-Molybdenum-Niobium alloy offers ultimate resistance to chloride pitting, fatigue, and oxidation.

We provide Forged (ASTM B564 N06625) bodies for high-pressure Class 1500–2500 aerospace and naval systems, and Cast (ASTM A494 CW6MC) units for extreme chemical processing. These strainers are essential for seawater piping, flare stacks, and nuclear components where thermal stability is critical.

At Falcon, we provide elite filtration solutions for the world’s most aggressive chemical and marine environments. Our Monel 400 Y-Strainers are the industry standard for resisting high-velocity seawater and concentrated acids where standard stainless steel fails within hours.

Monel 400 is a high-performance Nickel-Copper alloy known for its "toughness." It doesn't just resist corrosion; it maintains structural integrity under extreme mechanical stress and temperature fluctuations.

• Acid Immunity: Exceptional resistance to Hydrofluoric Acid (HF) and Sulfuric Acid in reducing conditions.

• Marine Performance: Superior resistance to pitting and stress-corrosion cracking in rapidly flowing brackish or sea water.

• Temperature Range: Remains ductile and strong from cryogenic temperatures up to 480°C (900°F).

• Bio-Fouling Resistance: Naturally inhibits the growth of marine organisms (barnacles/algae), keeping strainer screens cleaner for longer.

Specifically engineered for high-pressure, high-integrity piping systems.

• Superior Strength: The forging process eliminates internal porosity, providing a 20-30% increase in yield strength over cast bodies.

• Zero-Leak Guarantee: Essential for lethal gas or high-pressure acid lines (Class 800 to 2500).

• Refined Grain: Best for systems subject to high-frequency vibration or thermal shock.

The preferred choice for larger pipelines and standard industrial applications.

• Economical for Large Bore: Available in sizes from 2" up to 24" with complex Y-geometries.

• Uniform Protection: Cast Monel 400 (M35-1) offers the same chemical resistance as forged material but at a lower cost for low-to-medium pressure systems.

To ensure full compatibility with your project specs, Falcon utilizes the following standard designations:

Falcon follows the most stringent global engineering codes to ensure your Monel strainers are safe and reliable:

• Design Standard: ASME B16.34 (Valves and Pressure Components).

• Pressure Ratings: Class 150, 300, 600, 800, 1500, and 2500.

• End Connections: Flanged (RF/RTJ per ASME B16.5), Socket Weld (ASME B16.11), or Threaded (NPT).

• Testing: 100% Hydrostatic and Pneumatic testing per API 598.

• Dimensions: Face-to-Face dimensions per ASME B16.10.

• HF Alkylation Units: Protecting critical valves and pumps in oil refinery alkylation sections.

• Marine & Naval: Seawater intake filters, propeller shaft cooling, and fire-main systems.

• Salt Production: Handling concentrated brines and salt crystallizers.

• Chemical Processing: Handling chlorinated hydrocarbons and non-oxidizing mineral acids.

• Power Gen: High-pressure boiler feedwater heaters and steam generators.

Monel 400 is a specialty alloy with traditionally long lead times. At Falcon, we mitigate this risk:

• In-Stock Billets: We maintain raw Monel 400 stock for immediate forging.

• Rapid Dispatch: Forged Class 800 units can often be fast-tracked for 48-hour dispatch in emergency shutdown scenarios.

• Full Traceability: Every strainer is shipped with an EN 10204 3.1 MTR (Material Test Report).

Falcon Monel 400 Y-Strainers provide elite protection in hydrofluoric acid and high-velocity seawater. Available in Forged (ASTM B564) and Cast (A494 M35-1) grades, our strainers offer zero-porosity and extreme durability for Class 150-2500 systems. Reliable, acid-proof, and built to last.

Falcon Valves & Flanges Pvt Ltd is a prominent manufacturer specializing in industrial filtration solutions. Our Basket Strainers (also known as Pot Strainers) are engineered for high-capacity filtration and the protection of downstream equipment like pumps, valves, and meters from debris and foreign particles.

Below is a brief description of their offerings categorized by your specific requirements:

Falcon manufactures strainers that cater to both small-scale and large-scale industrial pipelines:

• Standard Sizes: From 15 NB (1/2") to 1500 NB (60").

• Filter Element: Micron meshes and screens available from 10 microns to 6000 microns.

• Configurations: Available in Simplex (single basket) and Duplex (twin basket with a changeover valve for continuous operation).

Falcon offers a diverse selection of Materials of Construction (MOC) to suit various corrosive and high-temperature environments:

• Carbon Steel (CS): ASTM A216 WCB (Cast), ASTM A105 (Forged), or fabricated carbon steel for general industrial and oil/gas services.

• Stainless Steel (SS): Grades including SS304, SS304L, SS316, and SS316L. These are ideal for food, pharmaceutical, and chemical applications where corrosion resistance is vital.

• Alloy Steel: High-temperature and high-pressure alloy grades for power generation and heavy industrial use.

• Nickel & Exotic Alloys: For highly aggressive chemical environments, they provide:

  • Monel & Inconel

  • Hastelloy (C276/C22)

  • Duplex and Super Duplex Stainless Steel

  • Alloy 20

  • Titanium

• Pressure Ratings: Commonly available in 150#, 300#, 600#, and 900# classes (up to 50 kg/cm² or higher on request).

• Temperature Range: Designed to withstand temperatures up to 300°C depending on the material and seal selection.

• End Connections: Options include Flanged (ANSI, DIN, JIS, BS standards), Butt-Weld, and Socket-Weld.

• Closure Types: Bolted covers for high-pressure safety or Quick-Opening covers for frequent cleaning and reduced downtime.

• High Flow Area: Designed with a large filtration area to ensure low pressure drops ($ΔP$).

• Durability: Robust construction with perforated baskets reinforced by wire mesh for mechanical strength.

• Ease of Maintenance: Baskets are easily removable with lifting handles for quick disposal of trapped debris.

To help you compare Falcon's basket strainers with industry standards, it is important to look at how they align with the global benchmarks for design, pressure, and testing.

Falcon typically manufactures its strainers to comply with ASME B16.34, which dictates the wall thickness and pressure-temperature ratings for valve bodies.

While strainers are not "valves" in the traditional sense, high-quality manufacturers like Falcon often use API 598 (Valve Inspection and Testing) as a reference for:

• Shell Test: Ensuring the body (CS, SS, or Alloy) can withstand 1.5 times the maximum working pressure without leaking.

Falcon uses ASTM (American Society for Testing and Materials) standards to ensure the chemical and mechanical properties of the metals used:

A critical comparison point is the $C_v$ value (Flow Coefficient). Falcon designs their baskets to have a high "Open Area Ratio, " usually 6:1 (meaning the total area of the holes in the basket is six times the area of the inlet pipe), which exceeds basic commercial standards and reduces energy loss in your pumps.

At Falcon, we provide high-performance filtration solutions that bridge the gap between standard stainless steels and expensive nickel alloys. Our Duplex 2205 Y-Strainers are the industry workhorse, offering a significant upgrade in both mechanical strength and corrosion resistance for demanding process environments.

Duplex 2205 is a nitrogen-enhanced stainless steel with a dual-phase microstructure consisting of approximately 50% Austenite and 50% Ferrite. This balance provides:

• Double the Yield Strength: Duplex 2205 is roughly twice as strong as standard Type 316 stainless steel, allowing for more robust strainer designs and higher pressure capabilities.

• SCC Immunity: Unlike standard 300-series stainless steels, 2205 is highly resistant to Chloride Stress Corrosion Cracking (SCC).

• Superior Pitting Resistance: With a higher Chromium and Molybdenum content, it significantly outperforms 316L in preventing localized pitting and crevice corrosion.

• Cost-Effective Performance: Provides many of the benefits of high-nickel alloys at a fraction of the cost, making it ideal for large-scale industrial projects.

The preferred choice for high-pressure instrumentation and critical chemical lines.

• Grain Refinement: Forging creates a dense, uniform material structure that excels in Class 600 and 800 pressure ratings.

• Precision Reliability: Best for small-bore piping where structural integrity and safety are paramount.

The global standard for process water and general chemical service.

• Grade 4A (CD3MN): This is the specific cast designation utilized by Falcon for our Duplex 2205 Y-strainer bodies.

• Optimized Flow: Our cast designs feature smooth internal transitions to minimize pressure drop ($Delta P$) and prevent sediment buildup.

Falcon ensures every unit is fully traceable and complies with these global designations:

Falcon’s Duplex 2205 strainers are highly effective in:

• Oil & Gas Production: Gathering systems, produced water handling, and injection lines.

• Chemical Processing: Equipment for the production and transport of organic acids and chloride-contaminated fluids.

• Marine & Coastal Infrastructure: Seawater cooling systems and firewater loops on ships and platforms.

• Pulp & Paper Industry: Digesters, bleach washers, and liquor handling systems.

• Water Desalination: Pre-filtration stages and brackish water treatment.

• Design Code: ASME B16.34 (Standard for Pressure-Containing Components).

• Pressure Ratings: ANSI Class 150 through Class 900.

• Testing: 100% shell and seat pressure testing per API 598.

• End Connections: Flanged (RF), Socket Weld (SW), and NPT Threaded.

Falcon Quality Assurance: Every Duplex 2205 Y-Strainer includes a full EN 10204 3.1 Material Test Report (MTR). To ensure total system compatibility, Falcon manufactures all internal screens from the same S32205 grade, preventing galvanic corrosion.

Falcon Duplex 2205 Y-Strainers provide a high-strength, cost-effective upgrade to standard 316L stainless steel. Engineered with a dual-phase microstructure, these strainers offer double the yield strength and exceptional resistance to Chloride Stress Corrosion Cracking (SCC). Available in Forged (ASTM A182 F51) and Cast (ASTM A890 4A), they are the industry workhorse for oil and gas gathering, chemical processing, and brackish water treatment where pitting and high pressures are a constant challenge.

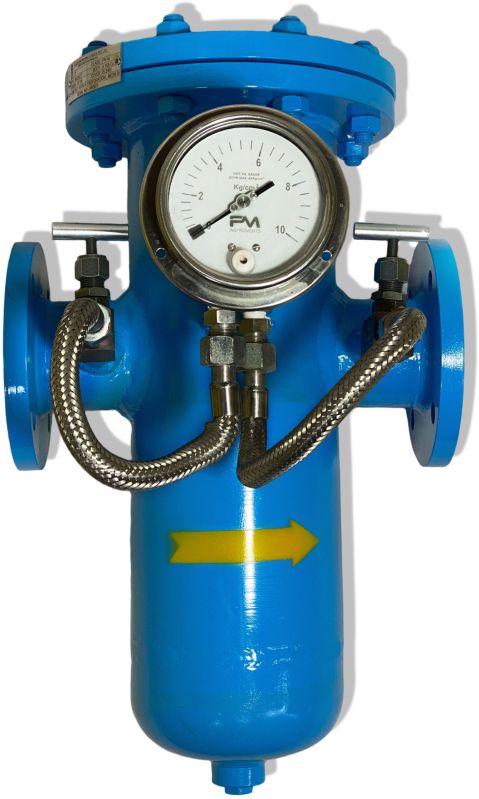

Falcon Monel Basket Strainers: Industrial Overview

Falcon Monel basket strainers are specialized filtration components engineered for highly corrosive environments. Monel (typically Alloy 400 or K-500) is a nickel-copper alloy that provides exceptional resistance to seawater, hydrofluoric acid, sulfuric acid, and alkalis, making these strainers essential for offshore drilling and chemical processing.

1. Design & Engineering

The design process focuses on fluid dynamics and pressure vessel integrity.

• Standards: Engineered to international standards like ASME B16.34 (valves) and ASME Section VIII (pressure vessels).

• Flow Optimization: Internal geometry is designed to minimize pressure drop ($Delta P$) while maximizing the filtration surface area of the basket.

• Customization: Designs include "Dished End" covers for high-pressure stability and various nozzle configurations (Flanged, Threaded, or Socket Weld) to meet specific piping requirements.

2. Manufacturing & Fabrication

Fabrication involves specialized handling of Monel to prevent contamination and ensure structural strength.

• Welding: Utilizing TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding with specific Monel filler wires. All welders are typically certified to ASME Section IX.

• Body Construction: Can be cast or fabricated from Monel plates. Fabricated units allow for custom heights and "off-set" nozzle designs.

• The Basket: The "heart" of the strainer is fabricated from perforated Monel sheet, often lined with a fine Monel mesh for high-precision filtration.

3. Quality Assurance (QA)

Quality control is rigorous to meet the safety demands of the Oil & Gas sector.

• Material Traceability: Every component comes with MTCs (Material Test Certificates) per EN 10204 3.1, ensuring the chemical composition is true Monel.

• Dimensional Check: Verifying flange thickness, face-to-face dimensions, and nozzle alignments against the approved GA (General Arrangement) drawing.

4. Testing Protocols

Before shipment, the strainer undergoes a series of Non-Destructive Testing (NDT) and pressure tests:

• Hydrostatic Testing: The body is tested at 1.5 times the design pressure to ensure there are no leaks or structural deformities.

• Pneumatic Testing: Often performed at lower pressures to check for minute air leaks in seals and gaskets.

• Dye Penetrant Test (DPT): Applied to weld joints to detect surface cracks that aren't visible to the naked eye.

• Positive Material Identification (PMI): A final X-ray fluorescence check to confirm the alloy grade is correct before the nameplate is attached.

Technical Datasheet: Falcon High-Performance Basket Strainers

This datasheet covers the technical specifications for Falcon’s premium alloy basket strainers, including Monel, Titanium, Hastelloy, Duplex, and Inconel series. These units are designed for critical service applications in the Oil & Gas, Petrochemical, and Marine industries.

1. General Specifications

Falcon Monel Quality: A Short Overview

Falcon Monel basket strainers are defined by their uncompromising material integrity and precision engineering, specifically tailored for the most aggressive corrosive environments.

Key Quality Pillars:

• Verified Material Excellence: We use only premium-grade Monel (Alloy 400 or K-500). Every unit is backed by Positive Material Identification (PMI) testing and EN 10204 3.1 certification, ensuring 100% resistance against seawater, brackish water, and hydrofluoric acids.

Falcon Hastelloy C-276 Series: The Ultimate Barrier Against Extreme Corrosion

When standard alloys reach their limit, the Falcon Hastelloy C-276 series takes over. Engineered for environments where pitting, stress-corrosion cracking, and aggressive oxidizing atmospheres are constant threats, our strainers provide an ironclad solution for critical process protection.

1. Advanced Design & Fluid Dynamics

Falcon’s C-276 strainers are designed for more than just filtration; they are optimized for system longevity.

• Corrosion-Velocity Balancing: Our internal geometry is engineered to prevent high-velocity "hot spots" that can accelerate erosion-corrosion, even in the most aggressive media.

• Contoured Flow Path: Utilizing a high-profile body design, we maximize the settling zone below the basket, ensuring that heavy particulates don't interfere with the primary flow path.

• Engineered Seal Integrity: Falcon employs a proprietary Metal-to-Metal Machined Seat for the basket, ensuring that no bypass occurs even under high differential pressures ($Delta P$).

2. Precision Manufacturing & Metallurgy

Fabricating Hastelloy C-276 requires a level of precision that few manufacturers can match. Falcon’s dedicated exotic-alloy facility ensures:

• Contamination-Free Environment: We maintain strictly segregated production zones. Our C-276 units never come into contact with carbon steel tools, preventing iron-transfer which can lead to localized "under-deposit" corrosion.

• Purge-Protected Welding: Using specialized GTAW (Gas Tungsten Arc Welding) techniques, we utilize 99.99% pure Argon backing gas. This ensures that the weld root remains as corrosion-resistant as the base plate, preventing "weld decay."

• Stress-Relieved Fabrication: Our manufacturing process includes controlled thermal management to prevent the formation of deleterious phases in the grain boundaries of the C-276 alloy.

3. Uncompromising Quality Control

At Falcon, quality is a measurable metric, not a slogan.

• Comprehensive Traceability: Every bolt, flange, and plate is linked to a unique heat number. We provide full MTC (Material Test Certificates) as per EN 10204 3.1.

• Surface Passivation: After fabrication, all Falcon Hastelloy strainers undergo a proprietary pickling and passivation process to restore the protective chromium-oxide layer, ensuring peak performance from day one.

• Non-Destructive Validation: We offer optional Radiographic (RT) and Ultrasonic (UT) testing for high-pressure classes (ASME 600# and above) to ensure structural perfection.

4. Specialized Testing Protocols

• Helium Leak Detection: For hazardous gas applications, we offer Helium vacuum testing to ensure the cover seals are 100% tight.

• Hydraulic Burst Verification: Bodies are tested to $1.5 times$ the rated pressure.

• Positive Material Identification (PMI): Every finished strainer undergoes a final PMI scan to verify that the Molybdenum and Nickel content meets the strict C-276 specification.

5. High-Stakes Applications

Falcon Hastelloy C-276 strainers are the standard choice for:

• Sour Gas Service: Fully compliant with NACE MR0175/ISO 15156 for H2S-rich environments.

• Aggressive Acids: Filtering hydrochloric, sulfuric, and phosphoric acids in chemical synthesis.

• Bleach & Pulp Processing: Resisting the high chloride concentrations found in paper and textile mills.

• Waste Treatment: Handling volatile organic compounds (VOCs) and corrosive industrial waste.

6. Falcon "Rapid-Stream" Delivery

We recognize that specialty alloys are often needed for emergency repairs or critical shutdowns.

• Inventory Depth: Falcon maintains one of the region's largest stocks of Hastelloy C-276 raw material, reducing lead times from months to weeks.

• 24/7 Production Cycles: For "Breakdown" orders, our facility operates on around-the-clock shifts to deliver your custom-engineered strainer in record time.
• Strategic Export Hub: Located near major global shipping lanes

When the process environment is too aggressive for standard alloys, Falcon Titanium Grade 2 Basket Strainers offer the definitive solution. Engineered for high-stress applications in the chemical, mining, and offshore sectors, these strainers provide an unmatched strength-to-weight ratio and exceptional longevity.

Titanium Grade 2 is known as the "workhorse" of the commercially pure titanium family. It provides a unique protective oxide film that is highly stable, tenacious, and instantly self-reforming if damaged, ensuring your filtration system remains intact even in the presence of:

• Oxidizing Chlorides

• Seawater and Brine

• Nitric and Chromic Acids

• Hypochlorites

• Material: Commercially Pure Titanium Grade 2 (UNS R50400).

• Body Design: Robust cast or fabricated construction tailored for high-flow efficiency.

• Screen/Basket: Precision-perforated titanium mesh, available in custom micron ratings.

• End Connections: Flanged (ANSI/ASME), Threaded, or Socket Weld.

• Pressure Ratings: Available in Class 150, 300, and 600.

Falcon strainers are the gold standard for protecting downstream equipment (pumps, valves, and meters) in:

• Chemical Processing: Handling highly corrosive reagents and acids.

• Oil & Gas: Ideal for offshore platforms, desalination plants, and produced water filtration.

• Mining & Hydrometallurgy: Excels in acidic leaching environments and mineral processing.

• Power Generation: Used in seawater cooling systems to prevent bio-fouling and erosion.

• Zero Corrosion Allowance: Unlike carbon steel, titanium doesn't require extra wall thickness to account for rust, leading to a lighter, more efficient design.

• Easy Maintenance: Features a quick-opening cover design to minimize downtime during basket cleaning.

• Extreme Durability: High resistance to cavitation, erosion, and stress corrosion cracking.

• Customizable: We offer bespoke configurations, including differential pressure gauges and specialized coating options.

Falcon Reliability: Every strainer is hydro-statically tested and inspected to meet international quality standards, ensuring safety and performance from day one.

It’s often the best way to justify the investment to a procurement team—showing them exactly why Titanium wins in the long run.

Here is a comparison table and a deeper dive into the "Titanium Advantage" to round out your product page.

While Stainless 316L is a standard in many industries, it often fails in high-chloride or high-heat acidic environments where Titanium Grade 2 thrives.

The secret to Falcon’s Titanium strainers is the Titanium Dioxide film. If the surface of the basket is scratched or abraded by debris during the filtration process, the metal reacts instantly with any trace of moisture or oxygen to rebuild its protective layer. This makes it virtually immune to the erosion-corrosion that typically destroys steel baskets in high-velocity mining or oil and gas applications

Precision Engineering for Flow Efficiency

Our basket geometry is optimized to:

1. Reduce Pressure Drop: Larger screen surface area means less energy required for pumps.

2. High Dirt-Holding Capacity: Longer intervals between cleaning cycles.

3. Structural Integrity: Heavy-duty basket handles and reinforced mesh prevent "blow-outs" under high pressures

Here is a professional, high-impact description tailored for your website. It emphasizes both the technical superiority of the material and your company’s long-standing expertise.

High-Performance Filtration for Harsh Environments

With over 15 years of specialized experience, Falcon provides industry-leading Super Duplex Basket Strainers designed for the most demanding industrial applications. Engineered for durability and precision, our strainers offer superior corrosion resistance and mechanical strength compared to standard stainless steel.

Super Duplex (typically Grade 2507) is the gold standard for high-chloride and corrosive environments. Our basket strainers are the preferred choice for industries where equipment failure is not an option.

• Extreme Corrosion Resistance: Exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking—ideal for seawater, chemical processing, and desalination.





• Enhanced Strength: Higher yield strength than standard Duplex or Austenitic steels, allowing for more robust designs and higher pressure ratings.





• Optimal Flow Efficiency: Designed with a high open-area ratio to ensure minimal pressure drop while maintaining maximum debris collection.

• Ease of Maintenance: Featuring quick-release covers and easy-to-clean baskets to reduce downtime and operational costs.

The Falcon Legacy: For more than 15 years, we have combined precision engineering with premium materials to deliver filtration solutions that stand the test of time.

Falcon’s Super Duplex Basket Strainers are engineered for environments where standard materials would fail. Our 15+ years of field data show our strainers excel in:

• Desalination Plants: Handling high-pressure brine and seawater with zero degradation.

• Offshore Oil & Gas: Ideal for FPSOs and platforms where space is tight and reliability is critical.

• Chemical Processing: Resisting highly acidic or alkaline media that would typically cause pitting in 316L steel.

• Marine Engineering: Serving as the primary filtration for ballast water and cooling systems in naval vessels.

• Mining & Hydrometallurgy: Managing abrasive and corrosive slurries in harsh extraction environments.

We manufacture all Super Duplex components to meet or exceed international regulatory requirements, ensuring safety and compatibility with your existing piping systems.

• Design Standards: Manufactured in accordance with ASME B16.34 (Valves) and ASME Section VIII Div 1 (Pressure Vessels).

• Face-to-Face Dimensions: Compliant with ASME B16.10.

• Flange Specifications: Available in ASME B16.5 (up to 24") and B16.47 for larger diameters.

• Testing Standards: Every unit undergoes rigorous hydrostatic and leak testing per API 598 or ISO 5208.

• Material Certification: Full traceability provided with MTC (Material Test Certificates) to EN 10204 3.1 or 3.2.

• NACE Compliance: Available to meet NACE MR0175/ISO 15156 for sour gas environments.

Since seawater is the primary application for these units, it’s important to highlight why Super Duplex is the specific solution for salt-induced corrosion.

Specialized Seawater Filtration

Key Benefits for Seawater Service:

Superior PREN (Pitting Resistance Equivalent Number): With a PREN value > 40, our strainers provide maximum protection against localized corrosion in warm, stagnant, or high-velocity seawater.

Biofouling Resistance

Longevity in Extreme Conditions

Reduced Lifecycle Costs

Falcon Duplex SS 2205 Basket Strainers

Our Duplex Stainless Steel 2205 (UNS S31803/S32205) Basket Strainers are engineered for high-performance filtration in the most demanding industrial environments. By combining the best properties of both austenitic and ferritic steels, these strainers offer a superior alternative to standard 300-series stainless steel, particularly in high-chloride and corrosive settings.

### Manufactured & Design Excellence

• Precision Engineering: Designed in accordance with ASME B16.34 and ASME B16.5 standards to ensure structural integrity under high pressure.

• Robust Construction: Available in cast, forged, or fabricated bodies, with a standard size range from 15 NB to 1000 NB.

• Optimized Flow: Features a high filtration area-to-inlet ratio to minimize pressure drops ($Delta P$) while maximizing debris collection capacity.

• Ease of Maintenance: Equipped with bolted or quick-opening covers for efficient basket cleaning and minimal downtime.

### Tested Quality & Standards

Every Falcon strainer undergoes rigorous quality control to meet international safety and performance benchmarks:

• Pressure Testing: Hydrostatic and pneumatic testing per API 598 ensures zero leakage and shell integrity.

• Material Verification: Positive Material Identification (PMI) testing guarantees the use of genuine Duplex 2205 alloy.

• Surface Finish: Precision-machined connections and high-grade internal polishing to prevent biofouling and ensure smooth flow.

• Certification: Full traceability with EN 10204 3.1 Mill Test Certificates.

### Key Material & Application Properties

Duplex 2205 is the "workhorse" grade of duplex stainless steel, offering:

• Superior Strength: Approximately double the yield strength of SS 316L, allowing for lighter, more durable designs.

• Corrosion Resistance: Exceptional resistance to Pitting and Crevice Corrosion (PREN ≥ 35) and Chloride Stress Corrosion Cracking (SCC).

• Temperature Range: Highly effective from -50°C to 300°C; ideal for thermal cycling environments.

• Durability: High fatigue strength and erosion resistance, extending the service life of downstream pumps and valves.

### Typical Applications

• Oil & Gas: Offshore platforms, subsea pipelines, and sour gas processing.

• Marine & Desalination: Seawater intake, cooling systems, and brine filtration.

• Chemical Processing: Handling of organic acids, chlorides, and caustic solutions.

• Pulp & Paper: Digester systems and bleach plant equipment.

In seawater environments, standard stainless steels (like 316L) often succumb to localized corrosion and stress cracking. Duplex SS 2205 is specifically designed to bridge the gap between common stainless steel and expensive high-nickel alloys, making it the premier choice for seawater strainers.

Key Benefits of Duplex 2205 in Seawater Applications 1. Exceptional Pitting and Crevice Corrosion Resistance

Seawater is rich in chlorides, which attack the passive layer of most metals. Duplex 2205 has a high Pitting Resistance Equivalent Number (PREN), typically more than 35.

• The Advantage: It resists the formation of small pits and deep crevices that typically occur under gaskets or accumulated debris in the strainer basket.

2. Immunity to Stress Corrosion Cracking (SCC)

Standard austenitic steels (300 series) are highly susceptible to SCC in chloride-rich environments, especially as temperatures rise.

• The Advantage: The ferritic-austenitic hybrid microstructure of Duplex 2205 provides near-total immunity to chloride-induced stress cracking, ensuring the strainer body won't fail catastrophically under pressure.

3. Superior Erosion & Abrasion Resistance

Seawater often carries sand, silt, and shells at high velocities.

• The Advantage: Due to its high hardness and yield strength, 2205 resists "washout" and erosion-corrosion better than 316L. This maintains the integrity of the mesh or perforated basket even in turbulent flow conditions

Falcon’s Inconel 825 Basket Strainers are designed for industries where standard stainless steel fails. Combining the superior corrosion resistance of a nickel-iron-chromium alloy with Falcon’s precision engineering, these strainers provide robust protection for pumps, valves, and heat exchangers in the most aggressive chemical and thermal environments.

Our strainers are engineered to meet stringent international standards (ASME B16.34 / Section VIII).

• Optimal Flow Dynamics: Designed for low-pressure drops and high dirt-holding capacity.

• Material Integrity: Inconel 825 offers exceptional resistance to both oxidizing and reducing acids, as well as chloride-induced stress corrosion cracking.

• Ergonomics: Quick-opening covers for ease of maintenance and basket cleaning.

At Falcon, quality is built-in, not added on.

• Advanced CNC Machining: Ensures tight tolerances and perfect seal integrity.

• Specialized Welding: Utilizes TIG/MIG processes specifically calibrated for high-nickel alloys to prevent weld-decay and maintain structural strength.

• Customization: Available in a wide range of mesh sizes, from coarse perforated plate to ultra-fine micron lining.

Every unit undergoes a comprehensive validation protocol before leaving our facility:

• Hydrostatic Testing: Conducted at 1.5x the design pressure.

• Non-Destructive Testing (NDT): Including Radiography, Dye Penetrant (DP), and Positive Material Identification (PMI) to verify alloy purity.

• Pneumatic Testing: For gas-service applications to ensure zero-leakage performance.

Falcon’s Inconel 825 Basket Strainers are defined by high-performance metallurgy and precision geometry. We maintain full control over the production cycle to ensure every unit meets the "Falcon Standard."

We offer a comprehensive selection of configurations to fit diverse piping architectures:

Falcon’s manufacturing process is built on a "Zero-Defect" philosophy. Every Inconel 825 strainer is tracked via a unique heat number for 100% traceability.

• Material Verification: Positive Material Identification (PMI) is performed on every casting and forged component to ensure nickel (38-46%) and chromium (19.5-23.5%) levels meet ASTM B366/B705 standards.

• Welding Excellence: All welding procedures are qualified to ASME Section IX. We utilize specialized heat-input controls to prevent the precipitation of chromium carbides.

• Surface Finish: Standard pickling and passivation; optional electro-polishing for high-purity chemical applications.

Each strainer is subjected to a rigorous battery of tests to validate structural integrity and sealing:

• Shell Test: Hydrostatic pressure test at 1.5 times the maximum working pressure.

• Seat/Seal Test: Pneumatic air test to ensure zero-leakage at the cover gasket and drain plugs.

• Dimensional Accuracy: Full inspection against ASME B16.5 (for flanges) and ASME B16.10 (for face-to-face dimensions).

• Visual Inspection: Conducted per MSS-SP-55 to ensure flawless surface quality.

Falcon provides more than just hardware; we provide application-specific solutions.

Flow Calculation: We provide $C_v$ values and pressure drop curves for every mesh size.

Corrosion Consultation: Expert guidance on Inconel 825 performance

Documentation: Every shipment includes a Certified Material Test Report

The Falcon Alloy 20 series represents a premium solution for liquid filtration in highly corrosive environments. Engineered specifically for applications where standard stainless steel is prone to pitting and stress corrosion, these basket strainers offer a robust mechanical design paired with superior metallurgical stability.

• Body Material: Alloy 20 (CN7M Cast Grade), a columbium-stabilized austenitic silver-gray alloy.

• Pressure Classes: Available in ASME Class 150 and Class 300 ratings.

• Size Range: 1/2" (DN15) through 12" (DN300) as standard.

• End Connections: * Flanged: Raised Face (RF) per ASME B16.5.

  • Threaded: NPT per ASME B1.20.1.

• Filtration Media: Heavy-duty Alloy 20 baskets available in various perforations or fine mesh linings.

The Falcon design prioritizes flow efficiency and structural integrity:

1. High-Capacity Geometry: The internal chamber is designed to provide a large open-area ratio. This ensures a low pressure drop ($Delta P$) and extends the time between cleaning cycles.

2. Seating Integrity: The basket rests on a precision-machined seat to eliminate "bypass, " ensuring 100% of the media passes through the filtration element.

3. Cover Configurations: * Bolted Cover: For high-pressure safety and secure sealing.

   • Quick-Opening: Features specialized knobs or clamps for tool-free maintenance in lower-pressure systems.

4. Blow-Down Port: A NPT drain plug is included at the bottom of the body for easy removal of accumulated solids without removing the basket.

Falcon Alloy 20 strainers are the preferred choice for industries dealing with aggressive chemical profiles:

• Sulfuric Acid Handling: Specifically designed to resist corrosion in sulfuric acid environments, including mixing and pickling lines.

• Chemical Processing: Ideal for phosphoric and nitric acid production.

• Brine & Chlorides: Superior resistance to pitting in high-chloride environments compared to 316 Stainless Steel.

• Food & Pharma: Used in processes requiring high-level sanitization and resistance to acidic cleaning agents.

Every Falcon strainer is manufactured under a strict quality management system to ensure reliability in critical infrastructure:

• Pressure Testing: Each unit undergoes hydrostatic shell and seat testing in accordance with API 598.

• Wall Thickness: Built to ASME B16.34 standards to provide a generous corrosion allowance and long service life.

• Casting Quality: Castings are inspected to ensure uniform grain structure and the absence of porosity, critical for maintaining the chemical resistance of Alloy 20.

• Traceability: Heat numbers are etched into each body for full material traceability.

That is exactly right. The standout feature of Alloy 20 (often called "Sulfuric Acid Steel") is its exceptional performance in sulfuric acid environments. While other metals quickly succumb to thinning and pitting, Falcon Alloy 20 strainers are specifically formulated to handle these harsh conditions.

Sulfuric acid ($H_2SO_4$) is one of the most challenging chemicals to transport and filter. Standard stainless steels often fail due to the acid's highly oxidative nature. Falcon Alloy 20 basket strainers solve this problem through a precise chemical balance.

Alloy 20 was originally developed specifically to resist sulfuric acid. Its unique composition provides a "safety net" across varying concentrations:

• Nickel (32-38%): Prevents chloride-induced stress corrosion cracking.

• Chromium (19-21%): Provides resistance to oxidizing media like nitric acid.

• Copper (2-3%): This is the "secret ingredient" that protects the strainer against sulfuric acid specifically.

• Molybdenum (2-3%): Prevents localized pitting and crevice corrosion.

Falcon Duplex Basket Strainers: Zero-Downtime Filtration

Falcon is a premier manufacturer of high-performance Duplex Basket Strainers, designed specifically for critical systems that cannot be shut down for maintenance. Our duplex strainers feature two separate basket chambers connected by a diverted valve system, allowing one side to be cleaned while the other remains in full operation.

With Falcon’s expertise in advanced alloys, including Duplex Stainless Steel, Titanium, and Zirconium, our strainers provide the ultimate defense for pumps, nozzles, and heat exchangers in the world's most corrosive environments.

Design & Operation Excellence

Falcon Duplex Strainers are engineered for reliability and ease of use.

• Continuous Operation: The integrated changeover valve (plug or butterfly type) redirects flow seamlessly between chambers without interrupting the process.

• Pressure Balance: Designed with an equalization system to ensure smooth handle operation even under high-pressure conditions.

• Ergonomic Maintenance: Tool-free, quick-opening covers allow operators to access and clean the standby basket in minutes.

• Compact Footprint: Engineered to provide maximum filtration surface area while maintaining a space-efficient design for skid-mounted systems.

Unmatched Material Specialization

Falcon’s reputation is built on our ability to fabricate from the most challenging materials. We ensure your strainer is chemically compatible with your specific media:

• Duplex & Super Duplex SS: Offering superior strength and resistance to pitting and stress corrosion cracking—perfect for desalination and offshore use.

• Nickel Alloys (Monel, Inconel, Hastelloy): For high-temperature and high-concentration chemical processing.

• Titanium & Zirconium: Specifically utilized for aggressive mineral acids and bleaching agents where standard stainless steel fails.

• Cupro-Nickel: The industry standard for seawater handling and maritime cooling systems.

• Tantalum: For extreme-service acid applications requiring total corrosion immunity.

Industrial Applications

Falcon Duplex Strainers are the heartbeat of continuous-flow industries:

• Marine & Offshore: Constant filtration of seawater for cooling and fire-fighting systems.

• Oil & Gas Refineries: Protecting high-value catalysts and downstream equipment in continuous fuel processing.

• Chemical Plants: Handling aggressive acids and alkalis where system shutdown is hazardous or costly.

• Power Generation: Ensuring clean water flow to condensers and lubricating oil systems for turbines.

• Water Treatment: Efficient removal of debris in large-scale desalination and reverse osmosis plants.

Quality Assurance & Testing

At Falcon, quality is non-negotiable. Every Duplex Strainer undergoes a rigorous validation process:

• Hydrostatic Testing: Performed at 1.5x design pressure to ensure shell integrity.

• Positive Material Identification (PMI): 100% verification of alloy grades to ensure compliance with project specifications.

• Zero-Leak Changeover Test: Ensuring the diverter valve provides a bubble-tight seal between the active and standby chambers.

• NDE Inspection: Including Radiography (RT) and Dye Penetrant (PT) for all critical weld joints, especially in reactive metals like Titanium.

Technical Specifications

The Falcon Advantage: When you choose Falcon, you are investing in a product backed by decades of experience in exotic metallurgy. We don’t just build strainers; we build long-term reliability for your most critical pipelines.

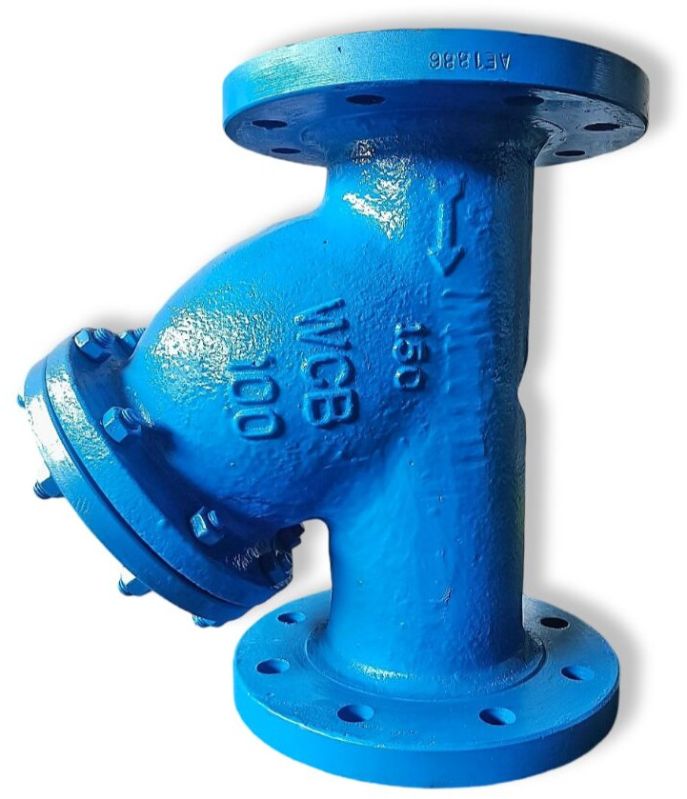

Welcome to the definitive source for high-specification Falcon Y-Type Strainers. With a legacy of engineering precision, Falcon has established itself as a global leader in the design and manufacture of high-performance filtration solutions. We specialize in providing robust, reliable, and precision-engineered strainers that cater to the most demanding industrial environments. Our expertise is not just in the design of the strainer itself, but in the sophisticated metallurgy required to handle the world’s most aggressive media.

At Falcon, we understand that a strainer is the first line of defense for your critical downstream equipment—pumps, valves, turbines, and heat exchangers. Our Y-Type strainers are meticulously crafted to ensure maximum flow efficiency, structural integrity, and long-term durability, even when operating at the limits of temperature and pressure.

What sets Falcon apart is our profound mastery of exotic and high-performance alloys. While standard manufacturers limit themselves to common metals, we thrive in the "Special Grades" sector. We provide tailored solutions in:

• Carbon Steel (CS) & Alloy Steels: Optimized for high-strength, high-pressure steam and oil applications where structural durability is paramount.

• Stainless Steel (SS): Available in various grades for general corrosion resistance, high-temperature service, and hygienic applications in the food and pharma sectors.

• Nickel Alloys: Including high-nickel grades for extreme chemical resistance, preventing stress corrosion cracking in high-temperature environments.

• Cupro-Nickel (Cu-Ni): The gold standard for marine environments and seawater cooling systems to prevent bio-fouling and erosion-corrosion.

• Titanium: Offering an unmatched strength-to-weight ratio and total immunity to chloride-induced corrosion in desalination and chemical plants.

• Zirconium: Specifically engineered for high-temperature mineral acids and aggressive chemical synthesis where standard alloys fail.

• Tantalum: The ultimate solution for the most severe corrosive environments, providing glass-like corrosion resistance for concentrated acid service.

The Falcon Y-Type Strainer is designed with a focus on fluid dynamics and mechanical longevity. The "Y" configuration provides a streamlined flow path, significantly reducing the pressure drop across the unit.

• Compact Architecture: Our Y-type design allows for a space-saving installation in both horizontal and vertical piping runs (with downward flow).

• Optimized Flow Area: We ensure that the open area of the filtering element is significantly greater than the pipe cross-section, which extends the intervals between cleaning cycles.

• Pressure Integrity: Every Falcon strainer is designed with heavy-wall thickness to withstand surge pressures, thermal cycling, and mechanical stresses.

• Customizable Elements: We offer a vast range of screen options, from coarse perforated plates to ultra-fine dual-layer mesh, available in the same high-grade alloys as the body to prevent galvanic corrosion.

Choosing Falcon means choosing a partner with deep metallurgical expertise. We don’t just sell hardware; we provide engineering solutions for the world’s toughest fluids.Our commitment to excellence in exotic materials ensures your operation remains safe, efficient, and profitable.

The Falcon Tee Type Strainer is a high-efficiency filtration solution engineered for pipelines where space is limited. Designed for both horizontal and vertical installation, these strainers provide robust protection for pumps, valves, and downstream equipment.

• Compact Geometry: The "T" configuration allows for a smaller footprint compared to traditional basket strainers.

• Ease of Access: Designed with a removable cover (bolted or quick-opening) for rapid screen cleaning and maintenance without disturbing the piping.

• Flow Efficiency: Internal chamber design ensures a high open-area ratio to minimize pressure drop.

We leverage our core expertise in metallurgy to manufacture strainers that survive the world's most aggressive fluids.

• Exotic Materials: Specialists in Nickel Alloys, Stainless Steel, Titanium, Zirconium, and Tantalum.

• Precision Fabrication: Advanced welding techniques tailored to the specific thermal and chemical properties of high-grade alloys.

• Customization: Available in a wide range of wall thicknesses and nozzle configurations to meet specific process requirements.

Every Falcon Tee Strainer is subjected to a comprehensive quality protocol to ensure mechanical integrity and material purity.

• Material Verification: Strict PMI (Positive Material Identification) to guarantee the correct alloy grade.

• Welding Standards: All joints are welded by certified professionals specializing in corrosion-resistant alloys.

• Pressure Testing: Mandatory Hydrostatic and Pneumatic testing to verify leak-proof performance.

• Inspection: Non-destructive testing (NDT), including Dye Penetrant and Radiographic examination, available upon request.

Falcon Tee Type Strainers are engineered for critical service environments where material integrity is non-negotiable.

• Corrosive Chemical Processing: Ideal for pipelines carrying aggressive acids or reactive chemicals that require the extreme resistance of Zirconium or Tantalum.

• Oil & Gas Refineries: Used to protect downstream equipment from debris in high-pressure and high-temperature environments using Nickel Alloys and Special Grades.

• Marine & Offshore: Utilizing Titanium and Stainless Steel to prevent salt-water corrosion in cooling and processing systems.

• High-Purity Manufacturing: Serving industries that require the inert properties of high-grade alloys to prevent batch contamination.

By specializing in Nickel Alloys, Titanium, and Zirconium, Falcon strainers provide a service life that exceeds standard components. Our use of special grades ensures the strainer body and element can withstand chemical attack, reducing the need for frequent replacements.

The compact "T" configuration allows for installation in tight piping layouts where larger basket strainers cannot fit. This makes them the perfect choice for compact industrial skids.

The design features a removable cover that allows for quick access to the internal screen. Maintenance teams can clean or replace the filter element without removing the strainer from the pipeline, significantly reducing operational downtime.

Falcon Tee Type Strainers are highly adaptable and can be configured for:

• Horizontal flow lines.

• Vertical flow lines.

• Replacement of existing pipe tees to add filtration capabilities to an existing system.
