Drilling Machine Parts

Our product range contains a wide range of Customised Right Angle Head, BT40 Series Angle Heads and BT50 Series Angle Heads

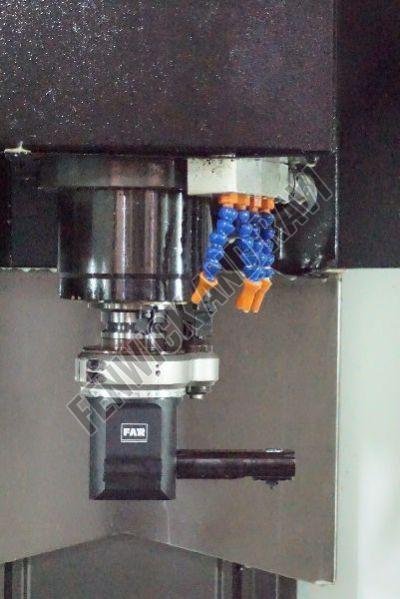

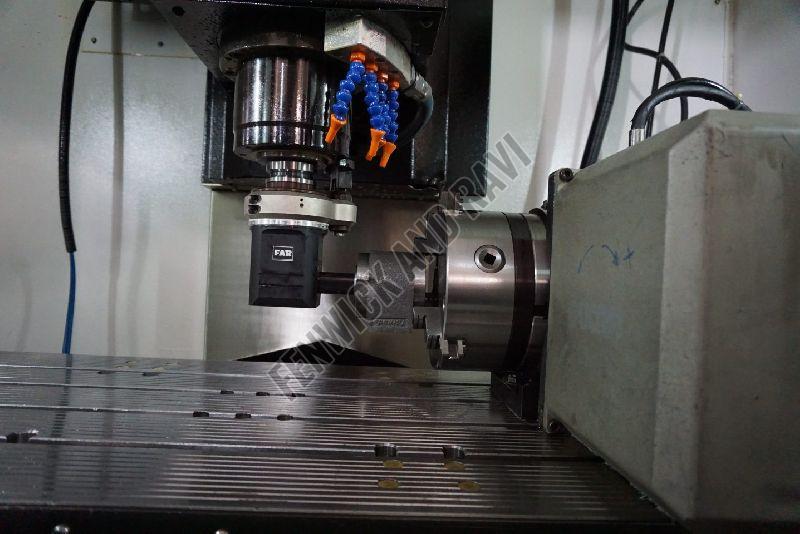

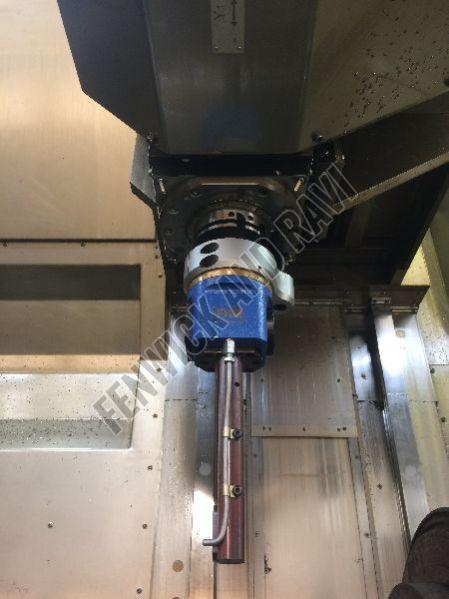

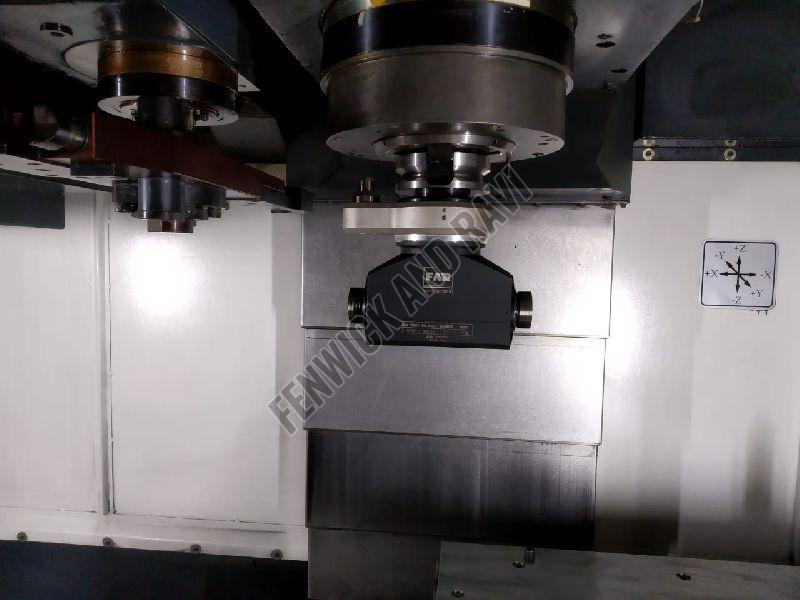

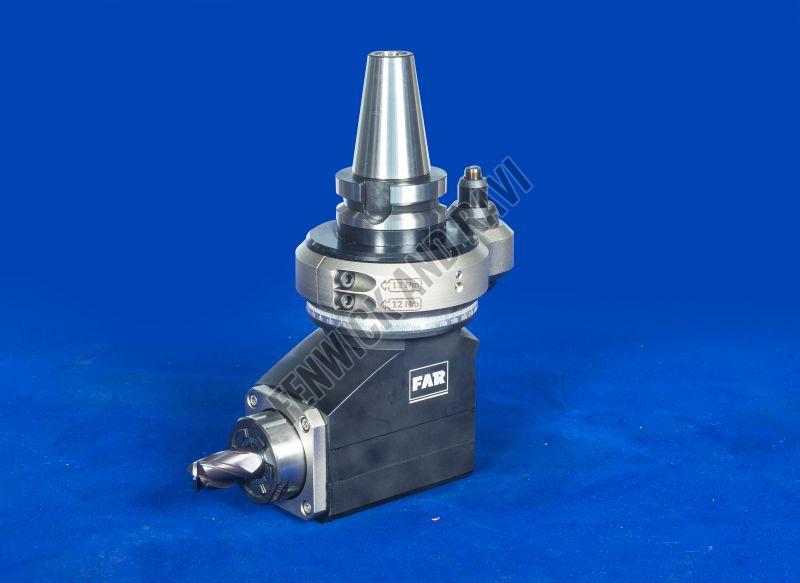

Customised Right Angle Head

Customised Right Angle Head
₹ 2.05 Lakh - ₹ 4.23 Lakh / piece Get Latest Price
  • Min. Order (MOQ) 1 piece
  • Brand Name FAR
  • Material Cast Iron, Metal, Mild Steel, Stainless Steel
  • Surface Finishing Coated, Polished
  • Condition New
  • Certification ISO 9001:2015
  • Packaging Type Box
  • Number Of Flower Angle Head
  • Total Carbohydrate 1yrs
  • Country of Origin India
  • Speed Rpm 4000 RPM
  • Torque Nm 1.5 NM

Features

  • These Mill heads with precision bearings and superior bevel gears will provide an excellent strength and precision in cantilever machining operations
  • Spindles are supported by pairs of pre loaded angular contact ball bearings.
  • Designed for superior heat dissipation and for sustained periods of high speed operations.
  • Speed Positioning pin with locking arrangement for ATC Special pitch from adapter to positioning pin.
  • Special length from gauge plane Multi point flange instead of single positioning pin Coolant provision



Additional Information:

Delivery Time : 4 WEEKS

MH-FXA-MA32-BT40 (Mill Arbour Type)


Download Detail File : Click Here

MH-FXA-ER25-BT40-SP1


Download Detail File : Click Here

MH-FXA-ER11-BBT40-SP1


Download Detail File : Click Here

MH-FXA-ER11-BBT40-SP1 LAYOUT


Download Detail File : Click Here

MH-FXA-ER8-BT40-164 For Horrizontal Slot Milling


Download Detail File : Click Here

MH-FXA-2-ER16-BT40 (Dual Output)


Download Detail File : Click Here

ISO40-ISO50-SP1 F90-ISO40


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details

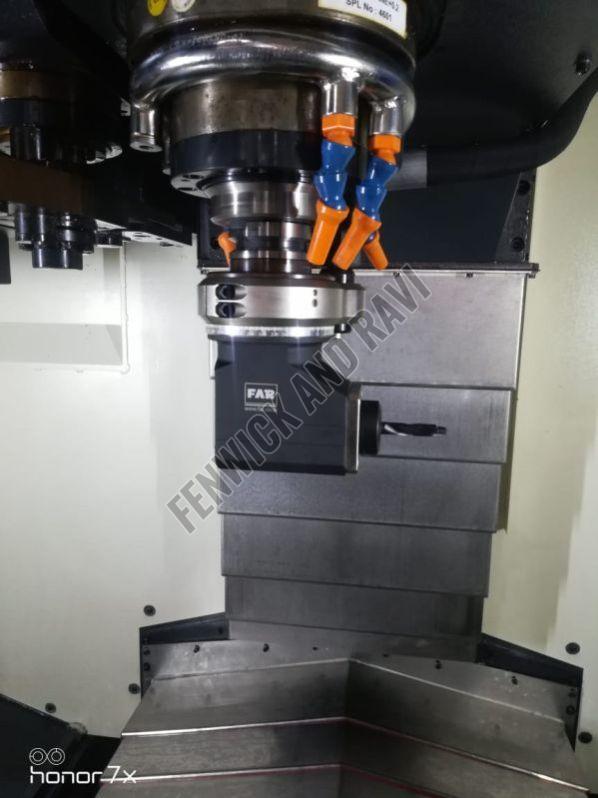

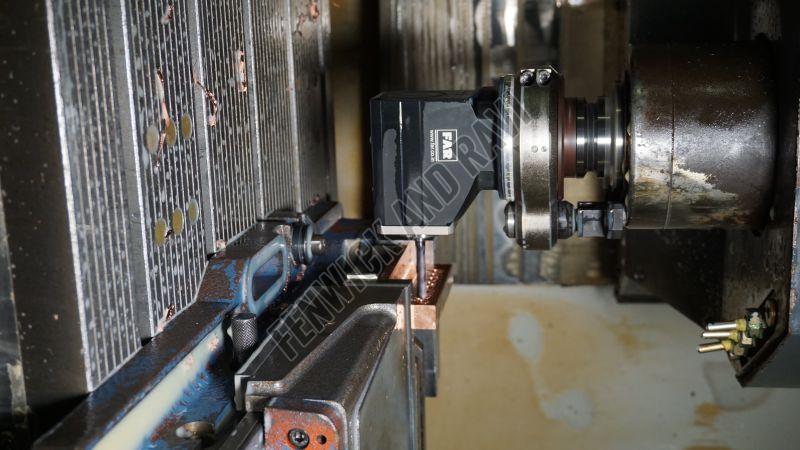

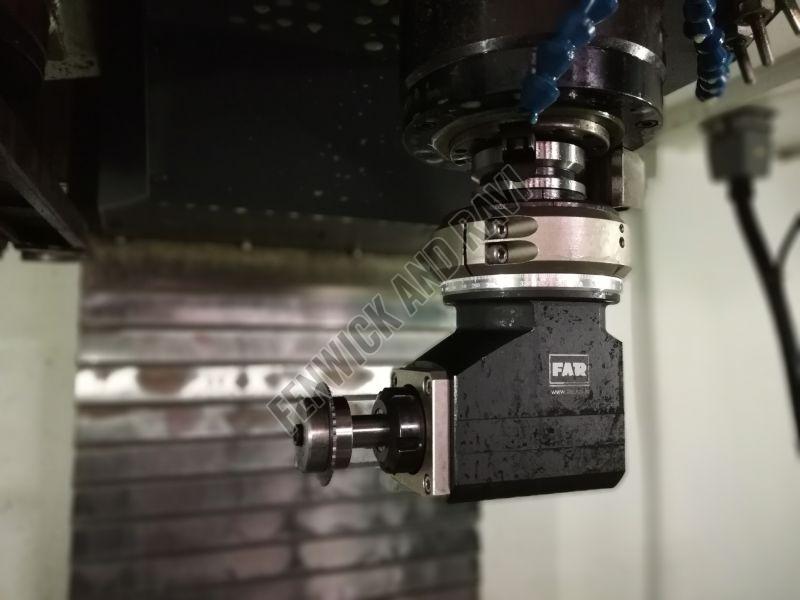

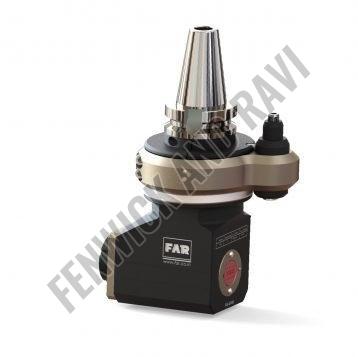

BT40 Series Angle Heads

BT40 Series Angle Heads
₹ 2.05 Lakh - ₹ 4.36 Lakh / piece Get Latest Price
  • Brand Name MX-FXA-ER32-BT40-150
  • Material Aluminum, Metal, Stainless Steel
  • Surface Finishing Coated, Polished
  • Condition New
  • Application On Drillin Application
  • Size 3mm - 20 Mm
  • Certification ISO 9001:2015
  • Packaging Type Box
  • Number Of Flower Angle Head
  • Shaft Diameter 03MM-20MM
  • Total Carbohydrate 1yrs
  • Country of Origin India
  • Speed Rpm 4000 RPM
  • Torque Nm 45 NM
  • Output collect ER32 (REGO-FIX) (DIN-6499)
  • Input Shank BT40 (MAS 403)
  • Max. Tap Size M 16
  • Weight 6.8 kg.

Features

  • These Mill heads with precision bearings and superior bevel gears will provide an excellent strength and precision in cantilever machining operations
  • Spindles are supported by pairs of pre loaded angular contact ball bearings.
  • Designed for superior heat dissipation and for sustained periods of high speed operations.
  • Speed Positioning pin with locking arrangement for ATC Special pitch from adapter to positioning pin.
  • Special length from gauge plane Multi point flange instead of single positioning pin Coolant provision



Additional Information:

Delivery Time : 4-6 weeks

MH-FXA-ER16-BT40-150

Output ER16
Input Shank BT40
Gear Ratio 0.042361111
Speed (Max) 4000
Torque 12Nm
Tool Range 1-10 mm
Max. Tap Size M8
Weight 5 kg

Download Detail File : Click Here

MH-FXA-ER25-BT40-150

Output ER25
Input Shank BT40
Gear Ratio 0.042361
Speed (Max) 4000
Torque 35Nm
Tool Range 2-16 mm
Max. Tap Size M12
Weight 6 kg

Download Detail File : Click Here

MH-FXA-ER32-BT40-160

Output ER32
Input Shank BT40
Gear Ratio 0.042361
Speed (Max) 4000
Torque 45Nm
Tool Range 1-20 mm
Max. Tap Size M16
Weight 8 kg

Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details

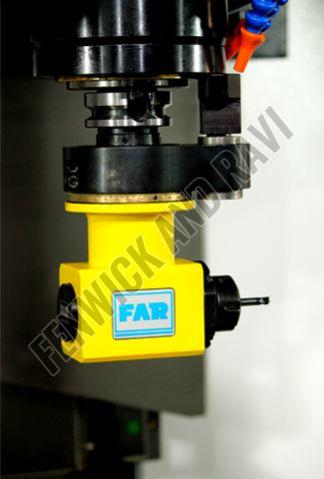

BT50 Series Angle Heads

BT50 Series Angle Heads
₹ 2.05 Lakh - ₹ 4.23 Lakh / piece Get Latest Price
  • Min. Order (MOQ) 1 piece
  • Brand Name MX-FXA-ER32-BT50-160
  • Material Aluminum, Cast Iron, Metal, Mild Steel
  • Surface Finishing Coated, Polished
  • Condition New
  • Size 0-40mm
  • Certification ISO 9001:2015
  • Packaging Type Box
  • Number Of Flower Angle Head
  • Shaft Diameter 03MM-20MM
  • Total Carbohydrate 1yrs
  • Country of Origin India
  • Speed Rpm 4000 RPM
  • Torque Nm 45 NM
  • Head Angle FIX ANGLE HEAD

Features

  • These Mill heads with precision bearings and superior bevel gears will provide an excellent strength and precision in cantilever machining operations
  • Spindles are supported by pairs of pre loaded angular contact ball bearings.
  • Designed for superior heat dissipation and for sustained periods of high speed operations.
  • Speed Positioning pin with locking arrangement for ATC Special pitch from adapter to positioning pin.
  • Special length from gauge plane Multi point flange instead of single positioning pin Coolant provision



MH-FXA-ER32-BT50

Output ER32
Input Shank BT50
Gear Ratio 0.042361
Speed (Max) 4000
Torque 45Nm
Tool Range 1-20 mm
Max. Tap Size M16
Weight 16 kg

Download Detail File : Click Here

MH-FXA-ER25-BT50

Output ER25
Input Shank BT50
Gear Ratio 0.042361
Speed (Max) 4000
Torque 35 Nm
Tool Range 2-16 mm
Max. Tap Size M12
Weight 14 kg

MH-FXA-ISO40-BT50

Output ISO40
Input Shank BT50
Gear Ratio 0.042361
Speed (Max) 2500
Torque 150 Nm
Max tool Size Ø26mm
Max. Tap Size M20
Weight 22 kg

Download Detail File : Click Here

MH-FXA-ISO30-BT50

Output ISO30
Input Shank BT50
Gear Ratio 0.042361
Speed (Max) 3500
Torque 45 Nm
Tool Range 3-20 mm
Max. Tap Size M14
Weight 16 kg

Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
