Audio Video Connector

We offer the best product range of Creepage Extender and Screened Seperable Connector upto 24 kV - 630 A.

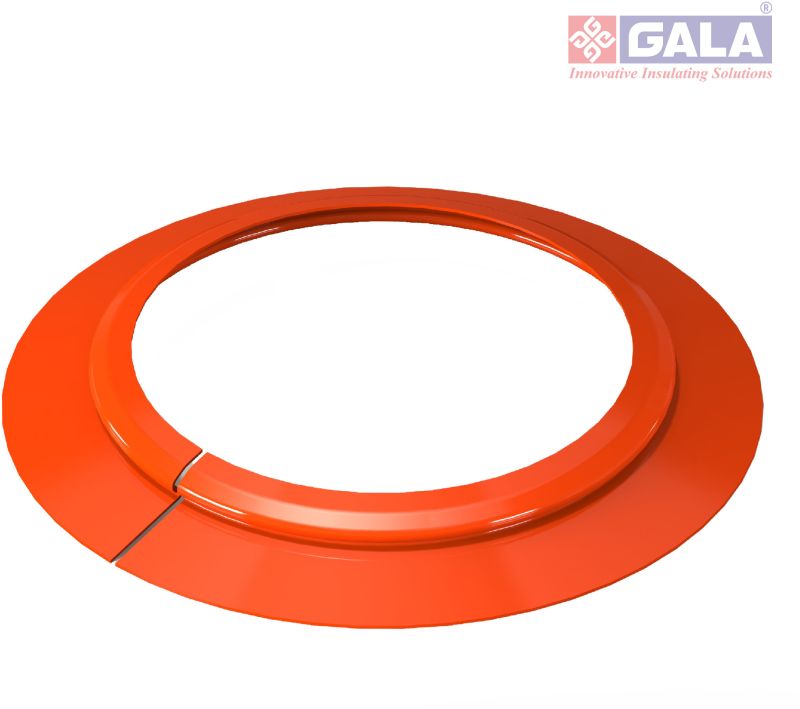

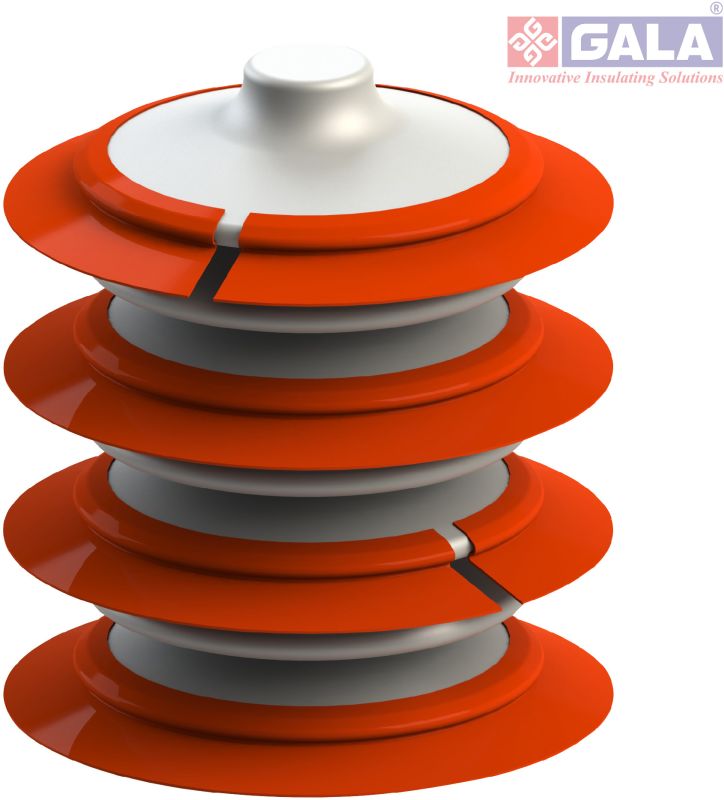

Creepage Extender

  • Country of Origin India
  • Material Polymeric
  • Application Electrical Insulation
  • Brand Name Gala
  • Number Of Flower Hdmi Extender
  • Size Standard
We are a leading Manufacturer, Exporter, and Supplier of the Creepage Extender, proudly made in India. Crafted from high-quality polymeric material, our Gala brand extender is designed for electrical insulation applications. With the capability to extend HDMI signals, this standard-sized extender ensures reliable performance. Trust our product for superior quality and durability in your electrical projects.
View Complete Details

Screened Seperable Connector Upto 24 KV - 630 A

  • Number Of Flower Separable Connector
  • Purity Provides Fully Screened And Submersible Separable Connection, Mating With C-type Bushings And Plugs Complying With EN 50180 & EN 50181, Compact Design, 100% Factory Tested
  • Brand Name Gala
  • Voltage Class 11kV, 15kV, 24kV
FEATURES & BENEFITS :-





  • Provides fully screened and submersible separable connection.
  • Mating with C - type bushings and plugs complying with EN 50180 & EN 50181
  • Compact design
  • 100% factory tested
  • Voltage class: 11kV, 15kV, 24kV

Technical Specification
  • Voltage Class
  • 11kV
  • 24kV
  • Continuous Current
  • 630A
  • 630A
  • Alliance Bushing
  • EN 50180 & 50181 Type C
  • EN 50180 & 50181 Type C
  • AC Withstand Voltage
  • 29kV for 5 min
  • 54kV for 5 min
  • Impulse Withstand Voltage (10 times for each polarity)
  • 95kV
  • 125kV
  • Partial Discharge at 1.73U0
  • ≤ 10pC
  • ≤ 10pC
  • Screen Resistance
  • ≤5000 Ω
  • ≤5000 Ω
  • Cable Cross-section
  • 25-400mm2
  • 25-400mm²
View Complete Details
