Material
Silicone Rubber
-
Country of Origin
India
-
Condition
New
-
Color
Black
-
Power Source
Electric
-
Usage
Electrical Connections
-
Size
Standard Size
-
Voltage Rating
15 KV
-
Current Rating
200 A
-
Temperature Rating
90°C
-
Waterproof
Yes
-
Brand Name
Gala
-
Packaging Type
Black
-
Number Of Flower
Screened Separable Connector
-
Flame Retardant
Yes

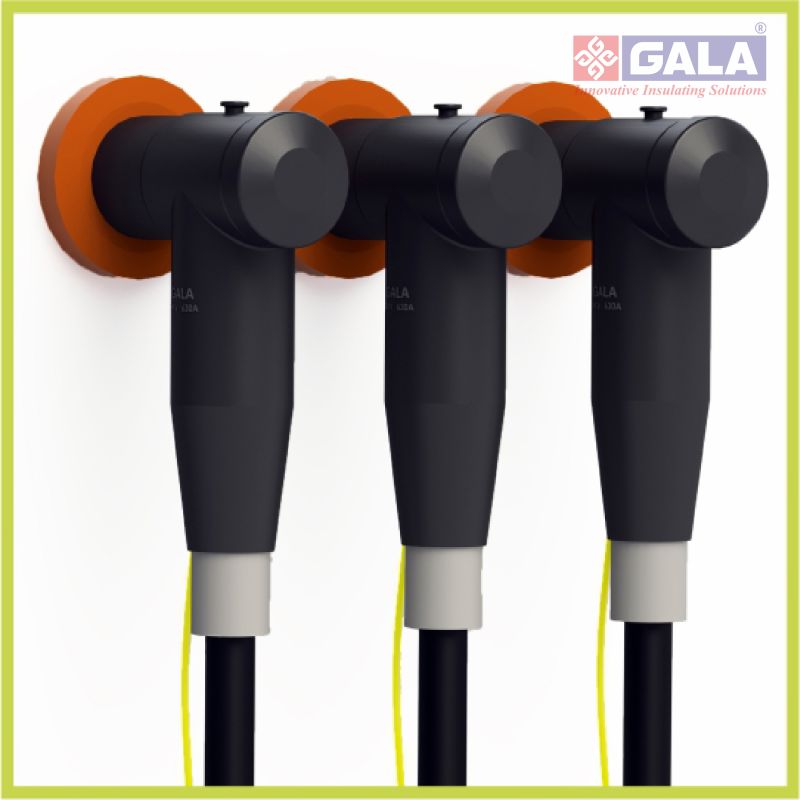

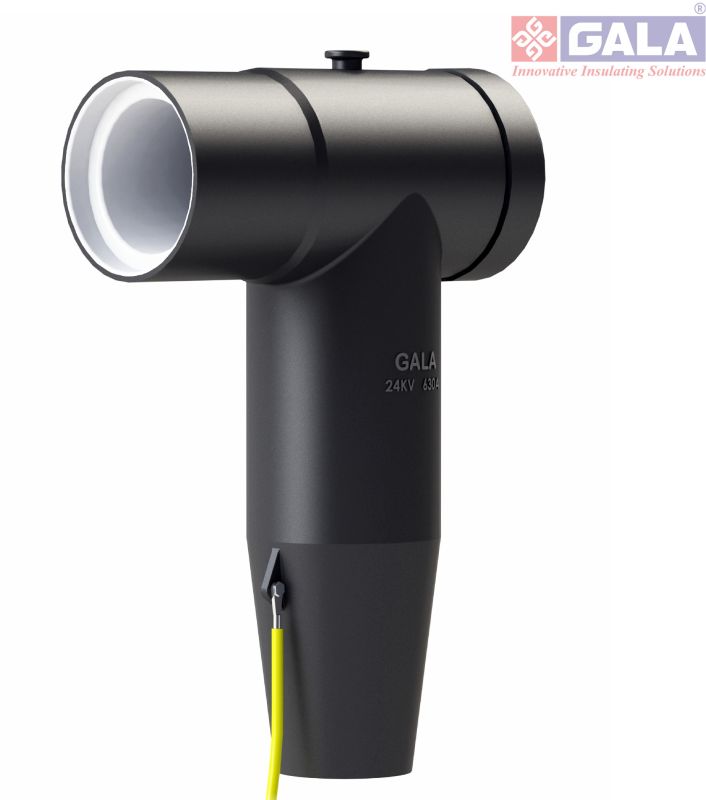

We are a leading Manufacturer, Exporter, and Supplier of high-quality Screened Separable Connector made from premium Silicone Rubber material in India. Our new, black-colored connectors are designed for electrical connections, featuring a standard size suitable for various applications. With a voltage rating of 15 KV and current rating of 200 A, these connectors ensure reliable performance. Operating at a temperature rating of 90C, our electric-powered connectors are ideal for industrial use. Trust our Indian-origin connectors for efficient and safe electrical connections.
Technical Specification
- Continuous Current
- 630A
- 630A
- Alliance Bushing
- EN 50180 & 50181 Type C
- EN 50180 & 50181 Type C
- AC Withstand Voltage
- 29kV for 5 min
- 54kV for 5 min
- Impulse Withstand Voltage (10 times for each polarity)
- 95kV
- 125kV
- Partial Discharge at 1.73U0
- ≤ 10pC
- ≤ 10pC
- Screen Resistance
- ≤5000 Ω
- ≤5000 Ω
- Cable Cross-section
- 25-400mm2
- 25-400mm²
Ordering Informations
- Characteristic
- Rated Voltage
- Diameter over Insulation (mm)
- Cable Cross- section (mm²)
- Material of Lug
- Kit
- Screened
- 11kV
- A: Ø14-Ø16
- 01:25 02:35
- C: Cu
- 3: 3 Pcs / Kit
- Tee Connector
-
- B: Ø16-Ø18
- 03:50 04:70
- A: Al
- 1: 1 Pc / Kit
- Screened
-
- E: Ø23-Ø26
- 09:240 10:300
-
-
- Rear Connector
-
- F: Ø26-Ø30
- 11:400
-
-
-
- 24kV
- A: Ø18-Ø22
- 01:25 02:35
- C: Cu
- 3: 3pcs/kit
-
-
- B: Ø22-Ø25
- 03:50 04:70
- A: Al
- 1: 1pc/kit
Product Discription
