Our Products

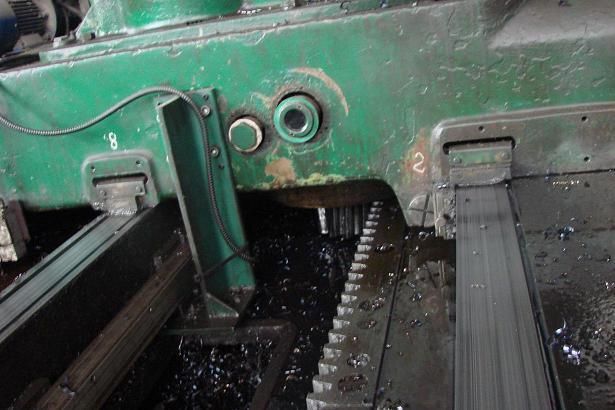

Our product range contains a wide range of CNC Table Type Boring Mill - Pama, CNC Skoda Horizontal Bohrer and Driller Machine

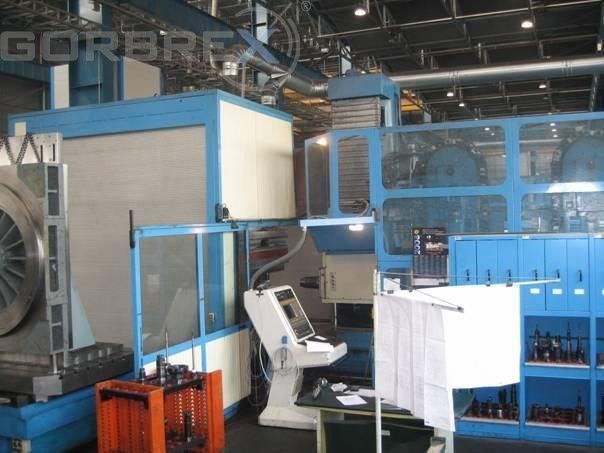

CNC Table Type Boring Mill - Pama

Number Of Flower CNC Table Type Boring Mill
Availability 35 Kg
Control CNC Siemens Sinumeric 850M-6
Spindle Diameter 130 Mm
Rotary Table Size 1600 X 1600 Mm
Table Capacity 12000 Kg
X Axis Travel 2500 Mm
Y Axis Travel 2400 Mm
Z Axis Travel 750 Mm
W Axis Travel 2030 Mm
Max Spindle Speeds 2200 Rpm
Main Motor Power 35 KW
ATC Magazine Capacity 100 Pcs
Rapid Feeds 10000 Mm/min, 12000 Mm/min, 6000 Mm/min, 12000 Mm/min, N/A
Gear Steps 2 Ranges
Torque In Axes 55 Nm, 37 Nm, 27 Nm
Max Tool Diameter 140 Mm
Max Tool Length 600 Mm

We are offering cnc table type boring mill pama model: at 130. Manufacturer: pama, italymodel: at 130/3year of manufacture: 1992control: cnc siemens sinumeric 850m-6condition: excellentlocalisacion:machine is available in our warehouse. Spindle diameter: 130 mm rotary table: 1600 x 1600 mmtable capacity: 12000 kgx axis travel: 2500 mmy axis travel: 2400 mmz axis travel: 750 mmw axis travel: 2030 mmmax spindle speeds: 2200 rpmmain motor power: 35 kwatc magazine: 100 pcsrapid feeds: - x- 10, 000 mm/min- y- 12, 000 mm/min- z- 6, 000 mm/min- w 12, 000 mm/min- b 2gear steps 2 rangestorque in axes: x- 55 nm; y- w-b- 37 nm; z- 27 nmweight: 35 kgmax. Tool diameter with all places occupied: 140max. Tool length: 600 mmequipment: - 1 psc.rotary table- atc for 100 pcs- apc 2 pcs 1600 x 1600 mm- external cooling- internal cooling- renishaw mp7- chip conveyor
