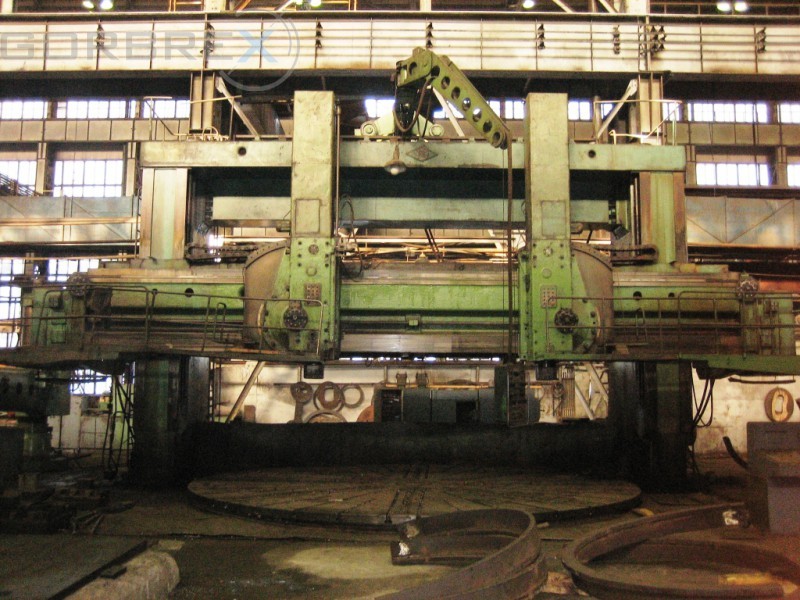

The Kolomna Vertical Lathe Machine is a robust and precision-engineered solution for heavy-duty turning operations. Manufactured by the renowned Russian brand Kolomna, this machine is ideal for machining large, heavy, and complex components such as turbine casings, large bearings, flanges, and valve bodies. Known for its rigid construction and long-lasting reliability, the Kolomna VTL ensures high accuracy and stability even under demanding industrial conditions.

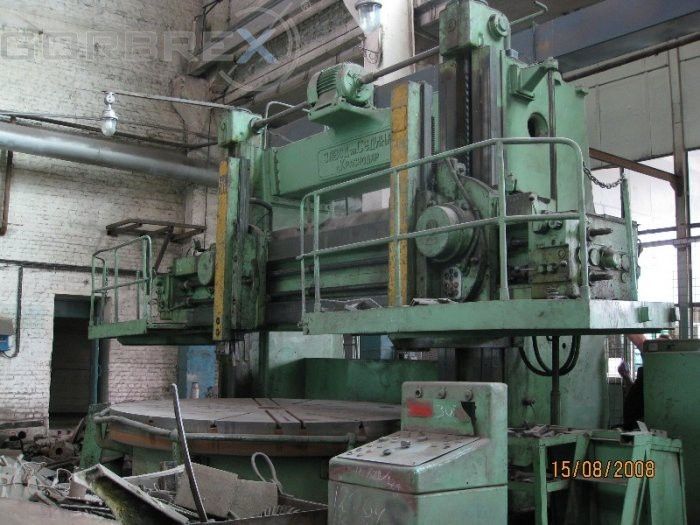

We are offering vertical lathe machine sedin model: 1m557. manufacturer: sedin - russiamodel: 1m557new in: 1979condition: excellent condition, under power table diameter: 2 800mm max workpiece diameter: 3 200mm max turning diameter with vertical carriages: 3 200mm max workpiece height: 1 600mm max workpiece weight: 16 000kg distance between the middle of the table and column : 475 mm distance between table and turret head or bottom edge of vertical carriage : 1 340 mm distance between table and the bottom edge of transversal beam: 1 340 mm boring diameter with turret head or vertical carriage : 1 900 mm boring diameter with turret head or vertical carriage : 2 300 mm turning diameter with horizontal carriage: 2 000 mm max turning length with horizontal carriage: 1 100 mm max turning length: 1 300 mm taper: 45 turret head rapid feed: 3 m/min transversal beam rapid feed: 0, 5 m/min max travel of transversal beam: 990 mm machine weight: 35 000 kg dimensions: 4085x5460x4250 mm

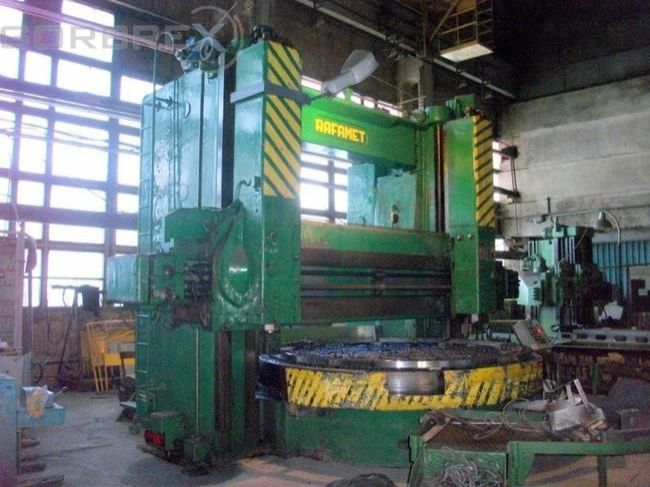

We are offering vertical lathe machine rafamet model: kcf320. manufacturer: rafametmodel: kcf 320new in: 1966 / modernization in year 2008condition : good, machine is under power, ready to workequipment: 3 supports table diameter: 3200mm max. Turning diam. With vertical carriage: 3500mmmax. Turning diam. With side carriage: 200mmmax. Turning height: 1850mmmax workpiece weight: 25 000 kgfeeds number: 12feeds of vertical right carriage and side carriage: 0, 24 - 10, 6 mm/minfeed of left vertical carriage: 0, 185 - 8, 16 mm/minrapid feed of vertical carriages: 910 mm/minrapid feed of side carriage: 1250 mm/minrapid feeds of trasversal beam: 580 mm/minmax distance between table and trasversal beam: 2000 mmmachine weight: 70 000 kgdimensions: 7730 x 6240 x 6700 kgmain motor power: 55 kw , 1500 rpm

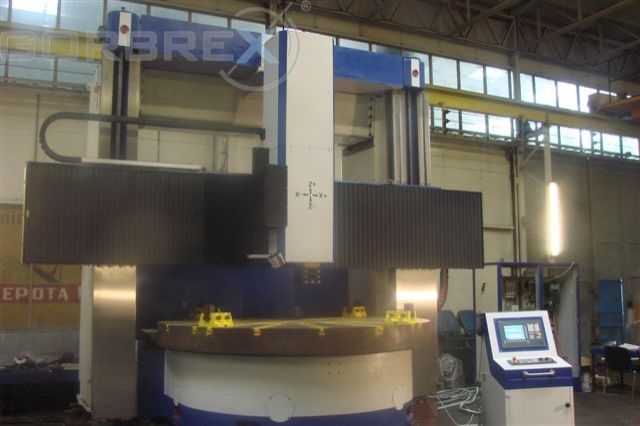

We are offering Cnc Double Column Vertical Lathe Sedin Model: 1525Manufacturer: SEDIN - RUSSIAModel: 1525 CNCNew in: 90's/2012 Condition: very good, after renovation, under power, equipped with CNC control SIEMENS 828Control: SIEMENS 828Localisation: our Workshop Rudniki - Poland Table diameter: 2250 mmDistance between table and ram: 0 - 1780 mmDistance between table and lower surface of transv.beam: 400 - 1640mmMax workpiece diameter: 2500 mmMax workpiece high: 1600 mmMax workpiece weight: 11 400 kgMax ram travel: 1200 mmMax horizontal travel of carriage: 1390 mmMax swivel angle: 30 degreesMax distance between axis of ram: 560 mmMax knife intersection: 40 x 60 mmSeat diameter ( metric cone ): 80 mmCarriages number and type: 2 vertical - ram type Table speeds number: 18Table speeds range: 1.6 - 80 rpmCarriages feeds number: 16Carriages feeds range: 0.09 - 16 rpmRapid feeds of carriage: 10 - 1780 mm/minTransversal beam feeding: 360 mm/minMotors and overall dimensions: Main motor: 45 kW , 1430 mphTransversal beam feeding motor: 5.2 kW , 1500 rpmTransversal beam clamping motor: 2 kW, 1500 rpmCarriages feeding motors ( 2 nos )3 kW , 1500 rpmLubrication unit motor: 1.7 kW, 1500 rpmDimensions: 5065 x 5280 x 4910 mmMachine weight: 35 500 kg

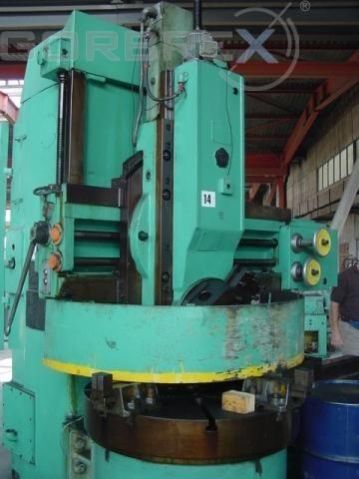

We are offering vertical lathe machine - sedin 1512. Table diameter 1120 mm max. Turning diameter 1250 mm max. Workpiece height 1000 mm max. Swivel angle: 45o max. Vertical feed: 1000 mm max. Workpiece weight at rpm 5-80: 3200 kg at rpm 250: 1000 kg max. Ram travel upper carriage: 630 mm side carriaga: 700 mm number of ranges of table speed: 18 max. Table speed: 25 rpm number of ranges of carriage feeds: 16 max. Carriage feed: 12, 5 rpm main motor power: 30 kw net weight: 16 000 kg dimensions: 2750/2975/4100
