Lathe Machines

Our product range contains a wide range of Ryazan Center Lathe Machine and Lathe Machine

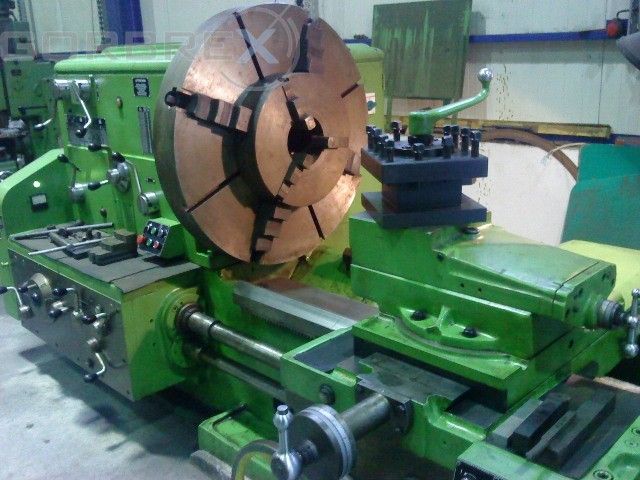

Ryazan Center Lathe Machine

Material Metal
Model 1M65/5000
Max Turning Diameter Over Bed 1000 Mm
Max Turning Diameter Over Carriage 650 Mm
Max Turning Length 5000 Mm
Spindle Diameter 85 Mm
Workpiece Weight Capacity 5000 Kg
Spindle Taper 100 Mm
Number Of Stages Of The Slide Unit 32
Max Longitudinal Carriage Feed 3.05 Mm/u
Min Longitudinal Carriage Feed 0.20 Mm/u
Max Cross Feed 1.04 Mm/u
Min Cross Feed 0.07 Mm/u
Threads 1 - 120 Mm, 28 - 1/4, 0.5 - 30 M
Motor Power 22 KW
Machine Size 8050 Mm, 2100 Mm, 1760 Mm
Weight Of Machine 15650 Kg

We are offering center lathe machine ryazan model: 1m65/5000. manufacturer: ryazan - romania model: 1m65/5000 new in: 2002condition: very good, ready to work max turning diameter over bed: 1 000 mmmax turning diameter over carriage: 650 mmmax turning lenght: 5 000 mmspindel diameter: 85 mmworkpiece weight: 5 000 kgspindle taper: 100 mm number of stages of the slide unit:32max longitudinal carriage feed: 3, 05 mm/umin longitudinal carriage feed: 0, 20 mm/umax cross feed: 1, 04 mm/umin cross feed: 0, 07 mm/uthreads:- metric 1 120 mm- cal 28 - modul 0, 5 30 mmotor power: 22 kwmachine size:- length: 8 050 mm- width: 2 100 mm- height: 1 760 mmweight of machine : 15 650 kg
