Water Well Drilling Equipment

Leading Manufacturer, Supplier & Retailer of CNC Horizontal Boring Machine, Horizontal Boring Machine and Boring Machine.

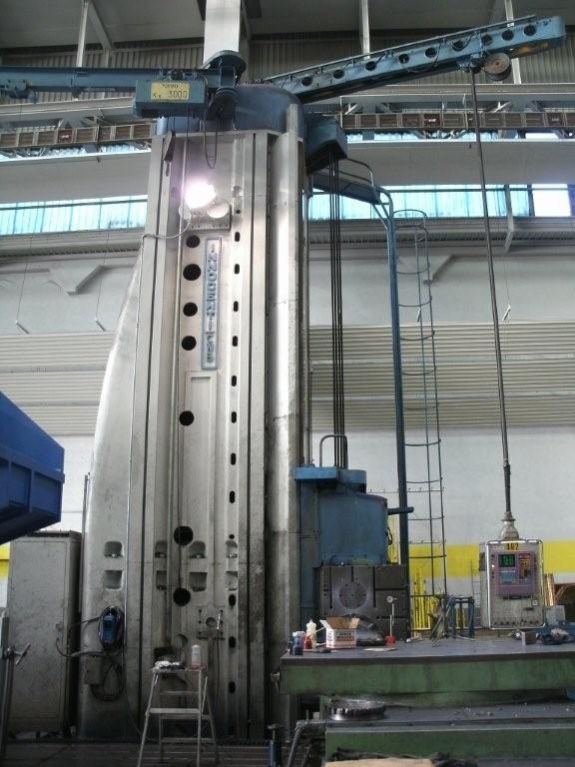

CNC Horizontal Boring Machine

Model CWB 29
Condition Excellent, Ready To Work
Year 1972
Control CNC Elsa Model: AG1000
Spindle Diameter 200 Mm
X-Axis Travel 29, 000 Mm
Z-Axis Travel 5, 500 Mm
W-Axis Travel 1, 750 Mm
Spindle Speeds 1-500 Rpm
Rapid Feeds 10-2, 000 Mm/min
Table Size 2000 X 2500 Mm
Y-Axis Travel 2, 400 Mm
Weight Capacity 30 Tons
Accessories 6 Pcs. Various Types Of Rotary Heads, 1 Pc. Faceplate

We are offering cnc horizontal boring machine innocenti model cwb 29 with rotary table 2000 x 2500 mm. manufacturer: innocenti - innse ( italy )model: cwb 29new in: 1972condition: excelent, ready to work, machine has been serviced, machine is visible under power in the customer factorylocation: italynotes: we are the owner of this machine, not a dealer !!!control: cnc elsa model: ag1000diameter spindle: 200 mmtravel in axis x: 29 000 mmtravel in axis z(in vertical axis ): 5 500 mmtravel in axis w: 1750 mmspindle speeds: 1-500 rpmrapid feeds: 10-2000 mm/mintable rotary: 2000 x 2500 mm with axis y=2400 mmweight admissible on rotary table: 30 tonsaccessories: 6 psc. Various types of rotary heads, 1 psc. Faceplate

View Complete Details

Ask Latest Price & Details

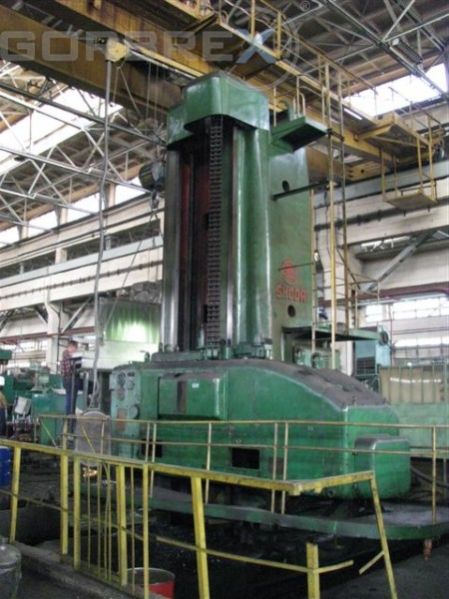

Horizontal Boring Machine

Driven Type Electric
Certification ISO 9001:2008
Country of Origin India
Application Machining Large And Heavy Components With Accuracy And Efficiency
Number Of Flower Boring Machine
Operations Boring, Drilling, Milling, Facing
Versatility Excellent For Large-scale Production And Repair Work
Ideal For Engine Blocks, Gearboxes, Machine Beds, Industrial Components
Spindle Diameter 250 Mm

A high-precision Horizontal Boring Machine designed for machining large and heavy components with accuracy and efficiency. This machine is ideal for boring, drilling, milling, and facing operations on parts like engine blocks, gearboxes, machine beds, and other industrial components. With a horizontally mounted spindle and movable table, it offers excellent versatility and rigidity for large-scale production and repair work
