GREENTECH SOLUTIONS

Mansarovar, Jaipur, Rajasthan

Mainfeatures:Alloysteel&stainlessstructure;bellowshermeticallysealedbylaser, nickelplated, waterproofandanti-corrosion, suitableformultiformenvironments;suitableforelectronicplatformscales, hopperscales, andotherelectronicweighingdevies.

20x4 lcd multi channel multi parameter data logger

no of channels ch1-ch12

rs232 port for pc interfend drive insertion for exce spreadhseet

generation

metal housing

units kg, n, ton, kpa, mpa, gpa, kg/c2 , deg microstrains , n-m selectable

wall mounted usb and pc rs232 interface datalogger for universal 4-20, 0-10, 0-20m v input

20x4 lcd jumbo

units selection from front ended feather touch keypad

Model: NICTECH-PLC-10-T-700-4W
Rated load: 2-5T, 10-25T, 50T, 90.8T, 200T, 300T
Accuracy: C1 (0.05%) / C2 (0.03%)
Material: Alloy steel
Application: Tank/ silo/ mixer weighing system, electronic platform scales, hopper scales, etc
Main features: Laser sealed IP67 Alloy steel structure; Bellows hermetically sealed by laser,
nickel plated, Waterproof and anti-corrosion

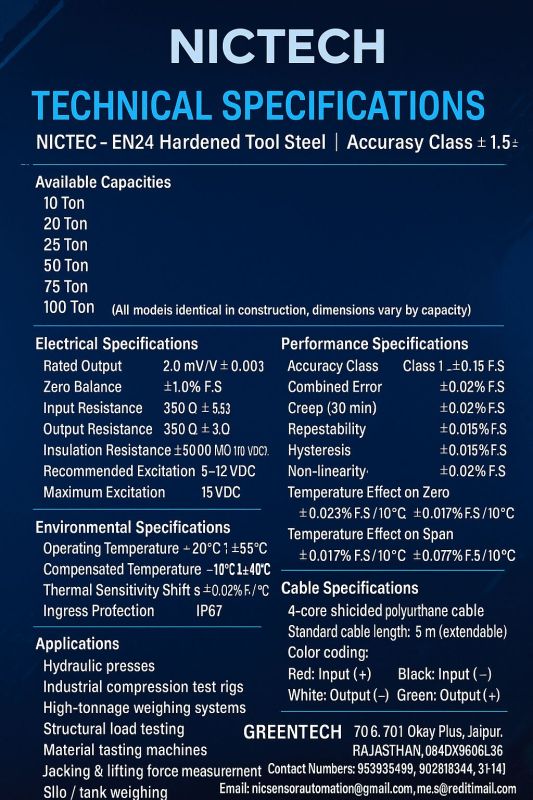

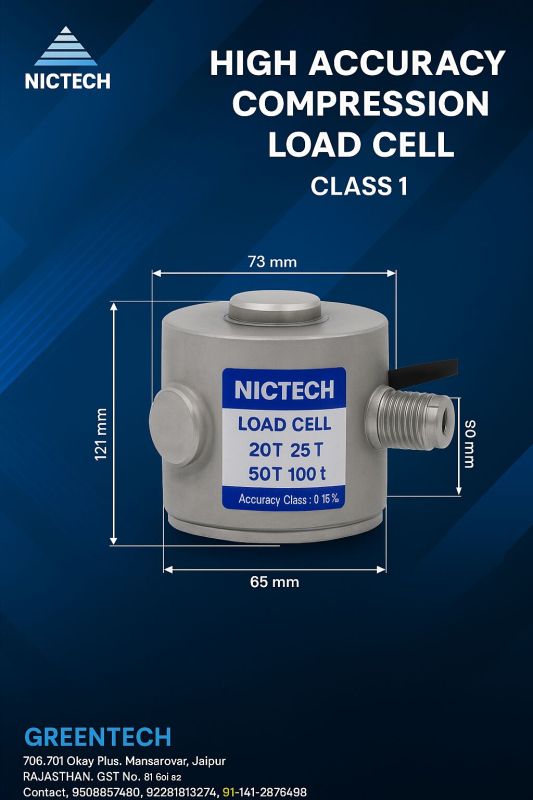

heavy duty load cell en24 hardened for roll mill block load application

supplied with movable loading tip to avaoid damage load cells

capacities 10 ton -250 tons

the fatigue rated load cell nictech-fr series pancake load cell from greentech solutions jaipur is made in the india and offered by load cell systems. the fr series shear web load cell are for high cyclic load testing. this fatigue rated load cell is designed with a 100 million fully reversed cycles guarantee. a few common uses are product life-cycle testing, and shock or engine dynamometers.

telemetry ground water recorder

20x4 lcd jumbo display

4 keys operation

high strength antenna

rs2332-pc interface

usb [pen drive port

excel spread s heet generation in flash drive onresaltime basis

12 montds cloud server subscriiption

tech specs as per cgwb guidelines

wall mounted telemetry water proof piezometer

jumbo display lcd

4 keys operation

double enclosure protection

barometric compensated sensor

ss202 construction

rs232 port for pc communication

usb port for pen drive

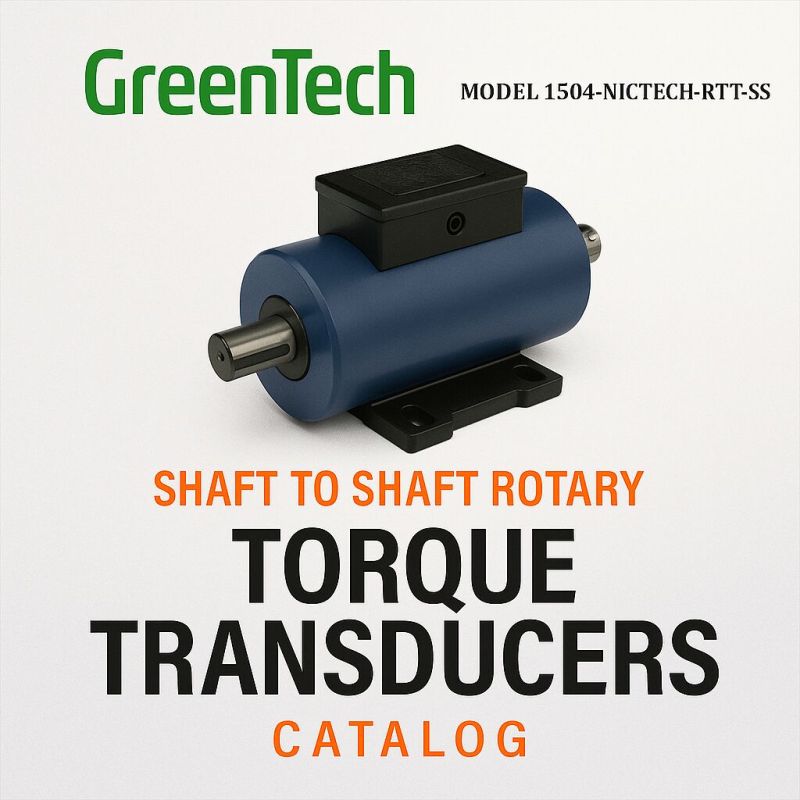

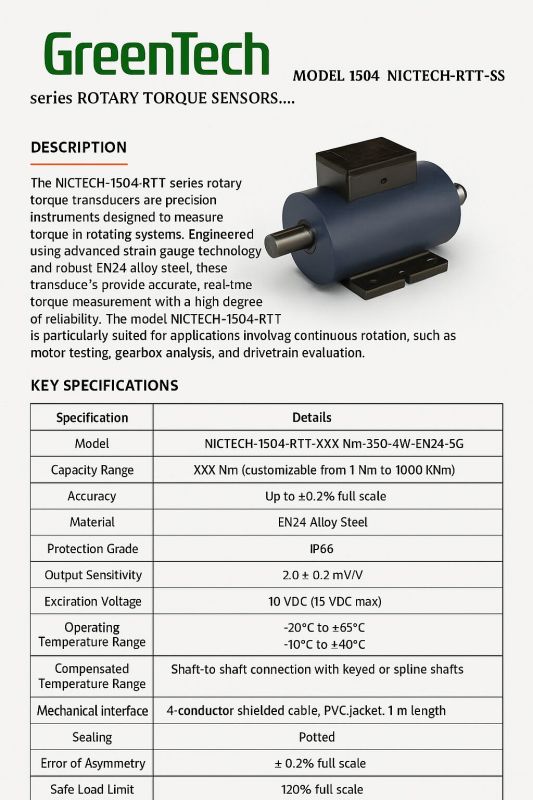

WIRELESS AND SLIP RING BASED ROTARY TORQUE SENSOR WITH DAM SERIES NICTECH INDICATOR AND DATALOGGER

• Measurement range:The range of torque that can be measured, such as 0100 Nm or 010, 000 Nm
• Operating temperature:The temperature range in which the sensor can operate, such as -53121C
• Maximum shaft speed:The maximum speed at which the shaft can rotate, such as 5, 000 RPM
• Output:The output of the sensor, such as 2 mV/V
• Linearity:The linearity of the sensor, such as 0.10% FS
• Hysteresis:The hysteresis of the sensor, such as 0.10% FS
• Zero balance:The zero balance of the sensor, such as 1.0% FS
• Overload capacity:The overload capacity of the sensor, such as 150% FS
• Material:The material the sensor is made from, such as stainless steel or aluminum
• Electrical connection:The type of electrical connection the sensor uses, such as a 4-pin or 10-pin twist lock connector

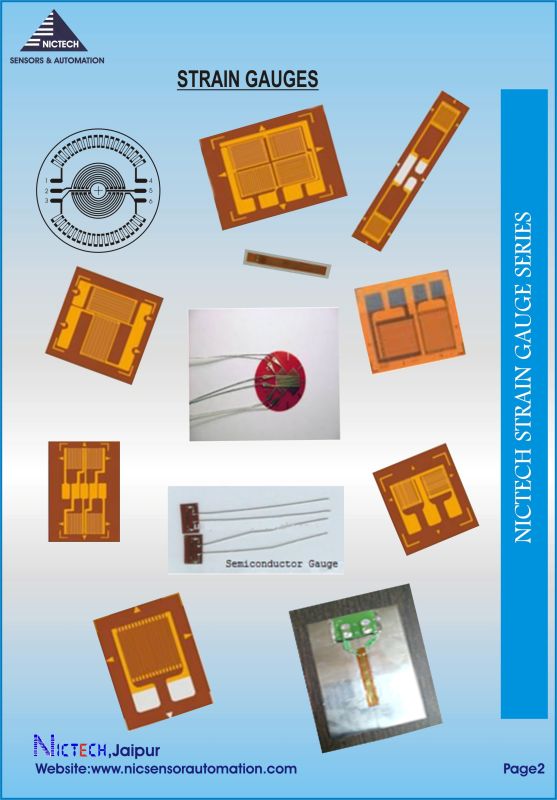

METAL FOIL STRAIN GAUGES IN 120/350/1000 OHMS IN VARIOUS AA, HA , AB, FF, FB , KA AB, CA Patterns, polimide backing with 2 silver tabs and extended wires for connections. leading solution provider in strain gauge microstrain measurements using metal foil strain gauges NICTECH brand with NICTECH Dataloggers

NICTECH Brand High-Temperature LVDT specsfocus on extreme operating ranges (often -55C to 250C or higher), durable materials (stainless steel, nickel alloys), robust construction (hermetic sealing, IP ratings), and performance metrics like linearity (0.5% F.S.), sensitivity, and vibration/shock resistance, essential for aerospace, industrial, and heavy machinery where standard LVDTs fail due to heat. Key factors are high-temp wire, special insulation, and specialized core/case materials to maintain accuracy under thermal stress.

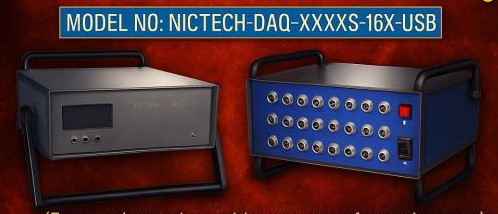

NICTECH STRAIN GAUGE DATA LOGGER (JAIPUR)

Model: NICTECH-DAQ-SG-USB-RS232
Make: GREENTECH, Jaipur (Brand: NICTECH)
Application: For strain gaugebased sensors (load cells, pressure transducers, torque sensors, etc.)

1. INPUT CHANNELS

• Number of Channels: 8 strain gauge channels (other options: 4 / 16 channels on request)

• Input Type:

  • Full bridge, half bridge, quarter bridge (120 / 350 selectable)

• Bridge Excitation:

  • 5 V DC, short-circuit protected, per channel / per group

• Gauge Factor:

  • Selectable from front panel (e.g. 1.5 to 2.5), fine adjustment via keyboard

• Input Range:

  • 3 mV/V (typical), programmable

• Resolution:

  • 24-bit - ADC (effective 1820 bits)

• Sampling Rate:

  • 1 sample/sec to 1, 000 samples/sec per channel (selectable, depending on model)

• Accuracy:

  • Better than 0.1% of F.S. (typical), after calibration

• Zero & Span:

  • Digital zero and span calibration from keypad / software

2. DISPLAY & USER INTERFACE

• Display Type:

  • 204 alphanumeric LCD or 12864 graphical LCD

• Display Parameters:

  • Individual channel readings

  • Engineering units (kg, N, bar, MPa, strain, etc.)

  • Channel selection, status, alarm indication

• Keyboard / Keys:

  • 46 keys for menu, set, up/down, channel selection, start/stop logging

• Front Panel Indications:

  • Power ON, Logging ON, Alarm, Communication status

3. DATA LOGGING & STORAGE

• Internal Memory:

  • Non-volatile memory for minimum 50, 000100, 000 readings (expandable)

• USB Pen Drive Port:

  • 1 USB host port for direct data transfer to standard USB pen drive

  • Data format: CSV / Excel-compatible text file with Date-Time stamp

• Logging Modes:

  • Time-based logging (fixed interval)

  • Manual logging (key press)

  • Event / trigger-based (optional)

• Time Stamp:

  • Real Time Clock (RTC) with battery backup

4. COMMUNICATION INTERFACES

• RS232 Port:

  • 1 RS232 serial communication port

  • Baud rate selectable (e.g. 9, 600 / 19, 200 / 57, 600 bps)

  • Suitable for direct interface with PC / Laptop

• Optional:

  • RS485 or MODBUS RTU (optional version)

  • USB device port for direct PC connectivity (optional)

5. POWER SUPPLY

• Input Supply:

  • 12 V DC, 5 A (regulated SMPS)

• Power Adapter:

  • External AC-DC adaptor, input 230 V AC, 50 Hz, output 12 V / 5 A

• Power Consumption:

  • Typically < 25 W

6. MECHANICAL & ENVIRONMENTAL

• Enclosure:

  • MS / Aluminium powder-coated table-top enclosure or 19" rack-mount (as required)

• Dimensions:

  • Approx. 250 (W) 150 (D) 80 (H) mm (typical can be adjusted as per final design)

• Protection:

  • Front IP-50 (better protection versions on request)

• Operating Temperature:

  • 0 to 50 C

• Storage Temperature:

  • 10 to 60 C

• Humidity:

  • Up to 90% RH, non-condensing

7. SOFTWARE (PC INTERFACE)

• PC Software (Windows):

  • Real-time display of all channels

  • Numerical + trend graph for each channel

  • On-line and off-line data viewing

  • Export to Excel / CSV

  • File saving, report generation

• Connection to PC:

  • Via RS232 (or optional USB/RS485) using supplied cable / converter

8. CALIBRATION & CERTIFICATION

• Calibration:

  • 3-point / 5-point calibration per channel with engineering units

• Certificate:

  • Basic in-house calibration certificate supplied

  • NABL-traceable calibration certificate available on request (extra cost)

9. GENERAL

• Brand: NICTECH

• Make: GREENTECH SOLUTIONS, JAIPUR, INDIA

• Warranty: 12 months against manufacturing defects (from date of invoice)

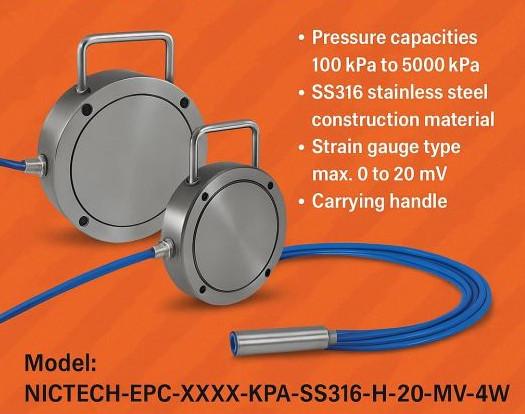

NICTECH Earth Pressure Cell Small Description

The NICTECH Earth Pressure Cell (Model: NICTECH-EPC-XXXX-KPA-SS316-H-20-mV-4W) is a high-precision strain-gauge-based sensor designed to measure total earth pressure in soil, embankments, retaining walls, foundations, and underground structures. Constructed from SS316 stainless steel with a rugged dual-diaphragm design, it ensures excellent long-term stability, corrosion resistance, and accurate pressure transfer using de-aired hydraulic fluid.

The sensor provides a 020 mV output, suitable for all standard dataloggers, and is equipped with a carrying handle for easy installation. Available in pressure ranges from 100 kPa to 5000 kPa, with diameters ranging from 150 mm to 300 mm, the Earth Pressure Cell delivers reliable performance in demanding geotechnical applications.
