Our Product / Services
We offer a complete product range of Cup Type Water Current Meter, Industrial Cut Throat Flume, FRP V Notch, FRP Cut Throat Flume and FRP Parshall Flume

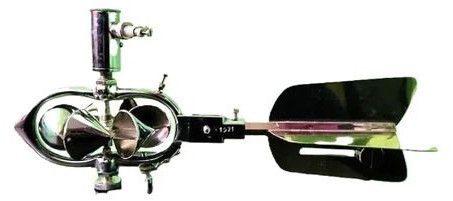

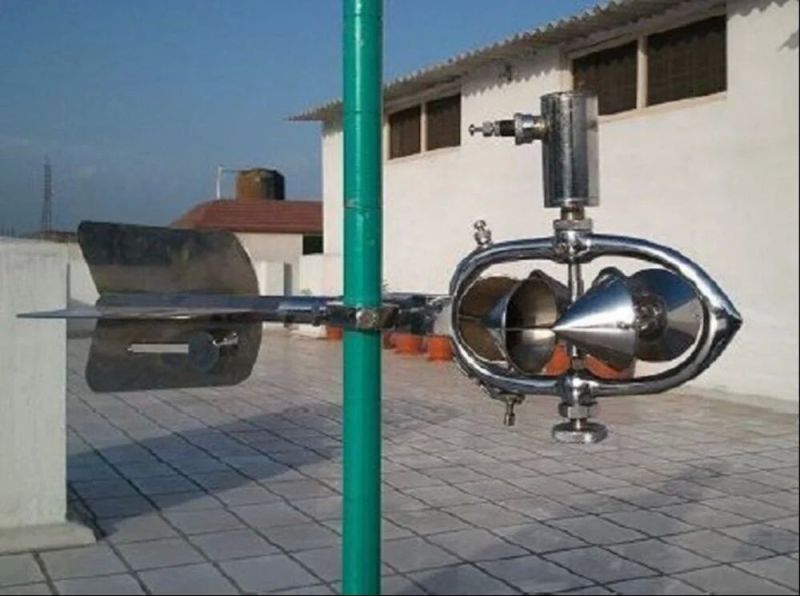

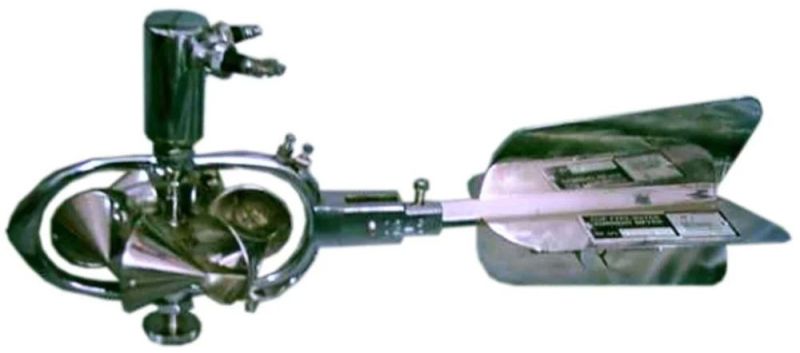

6 Cup Type Water Current MeterCurrent meter body: All parts of brass, chrome platedRates Spin Time: Test > 75 secondsOperating Range: 0.05 to 3.5 m/s (starting up to maximum operational velocity)Accuracy: For velocities up to 0.3 m/s +/-1 % Full Scale for velocities >0.3 m/s +/-0.5 % FS;Velocity Indicator: Digital Water Velocity Indicator DVI (Optional)Contact chamber: MagneticCup Diameter: 125mmInstrument case & Accessories:Suspension Wading Rod 1.2 Meter, marking in CM, Fish weight 10kg, Steel wire rope 10-meter-long, Electric Cable (Two Pin) 10Mtr Long.Flat Steel Rod, Cleaning Cloth, Instrument Oil, Screwdriver, Spanner, Nut Bolt, U- Clamp, Plumb bob with adopter plug (SS) Packing with 2 set. Sturdy wooden box for carry
Features :

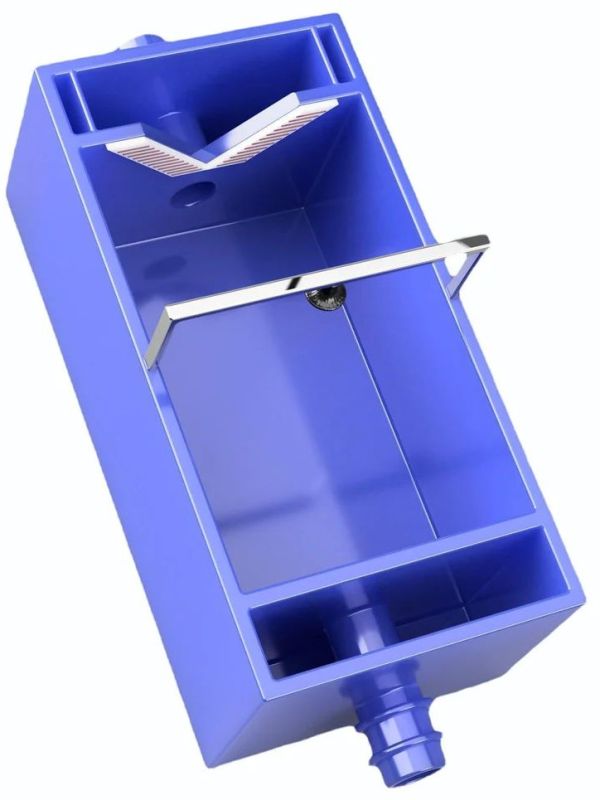

We are one of India’s well known manufacturers and suppliers of FRP V Notch. They are used to measure small discharge of seepage from drains and gallery of masonry dam. The V-Notch can measure discharge from 1 Lit / sec to 120 Lit / sec. maximum. V-Notches are superior are more accurate in measuring low discharges in comparison to flumes because head over the crest is large and thus flow remains unaffected by surface tension and viscosity. Though V -Notch has its limitations for using in field channel yet it is suitable for measurement of seepages from dam.
Features :
Specifications
| Sr. No. | Capacity | V-Section in Centimeter | Over all Plate Size in Centimeter |
|---|---|---|---|
| 1 | 15Lit/Sec. | 20x40 | 40x55 |
| 2 | 30Lit/Sec. | 25x50 | 50x65 |
| 3 | 45Lit/Sec. | 28x56 | 50x70 |
| 4 | 60Lit/Sec. | 30x60 | 50x75 |
| 5 | 90Lit/Sec. | 35x70 | 55x90 |
| 6 | 120Lit/Sec. | 42x84 | 60x100 |

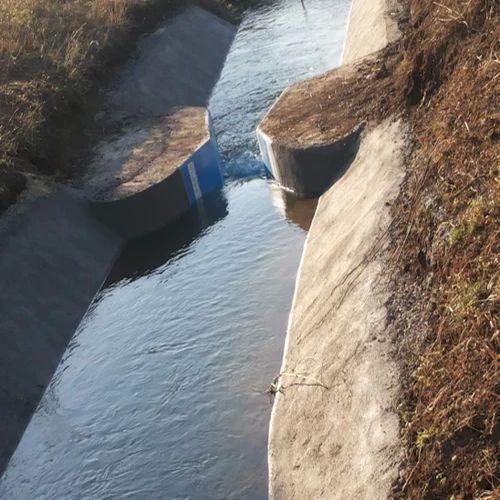

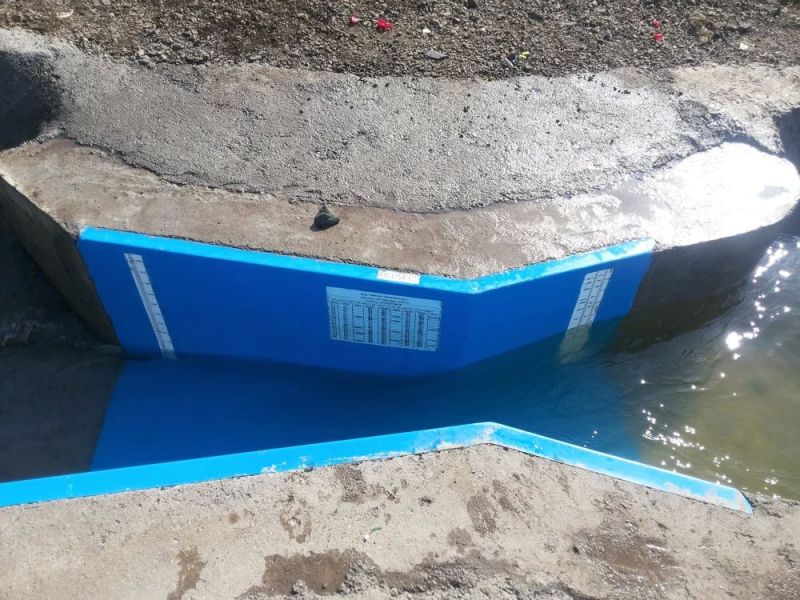

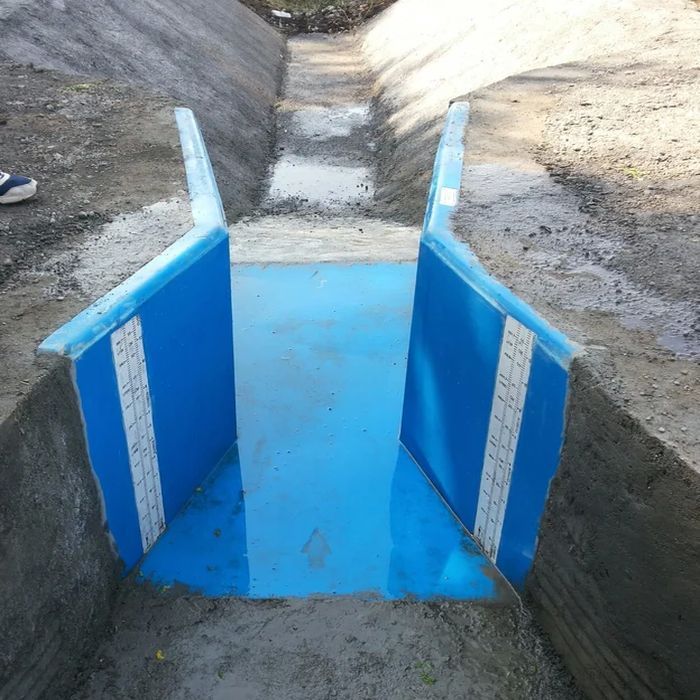

We are engaged in manufacturing and supply of FRP Flumes that are used in water FRP Flumes are designed and developed to perform according to BIS defined guidelines. The flumes are of superior quality and they deliver accurate results consistently. The FRP Flumes we make are offered with the guaranteed shelf life of 25 years. Cut Throat Flume has discharge capacity up to 80 cusecs. These are manufactured using qualitative material.
Features :
We Are Leading Supplier of Parshall Flume. There are many types of Cut Throat and Parshall Flumes in use as a convention made of Steel, Masonry, Concrete or other composite material like F.R.P., But due to adhered advantages of FRP flumes over others on dimensional accuracy, very low Manning’s coefficient, high weathering resistance, easy handling, and no resale value it has replaced all conventional ones
