Name: Hydro Flow Tech Engineers
Address: Plot No. 11, Sahadev Nagar, Gangapur Road, Nashik, 422007, India

Our Product / Services

Weather Instruments

We are leaders in the market for providing best range of Aluminum Wind Vane and Automatic Weather Station

₹ 8,500 / Piece Get Latest Price

Details :

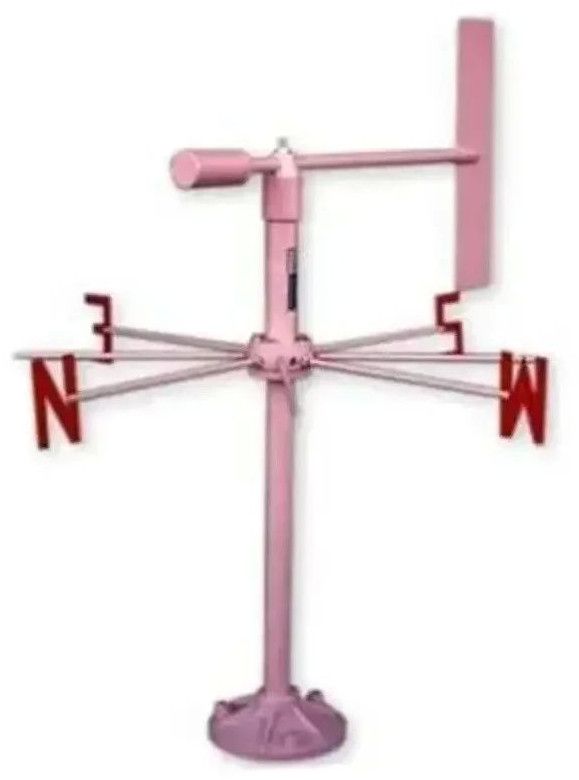

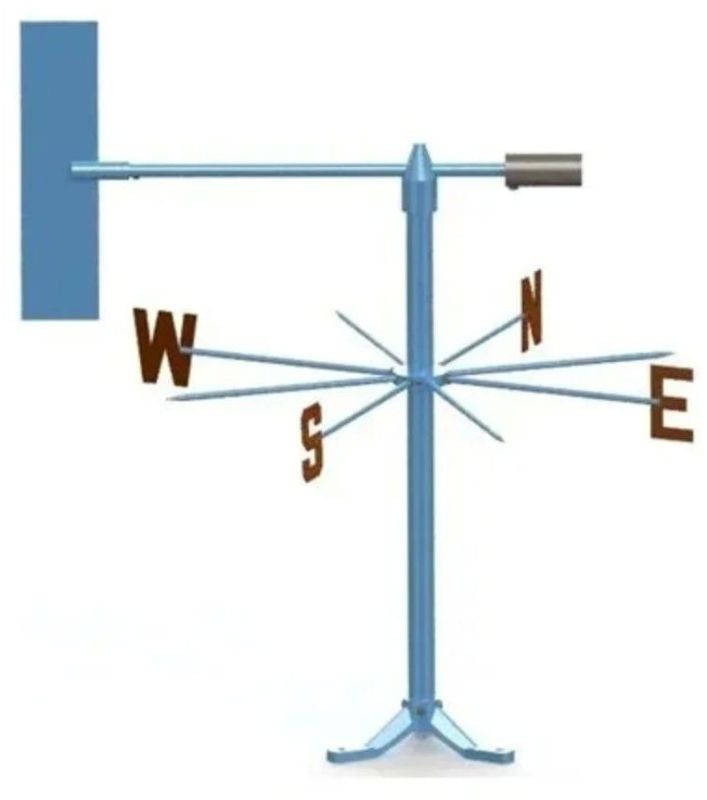

Wind Vane manufactured as per IS: 5799-1970 is used for wind direction. It is mechanical type and 8 direction rods are supported on suitable pipe treated into the base casting 4 direction arms, carry the letters N, E, S & W.
The aluminium material is used for the fabrication of the instrument so it may withstand permanent exposure in the open and has a long life. The fin is securely fixed to the horizontal arm at one end and on the other end of the arm counter weight is fixed in such a way that the complete assembly is accurately balanced about the spindle.
The horizontal arm is perfectly straight and the top end of the spindle projecting up from the horizontal arm is held firmly by a nut.
The bearing housing cap is locked to the spindle by a steel pin.
The base is cast from aluminium material and has three holes for taking the foundation bolts.
The external surface is suitably protected with primer and finishing paint.
The four directions letters N, E, S and W is painted with red colour.

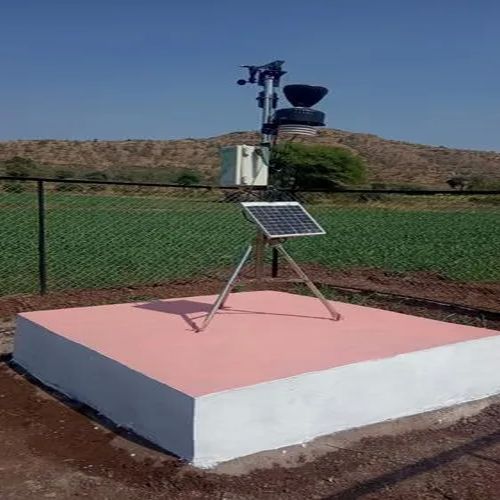

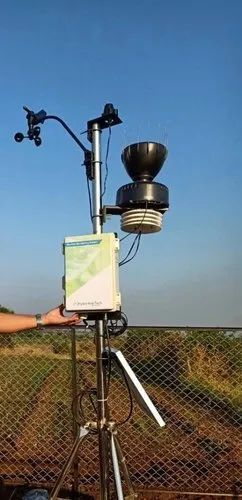

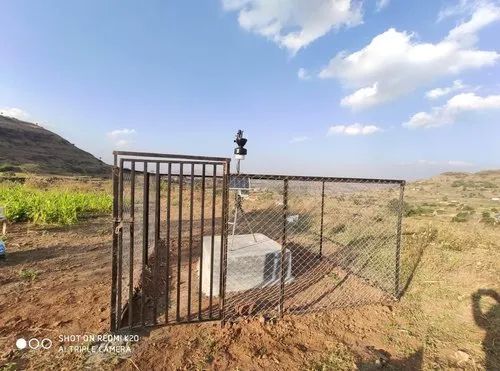

₹ 1.25 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Size Standard
Country of Origin India
Automation Grade Automatic
Voltage 12 V
Power Source Solar Energy
Height 6 Feet
Sensor Wind Speed, Wind Direction, Temperature, Relative Humidity, Rainfall, Solar Radiation, Barometric PR

Specifications :

Monitoring 9 Parameters –
Wind Speed, Wind Direction, Temperature, Relative Humidity, Rainfall, Solar Radiation, Barometric Pressure, Soil Moisture and Leaf Wetness
Powered By Solar Panel 12 Volt Batteries
Micro Controller Based System, 16 characters X 2 Lines display
Automatic GPRS based data transfer system to office from Site
Data Logging Through data shuttle also Included
Weather Proof enclosure
Tripod Tower 6 feet
Real Time clock Provided
Logging interval 1 min to 24 hrs
Easy to Use!!
