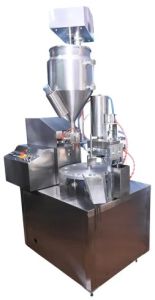

Tube Filling Machines are widely used in Pharmaceuticals as well as Cosmetic Industries. Kahan International have developed semi automatic rotary tube filling machine which gives maximum output upto 40 tubes per minute suitable to a medium scale...
Product , Contact Part : Stainless Steel 304 or 316 Grade
Empty Tube in feeder : Manual
Lami / plastic tube heating device : LEISTER or BAK Swiss Make, with suitable for Blower 0.35 HP. BLOWTECH Make. And hot air tool adopter jacketed water cooling system Attached, at the separate station. At the separate station.
Machine security : Overload clutch for centering and micro switch cut-off system.
Production Speed Control : Variable speed control Suitable VFD Drive makes DELTA.
Gear Box : Suitable Gear Box Ratio 30-1 Make PREMIUM/P.G. Drive with Separate Drive.
Output per Minute : Up to 35 Tubes/ Min. In Single Hopper One Nozzle (depending on the Fill sizes).
Machine Entire frame : Fabricated in Machine Entire frame Mild Steel With Powder Coated & will be in hard Chrome plated & duly ENP coated and all other cams and levers will be in graded casting & alloy steel. With all side covers in S.S.-304.
Change Part : Piston Pump Housing of 30gms to 100 gms, Tube Holder cups, Filling Nozzle, and Heating Adopter, of Removable type suitable for any one-size of tubes. With basic machine. will be provided
Control Panel : Necessary functional features like emergency stop, re-set, inching, and user friendly, Electrical logic system are standard with the machine, with interlock & indication on the main operator’s of panel to Electrical logic Control.
Salient Features ➤ Auto Feeding & Orientation of tubes with "I" mark Sensor. ➤ Contact parts made of S.S 304/S.S 316L. Quality material the conforms to CGPM Norms. ➤ LEISTER make Hotair tools for Lami Tube Sealing. ➤ No Tube no feeling...
Features : The pump unit has a vertical dosing system, which aids in easy suction.
The LIMBUS 150 is a twin-head mediumfast speed tube filler able to produce about 45, 000+ tubes per shift. Tubes have to be first manually transferred from the tube box, into the two cassettes on the machine. They are then loaded one by one into the holders on the turret. First...
