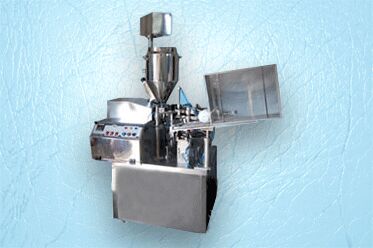

Fully Automatic Aluminium Tube Filling, Crimping, and Coding Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Salient Features ➤ Auto Feeding & Orientation of tubes with "I" mark Sensor. ➤ Contact parts made of S.S 304/S.S 316L. Quality material the conforms to CGPM Norms. ➤ LEISTER make Hotair tools....

View More Details

Send Enquiry

Company Information

Harish Pharma Engineering

Dahisar, Mumbai, Maharashtra

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Salient Features

➤ Auto Feeding & Orientation of tubes with "I" mark Sensor.
➤ Contact parts made of S.S 304/S.S 316L. Quality material the conforms to CGPM Norms.
➤ LEISTER make Hotair tools for Lami Tube Sealing.
➤ No Tube no feeling Device.
➤ Quickly change over from Lami to aluminum tubes within 10 to 15 minutes.
➤ Rotary type & compact design.
➤ Production counter available on control panel to indicate number of tube filled.
➤ Filling Accuracy + 1 %
Optional Accessories :
➤ Sealing & Crimping Types: Hot air/ hot jaw / ultrasonics, double triple & saddle type fold for metal tubes.
➤ Jacketed hopper & stirrer.
➤ Batch Coading Arrangement [ Male or Female ] Type is also provided.
➤ Transfers Pumps.
➤ Tube cleaning Attachment.

Technical Specification

Plastic & Lami	Aluminum	Combo	Combo
Output	40 to 45 Tube/per min	40 to 45 Tube/per min	40 to 45 Tube/per min
Filling Range	3 gm to 150 gm	3 gm to 150 gm	3 gm to 150 gm
Tube Diameter	10 mm to 50 mm	10 mm to 50 mm	10 mm to 50 mm
Operator	one	one	one
Power Consumption	5kw	1kw	5kw
Air Pressure	6 to 7 kg	6 to 7 kg	6 to 7 kg
Net weight	450	400	500
Gross Weight	555	500	600
Dimension	38"L x 36"W x 72"H	38"L x 36"W x 72"H	38"L x 36"W x 72"H
