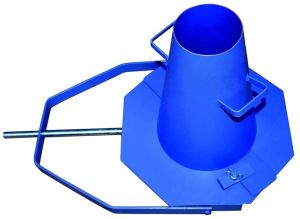

Slump cone test apparatus conforming to specifications and tolerance in accordance to I.S. 1199 and latest I.S.7320. Consists of a slump cone frustum in shape 10cm dia at top, 20cm at bottom and 30cm hight fitted with foot piece and handle, one...
Design Features : Base Has Cleats For Better Ground Grip,Positive Clamping Of The Cone To The Base,Swivel Handle Acts As A Datum For Measurement
Application : Lump Testing
Number Of Flower : Lump Test Apparatus, Slump Test Apparatus
Condition : New
Replaceable Parts : Slump Cone - 1 No.,Base Plate With Swivel Handle - 1 No.,Tamping Rod, Steel, 16 Mm Dia X 600 Mm, ISI Certified - 1 No.
Ordering Information : AIM 334 - Slump Test Apparatus With Testing Rod & Base Plate
Country of Origin : India
Type Of Slumps & Workability : 0 - 25 Mm, 0.75 - 0.80,25 - 50 Mm, 0.80 - 0.85,50 - 100 Mm, 0.85 - 0.92,100 - 150 Mm, > 0.92,Collapse, Not Applicable
Specification : It comprises of slump cone (Top dia100mm, Bottom dia 200mm and Height 300mm) with handles made of mild steel sheet, a chrome plated graduated tamping rod 16mm dia x 600mm long , rounded at one end and a hexagonal base plate
As per IS : 7320
Feature : High work capacity,Corrosion resistant,Completely tested
It is used for the determination of the consistency of freshly mixed concrete, where the maximum size of the aggregate does not exceed 38mm. The Apparatus consists of one slump cone with handles and foot pieces. The slump cone has internal dimensions 20cm. dia at base 10cm. top...
