Elemental Analyzer

Our Complete range of products are Carbon Sulphur Analyser, Flowcam 8000 Imaging Particle Analysis System, Laser Particle Size Analyzer, Integrated Sulfur Analyzer and Thermo Niton Portable Xrf Alloy Analyzers.

Carbon Sulphur Analyser

₹ 20 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Country of Origin India
Dimension 55x77x76cm(WxHxD)
High Frequency Induction Furnace LC: 0.0001% - 0.2% HC: 0.2%-6% LS: 0.0001% - 0.3% HS: 0.3%-30%
Tubular Resistance Furnace C: 0.01% -100% S: 0.005% -100%*
Sensitivity Carbon and Sulfur: 0.01ppm
Analysis Time 40-60 seconds -150-300 seconds
Power Supply 230VAC +/-10%, 50/60Hz, 16A
Chemical Reagent Magnesium perchlorate, CO2 absorbent
Specimen Weighting High Frequency Induction Furnace: 0.1g-0.5g Tubular Resistance Furnace: 400mg/coal
Power Gas Nitrogen or Compressed Air
Carrier Gas Oxygen 99.5%, 3L/min

NCS fully Automtic Carbon & Suphur Analyzer for highly accurate analysis of carbon and sulphur in Blast Furnace

View Complete Details

Ask Latest Price & Details

Flowcam 8000 Imaging Particle Analysis System

₹ 45 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Condition New
Country of Origin India
Magnification 20X, 10X, 4X, 2X
Camera Resolution 1920x1200 pixels, available in color and monochrome
Minimum Sample Volume 100 ul
Particle Size Range 2 um to 1 mm
Sample Processing Capability 0.05 mL/minute at 20X and up to 5 mL/minute at 2X
Frame Rate Shutters up to 120 frames per second
Fluidics Micro syringe pump with multiple sizes to optimize flow rates: 0.5 mL, 1 mL, 5 mL, 12.5 mL
Series 8000 Series
Data Acquisition Method Flowcam 8400 - Fluorescence Based Laser Triggering and Auto Imagingflowcam 8100 - Auto Imaging

Product Details :
The FlowCam 8000 series combines the benefits of digital imaging, flow cytometry, and microscopy into a single instrument. Count and analyze tens of thousands of particles per minute and see your subvisible particles with superior image quality.

Yokogawa Fluid Imaging Technologies manufactures industry-leading particle analysis instrumentation based on digital imaging technology. Our flagship product, the FlowCam, is the first automated particle analysis instrument to use digital imaging for measuring size and shape (including 40+ morphological characteristics) of microscopic particles in a fluid medium. With applications in oceanographic research, municipal water, biopharmaceutical formulations, chemicals, oil and gas, biofuels, and many other markets, the FlowCam continues to lead the way in imaging particle analysis.The FlowCam 8000 series represents the next generation FlowCam platform following the release of the VS.

System improvements include:

Larger field of view and faster camera to provide increased data throughput
Integrated auto-focus mechanism to simplify focusing and provide consistent, high-resolution images
Automated self-rinsing and self-cleaning cycles to reduce cross contamination and increase flow cell longevity
Redesigned optical path, high-powered laser and more sensitive PMTs to enhance fluorescence signal analysis
Interchangeable quick-connect flow cell holder to streamline operation
Autofocus capability
Compatible with the ALH - Automated Liquid Handler
Fluorescence emission and detection: excitation options (488nm, 532nm, 633nm) with 2 channel fluorescence detection
Equipped with our image analysis software

View Complete Details

Ask Latest Price & Details

Laser Particle Size Analyzer

₹ 15 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 piece
Country of Origin 220V
Size 650X380X720 MM
Power 2.6 KW
Condition New
Country of Origin India
Frequency 50 HZ
Display Size 7 Inch
Solvent Cup Volume 150 ml
Solvent Recovery >85%
Measuring Range 0.1-100%

Product Details :The BETTER SIZE Particle Size Analyzer is ideally suited to a typical laboratory environment, and can be configured in a variety of ways to fit your specific needs and application. The flexibility of FlowCam VS allows you to optimize the system for counting and sizing, superior image quality, and morphology characterization.

Choose the FlowCam^® VS Series for:

Analysis of particles from 2 µm to 2 mmFour magnifications (2 X, 4 X, 10 X, and 20 X) and various flow cell sizes available - you can easily alternate between multiple analytical ranges.
Flexible sample introduction and volume controlAccommodates sample volumes as low as 100 µL – and offers both discrete sampling and continuous, in-situ analysis.
High sampling efficiency & fast analysis timesCaptures particle images at up to 22 frames per second.
Unmatched access to your dataIntuitive Visual Spreadsheet® software captures over 30 measurements for each particle and provides extensive post-processing capabilities.
Download specs from website

View Complete Details

Ask Latest Price & Details

Integrated Sulfur Analyzer

₹ 7 Lakh / Piece Get Latest Price

Application Laboratory Use
Country of Origin India
Material Mild Steel
Voltage 220 V
Power 150 W
Frequency 50 Hz
Type Analyzer
Power Source Electricity
Display Digital Display

Integrated Sulphur Analyser for Coal and other organic compound for Industries and Coal based Thermal Plannts

View Complete Details

Ask Latest Price & Details

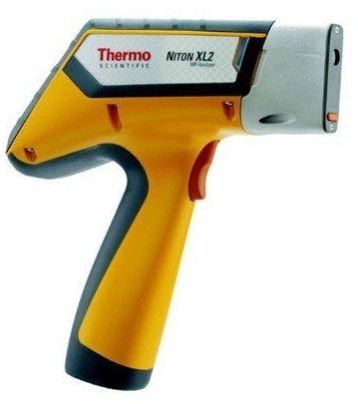

Thermo Niton Portable Xrf Alloy Analyzers

₹ 11.50 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Country of Origin India
Application Scrap Sorting
Total Carbohydrate 1 Year
Condition New
Model Name/Number Thermo Xlt Alloy Anaylser
Machine Type Portable
Detector Type SI-PIN/SDD
Item Code Genius-3000-XRF
Additional Features Waterproof, Dust Proof, Hazardous Elements Analysis Software
Safety Features Automatically X-rays Shut Off, Thicker Protective Wall
Elements Detected Ti, V, Cr, Mn, FE, Co, Ni, Cu, Zn, Se, Cd, Sb, Hg, Pb
Resolution <139eV
Screen HD Touch Screen (resolution 640x480)
Test Time 1-2 Seconds For Rapid Hand-held Analysis
Battery Life 8-hour Continuous Operation
Camera Built-in HD Camera

Product Details :-

The PORTABLE XRF/ALLOY ANALYSER is designed for on-site analysis in the wild, featuring small, light, precise, rapid, safe, convenient water proof and long standby time.

Features :- SCRAP SORTING AND GRADE ANALYSIS

Small power integral End-window miniature X-ray tube, large area beryllium-window silicon drift detector (SDD) (minimum resolution <139eV) and miniature Multi-Channel Digital Signal Processor, has significantly saved test time, improved the Detection Accuracy and reduced the errors, which enables the handheld analyzers to perform as Desktop Analyzers.
Small in size and easy to carry
Direct testing, Rapid & Non Destructive Detection. It can directly analyze on the surface of the analytes, without the need of preparing samples and huge size of the analytes. Only 1-2 seconds are necessary to perform rapid hand-held analysis. Even for fine bench-top measurement, the result can be given in just 10 seconds with accuracy close to laboratory measurements. No destruction to samples
Detection of Light elements
Built-in HD camera, supports more accurate positioning, achieving a precise testing to tiny particles like pin.
Built-in Intensify Calibration Method
Equipped with Hazardous elements analysis software. Combining FP with EC software, it is Easy for Operation and Acquiring wider application fields.
Built in system, HD touch screen (resolution 640??480), digital multi-channel technology and SPI Data Transmission, Accelerates Data Transmission and improves the counting ability.
Multiple Safety Protection are designed: 1) Automatically X-rays will be shut off in 2 seconds when there is no sample in place. 2) Radiation level is much lower than the international safety requirements. 3) Thicker protective wall.
Two Lithium batteries (7800 mAH) are provided with maximum capacity can support 8-hour continuous operation. Wide-voltage AC charger and car charger are provided to ensure the test anytime and anywhere.
Waterproof and Dust proof function provide the ability of working under high temperature and high humidity. Its body is made with high strength military material, which is moisture proof, anti-shock and pressure resistant.
Simultaneously it can detect the elements such as Ti, V, Cr, Mn, FE, Co, Ni, Cu, Zn, Se, Cd, Sb, Hg, and Pb. And it can detect more elements according to the customers??? requirements.

View Complete Details

Ask Latest Price & Details

Portable Handheld Xrf Alloy Metal Analyzer

₹ 12.50 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Application General Metal Analyser
Number Of Flower Portable Handheld XRF Alloy Analyzer
Country of Origin India
Display Type Digital
Packaging Briefcase
Item Code X 550

This is the latest State-of-the-art Portable Alloy Analyzer equipped with lates SDD detector for correcring light elements and can be configured for analyising non ferrous metals. It also provided Auto Shutter facility to protect the detecor damage due to pointed objects

Additional Information:
