Iza Analytics

Indraprastha Extension, Delhi

Product Details :-

SparkCCD 7000 spark emission spectrometer uses high-resolution linear CCD to perform full-spectrum scanning. It is widely used to analyze elements of a variety of base metal samples.SparkCCD 7000 is widely used for production process control and finished product lab testing in such fields as metallurgy, casting, machinery and metal processing. It can be used for chemical composition analysis of Ferrum, Aluminum, Copper, Nickel, Cobalt, Magnesium, Titanium, Zinc, Lead, Stannum, Silver and other metals and alloys. Instrument Characteristics 1. Multiple CCDs for full-spectrum scanning of spectral lines within available ranges; 2. Full-digital solid-state light source with excitation energy and continuously adjustable frequency, suitable for various materials; 3. Wide application fields, not limited by channels and matrixes of conventional instruments; 4. Single plate lens holder, greatly reducing contamination to light chamber during wiping; 5. USB or NET-based acquisition for better adaptability. 6. New isolation valve for stable and reliable operation to prevent oil in the vacuum pump from being drawn back to the light chamber. 7. Copper spark stand base with better heat radiation and durability. 8. Argon gas consumption low, only is 1/2-1/3 of inflatable type flush CCD spectrometer.

Vacuum optical system???

• Paschen-Runge mounting
• Not limited by testing channels
• 3648 single-chip CCD pixels
• Single pixel size is only 8μm

Product Details :
The Agilent Cary 630 FTIR spectrometer is versatile, innovative, and intuitive, providing superior quantitative and qualitative information for routine analysis of solids, liquids, and gases. With a wide range of sample interfaces and high performing optics, - including Agilents unique and revolutionary DialPath for measuring liquids - the compact Agilent Cary 630 FTIR will give you accurate results — fast. Weighing only 3.6 kg (8 lbs) and standing 15 cm (6 in) tall the Cary 630 has permanently aligned optics to simplify uptime, has snap and go modules to increase testing, and has easy-to-use technology that reduces training.

It’s the product requested by military, law enforcement and first responder users of older-generation Raman analyzers. We asked, “What do you want in your next generation Raman analyzer?” They said a) small and easy to use like a Smartphone, advanced libraries and algorithms for today’s explosives and ever-changing narcotics and cutting agents. Because the Chem-200 is Android-based it offers on board HazmasterG3 “so what does that mean” decision support software (English language only), more flexible accessories and sampling – all at nearly half the price of their existing Raman analyzers

Product Details :-
The halogen –free plan with the new round environmental protection tide is the afforested policy which is greatly promoted by International Green and Peaceful Organization and supported by numerous international environmental protection organizations and international large-scale companies. The European Union 2002/95/EC Instruction, “Montreal Protocol”, “the Stockholm Treaty” and the board material laws and regulations of National Electrician Committee (IEC) have restricted on the halogen material. And, IEC 61249-2-21 in IEC laws and regulations stipulates that the maximum limit of chlorine, bromine and the overall halogen is: bromine and chlorine is less than 900 ppm respectively; (bromine + chlorine) is less than 1500 ppm.Jiangsu Skyray Instrument Inc. specializes in high-performance X-ray Fluorescence Spectrometers in the world. EDX 3600 H, desktop, Non-halogen analysis spectrometer, introduced in 2009, is of high performance and high-technology halogen testing instrument. The technology, adopting the worldwide leading non-halogen analysis technology, equipped with the best intelligent vacuum system for non-halogen testing and using low energy X-ray to excite light element, thus solve testing problem of chlorine and bromine. The instrument can detect any products containing hazardous substance halogen. In addition, it can be used in all element and RoHS analysis. The instrument is of multi-functional and can meet the international newest standard.

Performance characteristics:

• Made in USA, halogen testing, X-ray tube of high efficient; the specification reaches the international advanced level.
• Special accessories are developed for testing halogen element (especially chlorine element)
• S100 detector, excellent energy linearity, energy resolution and energy spectrum characteristics. Higher peak-to-background ratio.
• Skyray instrument patent product- Signal-Noise-Enhancer (SNE) improves the signal processing ability up to 25 times.
• Low energy X-rays are used, delivering good results when exciting light elements such as CI, Br.
• Intelligent pumping vacuum system; shield air influence and enlarge testing scope.
• Auto spectrum stabilizer ensures the instrument working.
• High SNR electronic circuit unit
• Auto collimator and filter switch, exempt from trouble by manual.
• Spectrum unfolding technology decomposes the spectrum peak; ensuring CI, Br and other light elements testing have the equal analysis accuracy.
• Multiple linear regression, reducing the inter elemental absorption and enhancement effect
• In-built CCD with high resolution
• LCD makes the important parameter (tube voltage, tube current, vacuum) of the instrument obvious.

Application fields:

• Non-halogen testing All element analysis/RoHS testing/ Plating thickness

OES for the most accurate determinatio of alloying elements and pre-connfigured for differennt channel in Photomultiplier tubes as detectors for every element for highly accurate analysis in ppm levels

Product Details :

Introduction Thermo new generation Gas Chromatograph Mass Spectrometer(GC-MS) system offers high performance, high reliability, and low cost for customers of all types. Holding multiple patents, Thermo manufactures high quality , which is widely used in industrial inspection, food safety, environmental protection, etc.
Technical Specifications:

• Electronic pressure/flow control system (EPC/EFC) on ISQ 7000 improves baseline stability and sensitivity
• Patented EI filaments provide high efficiency of electron emission Pre-quad removes undesirable contamination before the main analytical quadrupole and decreases cleaning frequency
• High quality vacuum system combined with high energy dynode (HED) electron multiplier (EM) offer magnificent sensitivity Self-protector safeguards the system against the situations, which would normally damage expensive components and require significant repair
• Advanced digital compensation technology on Radio Frequency (RF) power supply guarantees satisfactory sensitivity and resolution over full mass range

Application Fields:

• Food safety and hygiene
• Industrial inspection
• Environmental protection
• Pharmaceutical development
• others

Sample Introduction System:

Includes a 12-roller 3-channel, computer-controlled peristaltic pump with automatically adjustable speed 0-125 rpm. The ICP-5000 is supplied with a standard glass concentric nebulizer and a glass cyclonic spray chamber, while HF-resistant nebulizer and spray chamber are supplied for high HF/salt content analytes.

ICP System:

The ICP system comprises of a free-running solid- state RF generator, a load coil, a demountable quartz torch and automatically controlled gas flow. The RF generator is continuously adjustable from 750 to 1350 watts (Dual), maximum up to 1600 watts (Radial). The coupling efficiency is greater than 80% with ≤ 0.1% variation in output power stability and ≤0.01% variation in output frequency stability. The RF generator produces an oscillating electromagnetic field at a frequency of 27.12 MHz. This radiation is directed to the load coil through which delivered to the torch. The argon gas flowing through the torch will form a plasma in the RF field. Plasma argon, auxiliary argon and nebulizer argon are regulated in a fully integrated gas flow and automatically controlled by MFC in 0.01 ml/min increments.

Spectrometer:

Polychromator : 2D Echelle Grating, 52.91 lines per mm and a blaze angle of 63.4 degrees. Thermostatted optics: The entire optical system is encapsulated in a thermostatted enclosure 36???±0.5??? and purged with argon or nitrogen gas (UV region). Recalibration: Spectra of Carbon, Nitrogen and argon elements are used for automatic wavelength calibration during ever y ignition of the plasma. Do not require either calibration solution or mercury /neon lamp that is free from calibration consumables or preheating of the lamp.

Detector:

The ICP-5000 features a megapixel Cryogenic area-array Charge-coupled Device (CCD) detector with unique back-illuminated technique results in average quantum efficiency greater than 75% in UV region. Three-level Thermo Electric Coolers (TEC) are equipped that can drive the cryogenic temperature down to -45???, cooling time 3 min. Anti-blooming of the detector is functioned in pixel level.

Software:

Qualitative, Semi-quantitative and quantitative analysis using full spectrum acquisition of all the detected elements and enhanced with a powerful SQL Server database ensuring integrity of raw data and traceability of operations. A spectra base of over 50, 000 lines, out of each line at least 30 pixels can be selected for detection. Multi-method interference correction includes standard comparison method, internal standard method, interference element correlation (IEC) and standard additions. Instrument calibration supporting plasma torch collimation, light source optimizing, etc. Operation procedure & status can be visually supervised in real time through a dynamic simulation display. Integrated functions for the operation of autosampler.

Plasma Viewing:

In a dual view type of ICP-5000, viewing of the plasma is accomplished by computer control of a mirror located in the optical path and allows selection of axial, radial or mixed viewing modes and adjustment of the plasma viewing in both the vertical and horizontal planes.

Additional Information:

• Item Code: ICP-5000

We are amongst the leading distributors of impeccable and reliable foreign brands offering a wide range of OES Spectrometer equipped with PMT or CCD based Detectors for any matrices required in Fe and Non-Fe metals eg. low alloy steels, SS, Cast Iron, Tool Steels, Al-Si Alloys, Al-Si-Mg Alloys, Brasse Bronze, Soldiers, Cu Alloys, Zamak Alloys, Lead/Battery Alloys, Inconel, Monel, Haste Alloys and Titanium Alloys etc.

In order to live up to this reputation, we engage in the utilization of high military grade raw materials and modern machines, in compliance with the set industry norms and guidelines. This ensures the excellent products performance and longer service life. Further, the range is quite reasonably priced.

Features:-

• Precise
• Accurate
• Extremely stable
• User friendly operation
• Almost zero down time
• High performance instrument
• Lowest possible maintenance
• Lowest possible running costs

Other Details:-

• We understand the importance of 'zero down-time' and the extent of damage caused due to instrument failure
• The analysis software (Analysis Suite) provided with the instrument is designed to be operated by a layman with little or no experience in working with computers The software is based on a 'control panel-like' interface which requires the operator to punch only a few 'buttons' to perform an analysis and print reports
• The 'Quanta-Spec OES has been launched only after extensive lab testing and exhaustive field trials so that our customers reap the benefits of high productivity
• NCS Model Spark CCD 6000 or LabSpark 750 PMT base OES is equipped with Vacuum optics for total inertness which can be configured for Nitrogen Analysis iSteel along with various other matrices to provide an exceptional performance upto 3-4 decimal detection for trace elements.

Specifications:-

• Weight and Dimensions: 35 kg (Approx), Instrument size 750 x 510 x 230 mm (W x D x H)
• Electrical Requirements: 230 V AC, 50 Hz Maximum 320 VAC
• Environmental Requirements: Operating temperature 5 to 37 degree C ( 40 to 95 degree F), Storage temperature -10 to 70 degree C (14 to 158 degree F)

Size: 750x510x230 Mm.

Product Details :-

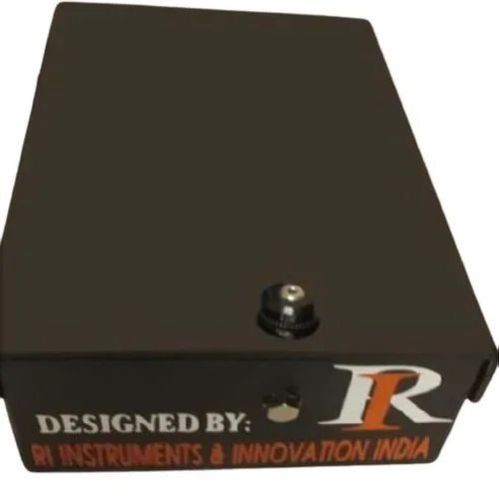

RIUS Universal Spectrometer is a latest State-of-the-art & Unique Spectrometer capable of Absorbance, Transmittance, Fluorescence and Irradiance measurement in a single instrument. Our product is extremely employed in Research & Q.C labs due to their versatility. compactness & extraordinary performance utilizing military grade components for longer life.

Features:-

• Absorbance, Concentration, Fluorescence & Irradiance measurement
• Affordable rate
• Flawless finish
• Durable nature
• Low maintenance
• Longer service life

ProductFeatures:-

• Achieve the highest sensitivity and precision Agilent iFunnel Technology, the new ion optics and detector design in the 6495 dramatically increase ion sampling, transmission and detection, enabling the highest peak area response, excellent peak area precision, and the lowest limits of detection and quantitation.
• Screen, confirm and quantify Triggered MRM (tMRM) combines fast and sensitive MRM quantitation with the generation of a product ion spectrum for library searching and compound screening and confirmation.
• Automate compound optimization Mass Hunter Optimizer software enables automated determination of compound MRM parameters in addition to source and iFunnel conditions.
• Fast MRM acquisition speeds and ion polarity switching An innovative collision cell eliminates cross-talk and enables 1 ms MRM dwell times, together with fast polarity switching, ensures compatibility with UHPLC analyses.
• Streamline method development Dynamic MRM (dMRM) simplifies method development and allows thousands of compounds to be quantified in a single method with optimal sensitivity and reproducibility.
• Compatibility with a wide range of ionization sources ESI, AJS, APCI, APPI, Multi-mode sources, and innovative HPLC-Chip technology for robust and ultra-sensitive quantitation with small sample volumes.
• Comprehensive and easy-to-use Mass Hunter Workstation software dramatically enhances productivity from method optimization, data acquisition to data processing and reporting

Additional Information:

• Item Code: TripleQuadrupoleLCMS

Hitachi coating thickness analyzer provides coating thickness of multilayers in ppm levels

Our RI-D2R Series Raman Spectrometers are developed by Research India’s Innovation group (RI Instruments & Innovation India) which applies in the field of Materials Science, Diamond Testing, Food Safety, Bioscience, Nanoscience, Forensic, Biotech, Environmental Sciences and more.
RI-D2R Series Raman Spectrometers allow the analysis of samples with a microscopic laser spot using a high-quality lens and filters. There are no fiber optic couplings used for the collection and excitation of signals, to minimize signal losses.“ Our philosophy is a collection of signals though direct-coupled optics”

Product Details :
Raise your expectations the new Agilent 7900 ICP-MS opens up a new dimension in ICP-MS. With 10 x higher matrix tolerance, 10 x wider dynamic range and 10x better signal to noise than the world’s bestselling 7700 ICP-MS Series, plus software so powerful that it can write your methods for you, the Agilent 7900 ICP-MS redefines ICP-MS. Again. The world’s most powerful and automated ICP-MS includes the industry\'s most effective helium collision mode for unsurpassed interference removal, ensuring superior data quality whatever your application. With every component engineered for performance and reliability, Agilents 7900 ICP-MS will put you on the path to success.

Plasma2000 has rich spectral lines, lower detection limit and more stable performance, capable of quick quantitative analysis for all metal elements and some nonmetal elements. It is widely used for element analysis in such fields as metallurgy, geology, material, environment, food, medicine, petroleum, chemical industry, biology and water quality.

Additional Information:

• Item Code: NCS2000
• Delivery Time: 2 months
• Packaging Details: Wooden

Product Details :
Introduction WDX Spectrometer is a powerful tool that has built in 9 fixed proportional Counter Detectors for the analysis of the elements you choose, with an amazing accuracy and 1 Si Pin Detector to test all other elements. With our simple software and technical capabilities, where most testing takes very long, our process is very simple because it incorporates both XRF methods in one. With a new multi channel digital processor, it has greatly improved the measurement accuracy and stability.

Technical Specifications

• Na, Mg, Al, Si, S, Cl, K, Ca, Fe, P or Ti (Fixed), S - U (EDXRF)
• Precision: 0.05% (24 Hours)/li>
• 400 W High Voltage Power
• Tube: 400 W Be end window X-ray Tube
• Gas Flow Proportional Detector + Sealed Proportional Detector
• Independent Vacuum Pumping Structure
• Multi-Channel MCA real-time detection system
• 10 paths of 1024-channel independent pulse height analyzer

What do you get?

• WDX-400 Wavelength Dispersive X-ray Fluorescent Spectrometer
• Necessary Wiring
• Computer + 20" Monitor - FREE
• Silver, Copper Standard Samples
• Proprietary Software - FREE
• 1 Year Limited Warranty

Product Details :
The Fibre Coupled Raman Spectrometer is optimized for maximum light throughput and high speed spectrum acquisition. Connected to an AFM or a scanning stage, high speed Raman imaging is possible due to an integration time down to 10 ms per spectrum. The spectrometer can be operated with a separate software as stand-alone device or synchronized via the Anfatec AFM software.

Features:

• Rotating motorized (single) grating
• Operation in the wavelength range from 400 nm to 1100 nm (with appropriate gratings)
• Resolution of 5 cm^-1 with a spectral window of 2100 cm^-1 at 532 nm
• High-speed imaging with an acquisition time down to 10 ms per spectrum
• Calibration lamp for spectrometer calibration or high precision measurements (see Software / Accessories)
• Software package for acquisition and data analysis of single spectra or Raman mappings (see Software / Accessories)
• Synchronization to Anfatec AFM software and Molecular Vista VistaScan (see VistaScope)

Product Description:

• Excellent performance / price ratio
• Advanced built-in graphite furnace power supply
• Can be equipped with a graphite furnace auto sampler
• Durable graphite tube, can be used for a long time at under 2000
• Maximum 20 segment graphite furnace temperature program
• Powerful software that features easy-to-use method parameter setup and advanced calibration curve fitting
• Unique background reduction design that allows for accurate analysis of high salinity, high background samples such as soy sauce, food, etc.

Product Details:

• Built-in computer data processing and liquid crystal display: A highly integrated PC-based digital circuits, stable and reliable. It has integral to maintain, peak height, peak area, automatic zero adjustment, deuterium lamp background deduction, a variety of linear and nonlinear curve fitting, the screen shows the various parameters and working curves, print reports and other functions, also with an external personal computer interfaces.

• Reliable baseline stability: dual-beam system of optimal design can compensate light source drift, wavelength drift caused by temperature changes (with the function of eliminating the baseline stability caused by wavelength drift) and the electronic circuit drift, therefore, has a reliable baseline stability.Cathode lamps can analyze sample immediately without long-term is firstly chosen equipment for users to analyze the various elements and rapid analysis of samples

• High precision: Gas system can ensure high precision of test and low concentration as it is equipped with sophisticated regulation, steady flow devices, the thin beam of unique designed running through the flamite is stable flame and low noise.

• High-energy light path: reflective optical system, the whole waveband achromatic. Transform optically the circular light beam into a long beam and run into the slit, thus enhancing the optical flux of two-beams.

• Long-life corrosion-resistant atomic system: combustion head is made of new titanium alloy material which is corrosion-resistant, fast heat balance , can achieve measurement sensitivity stability no water cooling.

• Multi-functional analysis mode: for methods of flame absorption, flame emission, graphite furnace atomic absorption and hydride generation.

• Safe and reliable gas system: fast gas switching and security guards, can make the analysis of air - acetylene flame as well as flame, expanding the elements to more than 60 species.

Performance:

• Working spectral band:190 nm-900 nm
• Wavelength accuracy:≤±0.5 nm
• Wavelength repeatability:≤0.3 nm(single direction)
• Spectrum bandwidth :0.1/0.2/0.7/2.0 nm automatically switch
• Baseline stability:≤0.004 Abs/30 min
• Background calibration ability: >30 times

Additional Information:

• Item Code: JK-AAS-320N
