Our Products

Other Products / Services #2395887

All Geared Cone Pulley Type Lathe Machine

Bed Type 2V & 2 Flat
No of Speed 8

Technical Specification

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

Metal Cutting Bandsaw Machine

Automation Grade Automatic / Semi Automatic
Blade Dimensions 3000x27x0.9mm
Coolant Pump 0.12/0.15 kw/hp
Job Feeding Hydraulic Shuttle Vice
Job Feeding Stroke 10 to 200mm

Specification Table

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

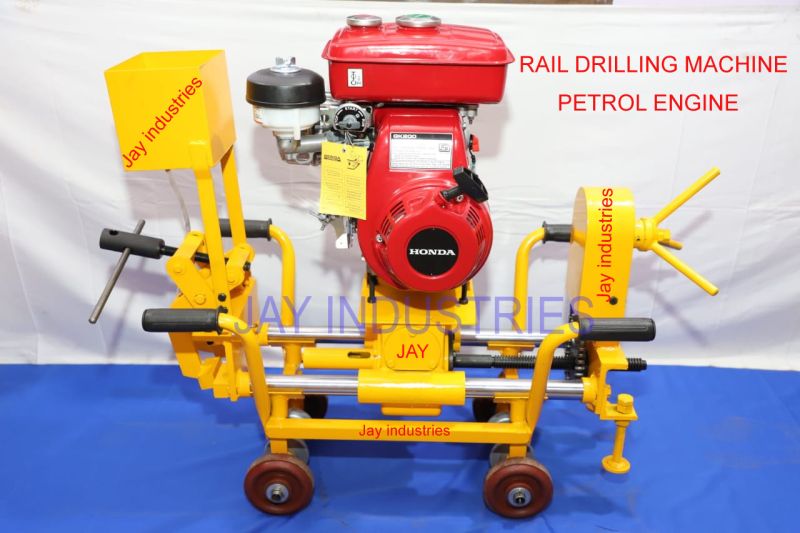

Rail Drilling Machine

Power 3 HP
Drilling Time 2 – 4 Minute
Man Power Required 2 Person
Drilling Cap. Upto 35 mm
Engine HONDA (Petrol)
Overall Weight 58 Kg.

View Complete Details

Ask Latest Price & Details

Slotting Machines

90,000 - 1.10 Lakh /piece Get Latest Price

Country of Origin India
Type Slotting Machines
Certification CE Certified, ISO 9001:2008
Weight 100-1000kg
Color Green
Voltage 440V
Condition New
Rated Power 3-5kw
Automatic Grade Manual
Driven Type Electric, Mechanical
Warrenty 1year
Brand Name JAY
Machine Type Vertical

Model: JIS305

Adjustable Stroke 10-305 mm
Longitudinal Movement 330 mm
Cross Movement 150 mm
Speed adjustment 3 Speed
Ram Adjustment 305 mm
Electric Motor 1.5 /2 HP (Extra)

View Complete Details

Ask Latest Price & Details

Backgeared Milling Cum Drilling Cum Tapping Machine 25mm Cap. (MCD25)

55,000 - 85,000 /piece Get Latest Price

Min. Order (MOQ) 1 Piece
Model MCD25
Drilling Cap. In M.S. 25 mm
End Milling Cap. 15 mm
Tapping Cap. 20 mm
Dia. Of RAM 72 mm
Spindle Travel (Z) 170 mm
Spindle Nose To Table Dis. 650 mm
Spindle Center to pillar surface Dist. 250 mm
Pillar (Column) Dia. 90 mm
Spindle Taper MT -3
Spindle Speed Ranges 8/ 110- 1750 RPM
Size of Table 600 x 250 mm
Longitudinal Travel (X) 410 mm
Cross Travel (Y) 350 mm
Machine Measurement 625x375x1150
Motor 1440 RPM 1 HP/ 1.5 HP
V-Belt Size B-52
T-Slot Size 14mm

View Complete Details

Ask Latest Price & Details

Automatic Drilling Cum Tapping Machine 25mm Cap. (JIP25T)

39,000 - 49,000 /Piece Get Latest Price

Min. Order (MOQ) 1 piece
Drilling Cap. In Steel 25 mm
Column Dia. 90 mm
Centre of Spindle to Column Face 250 mm
Max. Column to Table 600 mm
Max. Column to Base 980mm
Taper in Spindle MT-3
Spindle Travel 170mm
No. of Speed 8
Range of Speed 73 to 1800 RPM
Table Size 375x375mm
Base Size(Machined Area) 350x325mm
Overall Base SIze 625x420mm
Overall Height with Gaurd 1675mm
V-Belt Selection B-52
Elec. Motor-1440 RPM 1 HP/1.5 HP
Wooden Case Size 650x500x1525mm

View Complete Details

Ask Latest Price & Details

Tapping Machine

22,000 - 25,000 /piece Get Latest Price

Min. Order (MOQ) 1 piece
Weight 120 Kg.
Model (JIT12)
Tapping Cap. In M.S. 12 mm
Drilling Cap. In C.I. 8 mm
Spindle Travel 75 mm
Dist. Spindle to Column face 150 mm
Dist. Spindle To Base 450 mm
Dist. Spindle to Work Table 380 mm
Size of Work Table 225 x 225 mm
Size of Base Plaste 480 x 350 mm
Dia. Of Column 74 mm
V-Belt (inside) A-71
V-Belt for Motor (Outside) B-32
No. of Spindle Speeds 3
No. of Spindle Speeds (Forward) 350 /620/1100 RPM
No. of Spindle Speeds (Reverse) 420/745/1315
Motor (Single/Three Phase) 1 HP /230V/440V

View Complete Details

Ask Latest Price & Details

Radial Drilling Machines 40mm Capacity

1.05 Lakh /Piece Get Latest Price

Min. Order (MOQ) 2 Piece(s)
Type Radial Drilling Machines
Certification CE Certified, ISO 9001:2008
Weight 1000-2000kg
Color Green
Voltage 440V
Condition New
Rated Power 3-5kw
Automatic Grade Manual
Warrenty 1 Year
Country of Origin India
Brand Name JAY
After-Sales Service Provided yes
Drilling Speed 110-2400 RPM
Spindle MT - 4
Spindle travel 250 mm
Drilling Radius 990 mm ( 1 Meter )
Spindle Nose to Base 850 mm
Spindle RAM Dia. 78 mm
Column Dia. 170 mm
Working Base 700 x 700 mm
Box Table 300 x 300 x 500 mm

The company has cemented its presence among the prominent Manufacturers and Suppliers of JIR40 : 40mm Cap. Radial Drilling Machines in Gujarat, India. Designed and developed in sync with stated quality norms, our machines offer high strength and durability.

Additional Information:

Payment Terms : L/C, T/T

Delivery Time : 15 days

Specifications

Description	JIR40
Drilling In M.S.	40
Drilling In C.I..	45
Tapping Is M.S.	20
Spindle Hole Taper	MT-4
Spindle Travel	250
Spindle Speed (Rpm x Steps)	88-2600x8
Diameter Of Ram	78
Spindle Autofeed Ranges	Fine Feed
Max./Min. Dist. Spindle Nose To Base	850/250
Max./Min. Dist. Spindle Center to Column	920/385
Max. Drilling Radius	1005
Machine Measurement (LxBxH)	1350x850x1825
Diameter Of Column	170
Work Table	300x300x385
Drill-Head Motor	1.5Hp/1440 Rpm
Elevating Motor	0.5Hp/1440 Rpm
Head Motor V-Belt	B-46 /B-47
Lifting Motor V-Belt	B-23 / B-24

Features

Exclusive Feature Of R40 Series

A
- Oil Bath Lifting Assembly.
- Steel Worm Supported Ball Bearing At both Sides.
- Screw Supported Through Taper Roller Bearing

B
- Wide Supported Of Column, Column Braket & Arm
- Heavy Duty Lifting Screw Of 35mm Dia.

C
- Long Bottom For Greater Rigidity To Reduce Viration.
- Heavy Duty Column With Heavily Rtbbed Base Plate.

D
- 250mm Long Spindle Travel.
- 78 mm Steel RAM With 2.5 Module

E
- Greater Support Through Closed V – Guideways And Widen Drilling Head
- Better Design Of Arm For Higher Rigidy And Wide Support.

F
- Better Design of Arm For Higher Rtgidy And Wide Support

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

Universal Milling Machine

No. of Slots 3
Width of Slots 16 mm
Quil Travel 127 mm
Main Motor Power 3 HP

Technical Specification

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

Automatic Drilling Cum Tapping Machine 20mm Cap. (JIP20 T)

28,000 - 32,000 /piece Get Latest Price

Min. Order (MOQ) 1 piece
Drilling Cap. In M.S. 20mm
Drilling Cap. In C.I. 12mm
Column Diameter 74mm
Spindle Center to Column 200mm
Spindle Nose to Table Min/max 500/700mm
Taper in Spindle MT-2
Spindle Travel 125mm
No. of Speed 8
Range of Speed 87 to 3200RPM
Table Size 260x260mm
Base Size(Machined Area) 260x235mm
Overall Height with Fuard 1457mm
V-Belt A-42
Electrical Motor 0.50HP
Wooden Case Size(LxWxH) 700x400x1600mm
Standard Equipment Electro Control Taping Panel Motor Pulley/Drift Key
Optional Equipment Motor /Switch/V-Belt/Drill Chuck/Coolant Pump

View Complete Details

Ask Latest Price & Details
