Our Products

Pillar Drilling Machines #2395887

Pneumatic Feed Pillar Drilling Machine

Model JIP38T
Capacity Drilling Cap. In M.S. 38mm
Drilling Cap. In C.I. 50mm
Tapping Cap. In M.S. 25mm
Drilling Head Spindle Hole Taper MT- 4
Spindle Travel 250mm
Spindle Speeds ( RPM × Steps) 100-2650 × 8mm
Diameter of RAM 78
Feed Type Pneumatic Feed
Working Range Max. Dist. Spindle Nose to Table 560mm
Spindle Center to Column 306 (13 inch)
Table Size 450 × 450mm
Machine Measurement( L × W × H ) 500 × 500 × 1600
Column Diameter 120
Dist. From spindle Nose to Base 1050
Power Drill Head Motor 1.5 HP
V-Belt B-63

Features:

Handle Type Table Bracket Lock.
Hardened Spindle, Internally and Externally Grounded.
Spindle Rotates on Taper Roller Bearings.
Gears Made up of 25 Graded Cast and Balanced on High Precision Machine.
Threaded Spindle with Arbor Holding Nut.

View Complete Details

Ask Latest Price & Details

Pillar Drilling Machine 25mm Cap. (JIP25 X250)

30,000 - 36,000 /piece Get Latest Price

Min. Order (MOQ) 1 piece
Model JIP25x 250
Drilling Cap. In M.S. 32(mm)
Drilling Cap. In C.I. 35
Tapping Cap. In M.S. 20
Drilling Head Hole Taper MT-3 / MT- 4
Spindle Travel 170mm
Spindle Speeds ( RPM × Steps) 110-2650 × 8
Diameter of RAM 72
Feed Type Fine Feed
Working Range . Dist. Spindle Nose to Table 560
Spindle Center to Column 250 (10 inch)
Table Size 375 x 375
Machine Measurement( L × W × H ) 500 × 304 × 1600
Column Diameter 90
Dist. From spindle Nose to Base 950
Power Drill Head Motor 1 HP
V-Belt B-52

View Complete Details

Ask Latest Price & Details

Pillar Drill Machine Extra Heavy Duty 50mm Cap

98,000 - 1.14 Lakh /Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Country of Origin India
Type Pillar Drilling Machine
Certification CE Certified, ISO 9001:2008
Weight 500-600kg
Color Green
Voltage 440V
Condition New, New
Automatic Grade Manual
Power 3-6kw
Driven Type Mechanical
Warranty 1year, 1year
Brand Name JAY, JAY
Drilling Speed 80 - 2100 RPM
Model JIP 50
Capacity Drilling Cap. In M.S. 50 mm
Drilling Cap. In C.I. 60 mm
Tapping Cap. In M.S. 25 mm
Drilling Head Spindle Hole Taper MT- 5
Spindle Travel 255mm
Spindle Speeds ( RPM × Steps) 80-2650 × 8 mm
Diameter of RAM 87 mm
Feed Type Fine Feed
Working Range Max. Dist. Spindle Nose to Table 560 mm
Spindle Center to Column 375 mm
Table Size 500 x 500 mm
Machine Measurement( L × W × H ) 500 × 304 × 1600 mm
Column Diameter 150 mm
Dist. From spindle Nose to Base 950 mm
Power Drill Head Motor 2 HP
V-Belt C -73
Place of Origin BHAVNAGAR

50mm Capacity Heavy Duty Pillar drilling machine

15" inch Drilling Center.

500 x 500 mm Wide Working Table.

Heavy Duty Steel Gears.

Steel Gears Pillar Drilling machine.

Spindle MT - 5

View Complete Details

Ask Latest Price & Details

Pillar Drilling Machine Long Center 32mm Cap. (JIP32x385)

Model JIP32 x 385 (15 inch)
Capacity Drilling Cap. In M.S. 32
Drilling Cap. In C.I. 35
Tapping Cap. In M.S. 25
Drilling Head Spindle Hole Taper MT- 4
Spindle Travel 160mm
Spindle Speeds ( RPM × Steps) 100-2650 × 8
Diameter of RAM 75
Feed Type Fine Feed
Working Range Max. Dist. Spindle Nose to Table 560
Spindle Center to Column 385 (15 Inch)
Table Size 375 x 375 mm
Machine Measurement( L × W × H ) 500 × 304 × 1600mm
Column Diameter 90 mm
Dist. From spindle Nose to Base 1050
Power Drill Head Motor 1 HP /1.5HP
Power V-Belt B-64

View Complete Details

Ask Latest Price & Details

Pillar Drilling Machine 38mm Cap. (JIP38)

41,000 - 46,000 /piece Get Latest Price

Min. Order (MOQ) 1 piece
Model JIP38T
Capacity Drilling Cap. In M.S. 38
Drilling Cap. In C.I. 50
Tapping Cap. In M.S. 25
Drilling Head Spindle Hole Taper MT- 4
Spindle Travel 250mm
Spindle Speeds ( RPM × Steps) 100-2650 × 8
Diameter of RAM 78
Feed Type Fine Feed
Working Range Max. Dist. Spindle Nose to Table 560
Spindle Center to Column 306 (13 inch)
Table Size 450 × 450
Machine Measurement( L × W × H ) 500 × 500 × 1600
Column Diameter 120
Dist. From spindle Nose to Base 1050
Power Drill Head Motor 1.5 HP
V-Belt B-63

Features:

Handle Type Table Bracket Lock.

Handened Spindle, Internally and Externally Grounded.

Spindle Rotates on Taper Roller Bearings.

Gears Made up of 25 Graded Cast and Balanced on High Precision Machine.

Threaded Spindle with Arbor Holding Nut.

View Complete Details

Ask Latest Price & Details

Pillar Drilling Machine 35mm Cap. (JIP35x250)

32,000 - 36,000 /piece Get Latest Price

Min. Order (MOQ) 1 piece
Country of Origin India
Type Pillar Drilling Machine
Certification ISO 9001:2008
Weight 200-300kg
Color Green
Voltage 440V
Automatic Grade Manual
Power 1-3kw
Driven Type Mechanical
Brand Name JAY
Condition NEW
Warranty 12 months from the date of invoice
After-Sales Service Provided yes for 12 months
Drilling Speed 110RPM- 2800 RPM / 8 Speed
Model JIP35 x 250
Capacity Drilling Cap. In M.S. 35
Drilling Cap. In C.I. 40
Tapping Cap. In M.S. 20
Drilling Head Spindle Hole Taper MT- 4
Spindle Travel 250mm
Spindle Speeds ( RPM × Steps) 100-2650 × 8
Diameter of RAM 75
Feed Type Fine Feed
Working Range Max. Dist. Spindle Nose to Table 560
Spindle Center to Column 250 mm (10" inch)
Table Size 375 (Round)
Machine Measurement( L × W × H ) 500 × 304 × 1600
Column Diameter 90
Dist. From spindle Nose to Base 950
Power 1 HP / 1.5HP Drill Head Motor 1 HP / 1.5HP
V-Belt B-52

View Complete Details

Ask Latest Price & Details

Tell Us What are you looking for? Will call you back

Contact Us

Mr. Harshadbhai Solanki (Jay Industries)
Near Navdurga Transport, Rly. Station Road, Sutarwad, Bhavnagar, Gujarat - 364001, India
http://www.jaydrillingmachine.com
Share us via
Call 08048117364

Our Products

Pillar Drilling Machines #2395887

Pneumatic Feed Pillar Drilling Machine

Model JIP38T
Capacity Drilling Cap. In M.S. 38mm
Drilling Cap. In C.I. 50mm
Tapping Cap. In M.S. 25mm
Drilling Head Spindle Hole Taper MT- 4
Spindle Travel 250mm
Spindle Speeds ( RPM × Steps) 100-2650 × 8mm
Diameter of RAM 78
Feed Type Pneumatic Feed
Working Range Max. Dist. Spindle Nose to Table 560mm
Spindle Center to Column 306 (13 inch)
Table Size 450 × 450mm
Machine Measurement( L × W × H ) 500 × 500 × 1600
Column Diameter 120
Dist. From spindle Nose to Base 1050
Power Drill Head Motor 1.5 HP
V-Belt B-63

Features:

Handle Type Table Bracket Lock.
Hardened Spindle, Internally and Externally Grounded.
Spindle Rotates on Taper Roller Bearings.
Gears Made up of 25 Graded Cast and Balanced on High Precision Machine.
Threaded Spindle with Arbor Holding Nut.

View Complete Details

Ask Latest Price & Details

Pillar Drilling Machine 25mm Cap. (JIP25 X250)

30,000 - 36,000 /piece Get Latest Price

Min. Order (MOQ) 1 piece
Model JIP25x 250
Drilling Cap. In M.S. 32(mm)
Drilling Cap. In C.I. 35
Tapping Cap. In M.S. 20
Drilling Head Hole Taper MT-3 / MT- 4
Spindle Travel 170mm
Spindle Speeds ( RPM × Steps) 110-2650 × 8
Diameter of RAM 72
Feed Type Fine Feed
Working Range . Dist. Spindle Nose to Table 560
Spindle Center to Column 250 (10 inch)
Table Size 375 x 375
Machine Measurement( L × W × H ) 500 × 304 × 1600
Column Diameter 90
Dist. From spindle Nose to Base 950
Power Drill Head Motor 1 HP
V-Belt B-52

View Complete Details

Ask Latest Price & Details

Pillar Drill Machine Extra Heavy Duty 50mm Cap

98,000 - 1.14 Lakh /Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Country of Origin India
Type Pillar Drilling Machine
Certification CE Certified, ISO 9001:2008
Weight 500-600kg
Color Green
Voltage 440V
Condition New, New
Automatic Grade Manual
Power 3-6kw
Driven Type Mechanical
Warranty 1year, 1year
Brand Name JAY, JAY
Drilling Speed 80 - 2100 RPM
Model JIP 50
Capacity Drilling Cap. In M.S. 50 mm
Drilling Cap. In C.I. 60 mm
Tapping Cap. In M.S. 25 mm
Drilling Head Spindle Hole Taper MT- 5
Spindle Travel 255mm
Spindle Speeds ( RPM × Steps) 80-2650 × 8 mm
Diameter of RAM 87 mm
Feed Type Fine Feed
Working Range Max. Dist. Spindle Nose to Table 560 mm
Spindle Center to Column 375 mm
Table Size 500 x 500 mm
Machine Measurement( L × W × H ) 500 × 304 × 1600 mm
Column Diameter 150 mm
Dist. From spindle Nose to Base 950 mm
Power Drill Head Motor 2 HP
V-Belt C -73
Place of Origin BHAVNAGAR

50mm Capacity Heavy Duty Pillar drilling machine

15" inch Drilling Center.

500 x 500 mm Wide Working Table.

Heavy Duty Steel Gears.

Steel Gears Pillar Drilling machine.

Spindle MT - 5

View Complete Details

Ask Latest Price & Details

Pillar Drilling Machine Long Center 32mm Cap. (JIP32x385)

Model JIP32 x 385 (15 inch)
Capacity Drilling Cap. In M.S. 32
Drilling Cap. In C.I. 35
Tapping Cap. In M.S. 25
Drilling Head Spindle Hole Taper MT- 4
Spindle Travel 160mm
Spindle Speeds ( RPM × Steps) 100-2650 × 8
Diameter of RAM 75
Feed Type Fine Feed
Working Range Max. Dist. Spindle Nose to Table 560
Spindle Center to Column 385 (15 Inch)
Table Size 375 x 375 mm
Machine Measurement( L × W × H ) 500 × 304 × 1600mm
Column Diameter 90 mm
Dist. From spindle Nose to Base 1050
Power Drill Head Motor 1 HP /1.5HP
Power V-Belt B-64

View Complete Details

Ask Latest Price & Details

Pillar Drilling Machine 38mm Cap. (JIP38)

41,000 - 46,000 /piece Get Latest Price

Min. Order (MOQ) 1 piece
Model JIP38T
Capacity Drilling Cap. In M.S. 38
Drilling Cap. In C.I. 50
Tapping Cap. In M.S. 25
Drilling Head Spindle Hole Taper MT- 4
Spindle Travel 250mm
Spindle Speeds ( RPM × Steps) 100-2650 × 8
Diameter of RAM 78
Feed Type Fine Feed
Working Range Max. Dist. Spindle Nose to Table 560
Spindle Center to Column 306 (13 inch)
Table Size 450 × 450
Machine Measurement( L × W × H ) 500 × 500 × 1600
Column Diameter 120
Dist. From spindle Nose to Base 1050
Power Drill Head Motor 1.5 HP
V-Belt B-63

Features:

Handle Type Table Bracket Lock.
Handened Spindle, Internally and Externally Grounded.
Spindle Rotates on Taper Roller Bearings.
Gears Made up of 25 Graded Cast and Balanced on High Precision Machine.
Threaded Spindle with Arbor Holding Nut.

View Complete Details

Ask Latest Price & Details

Pillar Drilling Machine 35mm Cap. (JIP35x250)

32,000 - 36,000 /piece Get Latest Price

Min. Order (MOQ) 1 piece
Country of Origin India
Type Pillar Drilling Machine
Certification ISO 9001:2008
Weight 200-300kg
Color Green
Voltage 440V
Automatic Grade Manual
Power 1-3kw
Driven Type Mechanical
Brand Name JAY
Condition NEW
Warranty 12 months from the date of invoice
After-Sales Service Provided yes for 12 months
Drilling Speed 110RPM- 2800 RPM / 8 Speed
Model JIP35 x 250
Capacity Drilling Cap. In M.S. 35
Drilling Cap. In C.I. 40
Tapping Cap. In M.S. 20
Drilling Head Spindle Hole Taper MT- 4
Spindle Travel 250mm
Spindle Speeds ( RPM × Steps) 100-2650 × 8
Diameter of RAM 75
Feed Type Fine Feed
Working Range Max. Dist. Spindle Nose to Table 560
Spindle Center to Column 250 mm (10" inch)
Table Size 375 (Round)
Machine Measurement( L × W × H ) 500 × 304 × 1600
Column Diameter 90
Dist. From spindle Nose to Base 950

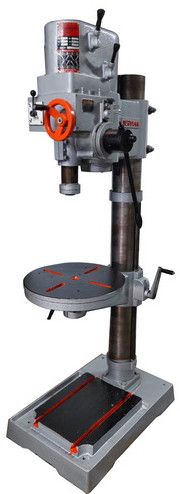

Power 1 HP / 1.5HP Drill Head Motor 1 HP / 1.5HP
V-Belt B-52

View Complete Details

Ask Latest Price & Details

Tell Us What are you looking for? Will call you back

Contact Us

Mr. Harshadbhai Solanki (Jay Industries)
Near Navdurga Transport, Rly. Station Road, Sutarwad, Bhavnagar, Gujarat - 364001, India
http://www.jaydrillingmachine.com
Share us via
Call 08048117364
