We are leaders in the market for providing best range of Vibrating Table and Vibratory Compaction Vibrating Table
Description and Specification for Lab Tenders
Vibrating Table.
The Vibrating Table is used for compacting concrete cubes and cylinders. Salient Features Specifications: It is designed to carry a load of 140 kg.
Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet. The vibrations are imparted by means of off-balance masses rotating on a shaft of a vibrator clamped to the underside of the table top. The table top is 50cm x 50cm. and has stops along its edges to prevent moulds from walking off the table during vibration. A cross arm adjustable on a vertical rod at the center of the table is provided to hold the moulds while operating the table. The variable pitch pulley arrangement permits the frequency to be varied steplessly between a maximum of 3600 vibrations per minute. A speed regulation handle is provided for increasing or decreasing the frequency. A switch is provided for starting the motor, suitable for operation on 440 volts, 3 phase, 50 cycles, A.C.supply. Vibrating Tables of table top size 75cm x 75cm as well as 100cm x 100cm are also available. civil lab equipments manufacturers
Description and Specification for Lab Tenders

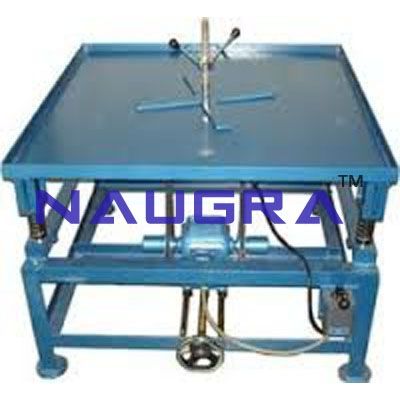

Vibratory Compaction Vibrating Table.
Technical Description The table top is 500mm x 500mm size and has stops along its edges to prevent moulds from sliding off the table during operation. Same as but with table top 2m x 1m Same as but with table top 1m x 1m
Geotextile Technology & Concrete Technology Lab equipment manufacturers, exporters and Geotextile Technology & Concrete Technology Lab suppliers
