Permeability Apparatus (Falling Head Permeability).

The apparatus is used for the laboratory determination of permeability of soil using a constant or a variable head.

This test is recommended for soils with co-efficient permeability in the range of 0 10-3 to 10-7 cm/sec. The maximum particle size of the soil which can be tested in the mould is 10mm. Specification :The equipment comprises one each : Gun metal mould, 100mm I.D. x 127.3mm high x 1000ml Volume. Gun metal mould extension collar, 100mm dia x 60mm high for the above mould. Gun metal drainage base plate with a recess for a porous stone. civil lab equipments manufacturers

Soil Testing Lab equipment manufacturers, exporters and Soil Testing Lab suppliers

Description and Specification for Lab Tenders

Consolidation Apparatus (Three Gang Model).

The Flexure Strength Testing are designed to test flexural strength of concrete beams.

The design provide maximum rigidity throughout their working range. The load is applied by the downward movement of the piston. A spacer is for testing different size of beams. The load is indicated on a calibrated bourdon tube type load gauge of range: 0 - 100 kN x 0.5 kN (0- 1O, 000 kgf x 50 kgf). The load gauge is calibrated against National Council for Cement and Building Materials Certified Proving Ring. Flexure Testing Machines1. Light weight, rugged high strength frame2. Double action hydraulic pump3. Self-aligning roller assembly4. Hydraulic jack provided with retraction spring5. For testing beams of 100 x 100 x 500mm and 150 x 150 x 700mm6. Conforms to IS 516, BS 1881 and ASTM C 78 Two Models are available but consists of 3 consolidation test assemblies mounted on a single frame. Complete with 3 sets of Consolidation cell assembly for 60mm dia samples and three sets of weights each giving 10 kg/sq.cm. On each sample. civil lab equipments manufacturers

Soil Testing Lab equipment manufacturers, exporters and Soil Testing Lab suppliers

Description and Specification for Lab Tenders

Pore Pressure Apparatus 10kg/cm2.

Specification:The apparatus consists of a panel for wall mounting on which are fitted 1.0 to 10kg/cm sq x 0.1kg cm. sq. a pressure gauge, bourdon tube type 15 cm dia.

Manometer: Glass u-tube manometer for measuring low positive pore pressures negative pore measures and checking zero error of pressure gauge. It is provided with a mercury trap (mercury supplied at extra cost.) Null indicator made out of clear transparent Perspex with mercury trap and cursor to indicate the mercury level. Burette : 50ml burette for measuring the volume change in the soil specimen. Pressure pump fitted with four sleeve packed valves, operated by means of a hand wheel on the end of the piston rod which is threaded through the pump cap and gives a smooth, fine adjustment of pressure. Copper coil and water reservoir is fitted on board with complete stand assembly. The unit is tested against leaks up to 10kg/cm sq. civil lab equipments manufacturers

Soil Testing Lab equipment manufacturers, exporters and Soil Testing Lab suppliers

Description and Specification for Lab Tenders

Swell Test Apparatus.

It is designed to determine the swelling pressure developed by soil specimens moulded to desired densities at knows moisture contents when soaked in water.

The load applied to restrain the swelling is transferred to a load measuring proving ring through a perforated swell plate and a load transfer bar. The proving ring is attached to the lead screw of hand operated load frame. A soaking tank is provided for saturating the specimen and the base of the mould has channels and radial grooves with connecting holes it consists one each of : 1.Load Frame, Hand Operated, Capacity 50 KN (5, 000 kgf) 2.Mould, 100mm dia x 127.3mm height (1, 000ml volume) with base plate and collar 3.Proving Ring, with integral boss, high sensitivity 2.5KN (250 Kgf) capacity 4.Dial Gauge , 25mm travel, 0.01mm least count Lid & receiver in G.I. frame for 300mm dia x 450mm dia sieves 5.Perforated swell plate, 100mm dia x 16mm thick 6. Spencer, 100mm dia x 12.7mm thick 7. Pair of Porous stones, 100mm dia x 12.7mm thick 8. Load Transfer Bar 9. Steel Ball 10. Soaking Tank, 250mm dia x 210mm high. civil lab equipments manufacturers

Soil Testing Lab equipment manufacturers, exporters and Soil Testing Lab suppliers

Description and Specification for Lab Tenders

Plate Bearing Test Apparatus.

We are engaged in manufacturing and supplying Plate Bearing Test Apparatus, which is used for estimating the bearing capacity of shallow foundations in situ and for the design of flexible pavement.

This test is a standard technique fro determining bearing capacity of soils and is used in agriculture, defense, education, geophysical/ seismology, irrigation and mining industry. Dynamic Cone Penetrometer (DCP) It is used for rapid in-situ measurement of the structural properties of existing road pavement constructed with unbound materials.The unit incorporates an 8 Kg weight having a drop of 575 mm, fitted to end of the shaft is a 20 mm diameter cone. With the standard DCP measurements can be made down to a depth of approximately 850 mm.Reading are taken after a set number of blows, changing the number according to the strength of layer being penetrated. For good granular bases, readings every 5-10 blows are satisfactory, but for weaker sub-base layers and sub grades, readings every 1-2 blows may be appropriate. civil lab equipments manufacturers

Soil Testing Lab equipment manufacturers, exporters and Soil Testing Lab suppliers

Description and Specification for Lab Tenders

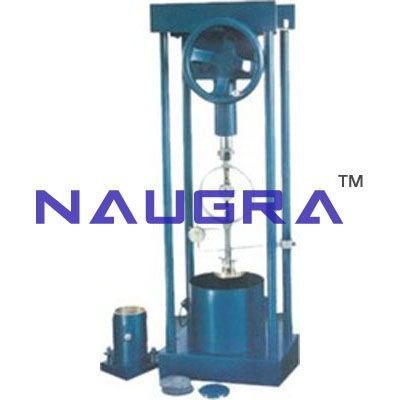

Swell Pressure Apparatus.

With the help of our state-of-the-art infrastructure and experience of our experts, we have been able to manufacture a wide range of Swell Pressure Apparatus, which is provided with high sensitivity proving ring, 2.5 KN or 5 KN fitted with 0.002 mm dial gauge with certificate in a nice wooden carrying case.

These are catering to the requirements of construction, defense and agriculture industries. Consists of one Load Frame, hand operated 50 KN one swell mould, 100mm dia x 127.3 mm ht x lOOOc.c. volume with base plate and collar., one Perforated Swell Plate 100 mm dia x 16 mm thick, one spacer 100 mm dia x 12.7 mm thick, two porous stones, one transfer bar, one steel ball and one Soaking Tank, 250 mm dia x 210 mm high. Without dial gauge and proving ring.Accessories:High sensitivity proving ring, 2.5 KN or 5 KN fitted with 0.002 mm dial gauge with certificate in a nice wooden carrying case.Dial gauge 0.01 mm x 25 mm travel. civil lab equipments manufacturers

Soil Testing Lab equipment manufacturers, exporters and Soil Testing Lab suppliers

Description and Specification for Lab Tenders

CBR Test Apparatus (Hand Operated).

This apparatus comprises of : A hand operated load frame 50kN capacity. A mould of 150 mm. I.D. x 175 mm. high with clamping lugs complete with extension collar and perforated base plate made of gun metal. A cutting collar to fit mould body.

A penetration piston assembly of 50 mm. diameter and a bracket for the dial gauge. A perforated swell plate of 148 mm. diameter with an adjustable stem and lock nut. A circular spacing disc of 148 mm. diameter x 47.7 mm. high complete with a removable `T' handle. A metal tripod for the dial gauge. Surcharge weight : annular 2.5 kg., 147 mm. diameter. Surcharge weight : slotted _ 2.5 kg., 147 mm. diameter. civil lab equipments manufacturers

Soil Testing Lab equipment manufacturers, exporters and Soil Testing Lab suppliers

Description and Specification for Lab Tenders

California Bearing Ratio Test (Field Type).

To know C.B.R. Values in situ, it is useful in determining the load carrying capacity in the field when in-place density and water contents are such that the degree of sturation is 80 % or greater,

when material is conhensionless and coarse grained, such that it is not effected by changes in water contents and when the material has been in-place for considerable time. The loading is effected by means of a mechanical load frames which can be fixed to the under side of a truck. Salient Features Specifications : Mechanical screw loading jack, 10, 000 kg. capacity with U-bracket and swivel head. Penetration piston, 50 mm dia. threaded at the upper end. Extension rods consisting of 2 lengths 5 cm. 2 lengths 10 cm., 1 length 30 cm., 1 length 50 cm., and 1 length 100 cm., used as spacers between the proving ring and penetration piston. The lengths are machined from steel tubing. Connector set, has eight connectors for coupling the penetration piston and proving ring assembly either directly or through extension pieces. Dial gauge support of seamless pipe construction. It stands 30 cm high and 45 cm wide at the base. Provided with a quick release screw type clamp capable of sliding and locking anywhere along 2 meter length of the bridge. Supplied with annular metal weight 5 kg., 250 mm dia with 53 mm dia central hole, Slotted metal weight 5 kg., 215 mm to 250 mm dia with 53 mm dia slot, 2 Nos. Slotted metal weights, 10 kg., 215 mm to 250 mm dia with 53 dia slot 2 Nos. civil lab equipments manufacturers

Soil Testing Lab equipment manufacturers, exporters and Soil Testing Lab suppliers

Description and Specification for Lab Tenders

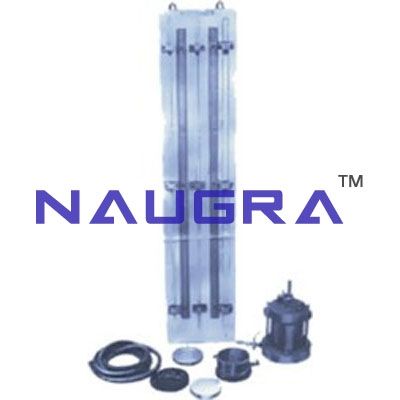

Universal Or Combination Permeameter.

Specifications : Same as above but instead of a set of three glass stand pipes a stand with nine glass tubes of 6 mm, 10 mm, 20 mm, 25 mm, 40 mm, 50 mm, 60 mm, 70 mm, 75 mm bore. 75 mm bore tube is provided with overflow arrangement for constant head tests.

The remaining tubes are used for following head test. Salient Features Optional : Overhead tank made of steel, approximately 37.5 cm dia x 1 mtr. high. it is provided with an inlet port at the top and size outlet at bottom with cocks and air inlet and water filling ube on top. An arrangement is provided to indicate the water level. An extra meralic tube having approximately 5 mm / 6 mm I.D. and 1 mtr. long is also supplied 2.6 kg x 310 mm controlled fall and Rammer 4.89 kg x 450 mm controlled fall. Spares : Pair of top and bottom Porous stones for permeameter mould. civil lab equipments manufacturers

Soil Testing Lab equipment manufacturers, exporters and Soil Testing Lab suppliers

Description and Specification for Lab Tenders

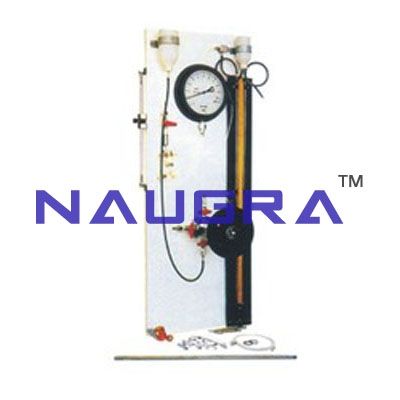

Pore Pressure Apparatus.

This apparatus is used for measuring pore water pressure and pore air pressure in soils.

This is as per the principals outlined in the book "Measurement of soil properties in triaxial tests" by AW Bishop and D.J.Henkel. This is used as a naccessory for triaxial test apparatus. Salient Features Specifications : The apparatus consists of a panel for wall mounting on which are fitted -1.0 to 20 kg/cm2 x 0.1 kg/cm2 a pressure gauge, Bouron tube type 20 cm dia. Manometer: Glass U-tube manometer for measuring low positive pore pressures negative pore pressures and checking zero error of pressure gauge. It is provided with a mercury trap (Mercury supplied at extra cost). Null indicator made out of clear transparent perspex with mercury trap and cursor to indicate the mercury level. Burette : 50 ml Burette for measuring the volume change in the soil specimen. Pressure pump fitted with four sleeve packed valves. Operated by mean of a hand wheel on the end of the piston rod which is threaded trough the pump cap and gives a smooth, fine adjustment of pressure. Copper coil and water reservoir. The unit is tested against leaks upto 10 kg/cm.sq. civil lab equipments manufacturers

Soil Testing Lab equipment manufacturers, exporters and Soil Testing Lab suppliers

Description and Specification for Lab Tenders

Aggregate Crushing Value Apparatus.

Consists of M.S.Cylindrical container 150mm 0.5mm dia x 130mm to 140mm high with base plate 200 to 230 mm.sqr x 6mm thick.

Material Testing Lab equipment manufacturers, exporters and Material Testing Lab suppliers A plinger of 148mm 0.5mm dia x 100 to 115mm high. Supplied complete with tamping rod, 16mm dia x 600mm long, one end rounded. 1 No. Metal measure 115 0.5mm dia x 180 0.5mm high. civil lab equipments manufacturers

Description and Specification for Lab Tenders

In flexible pavement construction, bitumen binders are used. It is important that bituminous material forms ductile thin film around the aggregates, .Bitumen-Asphalt Testing Lab equipment manufacturers, exporters and Bitumen-Asphalt Testing Lab suppliers Which serves as a binder. The binder material not of sufficient ductility render spervious pavement surface and leads to development of cracks. Therefore it is important to carry out the ductility tests on bituminous material. Ductility is defined as distance in cms to which a standard briquette of bitumen can be stretched before the thread breaks. The briquette is stretched at a rate of 50mm/minute 25mm per minute at a temperature of 27C 0.5C. Salient Features: The apparatus consists of a water bath with a thermostatic heater, and a circulating pump to maintain uniform water temperature. One half of the briquette molds is fixed on a fixed plate in the water bath, the other half of the briquette mold is fixed to a carrier which slides over a rotating threaded shaft with a clutch. The motor and gears to rotate the shaft are housed in a cabinet fixed above the other end of the bath. A pointer fixed to the carrier moves over a scale graduated from 0-110 cm x 1mm fixed on the bath with 0 (zero) of the scale towards the fixed plate side. The rotating shaft has 2 speeds of travel for the bracket, 5cm/min and 1 cm/min., selected by a clutch. Water bath inside is aluminum, it is an insulated water bath. Water bath is provided with a drain. A heater with thermostatic control is fixed inside the water bath. Control switches for motor, stirrer, heater and indicator lamps are fixed at a convenient place on the water bath, complete with three briquette molds and one base plate, all made of brass. Operates on 230 volts A.C. single phase. Accessories : Thermometer IP 38 C, range 23C to 27C. Ductility mould with base-plate. civil lab equipments manufacturers

Description and Specification for Lab Tenders

The test is applicable to hot mix designs using bitumen and aggregates upto a maximum size of 25mm. In this method, .Bitumen-Asphalt Testing Lab equipment manufacturers, exporters and Bitumen-Asphalt Testing Lab suppliers the resistance to plastic deformation of cylindrical specimen of bitumenous mixture is measured when the same is loaded at periphery at 5 cm per min. This test procedure is used in designing and evaluating bituminous paving mixes. The test procedure is extensively used in routine test programmes for paving jobs. There are two major features of the Marshall method of designing mixes namely, a) Density voids analysis b) Stability flow tests. The marshall stability of mix is defined as a maximum load carried by a compacted specimen at a standard test temperature of 60C. The flow value is deformation the marshall test specimen under goes during the loading upto the maximum load, 0.25 mm units. In this test and attempt is made to determine optimum binder content for the type of aggregate mix and traffic intensity. Salient Features The apparatus consists of : A loading unit motorized, capacity 5000kgf with two telescopic pillars and an adjustable cross head. Limit switches are fitted inside to control upward or downward movement of the pillars. On-off reversing switch and indicator lamps are on the front side while a hand wheel to manually move the pillars is on the right. The load frame has fixed speed of 5.08cm per minute. Operated on 230 Volts A.C. 1 No. Compaction pedal with specimen mould holder. 2 Nos. Compaction Rammers, 4.5kg weight and free fall 45.7cm. 1 No. Breaking head assembly with provision to fix flow meter. 3 Nos. Specimen mould 10.16cm I.D. x 7.6cm high with base plate and extension collar. 1 No. Kit for specimen extraction, consists of one each load transfer bar, steel ball, specimen extracting plate. Accessories : Integral type Proving Ring capacity 3000 kgs. A dial gauge 0.01 x 25mm Universal Water Bath S.S. with false bottom and pyramid shaped lid to accomodates 3 Nos. marshall specimen Thermometer 0 - 250C x 1C.

Description and Specification for Lab Tenders

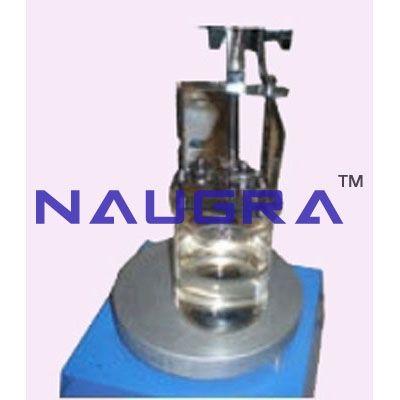

This apparatus is used to determine softening point of bitumen. Ring and ball apparatus is used to determine softening point.Bitumen-Asphalt Testing Lab equipment manufacturers , exporters and Bitumen-Asphalt Testing Lab suppliersIt is that temperature at which a sample of bituminous material loaded by a 9.5mm dia steel ball drops at a distance of 25mm. Salient Features The apparatus consists of steel bracket with a sliding plate support. The support has two holes of 10mm dia on which a Ring and Ball guide can be kept. A central hole on this plate is for inserting thermometer. Supplied with a glass beaker approximate 8.5cm. I.D., 12cm high and a hand stirrer and 2 nos. 9.5mm dia steel balls. Ring And Ball Apparatus (Electrical) : Same as above but supplied with a thermostatic hot plate. suitable for operation of 230 V A.C. Accessories : Thermometer IP 60C range 2C to 80C, Thermometer IP 61C range 30C to 300C x 5C. Electrical Stirrer with stand & blades to gently stir water in the beaker. Suitable for operation on 230V AC civil lab equipments manufacturers

Description and Specification for Lab Tenders

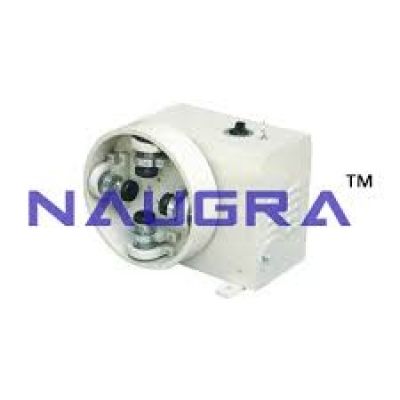

For determining Stripping Value of bitumenous mixes having aggregate size 1.0mm to 75 microns.Bitumen-Asphalt Testing Lab equipment manufacturers, exporters and Bitumen-Asphalt Testing Lab suppliers Salient Features : A circular tray rotates in a vertical plane at a rate of approximately 100 r.p.m. by an eletrical geared motor. 4 bottles of approximately 400 cc are mounted on this circular tray at an angle of 90 to each other with their mouths towards centre of the tray. A time switch is provided. Suitable for operation on volts A.C. single phase. civil lab equipments manufacturers

Description and Specification for Lab Tenders

The apparatus is used for determining the workability of fresh concrete, provided the maximum size of the aggregate does not exceed 38mm.

Description and Specification for Lab Tenders

The apparatus is used for determining the fineness of cement in terms of specific surface expressed as total surface area in square centimeters per gram of cement.Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers This is a variable flow type air permeameter. Salient Features Specifications: The apparatus consists one each of permeability cell 12.5mm I.D., Manometer 'U' type mounted on stand with a built in stop cock, Perforated disc, Plunger Rubber stopper, Rubber tube 30cm long. Packet of 12 filter paper discs and a bottle of 100cc dibutyiphthalate liquid. Spares and Accessories:Punch to cut filter paper discs. Non-perforated disc. Suction bulb civil lab equipments manufacturers

Description and Specification for Lab Tenders

This instrument is used for determining the time setting of hydraulic cement. Salient Features Specifications A base with a vertical shaft and two horizontal arms.Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers The lower arm is adjustable for height. 1 No. Initial Needle 1/12 inch dia 1/4 lb.wt. 1No. Final Needle 1/12 inch dia. 1lb.wt. 1No. Glass base plate. Complete as above. civil lab equipments manufacturers

Description and Specification for Lab Tenders

For applying loads for varous tests in the field or laboratory. Hydraulic jack hand operated with separate pumping units. These jacks are portable and available in various capacities.Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers The pumping unit is connected to the hydraulic jack by means of a flexible connecting pipe 2 meter long. The jack is fitted with lifting handles for easy transportation. The approximate lift of the ram is 90 to 120mm. The pumping unit is a single plunger type with detachable handle. The unit is fixed on a channeled base which is fitted with lifting handles. A pressure release valve is provided on the pumping unit. The load is indicated on a 15cm dial hydraulic pressure gauge of appropriate capacity which can be detached from the pump when not in use. The least count of the calibrated dial will be according to the capacity of the gauge (normally 100 divisions for full capacity). civil lab equipments manufacturers

Description and Specification for Lab Tenders

The apparatus is used to determine the workability of Portland cement concrete. The Kelly Ball test is considered to be simple and much faster than the slump test.Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers Twice the Kelly Ball reading approximately equals the slump. Salient Features Specifications: It consists of a cylinder with a ball-shaped bottom and handle, together weighing 15 kg. A strip frame, guides the handle and serves as a reference for measuring the depth of penetration. The handle is graduated in MM. Penetration can be recorded to the nearest 0.5mm. civil lab equipments manufacturers

Description and Specification for Lab Tenders

With stainless steel chamber (21 kg/cm. Sq. Pressure) The autoclave is suitable for conducting accelerated soundness tests on cements or the autoclave expansion test requiring constant steam pressure with the correspondent constant pressure.Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers It consists of a stainless steel cylinder with a welded heat insulated voer, mounted on a sturdy supporting frame, enclosed in a heat insulated metal housing, attractively finished. The attached control unit encloses a sensitive pressure regulator and pressure gauge, power switches and pilot lights for controlling the electric heating units. Inside chamber dimensions - 10. 5cm diameter x 40. 5cm height suitable for operation on 230 v, 50 hz, single phase, a. C. Supply. Supplied complete with test bar holder, special rack to hold specimens above water level in the autoclave and in a vertical position to expose them in the same manner. civil lab equipments manufacturers

Description and Specification for Lab Tenders

It is used for the determination of the consistency of freshly mixed concrete, where the maximum size of the aggregate does not exceed 38mm. Salient Features Specifications.Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers The Apparatus consists of one slump cone with handles and foot pieces. The slump cone has internal dimensions 20cm. dia at base 10cm. top dia. and 30cm height. Foot pieces can be fixed to the clamps on the base plate. The base plate has lifting handle for easy transportation. One graduated steel rod 16mm dia x 600mm long, rounded at one end and graduated in mms, is also supplied. civil lab equipments manufacturers

Description and Specification for Lab Tenders

Vicat Needle Apparatus.

This instrument is used for determining the normal consistency and setting times of cement and A Class limes. Salient Features Specifications:

Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliersThe apparatus consists of a metallic frame bearing a freely movable rod with a cap at top, one vicat mould, split type and glass base plate and one set of needles one each initial needle, final needle and consistency plunger. civil lab equipments manufacturers

Description and Specification for Lab Tenders

Vicat Needle Apparatus With Dashpot.

Same as above but in addition is fitted with a dash pos which facilitates gentle lovering of needles.

Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers Salient Features Accessories: mild steel base plate 5 inches x 5 inches. Fulcrum mould, brass, 70mm 1. 0 base dia x 60mm i. D. Top dia, 40mm height. civil lab equipments manufacturers

Description and Specification for Lab Tenders

Triaxial Testing Apparatus.

Triaxial Testing Apparatus - civil lab equipments manufacturers

Soil Testing Lab equipment manufacturers, exporters and Soil Testing Lab suppliers

Description and Specification for Lab Tenders

CBR Apparatus Complete With Accessories.

Capacity:5000kgs, 150 mm Diameter x 175mm High, Extension collar 50mm, Rammer4.89kg weight with drop of 450 mm

Laboratory Equipment for Mining And Geosciences Lab equipment manufacturers, exporters and Laboratory Equipment for Mining And Geosciences Lab suppliers

Description and Specification for Lab Tenders

Slake Durability Apparatus.Technical Description For determination of resistance offered by rock to weathering and disintegration when subjected to immersion in water. Facility to test upto four sets of samples Quick coupling for assembly and removal of drums The equipment consists of: Base Board with Motor Drive assembly with tow drum and tank assemblies. Suitable for working at 220 V, Single Phase, AC supply. Supply with Electric timer, 0-30 min. Optional Accessories Pair of Drums and Tank Assemblies, including coupling, to enable upto 4 test drums to be driven at a time Electrical Timer, 0-30 min. mechanical lab equipments manufacturers

Description and Specification for Lab Tenders

Direct Shear Apparatus.

For determination of the direct shear strength of soils on specimen size 60 mm x 60 mm x 25 mm. The apparatus comprises of the following: Loading Unit:Supplied with load yoke with direct and lever system for applying load. Normal stress capacity 8 kg/sq.cm. Load is applied either directly or through a counter balanced detachable lever.Provision is made for the load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre calibrated loading yoke, the loading unit is provided with V strips and roller strips for frictionless movement of shear box housing. Shear Box Assembly :Comprising Direct Shear box in two halves for a square specimen size 60 x 60 x 25 mm one pair of plain gripper plates, one pair of perforated gripper plates, one pair of porous stones, one top loading pad. Shear box housing: Accommodates the Direct Shear Box assembly. Complete with two ball roller strips. Specimen Cutter: For cutting 60 x 60 x 25 mm specimen from larger samples.Set of weights to give a normal stress of 3 kg/sq.cm. through lever as follows:To give Kg/sq.cm. Qty. 0.05 4 Nos. 0.1 1 Nos. 0.2 1 Nos. 0.5 3 Nos. 1.0 1 Nos. Complete set as above but without proving ring. Essential Accessories : High sensitivity compression proving ring cap 200 kg One Consolidation dia gauge 0.01 mm x 25 mm and one strain dial gauage 0.01 mm x 25 mm and one strain dial gaine 0.01mm x 25 mm. Optional Extras : Additional set of weights to give a normal stress of 5 kg/cm2. Soil Sampler for 60 mm x 60 mm specimen and test form pad of 50. Spares: Porous stone for 60 mm x 60 mm size sample available in pairs. civil lab equipments manufacturers

Shear Testing Lab equipment manufacturers, exporters and Shear Testing Lab suppliers

Description and Specification for Lab Tenders

Laboratory Vane Shear (Motorised).

Consists of a torque head adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen. Rotation of the vane is by means of a hand wheel which operates a worm gear arrangement turning the upper end of a calibration torsion spring, vane dia, rod dia, vane size & vane height are as per IS specifications. The vane shaft is attached through the hollow upper shaft to a resettable pointer, which indicates the angle indicates the angle of torque on a dial graduated in degree the dial reading multiplied by spring factor gives the torque a container for soil sample is also supplied & a sampling tube of 38mm. i.d. & 150mm long can also be used as container . Supplied with set of four springs, one each of approx. 2 kgs / cm sq. 4kgs/cm sq. 6 kgs / cm sq. 8kgs / cm sq. complete as above in a wooden carrying case. electrically operated rate of rotating is 1/60 R.P.M. Suitable for operation on 230 V A.C. Single Phase. civil lab equipments manufacturers

Shear Testing Lab equipment manufacturers, exporters and Shear Testing Lab suppliers

Description and Specification for Lab Tenders

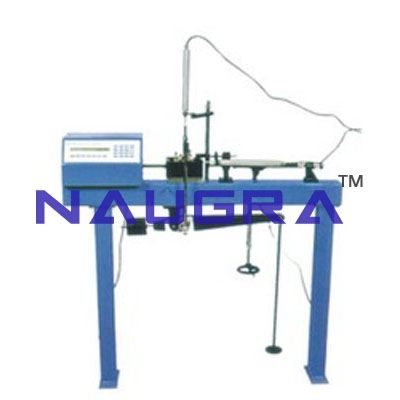

Digital Direct Residual Shear Apparatus.Used to determine the resistance to shearing of all types of soil specimens both consolidated and drained, undisturbed or remoulded samples. The machine can accommodate specimens dia. 60, 100 mm, and square 60x60, 100x100 mm. The apparatus is equipped with a control closed loop motor with epicycloid reducers. At the beginning of each test, the machine performs an automatic and complete internal check, a position reset with the elimination of all possible positioning errors and all pauses. The input of all the test patterns is achieved by the interaction of the keyboard and the alphanumeric display with self-memory, thus granting infinitesimal resolutions in short times. All data are input and stored when the machine is in stand-by, without affecting the specimen under test with quick machine setting. Possibility to fix maximum excursion of the shear box, so as to interrupt automatically the test.It is possible to input a different return speed (residual shear) in relation to the one used for the shear test, thus allowing a quick playback to select the residual shear test, saving a lot of time. For determining the direct shear strength of soils on specimen size 60mm x 60mm x 25mm Features :RS 232 output for connection to PC Display of both speed and displacement with 0.00001 mm resolution Shear speed between 0.00001 to 9.99999 mm/minute Max shear effort: 5000 N possible on the whole speed range Possibility of direct vertical load, or with a lever arm ratio 10:1Max vertical direct load: 500N; with lever arm: 5500NDisplay and pilot lamps to signal any bad functioning and alarms Box group mounted on ball track with high quality anti friction system Read value results are immediate and of extreme accuracy Extremely easy and practical use, not requiring qualified staff.Shear box, hollow punch and tamper are not included in the standard supply and have to be ordered separately Power supply: 230 V A.C. Single Phase 50Hz. civil lab equipments manufacturersShear Testing Lab equipment manufacturers, exporters and Shear Testing Lab suppliers

Description and Specification for Lab Tenders

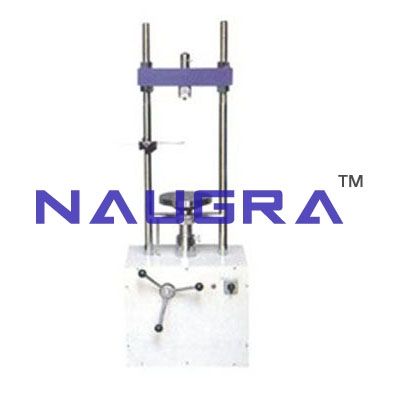

Triaxial Shear Apparatus (Motorised) Single Speed.

For determining the triaxial shear strength of soil specimens of 38mm, 50mm, 75mm and 100mm dia. Consists Of : One load frame 5000 Kgf motorised consists one rate of strain type, giving the following rates of strain 1.25mm/min . Load frame is supplied with a dial gauge bracket Universal triaxial cell (stationary bushing) 10kg/cm.sq One lateral pressure assembly 0-10 kg/cm.sq One lateral pressure assembly 0-10kg/cm.sq complete with foot pump and rubber hose One high sensitivity proving ring capacity 1000kg One strain dial gauge 0.01 x 25mm. Suitable for operation on 230 V A.C. civil lab equipments manufacturers

Shear Testing Lab equipment manufacturers, exporters and Shear Testing Lab suppliers

Description and Specification for Lab Tenders

Direct Shear Test Apparatus.

The Direct Shear test apparatus consist of a square or circular box divided into two halves. The specimen, contained in the box, is subjected to a constant normal load while an increasing horizontal force is applied to one of the sections of the shear box. This force causes a shear failure along the juncture between the box sections of this. The shear force and the normal load are measured directly. The rate of strain is adjusted by the speed of the horizontal force applied. The loading unit has V-strips on which the shear box housing rests. The load yoke in these direct shear test apparatus helps counter balance the loading system. The lead screw connected to the shear box housing helps application of shear stress. Direct Shear Test Apparatus comprises of Direct Shear Box assembly for 60mm x 60mm x 25mm thick specimen, Shear Box Housing Specimen cutter Loading Unit with a capacity of 8kg/cm2, set of weights to give normal stress of 3kg/cm2 Proving Ring duly calibrated by Nccbm (Govt) of 2.5kN (250kgf) capacity & 2 (Two) Dial Gauges 0.01mm x 25mm travel The load yoke with direct and through level system for applying normal load upto 8 kg/cm2 capacity, fixtures for proving ring, brackets for holding consolidation and strain dial gauges are also provided in these direct shear test apparatus.

Shear Testing Lab equipment manufacturers, exporters and Shear Testing Lab suppliers

Description and Specification for Lab Tenders

Direct Shear (Motorised Single Speed).

Same as above but electrically operated to give a single constant rate of stain on 1.25 mm / min. Suitable for 230 V A.C. Weight 175 kg. approx. civil lab equipments manufacturer

Shear Testing Lab equipment manufacturers, exporters and Shear Testing Lab suppliers

Description and Specification for Lab Tenders

Direct Shear (Motorised Twelve Speed).

Description and Specification for Lab Tenders

IN-SITU Vane Shear Test.

The apparatus is designed for conducting in situ vane shear test from bottom of a bore hole in saturated cohesive deposits for determining their in place shearing resistance. The equipment consists of a torque applicator assembly mounted on a base, a gear wheel, which is marked in degrees, holds a torque ring and is geared to a crank, the torque ring is a split ring & deforms as torque is applied & the deformation is indicated by a dial gauge. A calibration 2 chart to convert dial gauge readings to torque force in kgs/cm is supplied. A pointer is provided For registering the rotations of the vane, a detachable stand is provided to anchor the instrument an attachment to securely hold the string of rods is provided the equipments comprises of the following :Torque applicator assembly capacity 2000kg/cm with split proving ring & dial gauge 0.002 x 5mm complete with stand.Vane ( with vane rod ) 37.5mm dia x 75mm high 1 no.Vane ( with vane rod ) 50.0mm dia x 100mm high 1 no.Torque rod ( square cross section) 0.6mts long 1 no.Rods quick couplind type, 1 mtr. long 1 no.Rods quick coupling type, 1 mtr. long 1 no.Dummy rod, corresponding to 37.5mm dia vane 1 no.Dummy rod , corresponding to 50.0mm dia vane 1 no. civil lab equipments manufacturer

Shear Testing Lab equipment manufacturers, exporters and Shear Testing Lab suppliers

Description and Specification for Lab Tenders

Laboratory Vane Shear Apparatus (Hand Operated).

Specifications: Consists of a torque head adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen. Rotating of the vane is by means of a hand wheel which operates a worm gear arrangement during upper end of calibrated torsion spring. Vane dia, rod dia, vane size & vane height as per IS specifications. The Vane Shaft is attached through the hollow upper shaft to a resetable pointer, which indicates the angle of torque on a dial graduated in degrees. The dial reading multiplied by spring factor gives the torque. A container for soil sample is also supplied, and a sampling tube of 38mm I.D. & 150mm long can also be used as container. Supplied with set of four springs, one each of approx. 2 kg.cm., 4 kg.cm., 6 kg.cm., and 8 kg.cm. Complete as above in a wooden carrying case. civil lab equipments manufacturer

Shear Testing Lab equipment manufacturers, exporters and Shear Testing Lab suppliers

Description and Specification for Lab Tenders

Electronic Triaxial Shear Test Apparatus (Motorised).

The settlement of foundations and changes in earth pressure due to movement of retaining walls or other earth supports, the yield of soil caused by application of load, are affected by the stress-strain relationship of soils. The experimental investigation for determining the stress-strain relation is usually carried out with Triaxial Compression Test. During the test, the soil samples gradually stressed up to failure. Generally speaking, Triaxial Tests are performed to stimulate different types of stress and drainage conditions that can occur in the sub-soil for simulating the effect of building construction, excavation, tunneling etc. Three different Triaxial Tests are usually performed for total and effective stress measurement. The 50 kN capacity machine, designed primarily for triaxial testing of soil specimens upto 100mm diameter x 200 mm long, comprises a rigid twin column construction with an integral fully variable. Models Available Digital Triaxial SYSTEMMicroprocessor controlled drive unit and LCD display with a touch sensitive keyboard. The machine is normally bench mounted for ease of installation and operation. The digital indication of the load, pressure and the strain are displayed on the front panel of the load frame. Selector switch has been provided to shift the digital indicator from load to pressure or to strain. Specification :Capacity : 50kN Type: Microprocessor Controlled Stepper Motor Drive Platen Speed Range : 0.00001mm/min. to 9.99999 mm/min.Rapid Approach Speed : 25 mm/min.Horizontal Clearance : 364 mmMax. Vertical Clearance : 910 mm Max. Platen Travel : 100 mm Specimen Dia : 38 mm (50, 75 & 100 mm can also be used)Universal Electronic Load Cell : 10 kN cap.L.V.D.T. : 0-20mmPore Pressure Transducer : 20 bar cap.Electrical supply : 230V, Single Phase, 50 cycles, A.C. civil lab equipments manufacturer

Shear Testing Lab equipment manufacturers, exporters and Shear Testing Lab suppliers

Description and Specification for Lab Tenders

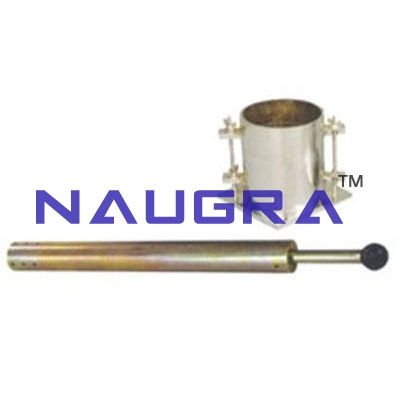

Heavy Compaction Test.

Instrument consists one each of compaction mould steel 150 mm I.D. x 127.3mm height volume 2250cc. Complete with collar and base plate Compaction Rammer is 4.89 kgs. in weight x 450 mm controlled fall. Note: Instead of steel moulds, gunmetal mould are also available.

Soil Compactor Lab equipment manufacturers, exporters and Soil Compactor Lab suppliers

Description and Specification for Lab Tenders

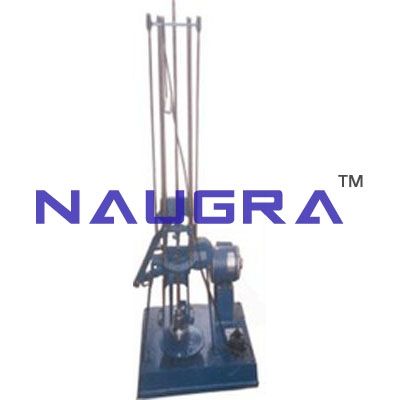

Universal Automatic Compactor.

Our company offers Universal Automatic Compactor, which are motor driven mechanical compactor useful for soil compaction for 100 & 150 mm moulds. This equipment is suitable for operation on 230 volts, 50 cycles, single phase and A.C. supply. Universal Automatic Compactor Motorized for 100 & 150 mm moulds.Two sets of rammer 2.6 kg x 310 mm drop & 4.89 kg x 450 mm drop as per ISS/ BSS. with one CBR Mould with collar & perforated base plate. l/5th revolution per stroke of rotating base plate with Automatic blow counter.230V, 1 Phase, 50 cycles, A.C. supply.

Soil Compactor Lab equipment manufacturers, exporters and Soil Compactor Lab suppliers

Description and Specification for Lab Tenders

Proctor Compaction Test Apparatus.

Soil compaction is of utmost requirement for constructing earth fill for dams, canal embankments, reservoirs, highways, runways and railways. The relationship between soil moisture content and compacted dry density largely determine the construction specifications and quality control of compacted earth fill. To check the strength of the soil the density of the soil is taken into account and hence the quality control is checked otherwise.

Soil Compactor Lab equipment manufacturers, exporters and Soil Compactor Lab suppliers

Description and Specification for Lab Tenders

Standard Compaction Test.

The apparatus consists one each of Compaction Mould Gun Metal, 100 mm I.D. x 127.3 mm height x 1000 cc. volume, complete with collar and base plate. Rammer 2.6 kg x 310 mm controlled fall.

Soil Compactor Lab equipment manufacturers, exporters and Soil Compactor Lab suppliers

Description and Specification for Lab Tenders

Semi-Automatic Compactor.

Now a days almost every soil laboratory conducts compaction and penetration tests on soils. In both standard and heavy compaction tests the operator has to count the number of blows of the rammer on each layer of soil during compaction. A mechanically cum electrically operated semi-automatic compactor is therefore devised to eliminate hand compaction process. Which also considerably saves time with the rammers provided two stroke lengths, available, the compactor can be used for normal compaction / heavy compaction as well as C.B.R compaction. Specification :It is a motor driven mechanical compactor useful for soil compaction into 100mm or 150mm diameter moulds. Two sets of rammers are provided, one of 2.6 kg and arranged for 310mm drop and other 4.89kg and arranged for 450mm drop. For compaction soil into 150mm dia moulds, 100mm face dia rammers having weight 2.6kg and 4.89kg are used. Where as for 100mm dia moulds they are of 50mm dia. The rammer assembly is provided with a ratchet and pawl arrangement to lift it from the top of the soil layer.When the rammer reaches the required height the pawl release the rammer which falls freely on soil surface. The release mechanism is operated by an arm moving up and down which is connected to a reduction gear coupled to the motor through another arm. An automatic blow counter fitted to the compactor is used to set the number of blows. The base plate of the specimen mould is to be fitted to the rotating base plate of the instrument which marks 1/5 revolution per stroke. The equipment is suitable for operation on 230 Volts, 50 cycles, Single Phase, A.C. Supply moulds are to be ordered separately.

Soil Compactor Lab equipment manufacturers, exporters and Soil Compactor Lab suppliers

Description and Specification for Lab Tenders

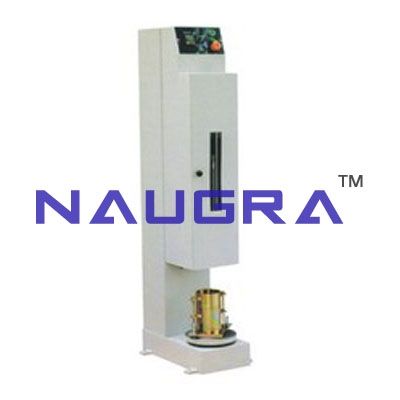

Universal-Automatic Compactor.

It is a motor driven mechanical compactor useful for soil compaction into 100mm to 102 mm & 150mm to 152.4 mm diameter moulds. Two sets of Rammers are provided, one of 2.5 kg and arranged for 300 mm & 305 mm drop and other 4.5 kg and arranged for 450 mm & 457 mm drop. The rammer assembly is provided with a ratchet and pawl arrangement to lift it from the top of the soil layer. When the rammer reaches the required height the pawl release the rammer which falls freely on soil surface. The release mechanism is operated by an arm moving up and down which is connected to a reduction gear coupled to the motor through another arm. An automatic blow counter fitted to the compactor is used to set the number of blows. The base plate of the specimen mould is to be fitted to the rotating base plate of the instrument which marks 1/5 revolution per stroke. The equipment is suitable for operation on 230 V, 50 Cycles, Single Phase, A.C. supply moulds are to be ordered separately.

Soil Compactor Lab equipment manufacturers, exporters and Soil Compactor Lab suppliers

Description and Specification for Lab Tenders

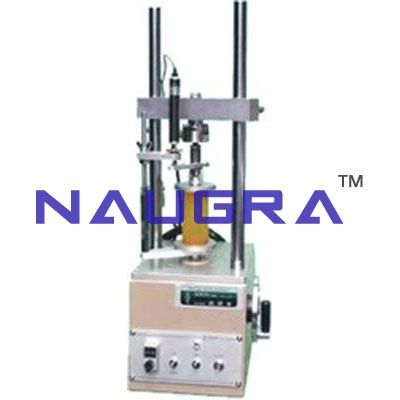

Unconfined Compression Test Apparatus.

The unconfined compression test apparatus for soil includes uniaxial compression test in which the test specimen is provided with no lateral support while undergoing vertical compression. The test measures the unconfined compression strength of a cylinder of cohesive or semi cohesive soil and indirectly shearing strength. The shearing strength of the soil is generally taken to be one half of the unconfined compression strength. The unconfined compression test apparatus is used normally on a undisturbed sample with its natural moisture content. It may also be performed on remolded samples to evaluate the consequences of disturbances and remolding. Unconfined Compression Test Apparatus is normally useful in soil mechanics laboratories. The unconfined compression test is the simplest and quickest method for evaluation of the shear strength of cohesive soil in the laboratory or in the field. The results from compression test apparatus are widely used in ascertaining the relative consistency and sensitivity for estimating the ultimate bearing capacity. The apparatus consists of following: Load Frame 50kN capacity Electrically cum Manually Operated with 3 rates of strains 1.25mm, 1.50mm, 2.50mm/min 1No.Split Mould 38mm dia 1No.Set of Conning Tools 1 Set of Conning Plates with Springs 1 Set Proving Ring, 2.5kN capacity fitted with dial gauge with set of loading pads and calibration certificate by NCCBM (Govt Testing Lab) in a nice wooden carrying case Dial gauge 0.01mm x 25mm travel The Machine is fitted with HP Motor Suitable for Operation on 220V, Single Phase, 50Hz, AC Supply. civil lab equipments manufacturer

Soil Test Instruments Lab equipment manufacturers, exporters and Soil Test Instruments Lab suppliers

Description and Specification for Lab Tenders

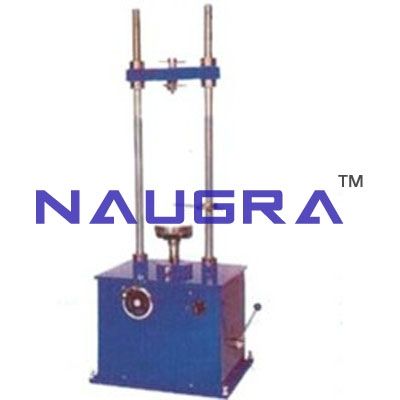

Load Frames.

Load Frames are used to apply load on the test specimen. The capacity and speed depends on the requirement of a particular test. Load Frames are used in C.B.R. Triaxial, Unconfined Compression Test etc. civil lab equipments manufacturer

Soil Test Instruments Lab equipment manufacturers, exporters and Soil Test Instruments Lab suppliers

Description and Specification for Lab Tenders

Soil Lathe (Motorised) Bench Mounting.

This instrument is used for preparing soil samples for various tests like Triaxial Test, Unconfined Compression Test etc. Soil lathe consist of a cabinet enclosing motor and gear system which rotates a disk at 24 R.P.M. this disc adopts gripper plate of various size. An up right has an adjustable holder and takes upper gripper plates of different diameters. Arrangement is provided to control height and depth of cutting tool through a lead screw which has speeds 0.8mm / min. And 1.6mm / min. Supplied complete with gripper plate pairs for 38mm, 50mm, 75mm, and 100mm dia specimens. civil lab equipments manufacturer

Soil Test Instruments Lab equipment manufacturers, exporters and Soil Test Instruments Lab suppliers

Description and Specification for Lab Tenders

Consolidation Apparatus (Single Gang).

Consolidation test is un-dimentional test considered extremely important in soil mechanics. Sample taken from adjacent areas of a single site show differential settlement even when tested using same techniques. Soil of similar strength may show varying consolidation. Samples are very carefully prepared and vertical settlement of the specimen in saturated or drained conditions carefully recorded when known load is applied. Specification:The standard outfit comprises of the following items. Loading unit, maximum capacity 20kg/cm.sq. Having a loading yoke connected to a lever arm with a counter balancing adjustment and having a lever ratio of 1:1 the whole assembly being mounted on a sturdy steel frame stand. The loading unit is so designed that it can be used for consolidation cells of different diameters as well as different dia floating ring type consolidation cells. Fixed ring type Consolidometer (Odeometer) cell assembly for testing 60mm dia x 20mm thick specimen comprising:Fixed ring type Consolidometer (Odeometer) cell assembly for testing 60mm dia x 20mm thick specimen comprising: Fixed ring for specimens 60mm dia x 20mm thick with guide ring. Top and bottom porous stones for 60mm dia specimen. Perforated pressure pad, Channeled base with water inlet and gasket Flanged water jacket, water reservoir with plastic tube and pinch cock. Set of weights to give a pressure of 10kg/cm.sq. On 60mm dia specimen, comprising : 7 nos. 0.05 kg/cm .sq., 5nos. 0.1 kg/sq.cm., 6nos. 0.5kg/sq. cm., and 5 nos. 1.0 kg/sq.cm. Supplied complete as above but without dial gauge. Accessories :Dial gauge 0.002 mm x 10mm. Extension piece, 40 mm long, consolidation test forms pad of 50 for one dimensional consolidation.OPTIONAL EXTRAS :Varying head stand pipe, 50cms. Long with mm. Scale. Fixed ring type of Consolidometer (Odeometer) cell assembly for 50mm. dia x 20mm thick specimens , complete with fixed ring guide ring. Pair of porous stones, perforated pressure pad, channeled base, gasket and flanged water jacket. Set of weights to give a pressure of 10kg/sq.cm. on 50cm. dia specimen. Fixed ring type of Consolidometer (Odeometer) cell assembly for 70mm dia x 20mm thick specimens, complete with accessories as above.Set of weights to give a pressure of 10 kg/sq.cm. on 70mm dia specimens. Fixed ring type of consolidometer (Odeometer) cell assembly for 100mm dia x 25mm thick specimens, complete with accessories as above. Set of weights to give a pressure of 10 kg/sq.cm. on 100mm. Dia specimens. civil lab equipments manufacturer

Soil Test Instruments Lab equipment manufacturers, exporters and Soil Test Instruments Lab suppliers

Description and Specification for Lab Tenders

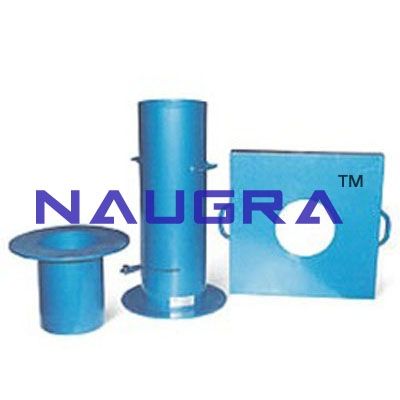

Sand Pouring Cylinder.

This apparatus is used for the in place determination of the dry density of compact, line and medium grained soils and for layers not exceeding 50cm thickness. The complete apparatus consists one each of Small sand pouring cylinder 3 litre capacity fitted with conical funnel and shutter Cylinder calibrating container internal dia 10cm and internal depth 15cm dia hole in the centre. Accessories: Metal tray 30cm square and 4cm deep without hole Test forms pad of 50. Note :Sand pouring cylinder medium and large as per IS 2720 (P-XXVIII) alsoavailable. civil lab equipments manufacturer

Soil Test Instruments Lab equipment manufacturers, exporters and Soil Test Instruments Lab suppliers

Description and Specification for Lab Tenders

Soil Testing Kit.

A very useful kit to determine on the spot soil pH value. This is a compact kit easy to carry on site.CONSISTS OF :12 thick walled test tubes with rubber bungs.1 tube Cleaning brush.1 bottle of Barium Sulfate (100gm)1 bottle of Soil indicator (100gm)1 bottle of Distilled water (500gm)1 Spatula.1 Color chart, range 4.0 to 8.0 PH in 0.5 PH steps.Complete with carrying case. civil lab equipments manufacturer

Soil Test Instruments Lab equipment manufacturers, exporters and Soil Test Instruments Lab suppliers

Description and Specification for Lab Tenders

Relative Density Test.

The equipment is used for the determination of the relative density of cohesion less free draining soils and meets the essential requirements. Specification :The equipment consists one each of: Vibratory table, with a cushioned steel vibrating decks about 75cm x 75cm. It has a frequency of approximately 3600 vibratory table, minute under a 11.5kg load. Amplitude is variable in between 0.65mm in step of 0.05 to 0.25mm, 0.25 to 0.45 mm and 0.45 to 0.65mm. Suitable for operations on 415V, Three Phase supply. Cylindrical metal unit weight mould, 3000ml. Capacity.Guide sleeve with clamp assembly. Surcharges base plate for mould. Handle for surcharge base plate. Surcharge weight. The total weight together with surcharge base plate and handle is equipment to 140 kg. /sq. cm. For mould. Cylindrical metal unit weight mould 15000 ml. capacity. (Total weight together with the above mould & surcharge weight is equivalent to 140 kg./sq. cm) dial gauge 0.01mm x 50mm travel. Extension piece 25mm for dial gauge. civil lab equipments manufacturer

Soil Test Instruments Lab equipment manufacturers, exporters and Soil Test Instruments Lab suppliers
