LABORATORY TRAINING SYSTEMS & EQUIPMENTS

Ambala Cantt, Ambala, Haryana

Description and Specification for Lab Tenders

Dorry Abrasion Testing Machine.

Description and Specification for Lab Tenders

The machine consists of a hallow cylinder mounted horizontally on a sturdy frame on ball bearings.Material Testing Lab equipment manufacturers, exporters and Material Testing Lab suppliers There is an opening which can be closed with a dust tight cover to facilitate charging and discharging the drum with the material under test. A detachable shelf which extends throughout the inside length of the drum which catches the abrasive charge and does not allow it to fall on the cover. The drum is rotated by an electric motor through a heavy reduction gear at a speed of 30-33 r.p.m. A revolution counter is fitted to the frame. A tray is supplied for collection of the material at the end of the test. Complete with abrassive charges consisting of a set of twelve hardened steel balls, approximately 48mm dia. Suitable for operation on 440 volts, 3 phase, 50 cycles, A.C. supply civil lab equipments manufacturers

Description and Specification for Lab Tenders

For the determination of the unit weight of aggregate. Salient Features Specifications: Made from steel iron, complete with handle, capacity 10 liters or 20 liters.Material Testing Lab equipment manufacturers, exporters and Material Testing Lab suppliers

Description and Specification for Lab Tenders

It has become recognized that is Testing Laboratory the best performance can only be obtained if all the springs of a uniform type possess the same mechanical properties.Material Testing Lab equipment manufacturers, exporters and Material Testing Lab suppliers Special testing machines for dealing with tension and Compression Springs of helical pattern are to be made use of the machines of very simple designs used for statical tests on springs cannot be used for Compression and Tensile tests. Spring Testing Machine is an earnest effort in this direction. Machines enable load deflection tests of tension and compression springs to be carried out accurately and quickly. The Cabinet contains the hydraulic unit the hand wheel of the pump and the release valve handle are outside the cabinet for easy operation. This compact base carrier two fixed upright and four horizontal plates. The first and the third plates with two small uprights from an adjustable frame. The second and the fourth plates are fixed. A square threaded wheel arrangements provided for adjusting the height of the springs. A Bourdon type Gauge is fixed for direct load measurements. One fixed upright is graduated to denote the deflections or tension of the springs for direct readings. A thimble with on arrow mark is provided to facilitate the readings. The machine is capable of accommodating 8" length 1/2" dial. rod up to 4" dia. springs for tension, 6" length 1/2" dia. rod, 4" springs for compression. Scale graduations are made up to 15 cms. civil lab equipments manufacturers

Description and Specification for Lab Tenders

Tensile Testing Machines for universal application, in substantial two column construction, especially designed for metallurgical and research laboratories.Material Testing Lab equipment manufacturers, exporters and Material Testing Lab suppliers The machines are capable of giving accurate date on the physical properties of materials in a rapid and simple manner. Suitable for conducting tensile tests on materials aluminum, rubber, plastic, leather, asbestos, PVC, etc., as per various standards like IS, BS, DIN, ASTM etc. The specimens in shapes of wires, cables, dumbbell, and strips can be tested by selection of appropriate grips. civil lab equipments manufacturers

Description and Specification for Lab Tenders

Torsion Testing Machine is designed for conducting Torsion and Twist Tests on various metal wires, tubes and steel materials.Material Testing Lab equipment manufacturers, exporters and Material Testing Lab suppliers Torque measurement is by Pendulum Dynamo meter System. Torque ranges can be adjusted. Torque can be applied to specimen by geared motor through gear box. Autographic recorder can be provide to know the relation between torque and angle of twist on specific request. The accuracy of the torque indication + 1% of the true torque. civil lab equipments manufacturers

Description and Specification for Lab Tenders

1000KN, is designed to perform tensile, compression, bending and shear tests on most widely varying materials, .Material Testing Lab equipment manufacturers, exporters and Material Testing Lab suppliers both in form of test pieces and as finished products. Hardness test on metals can also be performed Salient Features Loading Accuracy as high as 1% Straining rate to cover a wide range of materials Continuous roll type load elongation recorder High reading accuracy due to large size and design of dial Simple controls to facilitate ease of operation Fully enclosed and protected load measuring system Wide range of standard and special accessories including load stabilizer Robust straining frame Suitable for standard specimen and also structures. Motorized UP / DOWN movement of lower cross head to enable easy and rapid fixing of test specimen. Auto load selection facility The machine consists of Straining Unit, Control panel (Power pack, complete with drive motor and an oil tank, control valve, a pendulum dynamo meter, a load indicator system and an auto graphic recorder.

Description and Specification for Lab Tenders

Loading Accuracy as high as + 1% Straining at variable speeds to suit a wide range of materials. Manual adjustment of cross-head.Material Testing Lab equipment manufacturers, exporters and Material Testing Lab suppliers (Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.(optional) Simplicity in load reading because of digital readouts. Wide range of standard and special accessories. Easy change from plain to threaded and screwed specimens. Large effective clearance between columns enables testing of standards specimens as well as structures. Simple controls for easy of operation. Robust staining frame of an extremely rigid construction. Safe operation ensured by means of safety devices. No pendulum is used. Optional serial port to transfer data to computer for analysis /storage etc. Control and Printer are supplied as option to enable obtain test data & load-vs-elongation curve for studying the behavior of the materials.(optional) Capacities available : From 5T(50KN) to 200T(2000KN). civil lab equipments manufacturers

Description and Specification for Lab Tenders

Same as above but instead of a hand pumping unit, a separate electrically cum hand operated pumping unit housed in a cabinet is supplied.Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers The pressure gauge 0-100 KN x 1 KN, On/off switch and a slow/fast level to control rate of loading are fitted on the front panel of the pumping unit. A facility for hand operation is provided. A micro switch and relay fitted inside the pressure gauge protects the unit from over loading. civil lab equipments manufacturers

Description and Specification for Lab Tenders

Compression Testing Machine (Electrically Operated) - Four Pillar type It is an electric cum hand operated for compression tests on concrete specimens up to 20cm dia and 30 cm in height.Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers The machine meets the essential requirements of various Indian, British & American standards for compression tests. Loading Unit :The hydraulic jack of 2000 kN capacity is fixed to base. The upper platen has got a self aligning action and is attached to a screw which passes through the cross head and can be raised for lowered for initial clearance adjustment. The lower platen rests on the jack ram and is positioned with the help of a centering pin. Loading is accomplished by the upward movement of the lower platen. Pumping Unit :The motorized pumping unit which is housed in an elegant console is of double plunger type and is driven by 3 phase 440 volts 50 cycles electric motor. The pumping unit is separate unit connected to the jack by means of a steel connecting tube. A junction box is suitably fixed to connect the motor to the mains through a push button starter. The pumping unit is fitted with gauges. A maximum pointer is provided to facilitate taking of the reading after failure of the specimen. The pressure gauges are fixed on the pumping unit at an angle for easy readability.The machine is fitted with a hand wheel control which enables the rate of application of load to be varied. The machine is also equipped with facilities for hand pumping in case of power failure. The electric pumping unit is fixed with a micro-switch off the motor automatically as the load on the machine approaches the rated capacity. Relays are also incorporated in the pumping unit so that in the case of break-down of power supply, the motor will stop and would not-re-start unless starting switch is operated. Other Capacity : 10 Tons, 25 Tons, 50 Tons, 100 Tons, 150 Tons, 200 Tons, 300 Tons

Description and Specification for Lab Tenders

The machine is designed for portability, operating convenience and accuracy. It is a compact and self contained. Unit ideally suited for mobile and field laboratories.Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers Capacity of the machine is 1000kN. Specimens upto 15cms cubes and 15 cms dia x 30 cms high cylinders can be accommodated. Load measurement is done by a 15 cms dial bourdon tube type hydraulic pressure gauge calibrated in 100 divisions, fitted with a maximum pointer (lag less pointer). The gauge is calibrated against an RTC tested proving ring. The machine is of channel construction, giving excellent lateral rigidity. The hydraulic loading unit is located on the base of the loading machine. The hydraulic jack is precision machined. The piston and cylinder are ground and lapped to fine tolerances. The lower platen can be centrally located on the base, and has concentric grooves for centering the specimen. Spacer is provided to test small specimens. The upper platen is mounted on a swivel arrangement for self aligning action. The pump is fitted integral on the testing machine along with oil reservoir. The hand operated pump is of two speed concentric piston type. Other Capacity : 10 Tons, 25 Tons, 50 Tons, 100 Tons, 150 Tons, 200 Tons Compression Testing Machine (Hand Operated) Four Pillar Type Available Capacity : 10 Tons, 25 Tons, 50 Tons, 100 Tons, 150 Tons, 200 Tons

Description and Specification for Lab Tenders

Digital Compression Testing Machine.

Technical Description The unit is compact, making its useful for site applications. The digital machines are provided with a pace rate indicator to indicate pace rate on a Bar Graph. With a little experience, the pace rate can be manually while the test is in progress. Loading Unit The loading unit is of fully welded construction having a cross head, base and solid plates. The hydraulic jack is fixed to the base. The platens of the machine are hardened, ground and polished. The upper platen is provided with self-aligning action. To facilitate testing of various size specimens, suitable size spacers are provided. Pumping Unit The two speed pump facilitates rapid approach of the platens for daylight closure and also provides comprehensive control over the application of load. A control valve provides fine control over the loading rate for accuracy of pacing. The digital read-out unit, incorporates a 4-digit display, calibrated in kN and features integral load pacing in kN/sec. Maximum load is held and retained for approx 15 min, unless cancelled, using the panel mounted reset switch. Pace rate set for running the test can be maintained manually with the help of a bar graph indicator. Logged data printing facility through a parallel port interface is provided in the machine. Readings upto 1000complete runs/tests can be stored in the memory.

Geotextile Technology & Concrete Technology Lab equipment manufacturers, exporters and Geotextile Technology & Concrete Technology Lab suppliers

Description and Specification for Lab Tenders

It is used for testing 40mm x 40mm x 160mm mortar specimens for flexural strength. (Rilem Cembureau Test) by single point loading.Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers. Salient Features Specifications: It is a motorized, mechanical unit. The speed is adjusted so that the load increase on the specimen is between 4 to 6 kg/sec. A flexure test attachment for keeping the specimen in position is also supplied. This consists of two rollers 10mm. diameter and spaced 100mm apart, and a third roller of the same diameter equidistant from the first two and for transmitting the applied load to the opposite face of the prism. The unit is for operation on 230 Volts, single phase, 50 cycles A.C.supply. Loads are measured on a proving ring fitted with a sensitive dial gauge. Supplied without proving ring. Accessories: Proving ring, capacity 500 kN. civil lab equipments manufacturers

Description and Specification for Lab Tenders

This is used for determination of resistance to wear for cement concrete flooring tiles.Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers Tiles specimen of size 7.06 cm x 7.06 cm is pressed tace-wise under specific load on a grinding path and abrasive powder is evenly spread on the rotating grinding path and after specific number of revolution of the grinding disc the second parallel side of the tile is subjected to wear for similar number of rotations. The wear of the tile is measured on a thickness gauge specifically made for the purpose. The machine consists of a disc rotating at a speed of 30 rpm in a circular tray. A bracket is provided to hold the specimen. A counter balance lever loads the specimen. Load applied is 30 kgf. A funnel is fitted to evenly spread abrasive powder on the grinding path. A pre-set counter automatically stops the machine after 22 revolutions. This counter is re-adjustable. The machine works on 440 volts A.C., three phase electrical supply. On request machine to operate on 230 Volts A.C. supply can also be supplied.

Description and Specification for Lab Tenders

The instrument is used for workability as well as consistency for fresh concrete.Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers A slump cone and a graduated rod supplied with the instrument helps the operator to find out slump values and Vibration Table with container and acrylic disc is used to find out workability of concrete expressed in Vee Bee degrees, which is defined as the time in seconds to complete required vibrating at which the fresh concrete flows out sufficiently to come in contract to the entire face of acrylic disc. Salient Features Specifications: The equipment consists of : A Vibrating Table size 380mm long and 260mm wide, resting upon elastic support at a height of about 305mm above the floor, complete with start/stop switch, cord and plug. A holder is fixed to the base into which a swivel arm is telescoped with funnel and guide sleeve. The swivel arm is also detachable from the vibrating table. A graduated rod is fixed on a swivel arm and its end a plastic disc is screwed. The division of scale on the rod record, the slump of the concrete in millimeters, supplied complete with a sheet metal container with lifting handles which can easily be fixed to the Vibrating Table. A slump cone open at both ends with lifting handles and a Tamping rod of size 16mm dia and 600mm long, rounded at one end. civil lab equipments manufacturers

Description and Specification for Lab Tenders

Generation Of Sound Waves.

Principle Sounds are generated by oscillations. The sound volume is influenced by their relative amplitude, while the sound pitch depends on their frequency. This relationship is examined based on three examples: oscillating ruler, tuning fork, string of a monochord. Tasks Try to generate sounds with a ruler, tuning fork, or a taut string. Examine the factors that the pitch and sound volume depend on. civil lab equipments manufacturers

Acoustic Testing Lab equipment manufacturers, exporters and Acoustic Testing Lab suppliers

Description and Specification for Lab Tenders

Measurement Of Sound Velocity.

Principle In this experiment, the students determine the velocity of sound in air. For this purpose, they measure the difference in the propagation time of a sound signal of two spatially offset stereo loudspeakers with the "measure Acoustics" software. Tasks We all know that during a thunderstorm, sound propagates with a limited velocity. We see the flash of lightning but the thunder does not follow until several seconds later, depending on the distance. In this experiment, determine the velocity of sound in air with the aid of stereo loudspeakers and a microphone.

Acoustic Testing Lab equipment manufacturers, exporters and Acoustic Testing Lab suppliers

Description and Specification for Lab Tenders

Triaxial Rock Testing Machine.

(Load capacities up to 4, 500 kn (1, 000 kips) &stiffness up to 4, 300 kn/mm (25x106lbs/inch), gcts high pressure triaxial cell with internalinstrumentation to measure local axial &radial strains, servo-controlled pressure intensifier systemfor up to 210 mpa (30, 000 psi) pressure range, axial or circumferential deformationmeasurement system, platens with ultrasonictransducers, and high temperature controlsubsystem).

Laboratory Equipment for Mining And Geosciences Lab equipment manufacturers, exporters and Laboratory Equipment for Mining And Geosciences Lab suppliers

Description and Specification for Lab Tenders

Automatic Compression Testing Machine.

Technical Description The Automatic Compression Testing Machine has all features of Micro Controller based Compression Testing Machine. In addition, it has: The machine is available in 500kN, 1000kN, 2000kN, 3000kN ranges. An automatic load release facility. A facility for transmission of data to the serial port of a computer placed with in 200 meters of the loading unit. Support for data transmission over distances upto several kilometers. This is useful for testing in the field. (Optional feature) Measurements of Strain with a resolution of upto 0.001 mm (optional feature). Measurement of Flexural Strength (optional feature) Facility to enter the required pace rate, at the beginning of the run. The load resolution is for is 0.1kN for machines upto 1000kN capacity & 1.0kN for the 2000kN & 3000kN machines. The Unit Comprises of: Loading Unit The loading unit is of fully welded construction having a cross head, base and solid side plates. The hydraulic jack is fixed to the base. The platens of the machine are hardened, ground and polished. The upper platen is provided with self-aligning action. To facilitate testing of various size specimens, suitable size spacers are provided. Pumping Unit This has a two-speed hydraulic motor driven pump and a bonded strain gauge based pressure transducer. This convert data transmitted by the digital head to a form recognized by the computer. The system is compatible with any computer with the following specifications: P-IV and above, 1.9Ghz 256 Mb RAM Intel Chipset with on-board graphics card. 40 GB HDD 1.44MB FDD & CD ROM DRIVE Standard Keyboard 1 Serial Port 1 Parallel Port Printer HP 5550 or latest UPS APC 500 VA or equivalent Pumping Unit This has a two-speed hydraulic motor driven pump and a bonded strain gauge based pressure transducer.

Geotextile Technology & Concrete Technology Lab equipment manufacturers, exporters and Geotextile Technology & Concrete Technology Lab suppliers

Description and Specification for Lab Tenders

Portable Compression Testing Machine.

Specifications Capacity : 1000kN Max Vertical Clearance : 350mm Max. Horizontal Clearance : 220 mm Platen Size : 165mm Square Piston Dia : 152.4mm Piston Stroke : 25mm Optional Extras: Brick Platens

Geotextile Technology & Concrete Technology Lab equipment manufacturers, exporters and Geotextile Technology & Concrete Technology Lab suppliers

Description and Specification for Lab Tenders

Analogue Compression Testing Machine.

Technical Description Features: High stability. Self-aligning platen assembly. Load Gauges are calibrated in kN against certified Proving Rings, traceable to NPL/NCCBM. Suitable for testing cubes and cylinders of various sizes. Using special platens, bricks can also be tested. Calibration process accredited by NABL (National Accerditation Board for Laboraties) Machines with CE mark also available, on special request. Operator's safety features like metal door with a perspex window and overload tripping device are provided in all models. Electrical interlock safety switch provided in the fully Automatic Compression Testing Machines, for the front door operation.

Geotextile Technology & Concrete Technology Lab equipment manufacturers, exporters and Geotextile Technology & Concrete Technology Lab suppliers

Description and Specification for Lab Tenders

Ductility Testing Machine Electrically Operated, Digital.

Designed to test three specimens simultaneously. The machine consists of a carriage moving over a lead screw. An electric motor driven reduction gear unit ensures smooth constant speed and continuous operation. Suitable for operation on 220 V, 50 Hz, Single Phase, AC Supply. Supplied complete with Ductility Mould with Base Plate - 4Nos. civil lab equipments manufacturer

Asphalt Testing Lab equipment manufacturers, exporters and Asphalt Testing Lab suppliers

Description and Specification for Lab Tenders

Binder Extraction.

Centrifuge Bitumen Extractor used for recovery of binder material from bituminous mixture for quantitative analysis. Electrical System: Power : 220V/AC Capacity : 50Hz Phase : Single Bowl: Type : removable Capacity : 3000gm Apparatus :Explosion-proof features. It contains a proper drainage system Dimmerstat speed :24003600 rpm Filter Paper : Qty. : 25 Filter Paper Discs civil lab equipments manufacturer Filter Ring : Made : Low ash content (>0.2%) Qty. : 200 Nos. for each extractor Reagent : Trichloroethylene (reagent/ technical - grade) Qty. : 20 Ltrs. chemicals for each extractor

Asphalt Testing Lab equipment manufacturers, exporters and Asphalt Testing Lab suppliers

Description and Specification for Lab Tenders

Universal Testing Machine Servo Control.

Precision ball screw and fast acting servo motor provides controllability at very light loads and rigidity for loads to machine capacity. Integral operator station with emergency stop button, manual jog controls, load cell and extensometer connections, digital closed loop control and data acquisition electronics. Three fast acting digital controllers are available for accurate and repeatable testing. Bench top models from 2KN to 50KN provide the flexibility to test biomaterials, wire, textiles, packaging, elastomers, plastics, films, foils and other materials with confidence. Floor Standing Models from 50KN to 150KN accommodate larger specimens and fixturing. With a variety of grips and fixtures, all eXpert machines are capable of performing tests in compression, tension and flexure. Accessories Digital Controller This is a stand-alone controller that features load and crosshead position inputs, enough memory to store 6 test methods, data analysis for measuring peak load, peak stress, load at extension, extension at load, average load, load at break, extension at break, stiffness and free height. The controller is ideal for product or QC testing and is capable of displaying pass/fail messages after each test based on user specified limits. Results can be uploaded to a PC via the on-board RS-232 serial port for import into test reports, spread sheets or database programs. Raw XY data can also be uploaded for further analysis or for generating load vs. deflection curves. The controller can be programmed to run at a constant rate until the specimen breaks, run to a load and hold for a user specified period of time, or cycle between load or position limits. Precise Controller The Precise Controller features a keypad, an upper LCD character display for user input and indication, a lower graphical display for viewing stress vs. strain curves plus push-buttons for test start and return to home. The Precise has the ability to perform closed loop load, position or strain controlled tests to sample break or to a user defined setpoint. Test results including date, time, specimen number, peak load, ultimate tensile strength, offset yield strength, modulus of elasticity, elongation at break plus raw data can be exported to a Windows based computer via the RS232 port. WinTest : Material Testing Software The most powerful and versatile solution features Win Test, PC/Windows based materials testing system. Standard with Win Test are load, crosshead position, axial strain, transverse strain and auxiliary input channels. A comprehensive set of monotonic, segmented or cyclic servo control profiles under load, position or strain control is available which provides the capability to perform virtually any type of test. Test reports featuring test and specimen information, results and a stress vs. strain curve can be printed or readied for email. mechanical lab equipments manufacturers

Steel & Metal Mechanics Lab equipment manufacturers, exporters and Steel & Metal Mechanics Lab suppliers

Description and Specification for Lab Tenders

Fatigue Testing Machine.

Features Light weight, compact size, simple design. Table model, no need of foundation Simple lever system for changing load. Accurately calibrated as per IS 5075 Calibration in Nm available on request. TECHNICAL SPECIFICATIONS Maximum bending moment kg cm 200 Bending moment adjustable kg cm 30-200 Range I-kg cm 30-100 II- kg cm 100-200 Gripping dia of specimen mm 12 Testing dia of specimen mm 8 Rotating speed rpm 4200 Accuracy of applied bending moment 1% Mechanical counter No. of digits 8 mechanical lab equipments manufacturers

Steel & Metal Mechanics Lab equipment manufacturers, exporters and Steel & Metal Mechanics Lab suppliers

Description and Specification for Lab Tenders

Computerized Brinell Hardness Testing Machine.

Features: Automatic spindle up & down Dwell time setting Computerized system i.e. Brinell Image Analysis systems (B.I.A.S.) PC & Window (XP) Operating system procured by customer Range of measurement is from 1 mm to 6 mm diameter with the resolution of 0.01 mm Software Features: Well managed data base Saves readings with respect to batch and certificate Report generation in the form of certificate and graph Designed in accordance with International Standards: Technical Specifications: Load (kgf) 250, 500, 750, 1000, 1500, 2000, 2500 and 3000 kgf Load Control Auto (By Hydraulic ) Start Operation Automatic start (By push button/Hydraulic Power Pack) Dwell Time 0 to 99 seconds Accuracy Conforms to ASTM-E 10/IS 1500 Max. Specimen Height 9.5 in. (240 mm) Max. Specimen Depth 50 in. (130 mm) Initial load Nil Size of BAE 370 x 670 mm Driver motor 0.33-415 V/P HP Main supply /Cy/PH 415/50/3 Standard Accessories: Anvil, Flat (7.9 in./200 mm) Anvil, Flat (2.4 in/60 mm) Anvil, V ( 2.4 in/ 60 mm) Hardness Standard Ball Indenter (0.4 in./10 mm & 5mm) Spare Fuse Power Cord Dust Cover Instruction Manual Hardness Conversion Table

Steel & Metal Mechanics Lab equipment manufacturers, exporters and Steel & Metal Mechanics Lab suppliers

Description and Specification for Lab Tenders

Digital Impact Testing Machine.

Technical Specifications Maximum capacity : 300J for Charpy Test, 170J for Izod Test Minimum Scale Graduation : 0.5 J Pendulum drop angle for Charpy : 140 Pendulum drop angle for Izop : 90 Pendulum Weight : 22 Kg Striking Velocity : Charpy-5.3 m/s, Izod-3.9m/s Distance of Pendulum centre to specimen Centre : -815 mm Accuracy : + 0.5 J DRO for energy absorbed by Specimen Printer Facility To print the energy of specimen after test Selection switch for charpy or Izod Test Accuracy as per IS & BS Standards Accessories & Spares: Charpy/Izod Caliper Gauge Self Centering Tong Izod Charpy Sq. Template Depth Notch Gauge `U Notch Width Gauge `V Notch Angle Gauge `U Notch Milling cutter `V Notch Milling Cutter

Steel & Metal Mechanics Lab equipment manufacturers, exporters and Steel & Metal Mechanics Lab suppliers

Description and Specification for Lab Tenders

Rockwell Hardness Testing Machine.

Description and Specification for Lab Tenders

WinTest Material Testing System.

Features: The capability to perform all commonly used mechanical tests. The ability to create your own test methods for a variety of requirements. Save and recall test methods for accurate and repeatable testing. Password protected supervisor/operator modes allow test methods to be activated then locked under password so they cannot be changed inadvertently. Calculation of key test parameters such as Ultimate Load, Offset Yield, Modulus of Elasticity and more. WinTest features an extensive set of data analyses. Contact the factory for an up to date listing. Calculation of high, low, mean and standard deviation for a group of tests.-time data such as microscope images. Hardcopy printouts of single test reports, group test reports and X-Y plots. Storage of test data and results to hard disk in ASCII delimited format for easy import into popular spreadsheet and database programs. Up to ten user-definable test information and twenty report header fields to meet a variety of testing and reporting requirements. User selectable English, Metric and SI units. Large easy-to-read numeric displays that show live, peak and rate readings. Real-time plotting of test data. Closed loop servo control with PID compensation. Includes monotonic, cyclic and segmented control profiles with software selectable control channels which can be changed on the fly. The ability to change control gains and endpoint values during a test. Ideal for system tuning during dynamic fatigue tests. Five input channels for load, crosshead position, axial strain, transverse strain and one auxiliary input. Force and extensometer strain accuracy exceeds ATSM E-4 and E-83 standards, respectively. Three additional auxiliary input channels are optionally available. Automatic transducer identification available on all channels. Unlimited calibration tables per analog channel for multiple load cell and extensometer requirements. Up to 10 calibration points per transducer with piecewise linear fit between points for maximum accuracy.All calibrations are password protected and are saved to disk. Seamless access to many of today's popular spreadsheet programs. Access XY data real-time for alignment with other realtime data such as microscope images.

Steel & Metal Mechanics Lab equipment manufacturers, exporters and Steel & Metal Mechanics Lab suppliers

Description and Specification for Lab Tenders

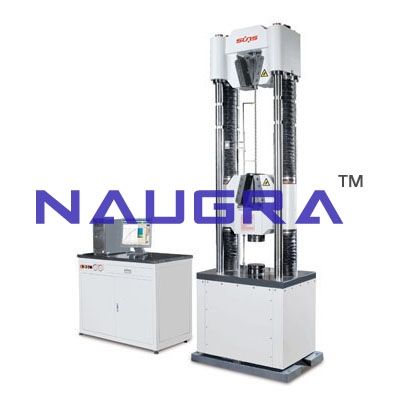

Universal Testing Machine Servo Series.

The machine is hydraulically operated, vertical, floor mounted, designed for testing metals and other materials under Tension, Compression, Bending/Transverse Loads. The Machine comprises of loading unit and control Panel. Loading Unit: This consist of a hydraulic cylinder motor with chain and sprocket drive and a table coupled with the ram of the hydraulic cylinder, mounted on to a robust base. The cylinder and the ram are individually lapped to eliminate friction . the upper cross head is rigidly fixed to the table by two straight columns the lower cross head is connected to two screwed columns which are driven by a motor , axial loading of the ram is ensured by relieving the cylinder and ram of the any possible side loading by the provision of ball seating Tension test is conducted by gripping the test specimen between the upper lower cross-head s compression traverse , bending shear and hardness tests are conducted between the lower cross-head and the table. The lower cross head can be raised or lower rapidly by the operating the screwed columns thus, facilitating ease of fixing of the test specimens Technical Features: Stress Controlled 0.1kN/min. to Full Load kN/min. Strain Controlled 0.01 mm/min. to 100 mm/min. Torque Compensated Power Pack for 100% Oil Delivery at all Load Values Air Cooled inter cooler for maintaining oil temperature below 45 at running conditions 100% control via Rj45 / USB Interface On-Board Characteristics linear zing Fully Computer Controlled Bumpless P.I.D Control using software controllable PID settings Dual Channel shifting 64 KHz data sampling rate Capacity : Upto 3000 kN) With On-Line application of software for generating test reports and graphical plots - Loading/Straining Rate control - with perpetual license Least Count : 0.001 kN for Load Accuracy : 0.5% Displacement Resolution : 0.001 mm Loading and Straining Rate controlled through PC. Minimum Loading Rate : 0.5% (of Machine Capacity) to Full Scale load per minute Maximum Load Rate : Full Scale Load per minute Minimum Strain Rate 0.01 mm per Minute to 100 mm/Minute On-Line Graph on PC or on standard PC, system Batch Test Facility (upto 10 curves on single graph) Hydraulic Pump withstand a maximum pressure up to 250 kg/cm High Pressure Hydraulic Flexible Pipes/Anti Corrosive steel

Steel & Metal Mechanics Lab equipment manufacturers, exporters and Steel & Metal Mechanics Lab suppliers

Description and Specification for Lab Tenders

Spring Testing Machine.

Product Details This Spring Testing Machine is a floor standing electro-mechanical manually operational testing machine. This machine is commonly used to test all types of coil springs, disc springs, wave springs and spring-type components.The machine enable load deflection tests of tension and compression springs to be carried out accurately and quickly. This testing systems is designed to bring an affordable solution to a wide variety of spring testing requirements. Product Specifications Capacity : upto 50 tons Operation : Manual Mechanical lab equipments manufacturers

Spring Testing Machine Lab equipment manufacturers, exporters and Spring Testing Machine Lab suppliers

Description and Specification for Lab Tenders

Servo Hydraulic Universal Testing Machine.

Capacity:60T (Max upto 2000kN) Single Test Frame with dual zone to conduct Tensile, Compression and flexural test. Four column load frame with dual pressure hydraulic loading system. Four Column and two screw construction to allow for a larger, more robust testing area. Extension resolution from cross head: 1micron (0.001mm) Display of force, position & strain valves (in kg/ kN/ Lbs/ Tons) Hand held controller for indicating load elongation, speed for loading and unloading in the manual mode, for pump start/stop, return, max value, crosshead up/dowm and stop. A variable sample break function to display peak values automatically, and return the crosshead. Automatic value-Hydraulic safety values (using only Parker & Bosch valves) Automatic piston zero positioned. Control System provided with closed-load control, allowing precise control of load, strain and position rates when used with test software, driven by Vfd motor for higher torque. Load Measurement & Accuracy: Load Measurement: Pressure Transducer load weighing system (capacity 400 bars) Accuracy: 5% of the indicated load from 0.2% to 100% of capacity. Resolution : better than 1/100, 000 of capacity (0.001kN) Friction free design : no oil seal for maintenance free operation (cylinder piston lapped to 2 microns finish) Basic Testing Clearances: 450- 575mm clearance between screws 850 - 1000 mm Standard Opening 750 - 850 mm maximum clearance in tension 650 - 850 mm maximum compression clearance 135 -200mm hydraulic stroke Standard Speed Ranqes: 0 to 100mm /min testing speed 250 - 350 mm/min per minute adjustable crosshead speed Speed Resolution: 0.005 - 0.02 mm/min can be improved upto 100mm/min

Steel & Metal Mechanics Lab equipment manufacturers, exporters and Steel & Metal Mechanics Lab suppliers

Description and Specification for Lab Tenders

Computer Controlled Electronic Universal Testing Machine.

Mainframe: The machine adopt double space door type structure. High accuracy, wide range and stable AC servo motor drive the ball screw pair rotating through syn-deceleration system. The ball screw pair drives the middle crosshead and makes the tension/compression/ bending attachment moves up and down to realize the load and offload to the specimen. This structure has enough stiffness to apply high efficiency and stable moving. Key parts are processed on our own processing center to ensure the accuracy of the load frame. Ball screw is E5 class Features: Complete computer controlled: The whole measuring and controlling system adopts specific PC control card used for testing machines, realizing the data zero and plus adjustment, which has very high reliability. Supporting multi-transducers Realizing the database management of the test data which are stored according to the standard format; facilitating other software to analyze and transfer. Perfect programming by auto program control, every control mode can smoothly shift to another one. Fulfilling the test requirement of all kinds of materials with every test standard home and abroad. Control software has the auto-adjusting function of test hardness, which assures that the system works with every kind of specimen hardness. Perfect graphic function realizing the arbitrarily magnifying, decreasing, equaling, adding, indicative display and print of all kinds of test curves, the test point searching as well as the simultaneous display and print of several kinds of test curves. Data processing supposes self-disposing and input disposing of graphic human computer interaction, which facilitates the check and contrast of the test result. The user can self -define the output of the test report, which makes the report format have very high flexibility. Modularization design facilitates the software upgrading, function spreading as well as the second development. All the crucial parts were processed by our own processing center to guarantee the high accuracy of machine. Software features: MS windows based interface, easy and fast to reach different functions, suitable for most of operators using habits. Integrated all common operation functions, like specimen information input, specimen choosing, Curve protracting, data display, date process, data analysis, test operation etc., easy and convenient to operate.

Steel & Metal Mechanics Lab equipment manufacturers, exporters and Steel & Metal Mechanics Lab suppliers

Description and Specification for Lab Tenders

Hydraulic Computerized Version.

Universal Testing Machine Application System Peak load along with on line load. Maximum elongation with online elongation. Ultimate Tensile Strength Graphical Display of load vs. time. Graphical Display of elongation vs. time. Graphical Display of load vs. elongation. Graphical Display of stress vs. strain. Complete Statistical Analysis. Date Report Management. Safety Features: Machine stops after specimen failure. Safety against Over travel of piston. Safeguard against high temeprature. Surge Protector. Auto Machine Diagnosis. Safety against overload. PC Configuration: Processor: Pentium IV / AMD 64 BIT. Processing Speed: 2.0 GHZ or higher. H.D. Drive: 80 GB. RAM: 256 MB. CD ROM: 52 X. F.D.D.: 1.44 MB. Colour Monitor: 17" SVGA. Key Board: 104 Key. Printer: Inkjet. Printer: Laser (Optional at extra cost). Mouse Optical. UPS of at least 600 VA capacity Software: Preloaded with window 2000 based software. The Software provided on CD ROM. Automatic saving and providing database for carrying out statistical calculation of multiple test results. Software application shall be capable of providing function like Auto Return to Zero.

Steel & Metal Mechanics Lab equipment manufacturers, exporters and Steel & Metal Mechanics Lab suppliers

Description and Specification for Lab Tenders

Hydrlic Electronic Microporcessor Based Version.

Description and Specification for Lab Tenders

Computerized Servo Control Version.

Universal Testing Machine Stress Controlled kn/min. Strain Controlled mm/min. Torque compensated power pack. Air cooled Inter cooler. 100% control via RJ45. On-Board characteristics linearizing. Fully Computer Controlled. mechanical lab equipments manufacturers

Steel & Metal Mechanics Lab equipment manufacturers, exporters and Steel & Metal Mechanics Lab suppliers

Description and Specification for Lab Tenders

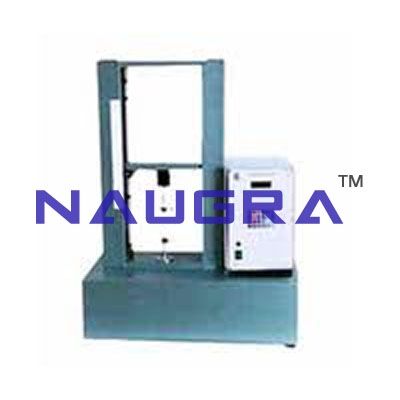

Tensile Testing Machine with Electronic Display.

Machine Type Single Arm Column Max Load Capacity 5kN [2% 100% of total test load (100N1000N)] Basic Test type Tensile, bending, compressing etc. Specimen shape Flat, Block, Round stick etc. Crosshead displacement velocity 0.005mm/m in 500mm/min stepless control Accuracy Better than 1% Resolution 0.01mm Dimension of Load frame 500mmx400mmx1430mm Net Weight of Main body 150kG Power Supply 220V 50Hz

Steel & Metal Mechanics Lab equipment manufacturers, exporters and Steel & Metal Mechanics Lab suppliers

Description and Specification for Lab Tenders

Tensile Testing Machine For Paper (Electronic Model) For Testing Lab Workshop.

Tensile Testing Machine For Paper (Electronic Model) - Tensile strength and elongation are the two most important properties that determine the suitability of any material for a particular application. These properties are determined with the help of a tensile testing machine. The load range and rate of elongation are selected depending on the characteristics of the materials being tested. The Tensile Testing Machine for paper is suitable for determining tensile strength and elongation of paper and similar materials. It is based on constant rate of traverse principle, in which one end of the test specimen is held in a grip attached to a load measuring device and the other end is held in a grip which is made to move at a fixed speed with the help of a motor, worm reduction gearbox, and screw arrangement. The load exerted on the test specimen is measured with the help of a load cell and digital load indicator. The load indicator has a facility of retaining peak force applied on the test specimen in its memory to indicate the breaking load of the specimen. An overload relay is provided to stop the motor automatically in case of overload. The equipment also has an arrangement to stop the movement automatically at any pre-set separation of the grips. The traverse of the moving group is indicated on a digital readout to facilitate determination of elongation. The speed of traverse of the moving grip can be changed by changing the position of a V-belt in a set of cone pulleys. TECHNICAL DATA Capacity : 0 to 100 kg x 100 g or 0 to 200 kg x 100 g Traverse of moving grip : 400 mm Traverse speed : 50, 75, and 100 mm/minute Minimum grip separation : 25 mm Elongation measurement : 0 to 400 mm x 1 mm Grips : Rubber lined flat jaw type Motor : HP single-phase 230 volts AC Over-travel protection : Provided Over-load protection : Provided civil lab equipments manufacturers

Paper Testing Lab equipment manufacturers, exporters and Paper Testing Lab suppliers

Description and Specification for Lab Tenders

Flexural tests of concrete beam have their own importance in concrete Road Constructions as well as Buildings constructions.Cement and Concrete Testing Lab equipment manufacturers, exporters and Cement and Concrete Testing Lab suppliers Normally concrete beams of sizes 10cm x 10cm x 50cm or 15cm x 15cm x 70cm are tested for flexural strength. Salient Features Specifications : The machine consists of a hand operated load frame. The lower platen has two rollers, the distance between which is adjustable. For 150mm x 150mm x 700mm beam, the center to center difference between the rollers is 600mm, while it is 400mm for beams of size 100mm x 100mm x 500mm size beam. A pressure gauge to indicate load is fixed on the load frame. A small pumping unit is attached to the load frame. Total capacity of the machine is 100 KN and a 150mm dia pressure gauge - 100 KN x 1 KN is fitted on the machine. Since this is a hand operated light weight machine, it is useful for field laboratory also. civil lab equipments manufacturers
