Lian Jeng Corporation

Taichung City, Taiwan

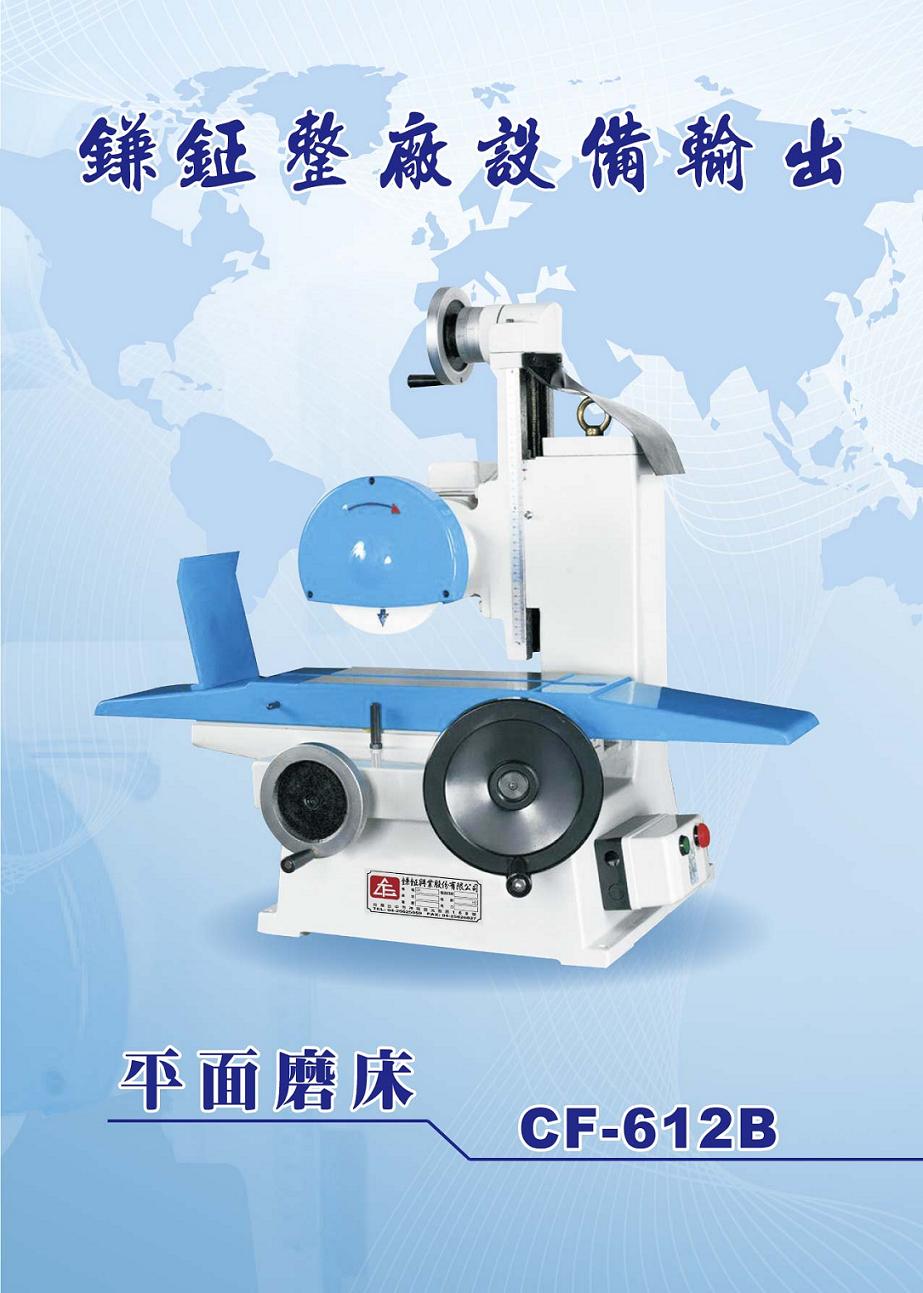

We are offering surface grinder machine. Models (cf-612b)table table size 152305mm max.grinding length 320mm max.grinding width 170mm distace from table surface to spindle center 280mm wheel size(deawidthbore) 17812.731.7mm spindle speed(5060hz) 28003600rpm spindle motor 0.75hp t-slot 12.719.5398mm vertical feed handwheel per gra. 0.01mm cross feed handwheel per gra 0.02mm coolant pump motor -- floor space 430440mm net weight 210kgs gross weight 260kgs packing dimensions 1040730950

We are offering mini surface grinding machine models (cf-612b)table table size 152305mm max.grinding length 320mm max.grinding width 170mm distace from table surface to spindle center 280mm wheel size(deawidthbore) 17812.731.7mm spindle speed(5060hz) 28003600rpm spindle motor 0.75hp t-slot 12.719.5398mm vertical feed handwheel per gra. 0.01mm cross feed handwheel per gra 0.02mm coolant pump motor -- floor space 430440mm net weight 210kgs gross weight 260kgs packing dimensions 1040730950.

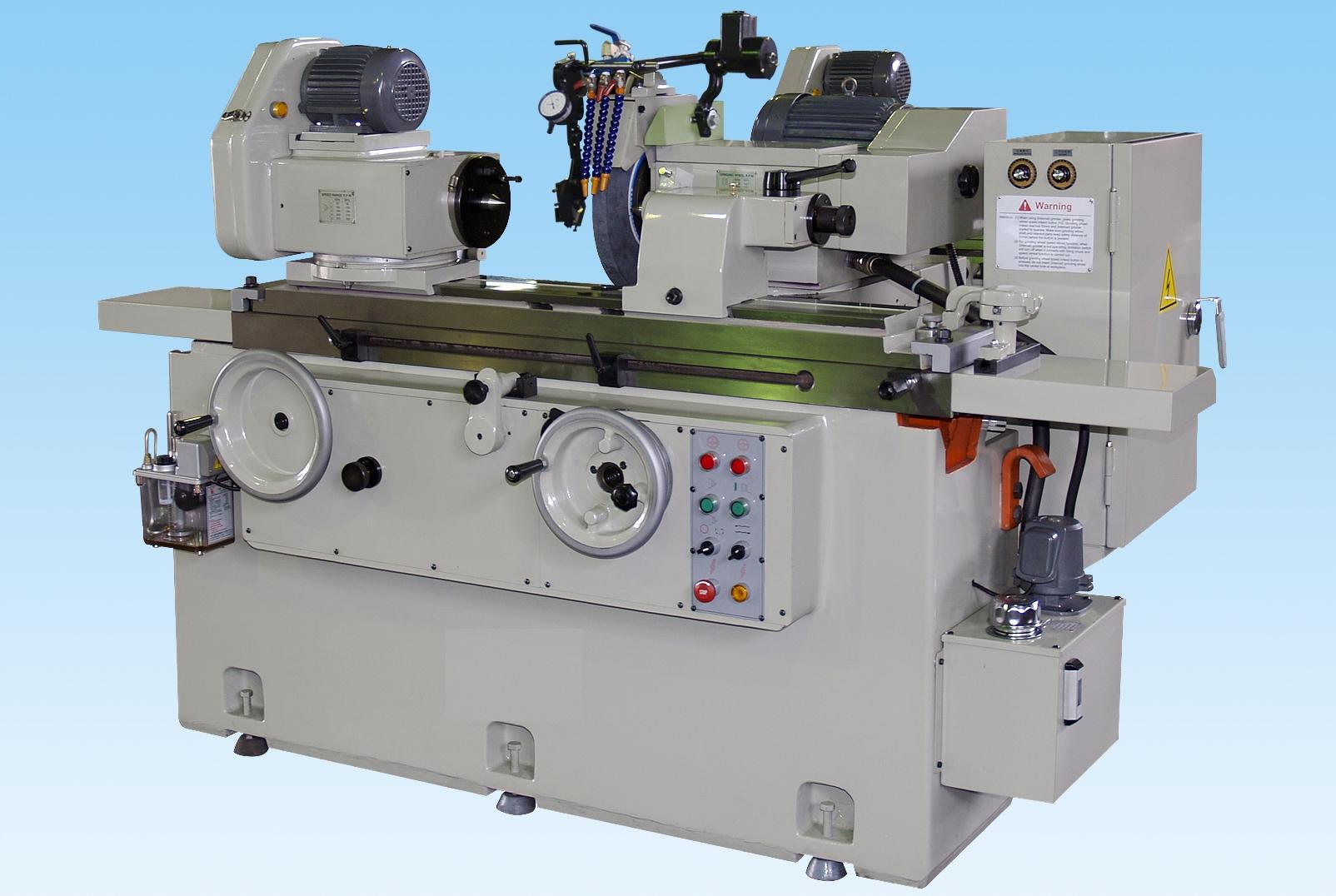

We are offering cylindrical grinding machine. Capabilitymodeltype lj27 lj37 max.grinding length 6001000 6001000 15002000 15002000 max grinding diameter 250mm 350mm max weight of workpiece 150kg 150kg height of centers 135 185 wheelhead gringding wheel size 4052575152.4 4052575152.4 grinding wheel speed 1500, 1700rpm 1500, 1700rpm headstock spindle speed(5 steps by belt) 46360rpm 46360rpm spindle taper mt#4 mt#4(5) spindle swing angle 90 90 tailstock tailstock quill taper mt#4 mt#4 tailstock quill stroke 30mm 30mm table table speed 05000mm tahle swing angle 5, 4 7, 3 9, 4 7, 3 5, 2 3, 1 5, 2 3, 1 motors grinding wheel motor 5hp(3.7kw) 5hp(3.7kw) spindle motor 12hp(0.4kw) 12hp(0.4kw) hydraulic pump motor 2hp(1.5kw) 2hp(1.5kw) coolant pump motor 14hp(0.2kw) 14hp(0.2kw) grinding pump motor 12hp(0.4kw) 12hp(0.4kw) electric handwheel feeding(per round) 2mm min feeding(per pulse, servo axis only) 0.005mm(0.001mm)
