Lian Jeng Corporation

Taichung City, Taiwan

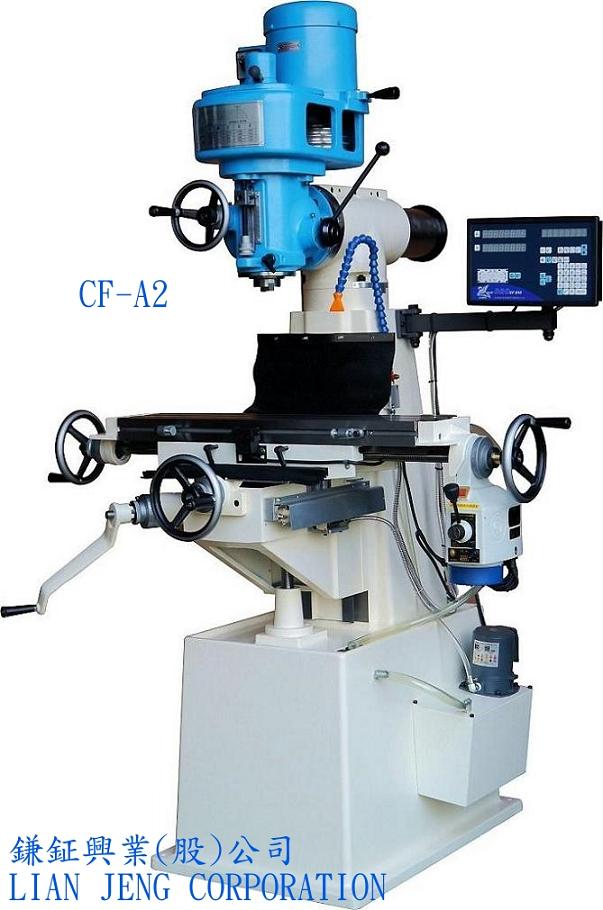

We are offering turret milling machine.Models (cf-a2)table working surface(length*width) 760x180mm traveling (x y z) 480x200x350mm t-slots 16mmx3 vertical spindle spindle nose n.t.#30 spindle speeds (r.p.m.) 180, 360, 600, 900, 1200, 1400, 1590, 1800, 2800, 3180(60hz) 150, 300, 500, 750, 1000, 1160, 1320, 1500, 2330, 2650(50hz) distance from spindle end to table top 50-350mm vertical travel of quill 80mm swiveling angle of head(right & left) 90 cross travel of ram 180mm horizontal rotation angle or ram 360 motors for vertical spindle 0.75kw(1hp)-4p8p for table feed(optional) 0.1kw(1hp)-4p for cutting fluid pump 0.1kw(18hp)-4p size net weight(approx.) 500kg dimensions of packing case 1300x1300x1600mm

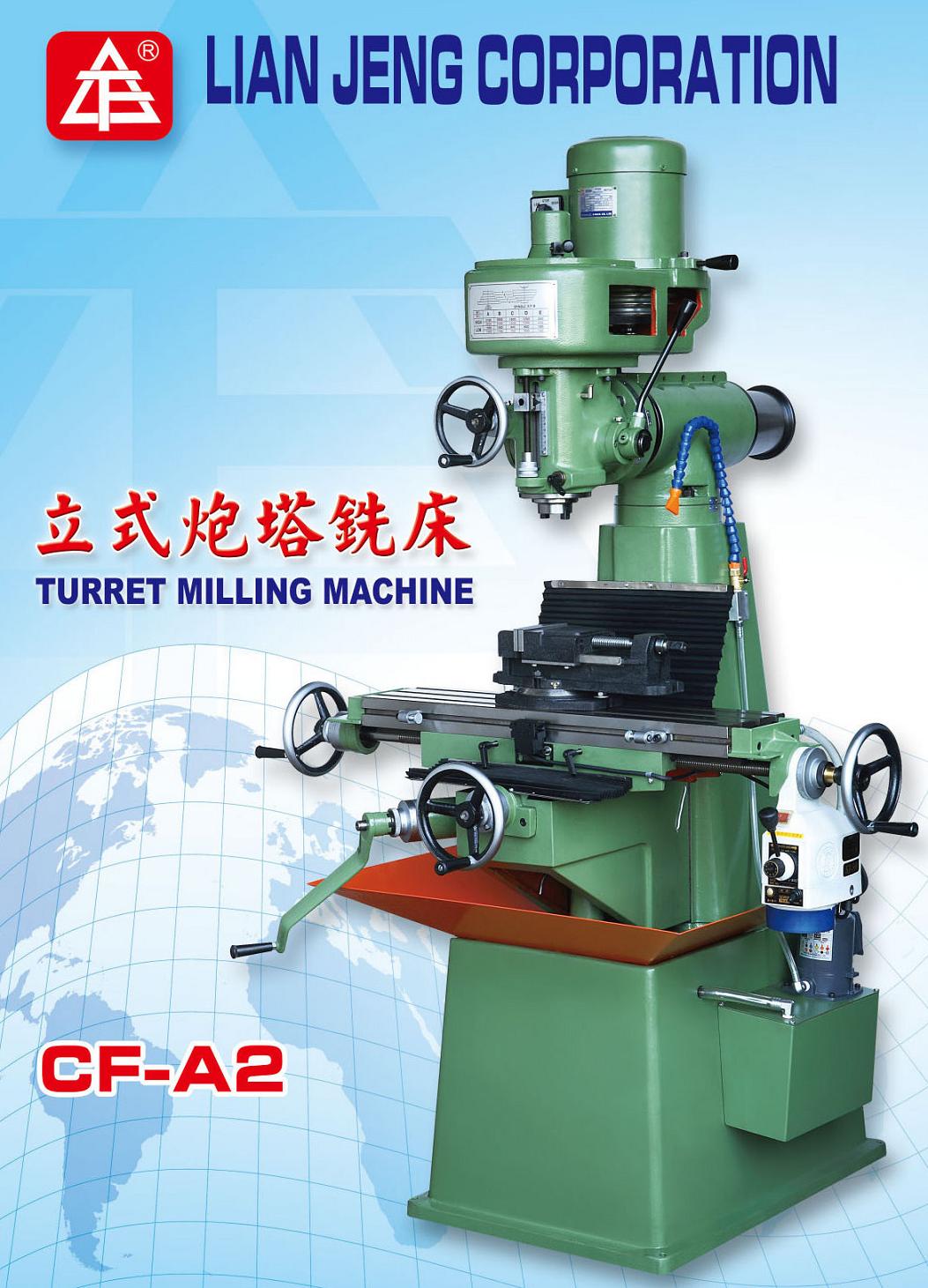

We are offering taiwan turret vertical milling machine A2.Models (CF-A2)table working surface(length*width) 760x180mm traveling (x y z) 480x200x350mm t-slots 16mmx3 vertical spindle spindle nose n.t.#30 spindle speeds (r.p.m.) 180, 360, 600, 900, 1200, 1400, 1590, 1800, 2800, 3180(60hz) 150, 300, 500, 750, 1000, 1160, 1320, 1500, 2330, 2650(50hz) distance from spindle end to table top 50-350mm vertical travel of quill 80mm swiveling angle of head(right & left) 90 cross travel of ram 180mm horizontal rotation angle or ram 360 motors for vertical spindle 0.75kw(1hp)-4p8p for table feed(optional) 0.1kw(1hp)-4p for cutting fluid pump 0.1kw(18hp)-4p size net weight(approx.) 500kg dimensions of packing case 1300x1300x1600mm standard accessories: optional accessories:lubrication system working lightcoolant devicewaterproof dishpower feed220v->110v transformer2-axis digital readout (linear scale).
