Rotary Pumps

Our product range contains a wide range of Industrial Lobe Pump, NEW INTERNAL LOBE PUMPS, Rotary Vane LPG Pump, Lobe Pump and Stainless Steel Rotary Lobe Pump

Industrial Lobe Pump

₹ 4.50 Lakh / piece Get Latest Price

Min. Order (MOQ) 1 piece
Brand Name POWERPIONT
Driven Type Automatic
Condition New

Specification/Additional Detailsrn

Flow Rate(LPM)300m3/hour

View Complete Details

Ask Latest Price & Details

NEW INTERNAL LOBE PUMPS

Number Of Flower Internal Lobe Pumps
Application Industrial Pumping Applications
Pipe Size 10X10 To 40X40
Discharge Rate 0.06 To 10.50 M³Hr
Pressure Range 0 To 7.50 Kgcm²
Motor Required 0.25 To 10.50 HP (Speed 1440 RPM)
Net Weight 1.000 To 26.500 Kgs

PIPE SIZE IN MM SUC. X DEL DISCHARGELPM MHrPRESSURE IN Kgcm0 2 4 6 8 10MOTOR REQUIRED IN HP(SPEED 1440 RPM)NET WEIGHT Kgs.PIL-1 10X10 1 0.060.25 0.25 0.25 0.25 0.25 0.501.000PIL-2.5 10X10 2.5 0.150.25 0.25 0.25 0.50 0.50 0.501.200PIL-5 10X10 5 0.300.25 0.25 0.50 0.50 0.75 0.751.300PIL-10 15X15 10 0.600.25 0.25 0.50 0.50 0.75 0.753.000PIL-15 15X15 15 0.900.50 0.50 0.50 0.75 0.75 1.003.300PIL-20 15X15 20 1.200.50 0.50 0.75 0.75 1.00 1.503.600PIL-40 25X25 40 2.400.50 0.50 0.75 1.00 1.50 2.006.800PIL-80 40X40 80 4.801.00 1.00 1.50 2.00 3.00 3.008.500PIL-125 40X40 125 7.502.00 3.00 3.00 5.00 5.00 7.5024.000PIL-150 40X40 150 9.002.00 3.00 3.00 5.00 7.50 7.5025.000PIL-175 40X40 175 10.502.00 3.00 5.00 5.00 7.50 7.5026.500

View Complete Details

Ask Latest Price & Details

Rotary Vane LPG Pump

₹ 22,500 / piece Get Latest Price

Min. Order (MOQ) 1 pcs
Material CI
Brand Name POWERPOINT
Driven Type Electric
Condition New
Automatic Grade Semi Automatic
Power 1hp
Number Of Flower Rotary Vane Pump
Country of Origin India

Specification/Additional Details

Max Flow Rate5 kg per minute
Delivery Size1/2"
Country of OriginMade in India

View Complete Details

Ask Latest Price & Details

Lobe Pump

Number Of Flower Positive Displacement Pump
Material Stainless Steel
Application Process Industries
Purity Manual Control By-pass, Relief Valve, Jacked Rotor Case, Electric Heating Tapes
Operating Range High Mechanical Efficiency, Less Energy Consumption, Lower Cost Motors, Lower Drive Costs

Available Features :

Manual Control By-pass, Relief valve, Jacked Rotor case, Electric Heating Tapes

Operating Range:

Pumps are meant for high Mechanical Effiency means less energy Consumption, Lower Cost Smaller Motors, Lower Drive Costs

A range of High Quality Hygienic Stainless Steel Positive Displacement Pumps for use in the Process Industries.

View Complete Details

Ask Latest Price & Details

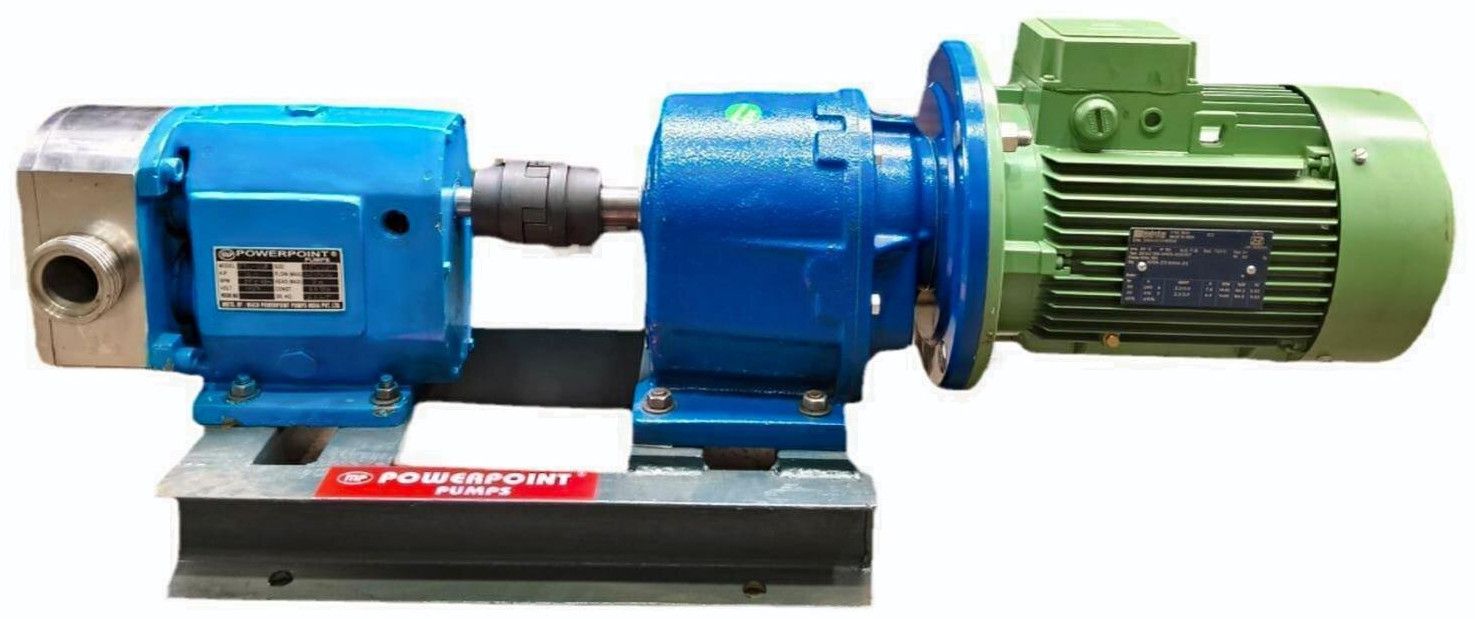

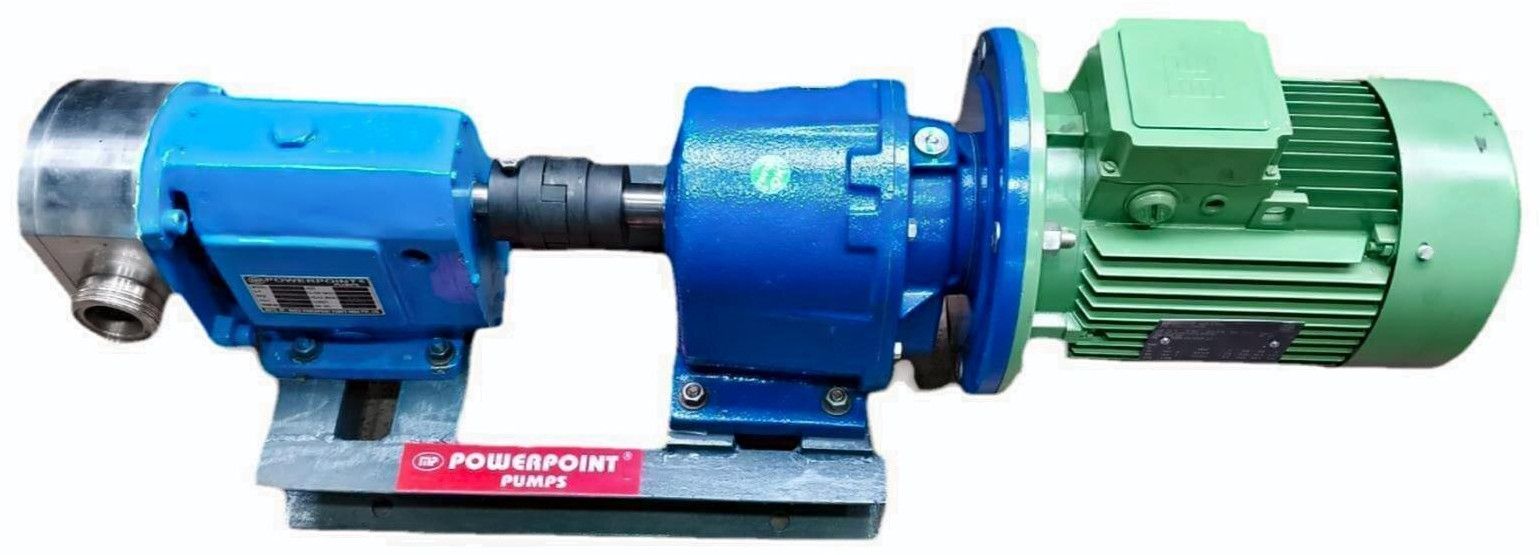

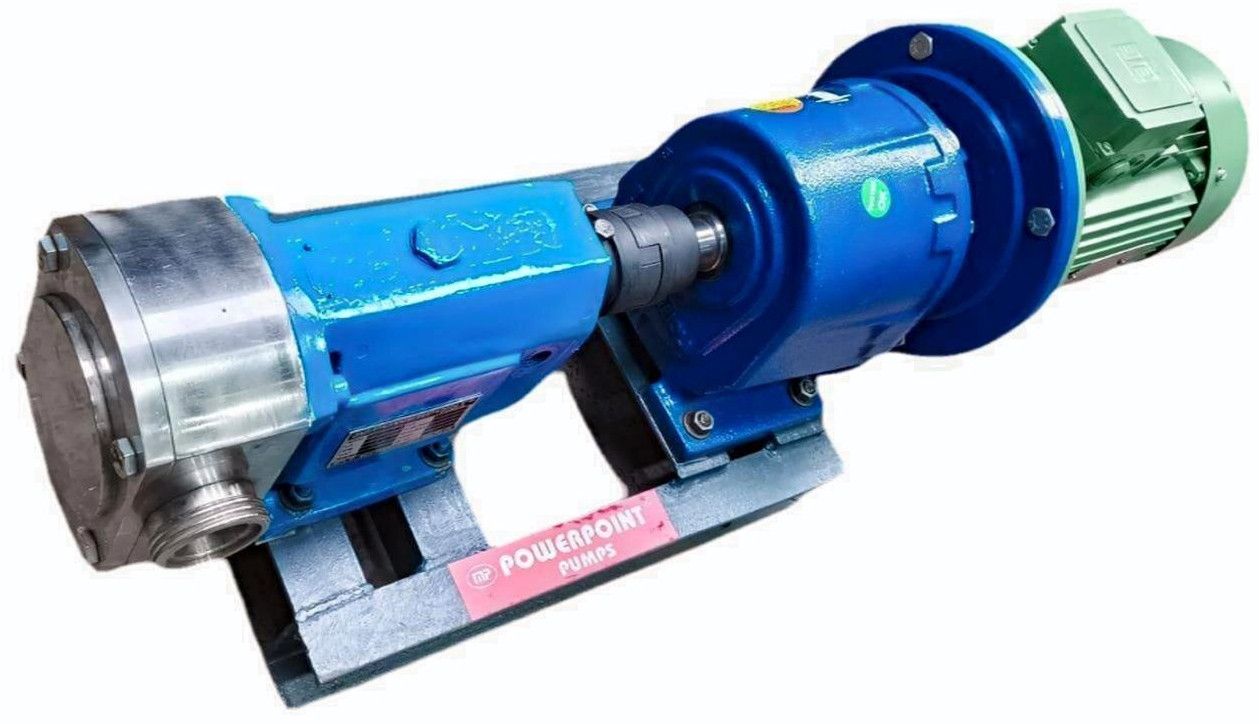

Stainless Steel Rotary Lobe Pump

Country of Origin India
Material Stainless Steet
Number Of Flower Rotary Lobe Pumps
Flow Rate 1 M³/h To 100 M³/h
Operating Pressure Up To 10 Bar
Speed 500 To 1500 RPM
Temperature Range -20°C To 150°C
Operating Environment Corrosion-resistant

Material: Stainless steel (commonly SS304 or SS316). Pump type: Rotary lobe positive displacement pump. Flow rate: Typically ranges from 1 m/h to 100 m/h depending on size. Operating pressure: Up to 10 bar (varies by model). Speed: Usually 500 to 1500 RPM. Temperature range: -20C to 150C depending on seal and material. Seals: Mechanical seals or lip seals, food-grade options available. Connections: Flanged, tri-clamp, or threaded. Drive type: Direct drive or belt-driven. Applications: Suitable for viscous fluids, slurries, and sanitary processes in food, pharmaceutical, and chemical industries. Cleaning: CIP (clean-in-place) compatible designs available. Mounting: Base-mounted or skid-mounted. Operating environment: Corrosion-resistant for harsh or hygienic environments.

Technical Specification (Rotary Lobe Pumps)

PUMP Model	Port Size	Displacement @100 rpm
PUMP Model	Port Size	LPM	US. GPM
PLB 100S	1"	5	1.4
PLB 100L	1"	8	2.25
PLB 150S	1 ½"	12	3.38
PLB 150L	1 ½"	18	4.78
PLB 200S	2"	26	7.03
PLB 200L	2"	38	10.15
PLB 250S	2 ½"	55	14.64
PLB 250L	2 ½"	79	20.87
PLB 300S	3"	116	30.65
PLB 300L	3"	168	44.39
PLB 400S	4"	261	68.70
PLB 400L	4"	354	93.26
