Microscope #1098829

light microscopes

Light Microscopes

1.fixed square stage with detachable or built in graduatedmechanical stage.2. Dust proof triple revolving nose piece3. Focusing by coarse and fine adjustment with scale.4. Movable abbe type n.a. 1.25 condenser with iris diaphragm& swing out filter holder5.illumination by plano concave mirror in fork mount.Laboratory & medical microscope (inclined)objectives5x & 10x [huygenian] x10 & 40 sl & 100 oil[achromatic]

View Complete Details

Ask Latest Price & Details

Dissecting Microscope

Dissecting Microscope

Model No .:DM-2

STANDARD FEATURES
1.	Microscope with round base is designed for greater stability.
2	Having joint revolving arm for moving the magnifying lens over the stage allowing the whole stage are to be scanned.
3.	Focusing done by Rack & Pinion system, with stopper to limit the downward movement
4.	Detachable rests on either side of the stage provided steadying support for hands during fine dissection.
5.	It is easily replacable with Bull Eye Lens 80mm in dia.
6.	Illumination by plano concave mirror in fork mount.
7.	Black paint, chemical resistant, back-on finish.
8.	Packed in styofoam case. (Wooden Box optional)

View Complete Details

Ask Latest Price & Details

Medical Microscope

Medical Microscope

1. Fixed square stage with detachable or built in graduatedmechanical stage.2. Dust proof triple revolving nose piece3. Focusing by coarse and fine adjustment with scale.4. Movable Abbe type N.A. 1.25 condenser with iris diaphragm& swing out filter holder5. Illumination by plano concave mirror in fork mount.

View Complete Details

Ask Latest Price & Details

binocular microscope

Binocular Microscope

1. Binocular head 45o inclined2. 360 degree rotatable head3. QuadrupleQuintruple Ball bearing Nose piece.4. Co-axial Coarse & Fine focussing with focussing lock graduated to 1Div=.002mm5. Low Drive Co-axial control, Ball Bearing type mechanical stage, having X & Ymovement6. Movable Abbe Condenser N.A. 1.25, with iris Diaphragm7. Built in Illumination 3W LED with intensity control. (Battery backup optional)

View Complete Details

Ask Latest Price & Details

Research Microscopes

Research Microscopes

Model No .:Binocular Microscope Bino Mini

The microscope fulfils the complete features for general laboratory us in two models: Monocular & Binocular with the following features:
STANDARD FEATURES
1.	Viewing tube: Binocular head 45degree inclined.
2	Head Rotatable at 360 degree.
3.	Quadruple nose piece with positive click stops.
4.	Coarse & Fine focusing Graduated to 1Div=.002mm./td>
5.	With mechanical stage for X&Y movement of slide.
6.	Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder.
7.	Built in IlluminationLEDwith intensity control. (Battery backupoptional)
8.	Steple Grey, chemical resistant, back-on finish.
9.	Complete with day light reflector and dust cover.
10.	Duly packed in styrofom packing.

EYE PIECES	OBJECTIVES	MAGNIFICATION
W.F.10x.	4x, 10x, 40x s/l & 100x s/l Oil.	X100 - X600

View Complete Details

Ask Latest Price & Details

Pathological Microscopes

Pathological Microscopes

Model No .:Monocular Microscopes Model: MONO MINI

This microscope fulfils the complete features for general laboratory us in two models: Monocular & Binocular with the following features:
STANDARD FEATURES
1.	Viewing tube: Monocular head 45degree inclined.
2	Head Rotatable at 360 degree.
3.	Quadruple nose piece with positive click stops.
4.	Coarse & Fine focusing Graduated to 1Div=.002mm.
5.	With mechanical stage for X&Y movement of slide.
6.	Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder.
7.	Built in Illumination 6V-20W halogen lamp.with intensity control.
8.	Complete with day light reflector and dust cover.
9.	Duly packed in styrofom packing./td>

View Complete Details

Ask Latest Price & Details

zoom microscope

Zoom Microscope

1. Straight Binocular Head for viewing, Adjustable interpupillary distance from55 to75mm.2. One side Eye piece tube is fixed and other side with adjustable ocular.3. Coarse focussing by rack and pinion.4. Having plane base equipped with a black & white disc.STEREOSCOPIC MICROSCOPEOBJECTIVES10x or 15x Widefield(One pair)2x or 4x

View Complete Details

Ask Latest Price & Details

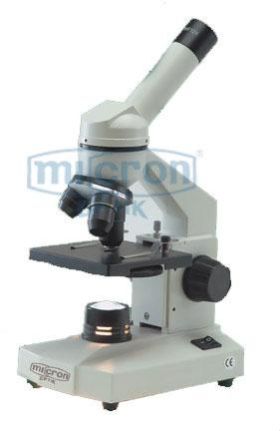

Laboratory Microscope

Laboratory Microscope

Model No .:KG-1

MODELE :ECONOMY

STANDARD FEATURES
1.	Sturdy and well balanced monocular body.
2	45 Degree Inclined, 360 Degree Rotatable Monocular Tube.
3.	Fixed square stage 100 mm x 100 mm with stage clips.
4.	Dust proof triple revolving nose piece with positive click stops.
5.	Focusing by coarse motion knob (having fine, jerk free movement).
6.	Single lens condenser with iris diaphragm.
7.	Built in IlluminationLEDwith intensity control. (Battery backupoptional)
8.	Steple Grey, chemical resistant, back-on finish.
9.	With dust cover dully packed in styofoam case.

EYE PIECES	OBJECTIVES	MAGNIFICATION
10X WIDE FIELD	X4, X10 & 40 S/L [Achromatic]	X40 – X400

View Complete Details

Ask Latest Price & Details

Trinocular Microscopes

Trinocular Microscopes

Model No .:Trinocular Microscopes-TRINO MINI

The microscope fulfils the complete features for general laboratory. Trinocular with the following features:
STANDARD FEATURES
1.	Viewing tube: Trinocular head 45degree inclined.
2	Head Rotatable at 360 degree.
3.	Quadruple nose piece with positive click stops.
4.	Coarse & Fine focusing Graduated to 1Div=.002mm, with mechanical stage for X&Y movement of slide.
5.	Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder.
6.	Built in IlluminationLEDwith intensity control. (Battery backupoptional)
7.	Complete with day light reflector and dust cover.
8.	Duly packed in styrofom packing.

View Complete Details

Ask Latest Price & Details

Research Microscope

Research Microscope

Binocular head 45o inclined2. 360 degree rotatable head3. QuadrupleQuintruple Ball bearing Nose piece.4. Co-axial Coarse & Fine focussing with focussing lock graduated to1Div=.002mm5. Low Drive Co-axial control, Ball Bearing type mechanical stage with finevernier graduations, having X & Y movement6. Movable Abbe Condenser N.A. 1.25, with iris Diaphragm7. Built in Illumination 3W LED with intensity control. (Battery backup optional)SR. RESEARCH BINOCULAR MICROSCOPE (Excel Super)OBJECTIVES (DIN)WF 10X 4x, 10x, 40x sl & 100x sl

View Complete Details

Ask Latest Price & Details

Binocular Research Microscope

Binocular Research Microscope

1. Infinite colour corrected optical system2. 30inclined binocular head3. Reversed inward quadruple nose piece.4. Co-axial coarse & fine focussing with coarse adjustment lock graduatedto 1div=.002mm5. Low drive co-axial control of mechanical stage, having x & y movement;precision:0.1 mm6. Movable abbe condenser n.a. 1.25, with iris diaphragm7. Built in illumination 3w led with intensity control.

View Complete Details

Ask Latest Price & Details

SENIOR STUDENT MICROSCOPE

SENIOR STUDENT MICROSCOPE

Min. Order (MOQ) 1 Piece(s)

model no .:kg-3

standard features
1.	sturdy and well balanced monocular body, inclined to horizontal level of 90 degree
2.	mechanical tube length of 160 1mm
3.	fixed square stage 110 mm x 110 mm
4.	dust proff triple revolving nose piece with positive click stops
5.	focusing by coarse and fine adjustment without scale.
6.	substage abbe type n.a. 1.25 condenser with iris diaphragm & swing out filter holder focusable by rack & pinon.
7.	illumination by plano concave mirror in fork mount.
8.	steple grey, chemical resistant, back-on finish.
9.	with dust cover in plywood carrying cabinet with lock and keys or in styofoam case.
10.	complete parts of the microscope are pressure die-casted.

Additional Information:

Packaging Details : PACKED IN STYROFOAM BOX

EYE PIECES	OBJECTIVES	MAGNIFICATION
5X & 10X & 15X [Huygenian] any Two	X10 & 40 S/L [Achromatic]	X100 - X600

1.	Illumination by sub stage pin type lamp working on 220 volts - 15 watt. Model : ML-1.
2	Mechanical stage for X - Y movements of slide.
3.	Eye Pieces...:...W.F. 10X.
4.	Objective......:. .X4, X20, X45 S/L, X60 S/L, X100 S/L Oil lmm.

View Complete Details

Ask Latest Price & Details

LABORATORY and MEDICAL MICROSCOPE

LABORATORY And MEDICAL MICROSCOPE

Model No .:KG-5

This Compact Reliable Microscope incorporates some of the most effective of Micron Optical Techniques. The Accurate and practical design of this instrument has resulted in a greately enlarged extension of its applications in laboratories, universities and hospitals.
STANDARD FEATURES
1.	Mechanical tube length of 160 1mm.
2	Fixed square stage 120mm x 120mm with detachable or built in graduated mechanical stage.
3.	Dust proff triple revolving nose piece with positive click stops.
4.	Focusing by coarse and fine adjustment with scale.
5.	Substage Abbe type N.A. 1.25 condenser with iris diaphragm & swing out filter holder focusable by Rack & Pinon.
6.	Illumination by plano concave mirror in fork mount.
7.	With dust cover dully packed in styofoam case.

EYE PIECES	OBJECTIVES	MAGNIFICATION
5X & 10X & 15X [Huygenian] any Two	X10 & 40 S/L & 100 Oil [Achromatic]	X100 - X1500

1.	Illumination by sub stage pin type lamp working on 220 volts - 15 watt. Model : ML-1.
2	Objective......:. .X4, X20, X45 S/L, X60 S/L
3.	Eye Pieces...:...W.F. 10X.
4.	Interchangable 45º inclined Monocular Tube.

View Complete Details

Ask Latest Price & Details

PATHOLOGICAL INCLINED MONOCULAR MICROSCOPE

PATHOLOGICAL INCLINED MONOCULAR MICROSCOPE

Model No .:Inclined Monocular Microscopes-KG-7A

Micron Pathological Monocular Microscope Model KG-7A Excel Economy is the newly introduced for Medical colleges, Professionals & Laboratory use with the full features of the advanced research type Pathological Microscope. It has a very modern look & yet at a very afforable price that will surprise the most demanding users.
STANDARD FEATURES
1.	45 inclined with 360 degree rotatable monocular tube.
2	Co-axial built in Mechnical stage with fine vernier graduation, designed with convenient coaxial adjustment for Jerkfree smooth slide manipulation throught 50 X 75 mm.
3.	Dust proof quadruple/quintruple ball bearing revolving nose piece with positive click stops.
4.	Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm.
5.	Substage Abbe type N.A. 1.25 condenser with rack and pinion, continuously variable iris diaphragm with built in swing out filter holder.
6.	Built in IlluminationLEDwith intensity control. (Battery backupoptional)
7.	Steple Grey, chemical resistant, back-on finish
8.	Exclusive preset focus lock prevents damage to valuable slides and objectives.
9.	With dust cover packed in styrofoam packing.

Objevtive	Achromatic 4X	Achromatic 10X	Achromatic 40X [Spring]	Achromatic 100X Oil [Spring]
Eye Piece	W.F. 10X / 18 mm, OPTIONAL - Huygenian 5 X, 10 X & 15 X

View Complete Details

Ask Latest Price & Details

Research Binocular Microscope

Research Binocular Microscope

Model No .:Research Binocular Microscope - BI-KG-7A

Micron Pathological Binocular Microscope Model BI-KG-7A Excel Economy is the newly introduced design for Medical colleges, Professionals & Laboratory use with the full features of the advanced research type Pathological Microscope. It has a very modern look & yet at a very afforable price that will surprise the most demanding users.
STANDARD FEATURES
1.	45 inclined with 360 degree rotatable binocular tube.
2	Co-axial built in Mechnical stage with fine vernier graduation, designed with convenient coaxial adjustment forJerkfree smooth slide manipulation throught 50 X 75 mm.
3.	Dust proof quadruple/quintruple ball bearing revolving nose piece with positive click stops.
4.	Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm.
5.	Substage Abbe type N.A. 1.25 condenser with rack and pinion, continuously variable iris diaphragm with built in swing out filter holder.
6.	Built in IlluminationLEDwith intensity control. (Battery backupoptional)
7.	Steple Grey, chemical resistant, back-on finish
8.	Exclusive preset focus lock prevents damage to valuable slides and objectives.
9.	With dust cover packed in styrofoam packing.

View Complete Details

Ask Latest Price & Details

SENIOR RESEARCH BIOLOGICAL MICROSCOPE

SENIOR RESEARCH BIOLOGICAL MICROSCOPE

Model No .:Senior Research Biological Microscope - BMC-220

Micron BMC-220 is newly introduced series of education Microscope which extends top quality optics and uncompromising performance for educational and routine research work.
STANDARD FEATURES
1.	45 inclined with 360 degree rotatable binocular tube.
2	Co-axial built in Mechnical stage 125 X 150 mm with convenient coaxial adjustment on ball bearing guide ways for smooth slide manipulation throught 50 X 70 mm.
3.	Qquadruple/quintruple ball bearing revolving nose piece with positive click stops.
4.	Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm.
5.	Substage Abbe type N.A. 1.25 condenser with rack and pinion, continuously variable iris diaphragm with built in swing out filter holder.
6.	Built in IlluminationLEDwith intensity control. (Battery backupoptional)
7.	Steple Grey, chemical resistant, back-on finish
8.	Exclusive preset focus lock prevents damage to valuable slides and objectives.
9.	With dust cover packed in styrofoam packing.

Objevtive DIN	Achromatic 4X	Achromatic 10X	Achromatic 40X [Spring]	Achromatic 100X Oil [Spring]
Eye Piece	W.F. 10X / 18 mm (Paired)

View Complete Details

Ask Latest Price & Details

Binocular Microscopes

Binocular Microscopes

Objevtive Achromatic, Semi Plan, Plan or Infinity,
Eye Piece W.F. 10X / 20 mm (Paired)

BMC-330 Series

Model No .:ExcelClassic

Micron Sernior Research Binocular MicroscopeExcel Classicis the newly introduced design for Medical colleges, Professionals & Laboratory use with the full features for advanced research. It has a very modern look & yet at a very afforable price that will surprise the most demanding users.
STANDARD FEATURES
1.	30 inclined, 360 degree rotatable sidentop binocular tube, (IPD) 48-75
2	Reversed Inward Quadruple Nosepiece
3.	Built in low position mechanical stage around 140mm x 140mm with fine vernier graduations.
4.	Substage Abbe type N.A. 1.25 condenser with rack and pinion, continuously vari able iris diaphragm with built in swing out filter holder.
5.	Built in Illumination 3W LED with intensity control.
5.	Steple Grey, chemical resistant, back-on finish.
6.	Packed in plywood cabinet.

Objevtive	Achromatic 4X	Achromatic 10X	Achromatic 40X	Achromatic 100X
Eye Piece	W.F. 10X / 18 mm (Paired)

View Complete Details

Ask Latest Price & Details

Travelling Microscopes

Travelling Microscopes

Model No .: KG 069ATravelling Microscopes

2 Axis Movement.
Having movement horizontally and vertically
Vernier reading precise to 0.01 mm

Model No .: KG 069BTravelling Microscopes

3 Axis Movement.
Horizontal, vertical and right ang3W LED transverse motion.
Rack and pinion mechanism Micrometer.
Resolution 10 micron.

View Complete Details

Ask Latest Price & Details

Zoom Stereo Microscopes

Zoom Stereo Microscopes

EYE PIECES MAGNIFICATION
SWF 10x (Paired) 10x to 50x

Model No .:Prime

Binocular Tube inclined at 45ofor combinations viewing and rotatable through 360o.
STANDARD FEATURES
1.	Zoom Ratio:1:5.
2	Working distance 80mm regardless of magnification.
3.	Rack and pinion focussing system.
4.	Image remains clear and sharp throughout the whole zoom range.
5.	Interpupillary distance adjustable from 55mm to 75mm.
5.	Packed in plywood cabinet.

View Complete Details

Ask Latest Price & Details

metallurgical microscope

Metallurgical Microscope

1. Trinocular head 45 degree inclined.2. 360 degree rotatable head.3. Quadruple nose piece.4. Seperate Coarse & Fine focussing adjustment Graduated to 1Div=.002mm.5. Low Drive Coaxial mechanical stage for X&Y movement of slide.6. Platform height adjustable.7. Having external light source illuminated 6V - 20W.METALLURGICAL TRINOCULAR MICROSCOPEOBJECTIVES10x Wide field(One pair) LWD 4x, 10x, 40x, 60x,

View Complete Details

Ask Latest Price & Details

Student Microscope

Student Microscope

Min. Order (MOQ) 1 Piece(s)

1. Fixed square stage. 2. Dust proof triple revolving nose piece 3. Focussing by coarse and fine adjustment without scale. 4. Fixed type sub-stage Abbe type N.A. 1.25 condenser with iris. diaphragm & swing out filter holder. 5. Illumination by plano concave mirror i

Model No .:KG-2S

STANDARD FEATURES
1.	Sturdy and well balanced monocular body, inclined to horizontal level of 90 degree
2	Fixed square stage 110 mm x 110 mm
3.	Dust proff triple revolving nose piece with positive click stops
4.	Focusing by coarse and fine adjustment without scale.
5.	Substage Abbe type N.A. 1.25 condenser with iris diaphragm & swing out filter holder.
6.	Illumination by plano concave mirror in fork mount.
7.	Steple Grey, chemical resistant, back-on finish.
8.	With dust cover dully packed in styofoam case.

n fork mount.

Additional Information:

Packaging Details : PACKED IN STYROFOAM BOX

EYE PIECES	OBJECTIVES	MAGNIFICATION
5X & 10X & 15X [Huygenian] any Two	X10 & 40 S/L [Achromatic]	X100 - X600

1.	Illumination by sub stage pin type lamp working on 220 volts - 15 watt. Model : ML-1.
2	Mechanical stage for X - Y movements of slide.
3.	Eye Pieces...:...W.F. 10X.
4.	Focusing by coarse and fine adjustment without scale.
5.	Objective......:. .X4, X20, X45 S/L, X60 S/L, X100 S/L Oil lmm.

View Complete Details

Ask Latest Price & Details

Inverted Tissue Culture Microscopes

Inverted Tissue Culture Microscopes

Model No .:Inverted Tissue Culture Microscope Biological

Inverted Tissue Culture Microscope has been designed for examination of Tissue Cultures, Plankton, Living Protozoa and similar specimens in natural form in the petri dish, culture bottles, test tube in which they grow. This microscope has the following features as below.
STANDARD FEATURES
1.	45degree Inclined Binocular Head interchangable with Monocular tube.
2	Quadruple revolving nose piece with positive click stops.
3.	Coaxial Low drive Mechanical Stage with three different aperture plates.
4.	Oversize plane stage with 180 x 150mm with 2 extension plates for 150 x 65 mm for large bottles or micro filter work.
5.	Based on Koehler's system is provided by a post-mounted high intensity 6 volts 20 watts Halogen illuminator.

View Complete Details

Ask Latest Price & Details

Stereo Microscopes

Stereo Microscopes

Model No .:Stereoscopic Microscope - STB-I

This microscope consist of the following features:
STANDARD FEATURES
1.	Straight Binocular Head for viewing( height adjustable on a metal chrome plated piller.) Adjustable interpupillary distance from 55 to75mm.
2	One side Eye piece tube is fixed and other side with adjustable occular.
3.	Coarse focussing by rack and pinion.
4.	Having plane base equipped with a black & white disc.
5.	Duly packed in wooden cabinet.

View Complete Details

Ask Latest Price & Details

SINGLE NOSE MICROSCOPES

SINGLE NOSE MICROSCOPES

A single nose microscope, designed to meet the need of science teaching at school level. It is an ideal aid and scientific gift for beginers.Body of Microscope fixed on a square base with coarse motion knob on rack and pinion.

With 100X magnification in combination of 10X objective and 10x eyepieces.Packed in a corrugated box with carrying handle.

EYE PIECES	OBJECTIVES	MAGNIFICATION
10X	10X	100X

View Complete Details

Ask Latest Price & Details

Tell Us What are you looking for? Will call you back

Contact Us

Parikshit Singhal (MICRON INSTRUMENT INDUSTRIES)
Plot No 293rnHSIIDC, IGC, Saha, Ambala, Haryana - 133001, India
Share us via
Call 08068051323 Ext. 979
