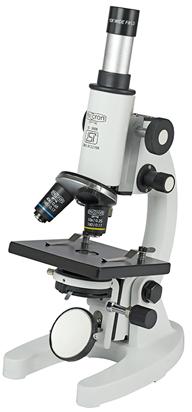

SENIOR STUDENT MICROSCOPE

MOQ1 Piece(s)
Supply TypeSupplier, Retailer
Preferred Buyer Location All over the world

model no .: kg-3 standard features 1. sturdy and well balanced monocular body, inclined to horizontal level of 90 degree 2. mechanical tube length of 160 ±....

View More Details

Send Enquiry

Company Information

MICRON INSTRUMENT INDUSTRIES

Saha, Ambala, Haryana

View Number

Member Since 14 Years
Nature of Business Retailer
Year of Establishment 1966

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

model no .: kg-3

standard features
1.	sturdy and well balanced monocular body, inclined to horizontal level of 90 degree
2.	mechanical tube length of 160 ± 1mm
3.	fixed square stage 110 mm x 110 mm
4.	dust proff triple revolving nose piece with positive click stops
5.	focusing by coarse and fine adjustment without scale.
6.	substage abbe type n.a. 1.25 condenser with iris diaphragm & swing out filter holder focusable by rack & pinon.
7.	illumination by plano concave mirror in fork mount.
8.	steple grey, chemical resistant, back-on finish.
9.	with dust cover in plywood carrying cabinet with lock and keys or in styofoam case.
10.	complete parts of the microscope are pressure die-casted.

EYE PIECES	OBJECTIVES	MAGNIFICATION
5X & 10X & 15X [Huygenian] any Two	X10 & 40 S/L [Achromatic]	X100 - X600

1.	Illumination by sub stage pin type lamp working on 220 volts - 15 watt. Model : ML-1.
2	Mechanical stage for X - Y movements of slide.
3.	Eye Pieces...:...W.F. 10X.
4.	Objective......:. .X4, X20, X45 S/L, X60 S/L, X100 S/L Oil lmm.
