Autoclaves

We offer a complete product range of SEMI-AUTOMATIC RECTANGULAR AUTOCLAVE, SEMI-AUTOMATIC CYLINDRICAL AUTOCLAVE, Vertical Autoclave, Single Drum Autoclave and Semi Automatic Rectangular Autoclave

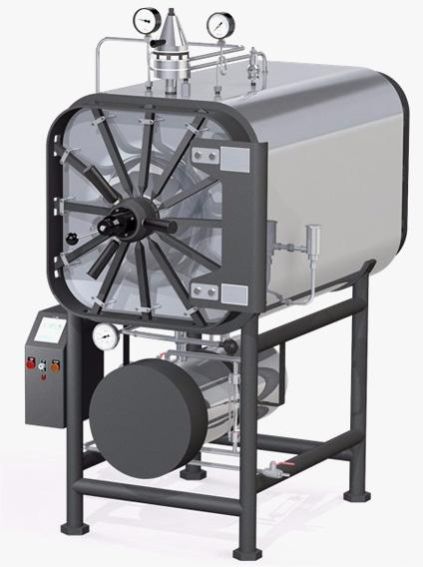

SEMI-AUTOMATIC RECTANGULAR AUTOCLAVE

Centralised Control Point Multi-port operating valve, control for the entire cycle of the operation. Permits two exhaust speeds, fast & slow. Easy to read compound gauge for the chamber and pressure gauge for the jacket. Smooth operation.   Safety Features Self locking safety door cannot be opened while chamber is under pressure. Gauge glass tube with automatic closing safety valve. Heat resistant SILICONE door gasket. Pressure switches ( on electric models ) economise power consumption. Low water protection system, to protect the electric heaters. Temperature gauge/Digital temp, indicators / controllers (optional) Vacuum breaker / dryer. Safety valve for the Jacket / boiler. Hydraulically test to 2.5 times the designed working pressure. Powerful ejector for drying. Insulated with resin bond fiber glass wool covered with M.S. / S.S.304 sheet Construction: Chamber & Jacket -  The material used for chamber is of heavy duty 304 /316 L grade stainless steel and jacket S.S.304 / M.S. (Boiler Quality) Doors -  The doors are constructed of heavy duty M.S. (Boiler Quality) / 304/316 grade stainless steel, both single and double door models are available. Piping -  The pipes and fittings are of stainless steel and brass. The valves are ball type. ( manually) and pneumatically operated (automatic ) Mounting -  The Sterilizer can be supplied in one of following mounting alternatives: Built in wall mounted , A flush mounted panel to isolate the sterilize side from the Non sterile side, Free Standing with 8cwithout cabinet. Panel -  All Sterilizer are fitted with powder coated /stainless steel panels. Special panel design can be supplied according to customer requirements (optional) The Sterilizer is heated by steam. The steam can be supplied from the building is central source, an electric stainless steel steam generator or a combination of the two system, Clean steam can be supplied using a pure steam generator. Pull-out trays/carriages and transfer trolley are available to assist with the loading and unloading process. The loading carriage are made of stainless steel and come with adjustable shelves (extra shelves are optional) The transfer trolley is made of mild steel/stainless steel (optional) and moves on four heavy duty castors including foot brakes (optional)

  • Model ER7 MER16 MER24 MER24 MER36 MER45 MER98 MER128
    Chamber
    Dim.
    mm / (inches)
    W 450(181 600 (24) 600 (24) 600 (24) 900 (36) 900 (36) 1050(42) 1200 (48)
    H 450(18) 600 (24) 900 (36) 900 (36) 900 (36) 900 (36) 1200 (48) 1200 (48)
    D 900 (36) 1200 (48) 1200 (48) 1500 (60) 1200 (48) 1500 (60) 2100(72) 2400 (84)
    Chamber Vol. Lit. 190 450 675 850 1000 1270 2760 3610
    External
    Dimension
    W 650 800 800 800 1200 1200 1250 1400
    H 1800 1800 2000 2000 1800 1800 2000 2000
    D 1200 1400 1400 1700 1400 1700 2300 2600



    Power 9kw 18kw 18kw 36kw 36kw 36kw P.S. P.S.
    Boiler (Lit.) 85 90 95 100 100 100 - -
    Electrical requirements 24 A 42 A 42 A 73 A 73 A 73 A - -
    Phase 3 3 3 3 3 3 - -






View Complete Details

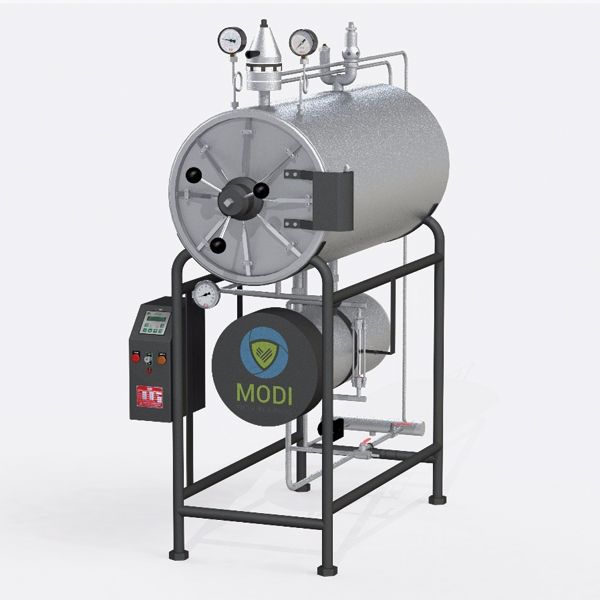

SEMI-AUTOMATIC CYLINDRICAL AUTOCLAVE

The Autoclave operates with saturated steam as the sterilization agent, working at pressure in the range of 0-32 p.s.i. (2.2 kg) and temperature in the range of 105`C to 137` C. Special temperature setting are available on request. The sterilization method substantially shortens the sterilization cycle, achieved by evacuating the air with a powerful ejector / vacuum pump, combined with steam pulsing.A 0.2 micron sterile air filter is provided to filter the air, which equalize the vessel pressure after the drying cycle. `MODIS`offers a large range of Sterilizer models from Standard 200 liter to 2000 liter size, as well as varied chamber dimensions according to the specific use and nature of Product requirements. Standards The sterilizers are manufactured as per I.S.I codes and bearing I.S.I Mark No. IS: 3829, Part-I & II endorsing the highest quality.

  • Model MEC 15 MEC 24 MEC 36 MEC 48 MEC 45 MEC 54 MEC 60 MEC 72 MEC 90
    Chamber DIA
    mm / (inches)
    DIA 300(12) 400(16) 400(16) 400(16) 500(20) 600(24) 500(20) 600(24) 750(30)
    DEP 500(20) 600 (24) 900(36) 1200(48) 900(36) 900(36) 1200(48) 1200(48) 1200(48)
    Chamber Vol. Lit. 35 75 113 151 177 254 235 339 3610
    Floor space WID 1300 1400 1400 1400 1500 1600 1500 1600 1750
    DEP 1400 1500 1800 2100 1800 1800 2100 2100 2100



    Power 6kw 9kw 9kw 9kw 9kw 18kw 18kw 18kw
    Boiler (Lit.) 45 69 44 44 44 44 44 80
    Electrical requirements 42A 73A 24A 24A 24A 24A 24A 73A
    Phase 3 3 3 3 3 3 3 3




View Complete Details

Vertical Autoclave

Fully Stainless Steel. Semi Automatic & Fully Automatic models. Double safety with safety valve & automatic digital controller. Automatic low water level cut-off device to protect heaters. Single, Double & Triple walled (Jacketed)   Features Top end model for sterilization of all critical application with exact reproducibility. Semi / Fully Automatic operation. Unique Double / Triple Walled Design. Heavy Duty Jacket. Automatic Purging of Steam. Micro Processor based precise controlling. Set pressure & selected temperature are attained. Timer starts count down, after attaining set temperature. Audio alarm (Buzzer) gives signal of completion of sterilization cycle after set time is over. Recording of online cycle - optional.

  • Model MEV15 MEV 24 MEV 35 MEV 41
    Size - Internal 12" Dia x 20" Depth 16" Dia x 24" Depth 20" Dia x 28" Depth 22" Dia x 30" Depth
    Construction of Chamber S.S. 304 S.S. 304 S.S. 304 S.S. 304
    Capacity 35 Litres 75 Litres 150 Litres 175 Litres
    Power Consumption 3000 Watts 4000 Watts 6000 Watts 9000 Watts
    Operating Pressure 1.2 kg. 1.2 kg. 1.2 kg. 1.2 kg.
    Operating Temperature 121°C 121-C 121°C 121°C
    Voltage 230 Volt 230 Volt 440 Volt 440 Volt
    Control Digital Digital Digital Digital
View Complete Details

Single Drum Autoclave

body & lid made from stainless steel. size 12" dia x 14" deep. silicone rubber gasket. two safety valves. s. S. Pressure indicator gauge. s. S. Steam release valve. s. S. Drum stand electrically operated on 220 / 230 volts a. C, 50 hz cycles. i.s.i. Mark heating elements 2 kw non electrical models for use with stove / gas also available.

View Complete Details

Semi Automatic Rectangular Autoclave

INR 7.05 Lac / Piece(s) ( Approx )
Get Latest Price
  • Automation Grade Semi Automatic
  • Mount Type Floor Mounted Autoclave
  • Material MS
  • Brand Modi
  • Minimum Order Quantity 1 Unit

View Complete Details

Rectangular Autoclave

Multi-port operating valve, control for the entire cycle of the operation. Permits two exhaust speeds, fast & slow. Easy to read compound gauge for the chamber and pressure gauge for the jacket. Smooth operation.

View Complete Details
