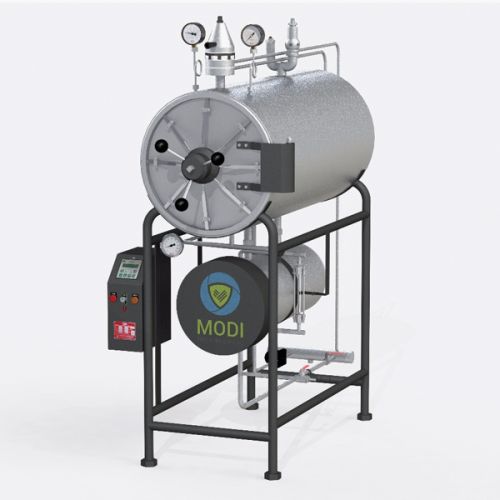

The Autoclave operates with saturated steam as the sterilization agent, working at pressure in the range of 0-32 p.s.i. (2.2 kg) and temperature in the range of 105`C to 137` C. Special temperature setting are available on request. The sterilization method substantially shortens the sterilization cycle,achieved by evacuating the air with a powerful ejector / vacuum pump,combined with steam pulsing.A 0.2 micron sterile air filter is provided to filter the air, which equalize the vessel pressure after the drying cycle. `MODIS`offers a large range of Sterilizer models from Standard 200 liter to 2000 liter size, as well as varied chamber dimensions according to the specific use and nature of Product requirements.
The sterilizers are manufactured as per I.S.I codes and bearing I.S.I Mark No. IS: 3829, Part-I & II endorsing the highest quality.
| Model | MEC 15 | MEC 24 | MEC 36 | MEC 48 | MEC 45 | MEC 54 | MEC 60 | MEC 72 | MEC 90 | |
| Chamber DIA mm / (inches) | DIA | 300(12) | 400(16) | 400(16) | 400(16) | 500(20) | 600(24) | 500(20) | 600(24) | 750(30) |
| DEP | 500(20) | 600 (24) | 900(36) | 1200(48) | 900(36) | 900(36) | 1200(48) | 1200(48) | 1200(48) | |
| Chamber Vol. | Lit. | 35 | 75 | 113 | 151 | 177 | 254 | 235 | 339 | 3610 |
| Floor space | WID | 1300 | 1400 | 1400 | 1400 | 1500 | 1600 | 1500 | 1600 | 1750 |
| DEP | 1400 | 1500 | 1800 | 2100 | 1800 | 1800 | 2100 | 2100 | 2100 | |
| Power | 6kw | 9kw | 9kw | 9kw | 9kw | 18kw | 18kw | 18kw |
| Boiler (Lit.) | 45 | 69 | 44 | 44 | 44 | 44 | 44 | 80 |
| Electrical requirements | 42A | 73A | 24A | 24A | 24A | 24A | 24A | 73A |
| Phase | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
