• TENS Nail - Length 40cm are intended for Diaphyseal and certain Metaphyseal fractures of long bones, Subcapital Humerus, Metatarsal and Metacarpal fractures and complex Clavicular fractures in Children.
• In adult patients TENS Nail is used for the Diaphyseal fractures of long bones in upper extremity and Clavicle Shaft fractures.
• Use with Instrument Set - AS149

• Extn. in mm	STAINLESS STEEL
  	Lenght 40cm	Lenght 44cm
  1.5	TEN1.5-40	-
  2.0	TEN2-40	TEN2-44
  2.5	TEN2.5-40	TEN2.5-44
  3.0	TEN3-40	TEN3-44
  3.5	TEN3.5-40	TEN3.5-44
  4.0	TEN4-40	TEN4-44
  4.5	TEN4.5-40	TEN4.5-44

• Dia in mm	TITANIUM
  	Lenght 40cm	Lenght 44cm
  1.5	Ti-TEN1.5-40	-
  2.0	Ti-TEN2-40	Ti-TEN2-44
  2.5	Ti-TEN2.5-40	Ti-TEN2.5-44
  3.0	Ti-TEN3-40	Ti-TEN3-44
  3.5	Ti-TEN3.5-40	Ti-TEN3.5-44
  4.0	Ti-TEN4-40	Ti-TEN4-44
  4.5	Ti-TEN4.5-40	Ti-TEN4.5-44

Small Fragment Locking Implants are used in treatment of Osteomies, Nonunions and small fracture fixation such as fracture of Clavicle, Scapula, Olecranon, Humerus, Ulna, Radius, Pelvis, Distal Tibia and Fibula. These are also used in fractures fixation of long bones in Pediatric patients. Small Fragment System comprises Safety Locking and Standard Plates and Screws. The plates are classified according to their functions.

Locking Proximal Humerus Plate is used for complex and unstable fractures.

Indications Proximal Humerus

• Multifragmentary (dislocated) fractures requiring open reduction
• Unstable subcapital fractures
• Subcapital pseudarthrosis
• Osteotomies

Suture holes The fixation of additional wireloops or sutures attached to the tubercles (in 3- or 4-fragment fractures) neutralises the muscle tension and helps to maintain reduction.

The head of plate allows only 3.5 mm Safety Lock Screws and shaft of the plate allows both 3.5 mm Safety Lock and Cortical screws.

• The Distal Humerus Safety Lock Plate 2.7/3.5, Dorsolateral is available in various lengths. There are two version of the plate left and right separately designed for right and left humerus. The plates are pre-shaped to match the anatomy of the distal humerus with a limited contact low profile design.
• The Head Region of the plate accommodates safety Lock Screw 2.7 mm-Self Tapping and shaft region accommodates both cortex screw 3.5 mm-self tapping and Saftey Lock screw 3.5 mm-self tapping
• The Distal Humerus safety Lock Plate 2.7/3.5, Dorsolateral is indicated for intraarticular fractures of the distalo humerus, comminuted supracondylar fractures, osteotormies, and non-unions of the distal humerus.

Indications:The 3.5 mm LCP Extra-articular Distal Humerus Plates are indicated for fractures of the distal humerus.

Plate features

• Left and right plates are anatomically contoured to match the posterolateral distal humerus.
• Two most distal holes are angled toward the capitulum and trochlea.
• Plate head tapered to minimize soft tissue irritation.
• A limited-contact plate design reduces plate-to-bone contact and helps to preserve the periosteal blood supply.

Anatomic reduction:Fracture reduction and fixation to restore anatomical relationships.

Stable fixation:Fracture fixation providing absolute or relative stability, as required by the patient, the injury, and the personality of the fracture.

Early, active mobilization:Early and safe mobilization and rehabilitation of the injured part and the patient as a whole.

Preservation of blood supply:Preservation of the blood supply to soft tissues and bone by gentle reduction techniques and careful handling.

• The Medial Distal Humerus Safety Lock Plate 2.7/3.5, is available in various lengths. There are two version of the plate left and right separately designed for right and left humerus. The plates are pre-shaped to match the anatomy of the distal humerus with a limited contact low profile design.
• The Head Region of the plate accommodates safety Lock Screw 2.7 mm-Self Tapping and shaft region accommodates both cortex screw 3.5 mm - Self Tapping and Saftey Lock Screw 3.5 mm - Self Tapping
• The Medial Distal Humerus safety Lock Plate 2.7/3.5, Left Direction is indicated for intraarticular fractures of the Distal Humerus, comminuted supracondylar fractures, osteotormies, and non-unions of the Distal Humerus.

• No. ofHoles	STAINLESS STEEL
  	Left	Right
  3	SF-604.03L	SF-604.03R
  5	SF-604.05L	SF-604.05R
  7	SF-604.07L	SF-604.07R
  9	SF-604.09L	SF-604.09R
  14	SF-604.14L	SF-604.14R

• No. ofHoles	TITANIUM
  	Left	Right
  3	Ti-SF-604.03L	Ti-SF-604.03R
  5	Ti-SF-604.05L	Ti-SF-604.05R
  7	Ti-SF-604.07L	Ti-SF-604.07R
  9	Ti-SF-604.09L	Ti-SF-604.09R
  14	Ti-SF-604.14L	Ti-SF-604.14R

Plate Features:

Anatomically precontoured plate:plateThe anatomical shape of the plate has been especially designed to fit the complex shape of the medial part of the distal humerus.

Thinned plate profile:The distal part of the plate is tapered to preserve the thin soft tissue envelope of the distal humerus.

Notches on the plate shaft:The notches allow for additional lateral bending of the plate to deal with the wide anatomical variance of the humeri. The plate can be bent at max. 4 at each notch.

Optimal distal application of the locking screws:The distal end of the plate has been equipped with three threaded round holes intended for angular stable locking screws. Their specific orientation in combination with the thin plate profile allows stable fixation of the condylar zone and the articular surface while fully pre-serving the soft tissue, without any risk of screws penetrating the articulation.

Increased hole density for improved anchorage:The three distal LCP round holes allow inserting the screws closer to one another and hence an optimal fixation of the bone fragments.The elongated hole in the shaft facilitates fine tuning of the reduction and plate positioning in the longitudinal axis.Improved vascularization of the bone due to plate undercuts that reduce the plate-to-bone contact.

Indications:

Metaphyseal Safety Lock Plate 3.5 for Distal, Medial Humerus is an anatomically precontoured plate that permits an optimal treatment of juxta-articular distal humerus fractures. It takes into account the following peculiarities of the distal humerus: Thin soft-tissue envelope & complex shape of the bone.

Plate Features:

• Proximal Tibia Safety Lock Plate 3.5mm is used for Non-unions, Malunions, and fractures of Proximal Tibia, including Simple, Comminuted, Lateral wedge, Depression, Medial wedge, Bicondylar, Combination of Lateral wedge and depression and fractures associated with shaft.
• These plates can be anatomically contoured to match Proximal Lateral Tibia.
• These plates are designed for both right or left Tibia and are available in a variety of lengths.
• The head and three Proximal holes allow only 3.5 mm Safety Lock screws, rest holes allow both 3.5 mm Safety Lock and Cortical screws.

Indications:

• Extra-articular and simple intra-articular distal tibial fractures.
• Distal tibial fractures, percutaneous or reducible by limited arthrotomy.
• Distal tibial fracture extending into the diaphyseal area.

Plate Features:

• These Plates can be anatomically contoured to match with the Distal Medial Tibia.
• These plates are designed for both right and left tibia and are available in a variety of lengths.
• The head hole allows only 3.5 mm Safty Lock screws, rest holes allow both 3.5 mm Safety Lock and Cortical screws.
• Screws : For Combi holes - 3.5 Locking, 3.5 Cortical, 4.0 Cancellous.For Round Locking Holes - 3.5 Locking, 2.7 or 3.5 Cortical, 4.0 Cancellous.

Indication:

• Distal articular fractures of the tibia (pilon fractures) with emphasis on complex articular reconstruction

Small Fragment Locking Implants are used in treatment of Osteomies, Nonunions and small fracture fixation such as fracture of Clavicle, Scapula, Olecranon, Humerus, Ulna, Radius, Pelvis, Distal Tibia and Fibula. These are also used in fractures fixation of long bones in Pediatric patients. Small Fragment System comprises Safety Locking and Standard Plates and Screws. The plates are classified according to their functions.

Indications:

The Metaphyseal plates are indicated for extra-articular fractures of the metaphyseal area that extend into the shaft. The 3.5 plate is indicated for distal tibial and distal humeral fractures.

Plate Features:

• Safety Locking combi-holes allow uncompromising combinations:The combi-hole allows an internal plate fixation using standard screws, angular stable locking screws, or a combination of both. This takes into account the most diverse intraoperative requirements.
• Angular stability allows for better fixation:The angle- and axis-stable locking screws prevent loss of reduction under load. A precise anatomical contouring of the plate is unnecessary when using this system as a locking internal fixator.
• Easier plate contouring due to thinned plate profile:The plate design facilitates anatomical contouring considerably, whilst taking into account the distinctive features of the metaphyseal bone area (e.g. complex bone shapes, thin soft tissue envelope).
• The Metaphyseal Safety Lock Plates have both compression and locking holes. All holes of plate accept 3.5 mm cortex, 3.5mm safety lock and 4.0 mm cancellous screws.

Indications:

• Fractures of the clavicle shaft
• Malunions of the clavicle shaft
• Non-unions of the clavicle shaft

Plate Features:

• Anatomically pre-shaped, twisted design.
• Due to Lateral superior placement, there is less need to detach muscles than with anterior placement.
• Undercuts reduce impairment of blood supply.
• Good purchase also in osteoporotic bone and in multifragment fractures.
• Tapered plate tip facilitates percutaneous insertion and prevents soft tissue irritation.

Indications:

• Fractures of the lateral clavicle
• Malunions of the lateral clavicle
• Non-unions of the lateral clavicle
• Available in longer versions for lateral fractures with associated shaft fractures

Plate Features:

• Anatomically pre-shaped, twisted design.
• Due to Lateral superior placement, there is less need to detach muscles than with anterior placement.
• Undercuts reduce impairment of blood supply.
• Good purchase also in osteoporotic bone and in multifragment fractures.
• Tapered plate tip facilitates percutaneous insertion and prevents soft tissue irritation.

• No. ofHoles	STAINLESS STEEL
  	Left	Right
  3	SF-622.03L	SF-622.03R
  4	SF-622.04L	SF-622.04R
  5	SF-622.05L	SF-622.05R
  6	SF-622.06L	SF-622.06R
  7	SF-622.07L	SF-622.07R
  8	SF-622.08L	SF-622.08R

• No. ofHoles	TITANIUM
  	Left	Right
  3	Ti-SF-622.03L	Ti-SF-622.03R
  4	Ti-SF-622.04L	Ti-SF-622.04R
  5	Ti-SF-622.05L	Ti-SF-622.05R
  6	Ti-SF-622.06L	Ti-SF-622.06R
  7	Ti-SF-622.07L	Ti-SF-622.07R
  8	Ti-SF-622.08L	Ti-SF-622.08R

Indications:

• Calcaneus fracture: Intra-articular & Extra-articular
• Multiple Fragment Fractures of Calcaneus
• Tongue-type Calcaneus Fractures
• Calcaneus fracture: Joint depression
• Poor heel position and shape
• Displaced articular involvement

Available in 60 and 70 mm lengths. These plates are designed for both Right and Left sides.All holes of the plate allow 3.5 mm safety lock screws.

Indications:

• Calcaneus fracture: Intra-articular & Extra-articular
• Multiple Fragment Fractures of Calcaneus
• Tongue-type Calcaneus Fractures
• Calcaneus fracture: Joint depression
• Poor heel position and shape
• Displaced articular involvement

Plate features:

• Bending tabs give support to plantar fragments and anterior process.
• Lateral application.
• Holes with threaded offer a fixed-angle construct to buttress the articular surfaces of the calcaneus.
• Permit multiple points of fixation to buttress small fragments.
• All holes of the plate allow 3.5 mm safety lock screws.
• Locking plates provides anatomical reduction. It means adaptation of fracture fragments to restore normal anatomy.
• stability in fixation: It gives stability in fixation as required by the nature of fracture. Plate provides optimal compression and stability.
• Plate preserves blood supply to soft tissues and bone.

Available in 60 and 70 mm lengths. These plates are designed for both Right and Left sides.All holes of the plate allow 3.5 mm safety lock screws.

Indications:

Lateral Distal Fibula Safety Lock Plate 2.7/3.5 is indicated for fractures, osteotomies and nonunions of the metaphyseal and diaphyseal region of the distal fibula, especially in osteopenic bone.

Plate Features:

• Anatomically contoured Lateral Distal Fibula Safety Lock Plate 2.7/3.5.
• Locking plates provides anatomical reduction. It means adaptation of fracture fragments to restore normal anatomy.
• stability in fixation: It gives stability in fixation as required by the nature of fracture. Plate provides optimal compression and stability.
• Plate preserves blood supply to soft tissues and bone.

Indications:

Volar Column Distal Radius Safety Lock Plate 2.4 (8 Head Holes) is indicated for the fixation of intra- and extra-articular fractures and osteotomies of the distal radius. Multiple distal locking screw options offer a fixed-angle construct to support the articular surface, reduce the need for bone graft and obtain fixation in osteoporotic bone.

Plate Features:

• Anatomically contoured Volar Column Distal Radius Safety Lock Plate 2.4.
• Multiple locking screw option in plate head assist in fixation of the radial and intermediate column.
• Locking plates provides anatomical reduction. It means adaptation of fracture fragments to restore normal anatomy.
• stability in fixation: It gives stability in fixation as required by the nature of fracture. Plate provides optimal compression and stability.
• Plate preserves blood supply to soft tissues and bone.

Indications:

Volar Column Distal Radius Safety Lock Plate 2.4 (9 Head Holes) is indicated for the fixation of intra- and extra-articular fractures and osteotomies of the distal radius. Multiple distal locking screw options offer a fixed-angle construct to support the articular surface, reduce the need for bone graft and obtain fixation in osteoporotic bone.

Plate Features:

• Anatomically contoured Volar Column Distal Radius Safety Lock Plate 2.4.
• Multiple locking screw option in plate head assist in fixation of the radial and intermediate column.
• Locking plates provides anatomical reduction. It means adaptation of fracture fragments to restore normal anatomy.
• stability in fixation: It gives stability in fixation as required by the nature of fracture. Plate provides optimal compression and stability.
• Plate preserves blood supply to soft tissues and bone.

Indications:

Volar Distal Radius Safety Lock Plate 2.4, Extra-Articular, Extra-long is indicated for treating distal radius fractures with extension into the shaft.

Plate Features:

• Anatomically contoured Volar Distal Radius Safety Lock Plate 2.4, Extra-Articular, Extra-long.
• Locking plates provides anatomical reduction. It means adaptation of fracture fragments to restore normal anatomy.
• stability in fixation: It gives stability in fixation as required by the nature of fracture. Plate provides optimal compression and stability.
• Plate preserves blood supply to soft tissues and bone.

Indications:

Volar Distal Radius Safety Lock Plate 2.4, Extra Articular (5 Head Holes) is indicated for displaced extra-articular and intra-articular distal radius fractures and corrective osteotomies of the distal radius.

Plate Features:

• Anatomically contoured Volar Distal Radius Safety Lock Plate 2.4, Extra Articular (5 Head Holes)
• Locking plates provides anatomical reduction. It means adaptation of fracture fragments to restore normal anatomy.
• stability in fixation: It gives stability in fixation as required by the nature of fracture. Plate provides optimal compression and stability.
• Plate preserves blood supply to soft tissues and bone.

Indications:

Volar Distal Radius Safety Lock Plate 2.4, Extra Articular (4 Head Holes) is indicated for displaced extra-articular and intra-articular distal radius fractures and corrective osteotomies of the distal radius.

Plate Features:

• Anatomically contoured Volar Distal Radius Safety Lock Plate 2.4, Extra Articular (4 Head Holes)
• Locking plates provides anatomical reduction. It means adaptation of fracture fragments to restore normal anatomy.
• stability in fixation: It gives stability in fixation as required by the nature of fracture. Plate provides optimal compression and stability.
• Plate preserves blood supply to soft tissues and bone.

Indications:

Volar Distal Radius Safety Lock Plate 2.4, juxta-articular (5 Head Holes) is indicated for displaced extra-articular and intra-articular distal radius fractures and corrective osteotomies of the distal radius.

Plate Features:

• Anatomically contoured Volar Distal Radius Safety Lock Plate 2.4, juxta-articular (5 Head Holes)
• Locking plates provides anatomical reduction. It means adaptation of fracture fragments to restore normal anatomy.
• stability in fixation: It gives stability in fixation as required by the nature of fracture. Plate provides optimal compression and stability.
• Plate preserves blood supply to soft tissues and bone.

Indications:

Volar Distal Radius Buttress Safety Lock Plate 2.4, juxta-articular (5 Head Holes) is indicated for displaced extra-articular and intra-articular distal radius fractures and corrective osteotomies of the distal radius.

Plate Features:

• Anatomically contoured Volar Distal Radius Buttress Safety Lock Plate 2.4, juxta-articular (5 Head Holes).
• Locking plates provides anatomical reduction. It means adaptation of fracture fragments to restore normal anatomy.
• stability in fixation: It gives stability in fixation as required by the nature of fracture. Plate provides optimal compression and stability.
• Plate preserves blood supply to soft tissues and bone.

Indications:

• Dorsally displaced distal radius fractures.
• Combination of distal radius with carpal and metacarpal fractures.
• Corrective osteotomies.

Plate Features:

• Anatomically contoured Dorsal Distal Radius Safety Lock Plate 2.4 - Straight.
• Locking plates provides anatomical reduction. It means adaptation of fracture fragments to restore normal anatomy.
• stability in fixation: It gives stability in fixation as required by the nature of fracture. Plate provides optimal compression and stability.
• Plate preserves blood supply to soft tissues and bone

Indications:

• Complex intra-articular and extra-articular olecranon fractures.
• Pseudoarthrosis of the proximal ulna.
• Simple olecranon fractures.
• Repair of the olecranon after osteotomies in distal humerus surgery.

Plate Features:

• Angular stable fixation of fragments regardless of bone quality.
• Minimised risk of primary and secondary loss of reduction, even under high dynamic loading.
• Reduced impairment of periosteal blood supply due to the limited plate contact.

• Broad Curved Safety Lock Plate 4.5/5.0 is used to fix the Femoral shaft fracture.
• The curve in the plate easily fit over the Femur.
• Used with 4.5mm cortical and 5.0mm locking head screw.

• No. of Holes	Length mm	STAINLESS STEEL
  12	229	SF-619.12
  13	247	SF-619.13
  14	265	SF-619.14
  15	282	SF-619.15
  16	300	SF-619.16
  17	318	SF-619.17
  18	336	SF-619.18

• No. of Holes	Length mm	TITANIUM
  12	229	Ti-SF-619.12
  13	247	Ti-SF-619.13
  14	265	Ti-SF-619.14
  15	282	Ti-SF-619.15
  16	300	Ti-SF-619.16
  17	318	Ti-SF-619.17
  18	336	Ti-SF-619.18

• Pelvis Safety Lock Plate. These plates are indicated for the fractures of Pubic bone with or without disruption of Pubic symphysis.
• It is not recommended during pregnancy.
• Anatomically designed plate fits over Pubic arch.

• The Proximal Femoral Safety Lock Plate 4.5/5.0/7.3 is intended for fractures of the femur including: fractures of the trochanteric region , trochanteric simple, cervicotrochanteric region, trochanterodiaphyseal, multifragmentary pertrochanteric, intertrochanteric, intertrochanteric reversed, or transverse or with additional fracture of medial cortex.
• Fractures of the proximal end of the femur combined with ispsilateral shaft fractures, metastatic fracture of the proximal femur and osteotomies of the proximal femur.
• All holes of the shaft accommodate cortex screw 4.5mm, self Tapping and safety Lock Screw 5.0mm.

• Distal Femoral Safety Lock Plate 4.5/5.0 are intended for buttressing multifragmentary distal femur fractures including: supracondylar, intra-articular condylar, periprosthetic fractures and fractures in normal or osteopenic bone, nonunions and malunions, and osteotomies of the femur.
• All holes accommodate Cortex screw 4.5mm, Self Tapping and Safety Lock Screw 5.0mm.

Indication:

The Metaphyseal plates are indicated for extra-articular fractures of the metaphyseal area that extend into the shaft. The Metaphyseal plate 3.5/4.5/5.0 is indicated for distal tibial and proximal humeral fractures.

Plate Features:

• Safety Locking combi-holes allow uncompromising combinations:The combi-hole allows an internal plate fixation using standard screws, angular stable locking screws, or a combination of both. This takes into account the most diverse intraoperative requirements.
• Angular stability allows for better fixation:The angle- and axis-stable locking screws prevent loss of reduction underload. A precise anatomical contouring of the plate is unnecessary when using this system as a locking internal fixator.
• Easier plate contouring due to thinned plate profile:The plate design facilitates anatomical contouring considerably, whilst taking into account the distinctive features of the metaphyseal bone area (e.g. complex bone shapes, thin soft tissue envelope).
• Extra-articular fixation with the advantage of angled locking screws:The two distal holes in the thinned area of the plate, which are angled at 11 towards the centre of the plate, allow an optimal application of the locking screws in the epiphyseal area.
• Improved vascularization of the periost due to plate under cuts that reduce the plate-to-bone contact.
• The elongated hole in the shaft optimizes fine tuning of the reduction in the longitudinal axis.
• The Metaphyseal Safety Lock Plates have both compression and locking holes. The plates accept 3.5 / 4.5 mm cortex, 3.5, 4.0, & 5.0 mm safety lock and 4.0mm / 6.5 mm cancellous screws.

Indications:

The LCP Metaphyseal Plate for distal medial tibia is a preshaped plate that allows optimal treatment of juxta-articular fractures of the distal tibia extending into the shaft area. This plate takes the following characteristics of the distal tibia into account:

• Thin, soft tissue coverage.
• Complex anatomic shape of the bone.

Plate Features:

• Anatomically precontoured plate: The anatomical shape of the plate is especially designed to fit the complex shape of the distal part of the bone. A twist of the plate optimizes the fit on the tibia.
• Thinned plate profile: The distal part of the plate is tapered to preserve the thin soft tissue envelope of the distal tibia.
• Optimal distal application of the locking head screws: The specific orientation of the four distal screws allows optimal fixation in the epiphyseal area without penetrating the articulation.
• Improved vascularisation of the bone due to plate undercuts that reduce the plate-to-bone contact.

Indications

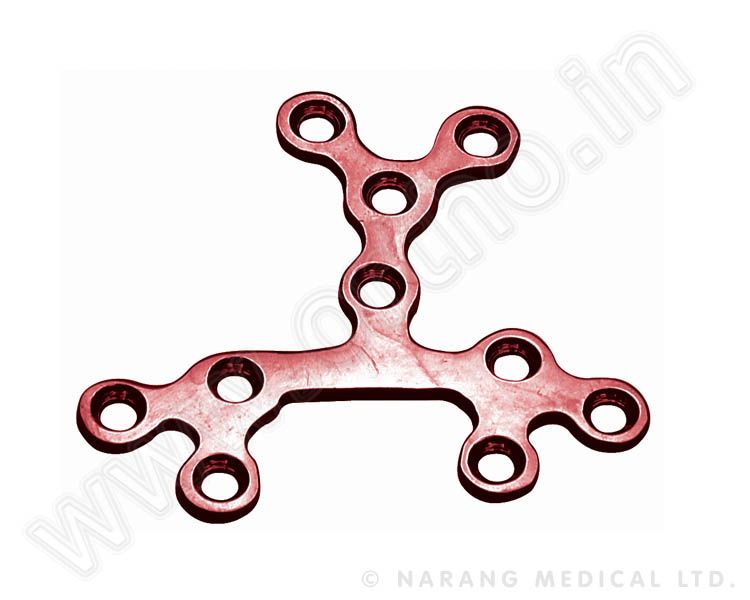

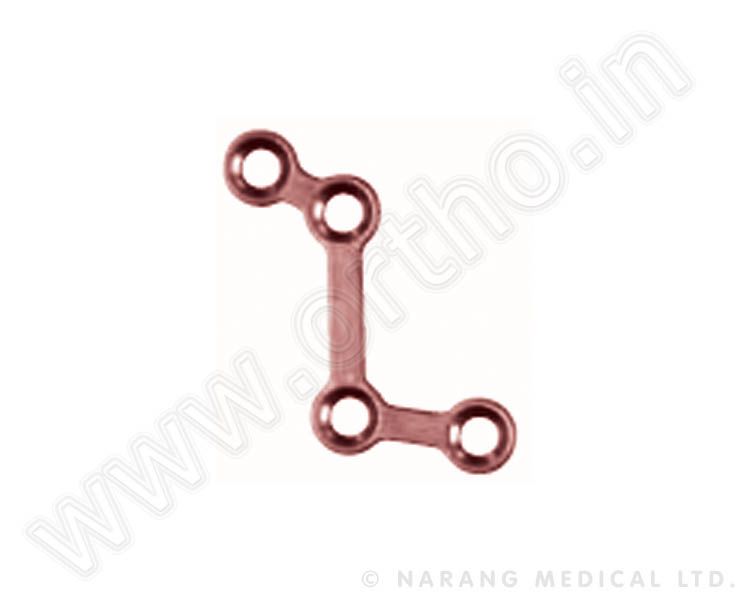

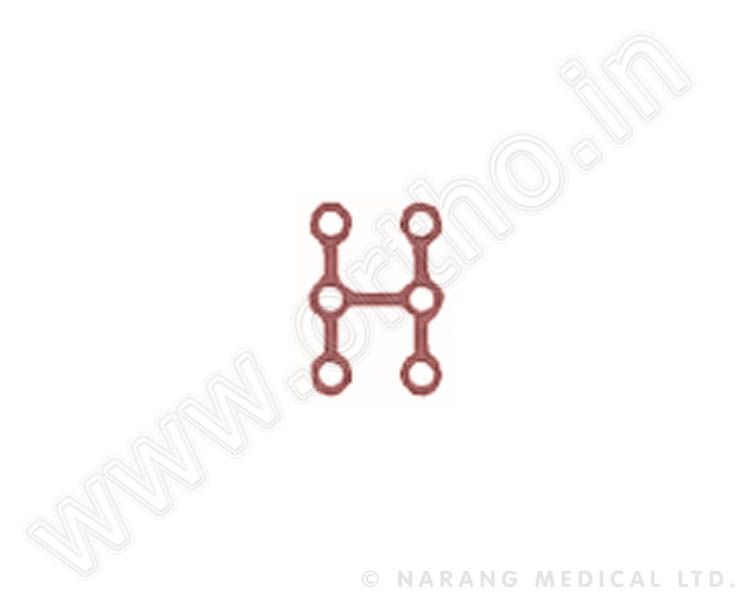

NET MIDFACE CMF Plating System is intended for use in selective trauma of the midface and craniofacial skeleton; craniofacial surgery; reconstructive procedures; and selective orthognathic surgery of the maxilla and chin.

Contraindications

The use in areas with active or latent infection or insufficient quantity or quality of bone.

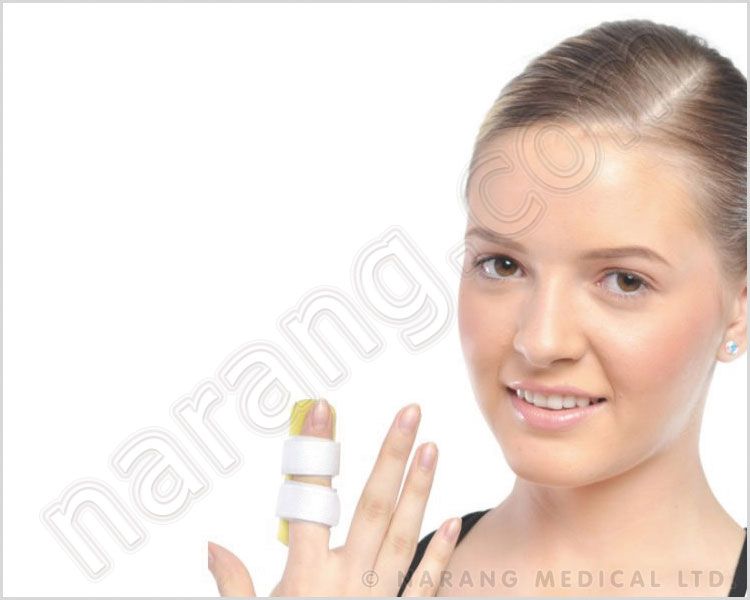

• Size:S, M, L

Feature:

• Foam padded aluminium splint in unique shape to cover the dorsal surface of finger to remain open
• Four extended arms to ensure good fitting.

Application:

• Hyper flexion injuries
• Swan neck deformity
• To hold distal inter phalangeal joints in correct alignment
• Collateral ligament injuries of distal inter phalangeal joint

• Size:Universal

Feature:

• High quality fabric with suede lining for comfort and durability
• Allows performance of routine tasks in comfort as it limits extreme motion of the joint of the thumb.

Application:

• Designed for patients with painful wrists and thumb tendentious
• Splint provides light compression to assist in decreasing pain and relieving inflammation

• Size:S, M, L, XL (Left, Right)

Feature:

• Pre shaped splint for immobilization in dorsiflexion.
• High quality fabric and foam padding for comfort wear.
• Thumb flap with velcro closure.

Application:

• Strain and sprain in the wrist.
• Early cast removal.
• Minor fractures of the wrist and distal forearm.

• Size:S, M, L, XL, XXL

Feature:

• High quality foam, fused fabric with metallic splinting for comfort and rigid support
• Velcro closures for easy and quick application
• Anatomically shaped splinting for proper fit.

Application:

• An excellent product for support and stability to the injured knee
• Emergency care in case of fracture, muscle / ligament /tendon injury or dislocation of the knee
• Post operative rehabilitative care

• Size:Universal

Feature:

• Padding on head halter to give comfortable wear
• Spreader bar and pulley system provided
• Heavy-duty weight bag with separate graduations for water and sand
• Heavy-duty strings provided in the kit.

Application:

• Traction upon medical practitioners recommendation.

• Size:Universal

Feature:

• Padding on head halter to give comfortable wear
• Spreader bar and pulley system provision
• Heavy-duty weight bag with separate graduations for water and sand
• Heavy-duty strings provided in the kit.

Application:

• Cervical spine traction in sitting position
• For short time cervical traction in muscle spasm
• Cervical spine dislocation for continuous

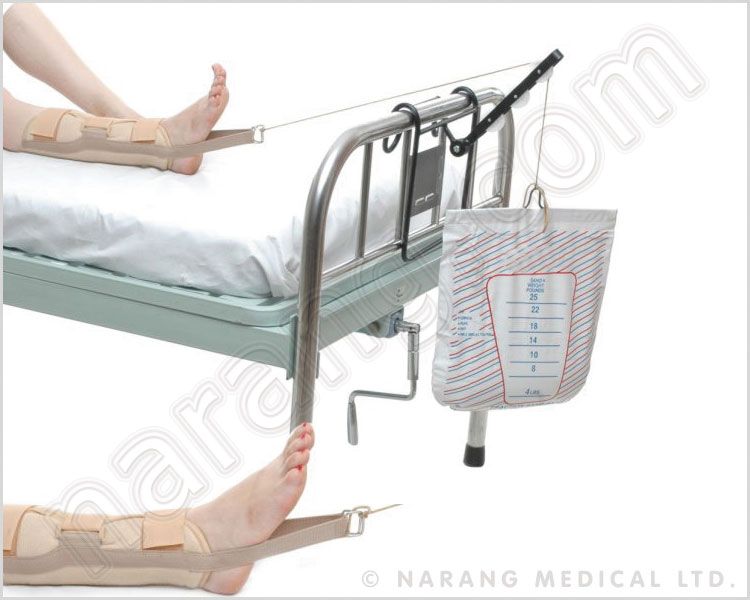

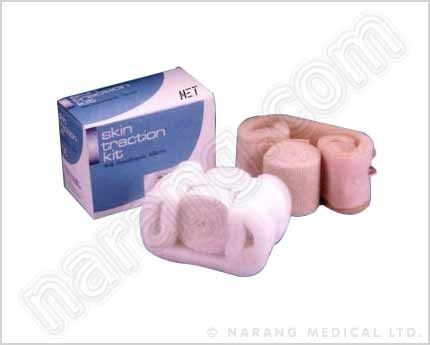

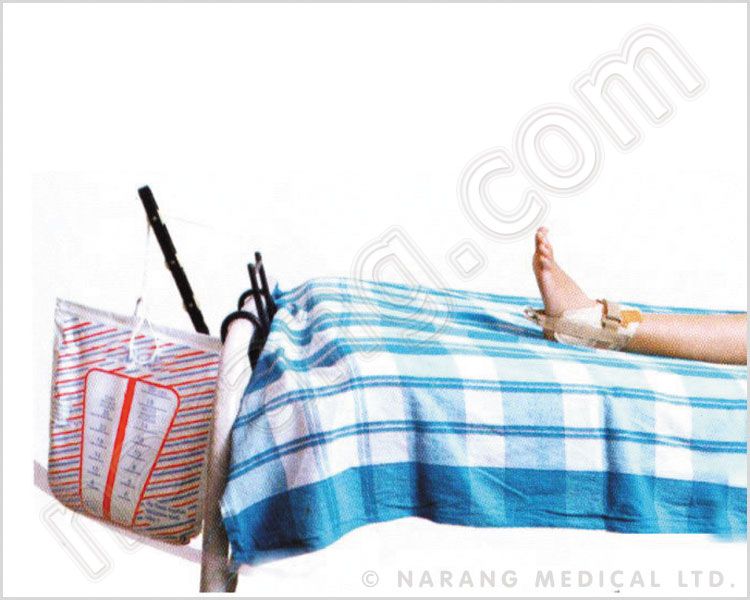

• Size:Child, Adult

Feature:

• Foam padded heavy-duty fabric and crepe bandage provided to wrap around for below knee skin traction
• Heavy-duty strings provided
• Availability of Pulley system
• Heavy-duty weight bag with separate graduations for water and sand.

Application:

• Below knee traction to relieve pain in the back and knee region.

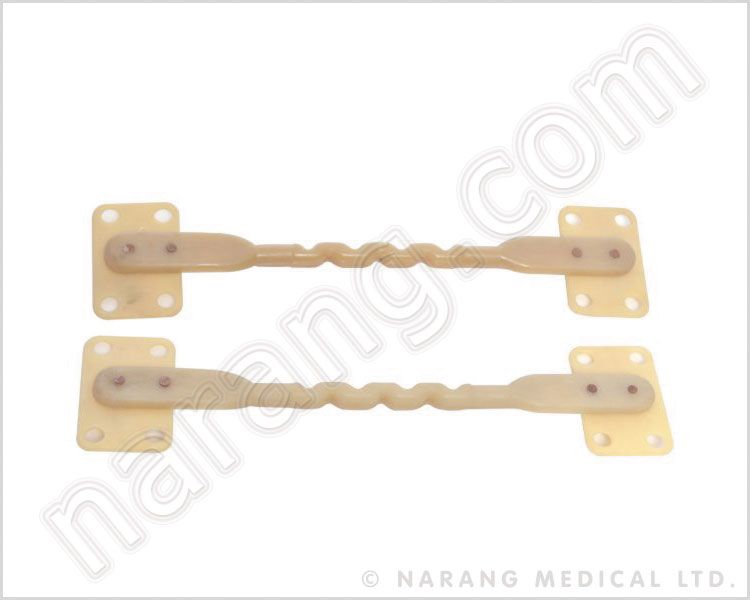

• Size:Universal

Feature:

• Flexible high-density unbreakable plastic. Suitable to be used on cast. Attaches directly to the above knee and below knee sections of cast.

Application:

• Fracture bracing to provide functional mobility and early ambulation in post acute fracture. Post acute fracture application to provide mobility and increased muscle activity. Provides early ambulation with fractures of distal femur and proximal tibia.

Specifications/Details :

• Frame made up of SS tube fitted on PVC stumps.
• Step made up of SS Shut
• Size: L 450 x W 230 x H 230 mm

Specifications/Details:

• Stainless steel pipe construction mounted on three 10 cms. dia. castors.
• Supplied with one 35 cms. dia. S.S. Basin.

• The Bed Surface of the stretcher is made of foamed cushion with adjustable backrest which makes the patient feel more comfortable.
• It has low frame structure, so that it can move on the ground and can also be lifted as a stretcher.
• The both ends of the stretcher have opening circles which are used for transporting the patients. Salvage stretcher can be put inside the stretcher.
• Unfolded Size (LxWxH): 190x55x42cm, Self-weight: 25 kg, Load Bearing: 159 kg.
• Framework made of light weight aluminium. Maximum backrest adjustable: 65.
• Suitable for the ambulances where the wheel height is less than 29cm.

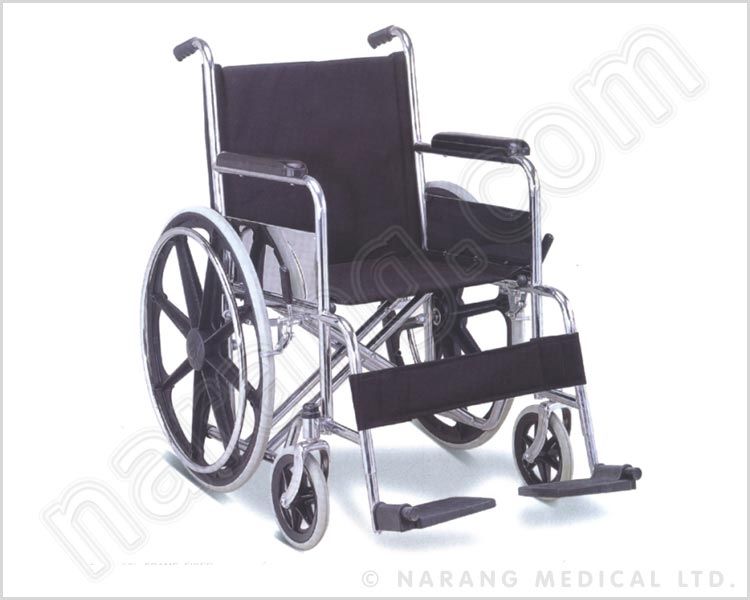

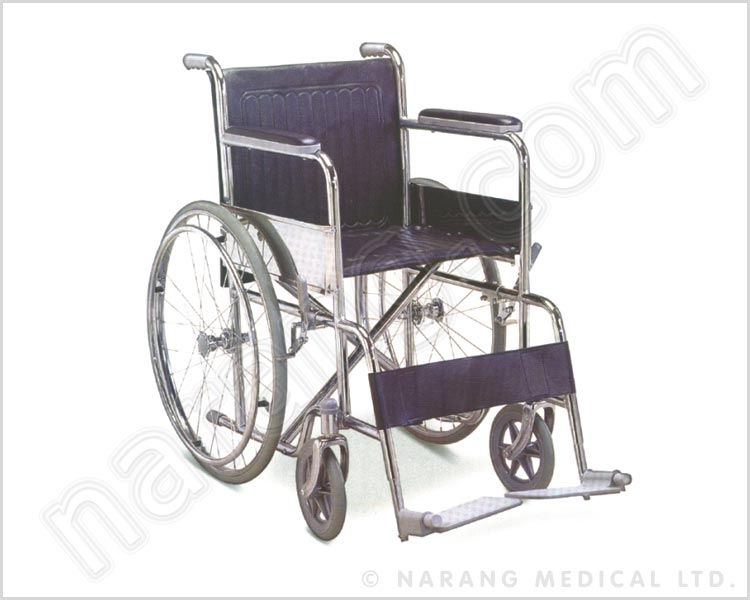

• Chromed Steel Frame.
• Fixed Armrest, Fixed Footrest.
• Solid Castor, Solid Rear Wheel With Spokes.
• Patient Controlled Brakes.

• Chromed Steel Frame.
• Fixed Armrest, Fixed Footrest.
• Solid Castor, Solid Rear Wheel With Spokes.
• Patient Controlled Brakes.

• Chromed Steel Frame, Double Cross bar.
• Fixed Armrest, Fixed Footrest.
• Solid Castor, Solid Real Wheel Plastic.
• Patient Controlled Brakes.

• Steel Powder Coating.
• Flip Up Armrest, Detachable Footrest.
• Solid Castor, Solid Rear Wheel Plastic.
• Patient Controlled Brakes.

• Steel Powder Coating.
• Detachable Armrest, Detachable Footrest.
• Solid Castor, Solid Rear Wheel With Spokes.
• Patient Controlled Brakes.

• Chromed Steel Frame.
• Detachable Armrest, Elevating Footrest.
• PU Castor, Pneumatic Rear Wheel With Spokes.
• Patient Controlled Brakes.

• Walker foldable with two wheels.
• Aluminium Framework.
• Height Adjustable 78-96 cm.
• Seat Width 44 cm.

• Walker Rollator foldable with two wheels.
• Aluminium Framework.
• Height Adjustable 81-91 cm.
• Seat Width 47 cm.

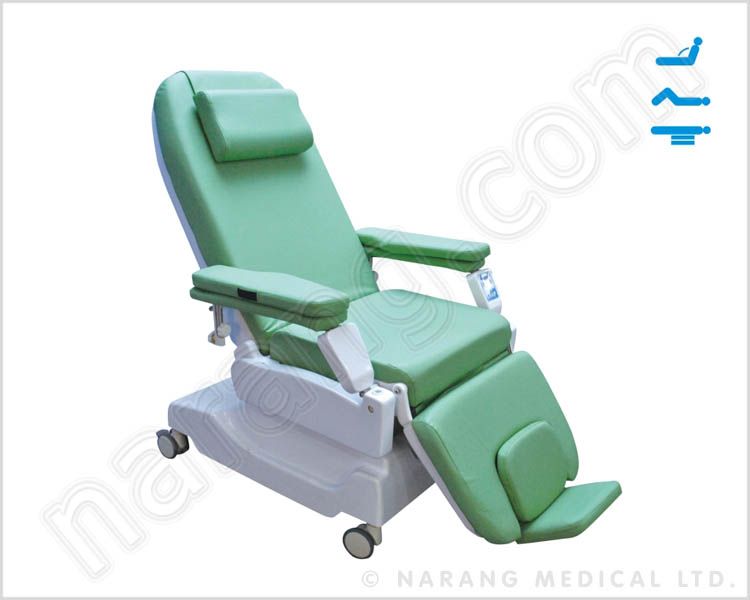

• Blood Donation Chair 3 Function - Remote controlled electrically operated backrest, leg section and height adjustment.
• Linak motor controls
